Fabtech K5001DL 6-inch Lift Kit With Dirt Logic Shocks, Fits 2003-2005 Hummer H2 W/ OE Rear Air Bags

Fabtech K5001DL 6-inch Lift Kit With Dirt Logic Shocks, Fits 2003-2005 Hummer H2 W/ OE Rear Air Bags
Part Number: FAB-K5001DL
Brand: Fabtech Motorsports
List Price: $6,199.96
Price: $4,948.23

Qty

Fabtech K5001DL 6-inch Lift Kit With Dirt Logic 2.25-in Stainless Shocks, Fits 2003-2005 Hummer H2 W/ OE Rear Air Bags

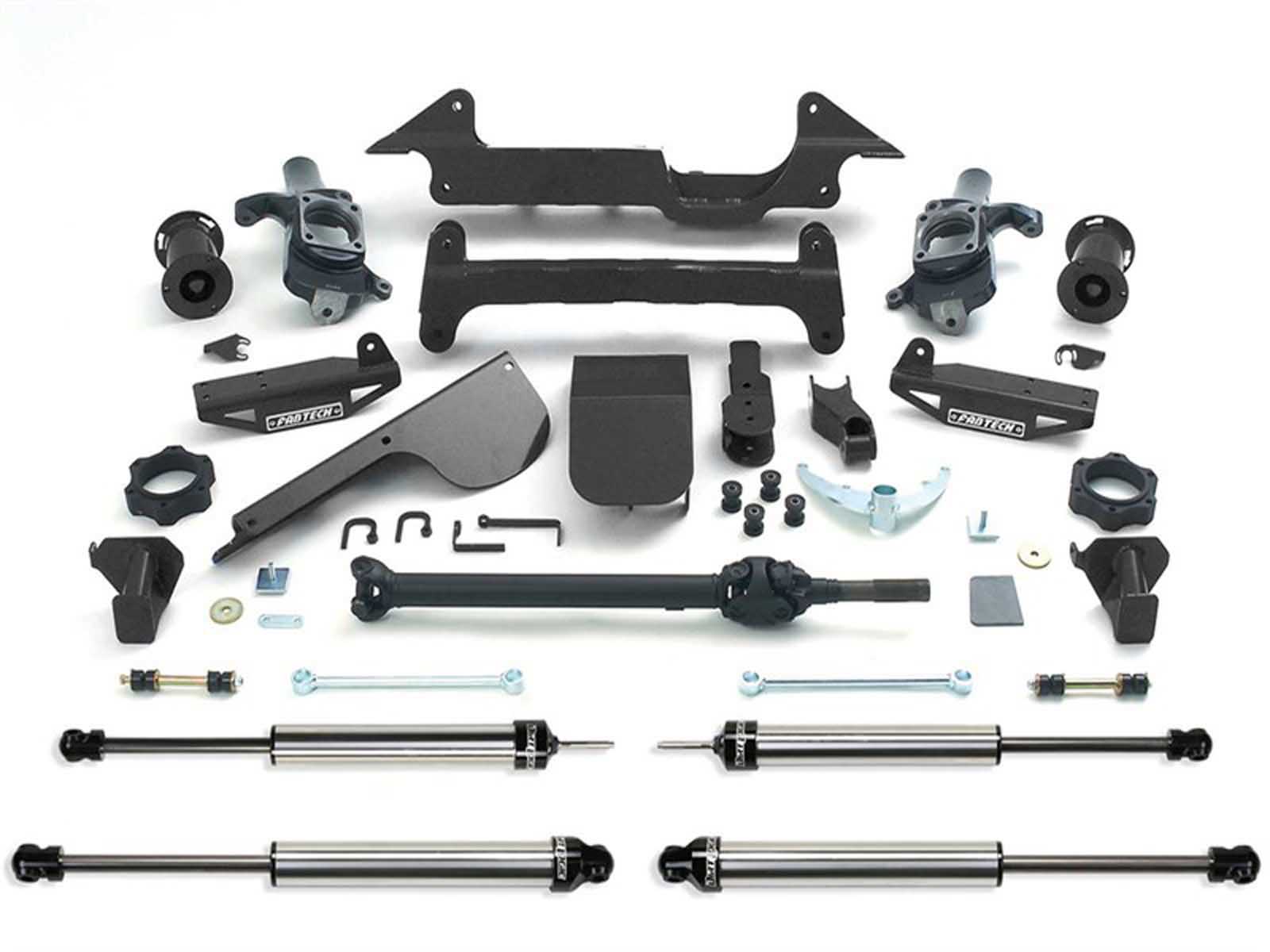

The Fabtech Hummer 6-inch lift kit system is constructed much like all of their IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2’s fulltime transfer case Fabtech includes a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4" thick skid plates, one for the front differential and one for the transfer case. Rear lift on factory air bag H2’s comes from a super stout bag spacer. Included are:

  • Extended Length Ductile Iron Spindles
  • 1/4" Thick High Arched Crossmembers
  • Two 1/4" Thick Skid Plates
  • Front CV Driveshaft
  • Rear Air Bag Spacer



DIRT LOGIC 2.25 STAINLESS SHOCKS

For this kit, Accesspeed adds Dirt Logic 2.25 Shocks, which are designed to replace factory shocks with a larger, more robust configuration. The 2.25” size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. These shocks are pre-tuned for each Fabtech suspension, accounting for the vehicle size and weight and larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends



Tire & Wheel Fitment

  • Tire Size – 37/12.50R17 Wheel Size – 17×10 w/ 4 5/8in BS w/minor trimming
  • Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
  • Tire Size – 38/15.50R18 Wheel Size – 18×10 w/ 5in BS w/minor trimming
  • Tire Size – 40/13.50R17 Wheel Size – 17×10 w/ 4 5/8in BS w/minor trimming




Notes

This kit is special-order only and is built to order for each client. It ships oversize via truck freight and may take additional time in transit.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
FAB-K5001DL Fabtech K5001DL 6-inch Lift Kit With Dirt Logic Shocks, Fits 2003-2005 Hummer H2 W/ OE Rear Air Bags $4,948.23 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
2005 Hummer H2 - SUT 6.0 4WD
2005 Hummer H2 - SUV 6.0 4WD
2004 Hummer H2 - SUV 6.0 4WD
2003 Hummer H2 - SUV 6.0 4WD
