Wilwood 260-8419 Proportioning Valve with Compact Knob

Wilwood 260-8419 Proportioning Valve with Compact Knob
Part Number: WIL-260-8419
Brand: Wilwood
List Price: $64.96
Price: $48.44

Qty

Wilwood 260-8419 Proportioning Valve with Compact Knob

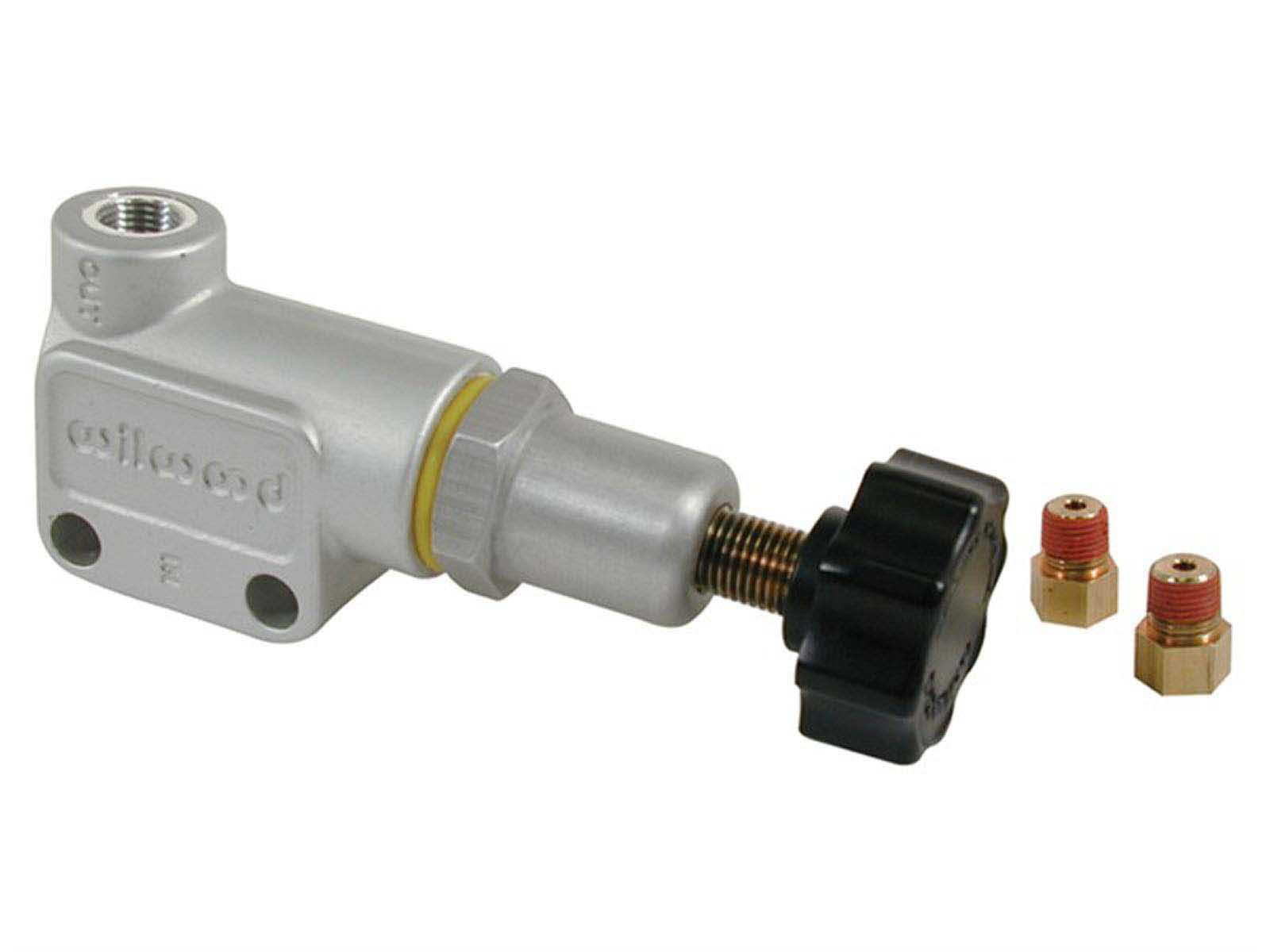

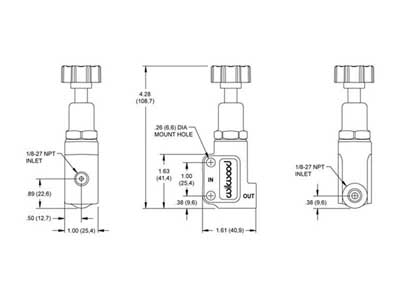

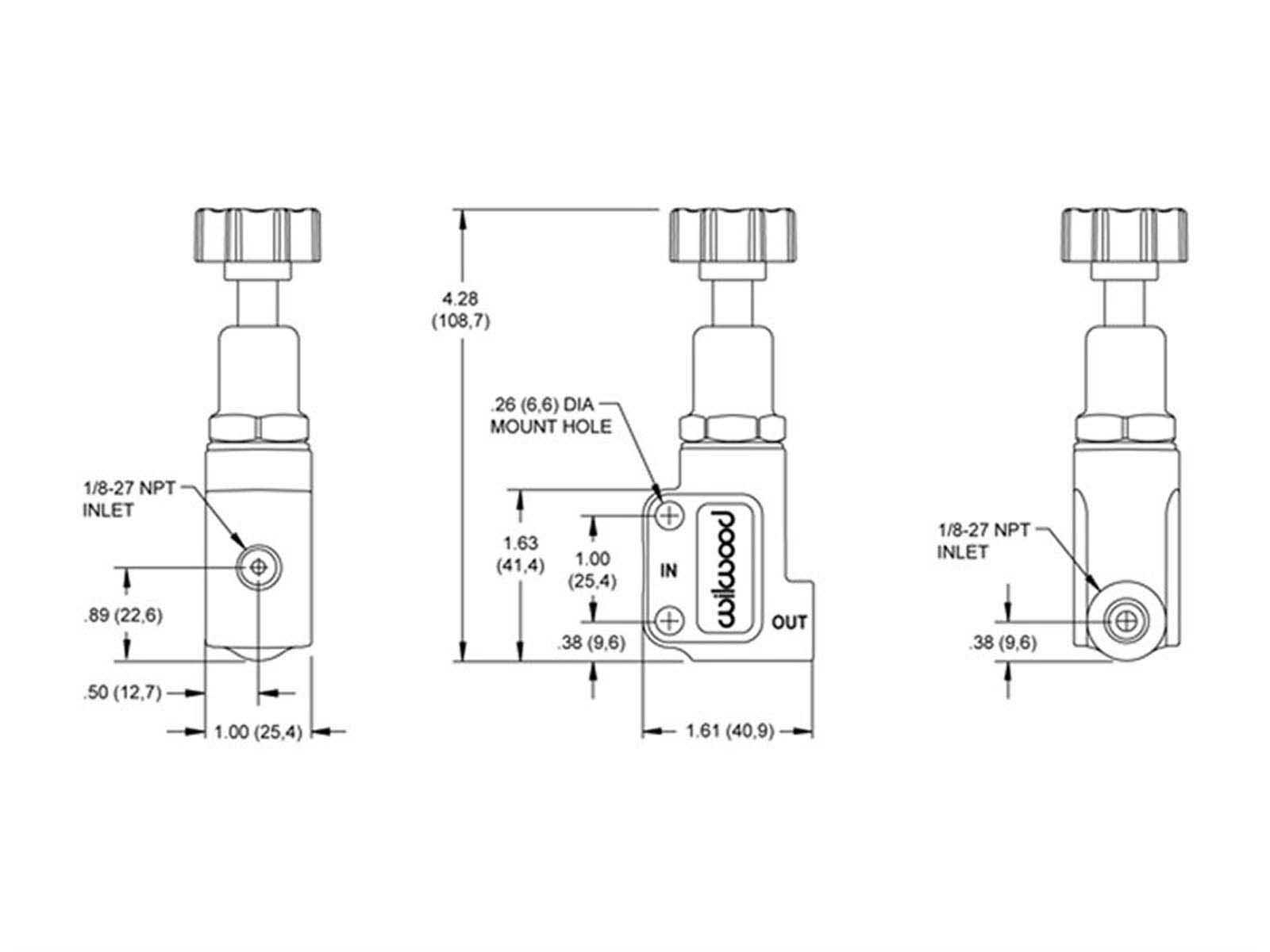

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

  • Inlet Size (in)        1/8-27 NPT
  • Inlet Fit (in)           3/8-24 IF Female
  • Outlet Size 1 (in)  1/8-27 NPT
  • Outlet Fit 1 (in)     3/8-24 IF Female

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-260-8419 Wilwood 260-8419 Proportioning Valve with Compact Knob $48.44 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
