RCD 10-41299 Suspension Lift Kit 4"-6" with Bilstein Shocks 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 GM 2500HD Truck/SUV Avalanche/Suburban/Tahoe/Yukon/Sierra/Silverado 2WD
Like the robust 2500HD platform, the Chevrolet & GMC 8-Lug platform has been a cornerstone for over two decades. The classic GM IFS suspension technology has been proven time and again to provide exceptional handling characteristics and performance. RCD Suspension, with its industry leading sub-frame and spindle technology, has capitalized on this platform to produce a high quality product that exceeds even the most discerning customer needs. RCD Suspension continues to produce these systems for all 1988 through 2008 GM IFS truck and SUV models.
The RCD 6" Suspension System for the 1999-2011 Chevy/GMC 8-lug, 1500HD (01-06 models only) 2500 (Non-HD), Avalanche, Yukon, Suburban, 2WD includes: CNC machined replacement cast iron steering knuckles, T-6 billet aluminum axle spacers, zinc plated billet steel "Super-Flex" sway bar end links, replacement heavy duty lower link arms, rear coil spring, shock absorber relocation bracketry, Bisltein 5100 Series Shock Absorbers, and Standard Torsion Bar Suspension (Non Delphi Auto). Note: no drive shaft modifications are needed for installation.
This kit is compatible with:
- 2001-2011 GMC C1500/2500 - 2WD
- 2001-2011 GMC C2500 - 2WD
- 2001-2011 GM 2500 Avalanche/Suburban/Tahoe/Yukon - 2WD

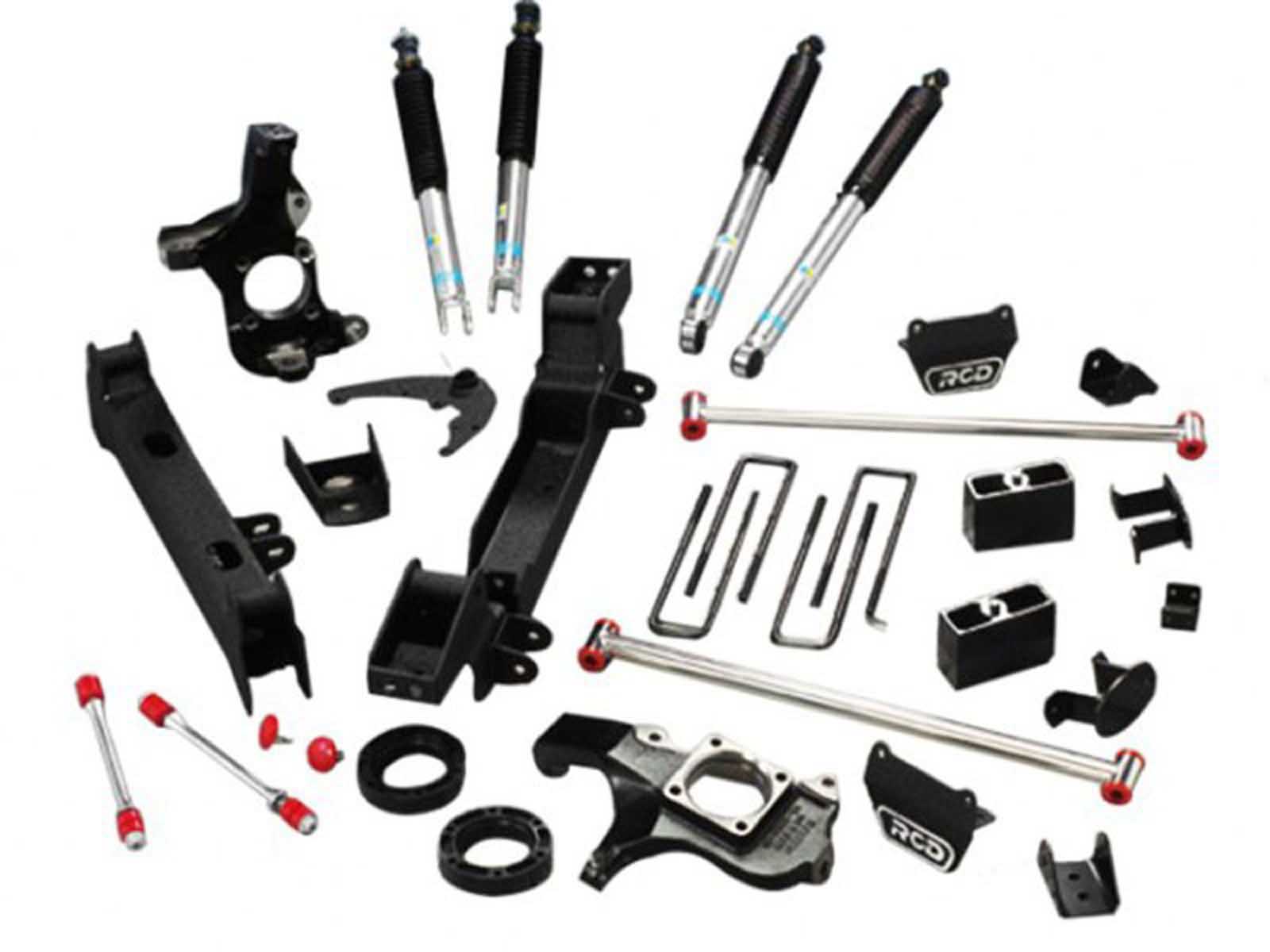

This kit includes:
- Front & rear crossmembers
- Front spindles
- Lateral compression strut kit
- Main kit
- Bilstein 5100 Series Shock Absorbers
Wheel/Tire Specifications:
Max Tire Size: 33" x 12.5" w/no modifications necessary. 35" & larger x 12.5" require minor fender and/or bumper trimming.
Max Backspace: 16" x 8" -4.5" backspacing. 17" & larger x 8" =4.625" backspacing.
Additional Information:
- Will NOT work with Air Ride or Electronic Suspension Systems
- Recalibration of the speedometer, ABS and stability control systems will be required by an authorized GMC/Chevy Dealer
- Must enlarge lower control arm sway bar end link mounting hole to 3/4”
- Will not work on vehicles equipped with rear steering
- Vehicles equipped with two piece rear drive shaft may require 20-68747 Drive Shaft Support Drop Down Bracket for the factory carrier bearing
Notes
6" Suspension System w/ Bilstein 5100 Series Shock Absorbers Chevrolet / GMC, 8-lug, 1500HD*, 2500 (Non HD), & 2500 Avalanche, Yukon, Suburban, 2wd, Standard Torsion Bar Suspension, (Non Delphi Auto)
*1500HD 2001-2006 models only
RCD Suspension has moved to a "build to order" business model for many of their lift kits, which are now special-order. Please see our terms and conditions for more information on special orders.
*This kit ships via truck freight due to the size and weight. The shipping price you see is estimated. You will be contacted with an exact shipping quote subsequent to ordering.
