Wilwood 120-14318-RSR TC6R Caliper-Red 1.75 & 1.38 & 1.38" Pistons, 1.38" Disc

Wilwood 120-14318-RSR TC6R Caliper-Red 1.75 & 1.38 & 1.38-in Pistons, 1.38-in Disc

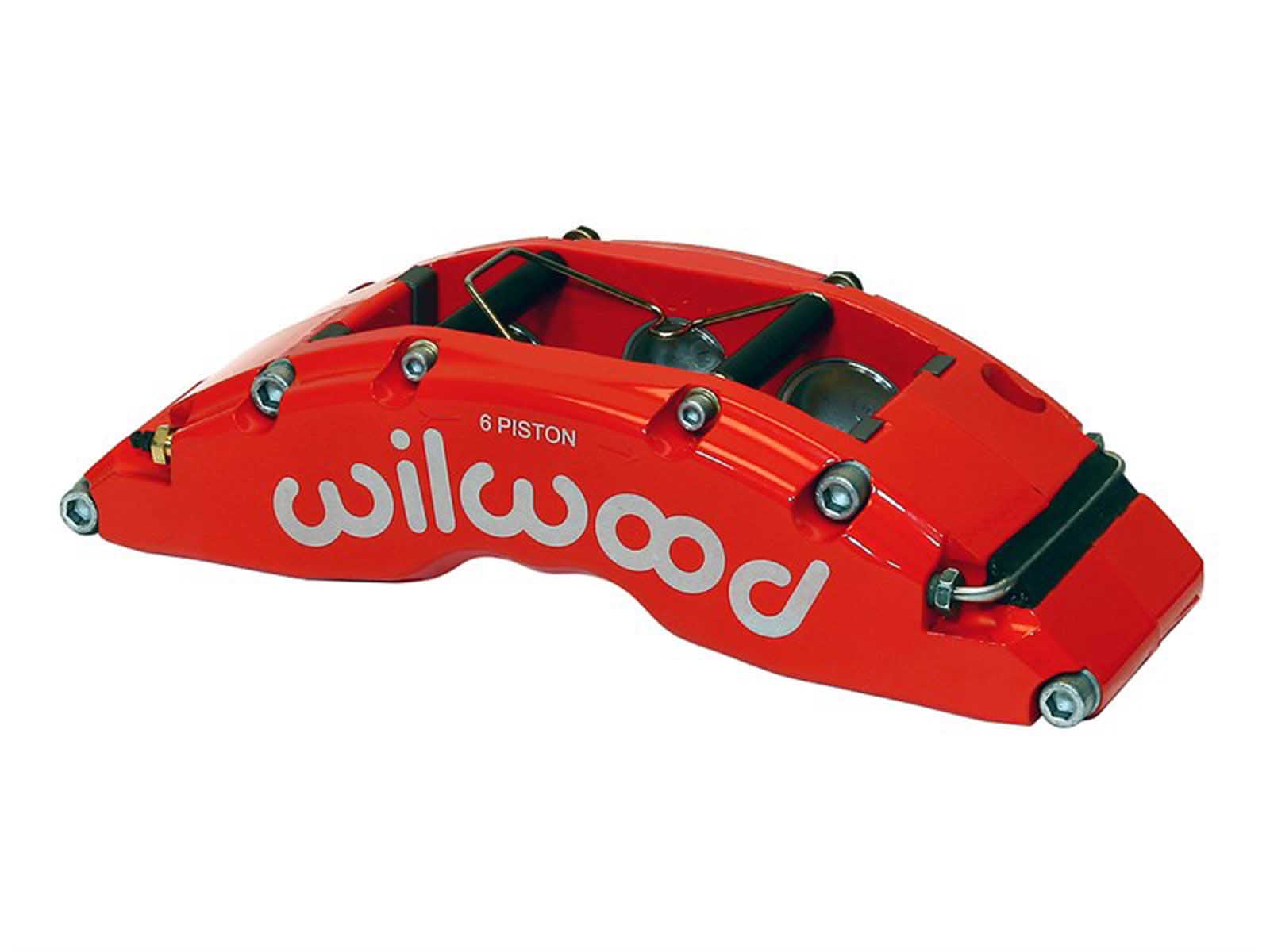

The Wilwood TC6R Radial Mount Caliper represents a completely new generation of refinement in Big Brake Technology from Wilwood. Six stainless pistons captured within a massive high strength forged aluminum body generate the stopping power and durability to stylishly handle the heavy loads of custom late model trucks and sport utility vehicles. Accesspeed carries all TC6 Calipers for your every need.

Wilwood TC6R calipers are stress flow forged from premium grade, billet aluminum alloy blanks. FEA structural analysis technology was employed to develop a design that minimizes weight, and maximizes rigidity against deflection. The expanded bridge radius easily accommodates 1.38" thick rotors up to a full 16 inches in diameter. The bodies are joined and reinforced through the bridge with six high strength coated steel alloy bolts. Cross bridge bolts add strength against deflection and body separation at high pressures and heavy loads. Steel insert plates protect the bridges against wear and gouging from the load bearing edges of the brake pads.

The Wilwood TC6R, starting at 8.66 pounds, generates unmatched pad clamping efficiency through six thick-wall, stainless-steel pistons. Heavier piston walls add a measure of strength against deflection or distortion in heavy load conditions. Stainless steel is used to resist corrosion and reduce the heat being transferred from the pads into the caliper body, seals, and fluid. The differential piston bore design is taken from Wilwood racing caliper technology. Clamping pressure is proportionately distributed to provide balanced pad loading with even wear properties at all loads and temperatures. The piston bore volumes are configured for matched compatibility with the output capacities of the OE master cylinder and power boost systems.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
