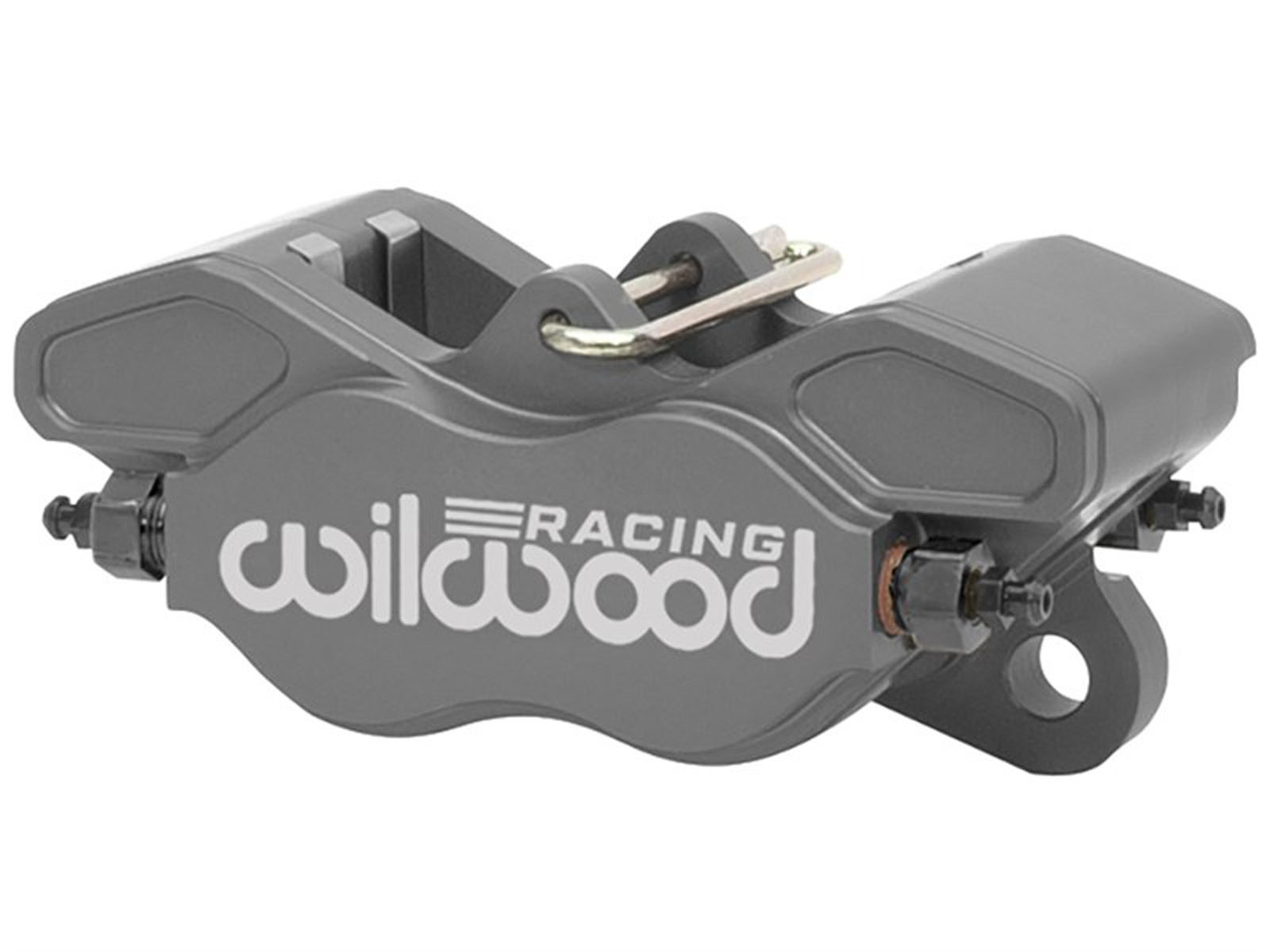

Wilwood 120-17359 GP320A Caliper, O-Ring, 1.25" Pistons, .235" Disc

Wilwood 120-17359 GP320A Caliper, O-Ring, 1.25" Pistons, .235" Disc

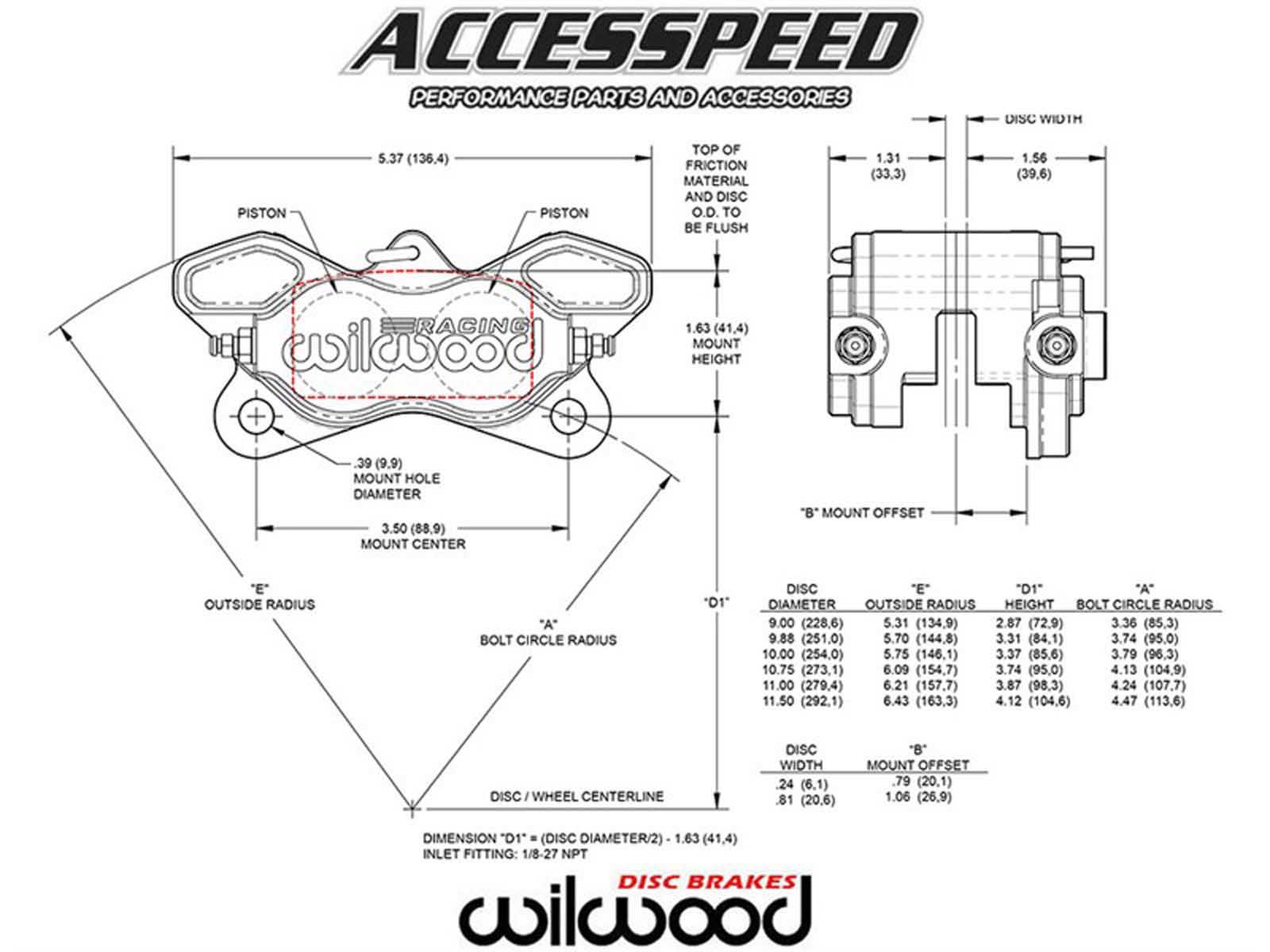

The Wilwood GP320A billet four piston caliper from Accesspeed is a compact, high efficiency performer. Weighing just 1.70 pounds, it was purpose built as an upgrade with increased pad size over two piston calipers on lightweight open wheeled racecars. Newly updated to a dual bleeder design, the caliper can now be installed with both left hand and right-hand inclinations. The GP 320A is also well suited for racing applications including karts, motorcycles, mini-sprints, and formula sports racers. The GP 3230A bridge configuration will accommodate rotors between .75" and .81" thick, with overall diameters between 9.00" and 11.50".

The GP320A Caliper is a full CNC detail machined from premium alloy billet. FEA structural analysis technology was employed to develop a design that minimizes weight and maximizes rigidity against deflection. Full width bridges are reinforced with four, high strength steel cross bridge bolts. The cross-bridge bolts are coated for corrosion resistance and provide added resistance to deflection and body separation under high loads. Internal fluid ports with a single outboard bleeder provide quick and effective evacuation of gasses and spent fluid.

Clamping force is generated by four, 1.25" diameter, stainless steel pistons. The clamping force is spread evenly over the length of the pad to minimize backing plate deflection and promote balanced pad wear. The overall piston bore area provides an increase in clamping force over similar range two piston calipers. Stainless steel is used to resist corrosion and retard the heat transfer from the brake pad to the caliper body, seals, and fluid.
