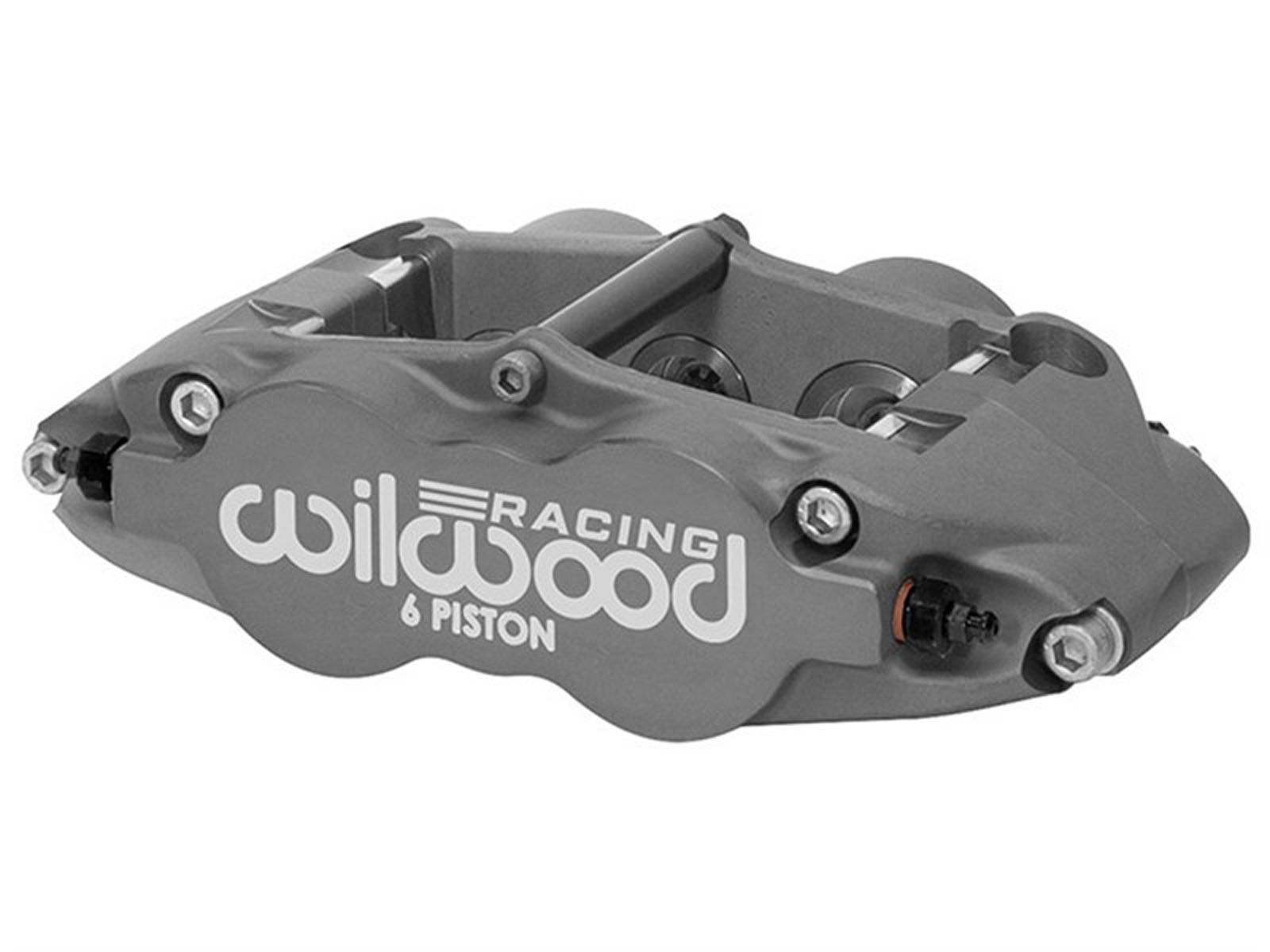

Wilwood 120-17508 Forged Narrow Superlite 6 Left-Hand Radial Mount Caliper for .38” Wide Rotors

Wilwood 120-17508 Forged Narrow Superlite 6 Left-Hand Radial Mount Caliper for .38” Wide Rotors

The Wilwood Forged Narrow Superlite 6R/ST (FNSL6R/ST) caliper from Accesspeed adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate Wilwood's latest technology and the addition of Thermlock insulated pistons to generate big stopping power in extreme high temperature environments over a broad range of vehicle and racing applications.

The key to the superior performance of the FNSL6R series of calipers comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer-generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.

A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The FNSL6R/ST calipers feature Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade.

Notes

Left-Hand

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
