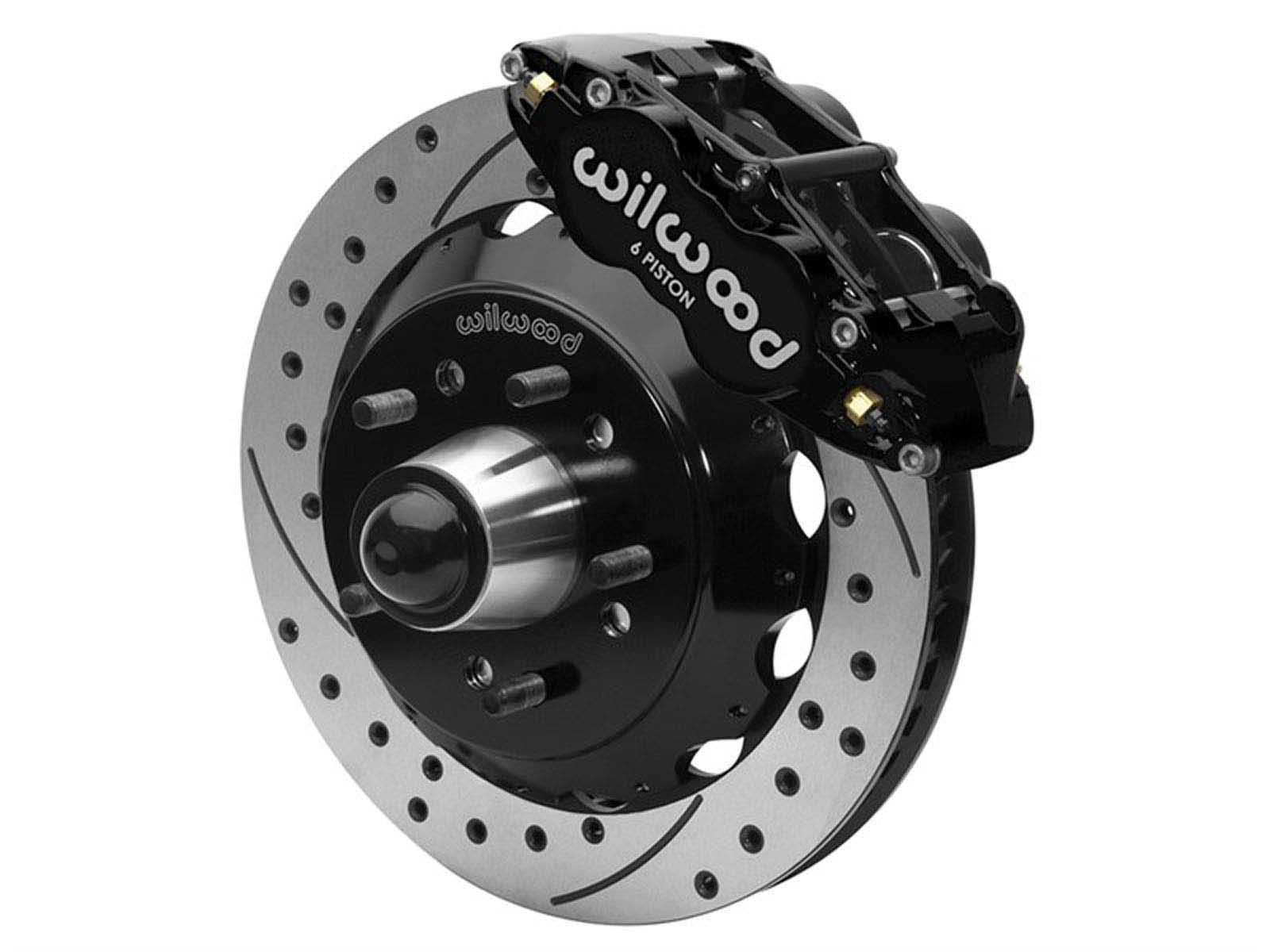

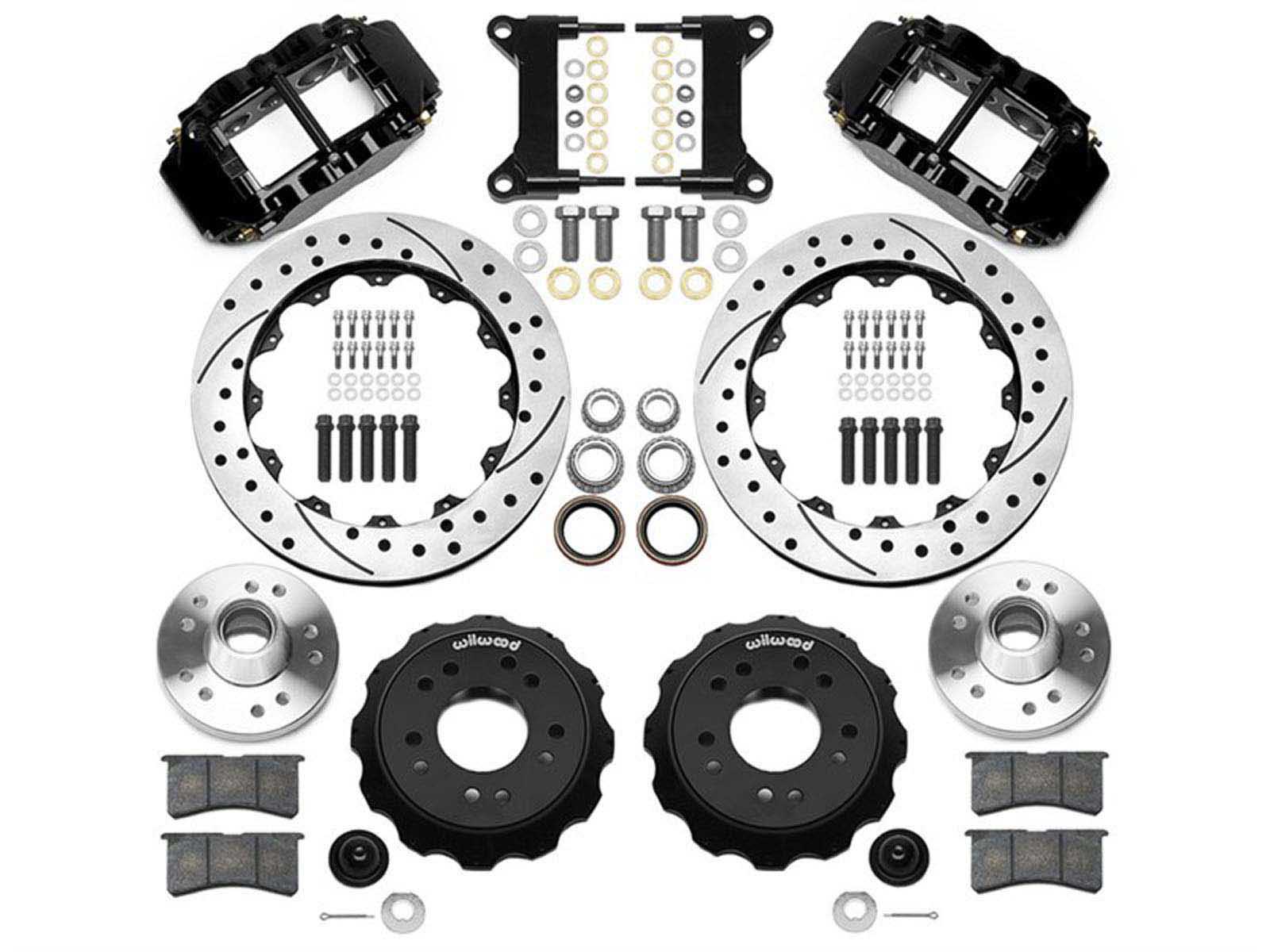

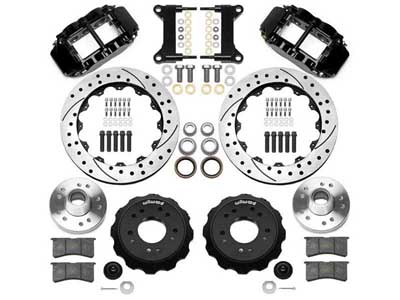

Wilwood 140-15982-D Superlite 6 Front 13" Big Brake Kit, Black, Drilled, 1970-1990 GM A/B/F/X Body

Wilwood 140-15982-D Superlite 6 Front 13-inch Big Brake Kit, Black Calipers, Drilled Rotors, Fits 1970-1990 GM A/B/F/X Body With Wilwood Drop Spindle Front

Forged Narrow SuperLite 6R (FNSL6R) billet forged six-piston calipers with 12.88" rotors deliver the ultimate combination for braking power and style, and are designed for the WWE AFX Pro spindles. AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles and are built exclusively for 17” and larger wheels, FNSL6R kits used with WWE AFX Pro Spindles enhance tire and suspension upgrades on all types of custom show and high-performance dual-purpose street and track machines. A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard Wilwood FNSL6R calipers offer by Accesspeed feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood's exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

BRAKE LINES SOLD SEPARATELY: Order Kit # WIL-220-10509

THIS BRAKE KIT HAS A HUB OFFSET OF +.65 AND WILL NOT FIT OEM FACTORY SPINDLES.  Wilwood Drop Spindles are available and sold separately. See Notes below for clickable link.

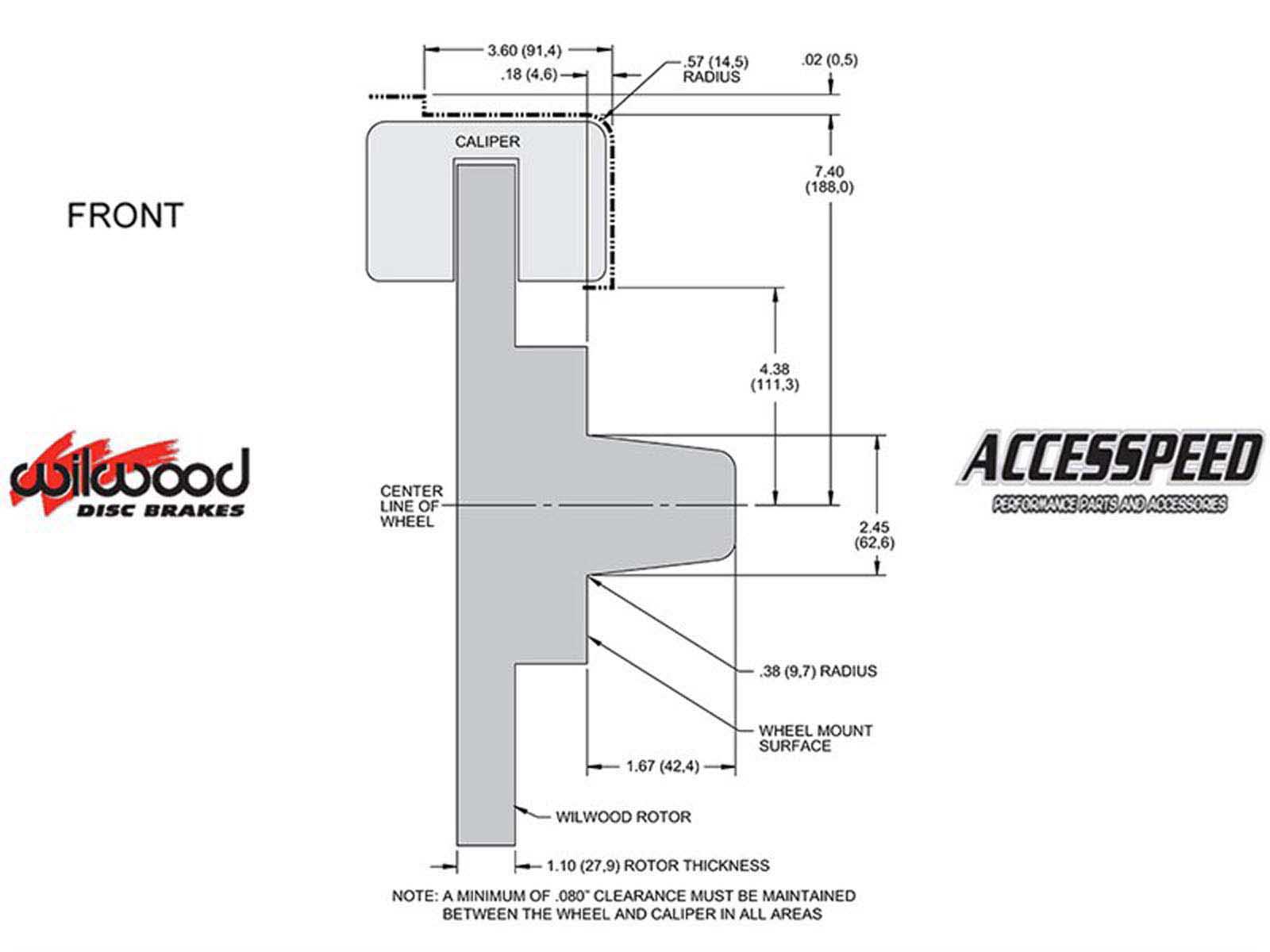

*This Brake Kit may require 17-inch or larger wheels. Please check the Wheel Clearance Diagram Image in this listing to verify you have adequate wheel clearance for this kit.

FITS THE FOLLOWING GENERAL MOTORS CARS:

F-BODY

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird

A-BODY

• 1973-1977 Buick Century
• 1973-1977 Buick Regal
• 1973-1977 Chevrolet Chevelle
• 1973-1976 Chevrolet Laguna
• 1973-1977 Chevrolet Malibu
• 1973-1977 Chevrolet Monte Carlo
• 1973-1977 Chevrolet El Camino
• 1973-1977 GMC Sprint
• 1973-1976 Oldsmobile 442
• 1973-1977 Oldsmobile Cutlass
• 1973-1977 Oldsmobile Cutlass Supreme
• 1973-1975 Pontiac Grand Am
• 1973-1977 Pontiac Grand Prix
• 1973 Pontiac GTO
• 1973-1977 Pontiac Le Mans

X-BODY

• 1975-1979 Buick Apollo
• 1975-1979 Buick Skylark
• 1975-1979 Chevrolet Nova
• 1975-1979 Oldsmobile Omega
• 1975-1979 Pontiac Phoenix
• 1975-1979 Pontiac Ventura II

B-BODY (Only fits models with 11.00” OE rotors.)

• 1977-1990 Buick Electra
• 1977-1985 Buick Estate Wagon
• 1977-1990 Buick Le Sabre
• 1977-1990 Chevrolet Caprice
• 1977-1990 Chevrolet Impala
• 1977-1990 Oldsmobile Delta 88
• 1977-1990 Oldsmobile 98
• 1977-1990 Oldsmobile Custom Cruiser
• 1977-1981 Pontiac Bonneville
• 1977-1981 Pontiac Catalina
• 1977-1990 Pontiac Parisienne
• 1977-1990 Pontiac Park Avenue

Notes

Black Calipers. See separate listing for the Red Caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WILWOOD DROP SPINDLE KIT:  Order #WIL-831-15958
