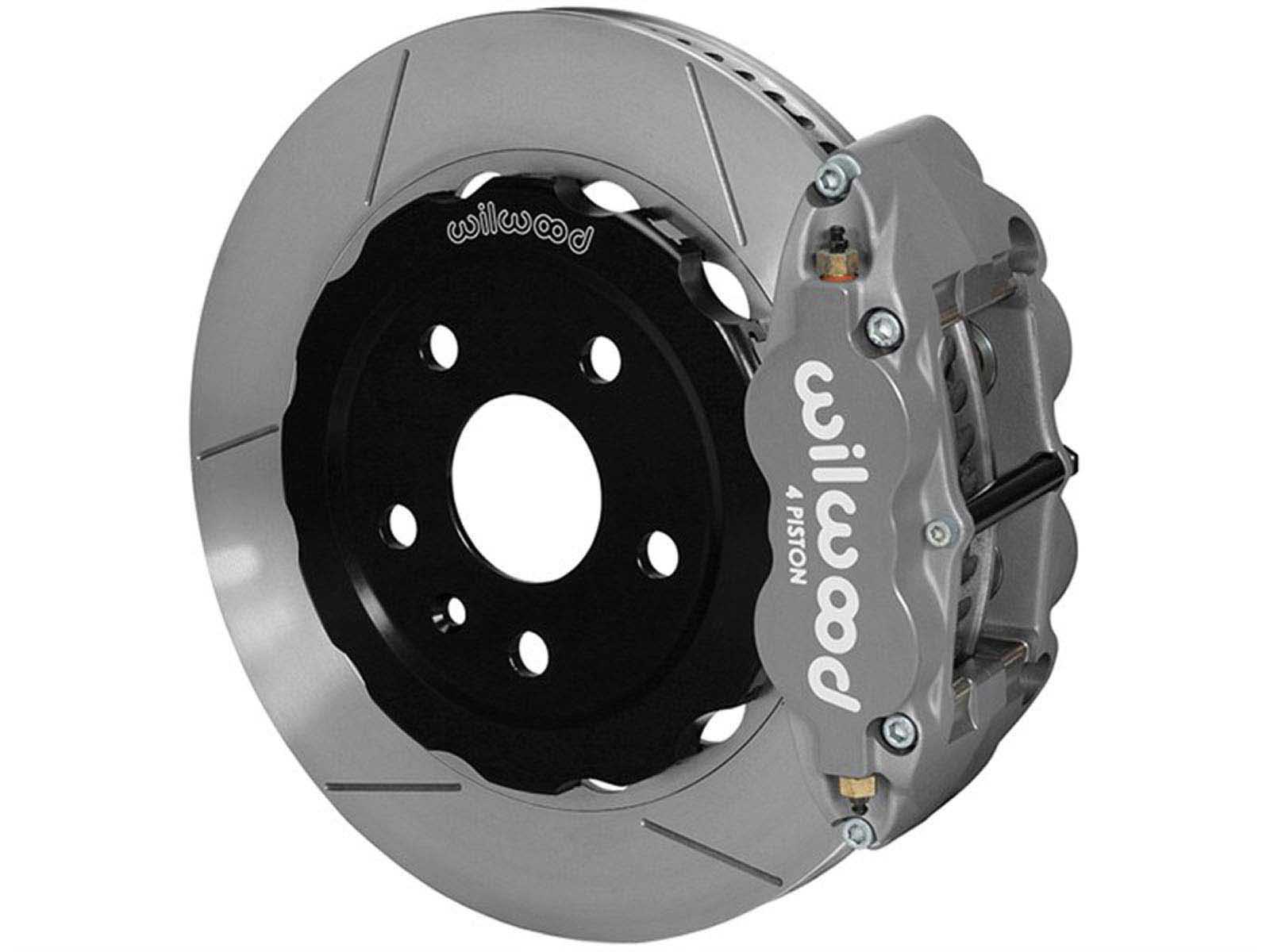

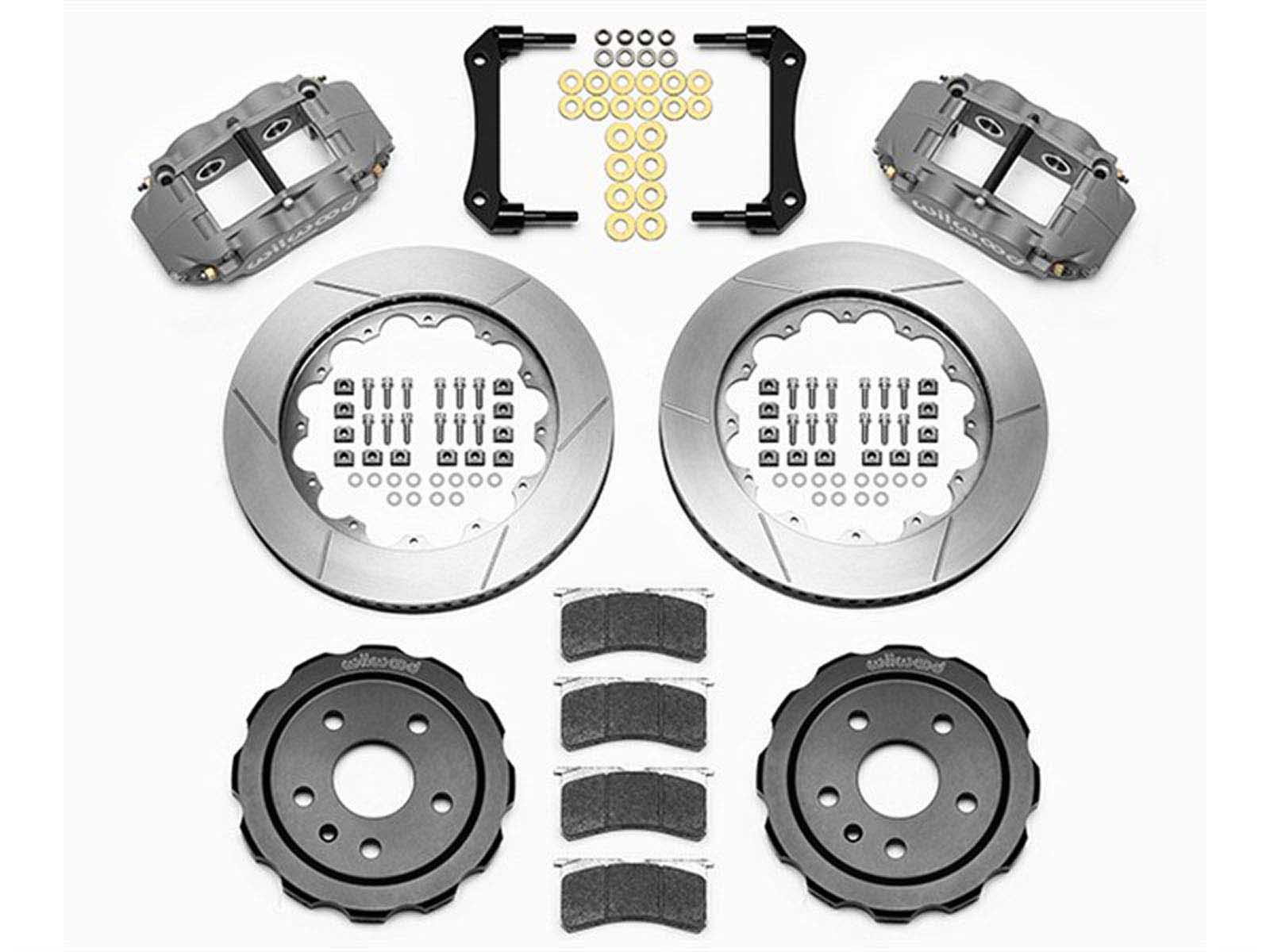

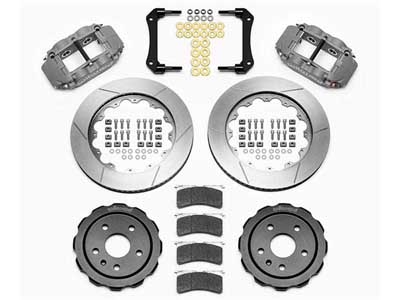

Wilwood 140-16017 FNSL4R Rear Lug Mount 13" Road Race Big Brake Kit Slotted 1995-1999 BMW E36 / M3

Wilwood 140-16017 FNSL4R Rear Lug Mount 13-in Road Race Big Brake Kit Slotted Rotors 1995-1999 BMW E36 / M3

Wilwood’s Forged Narrow Superlite 4R Rear Race Big Brake Kit from Accesspeed is configured for road racing and is the engineered match for the AERO6R/ST and FNSL6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided Flexline kit that must be ordered according to the model year. See below for brake line options.

Notes

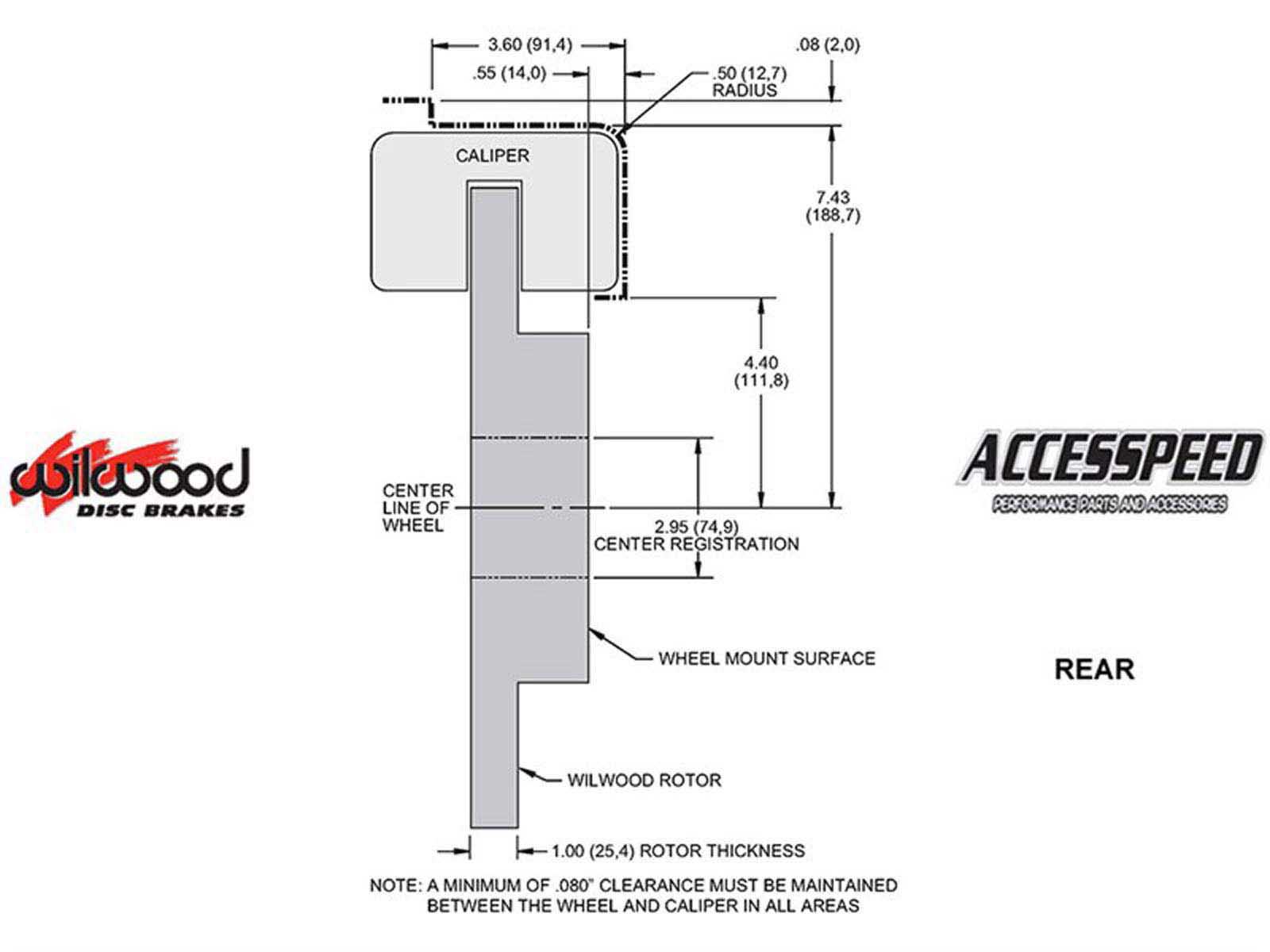

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
