Wilwood 140-16094 FNSL6R Front Hat Big Brake Kit,13" Slotted Road Race w/Lines 1988-93 Corvette C4

Wilwood 140-16094 FNSL6R Front Hat Big Brake Kit,12.88-in Slotted Rotor Road Race w/Lines 1988-1993 Corvette C4

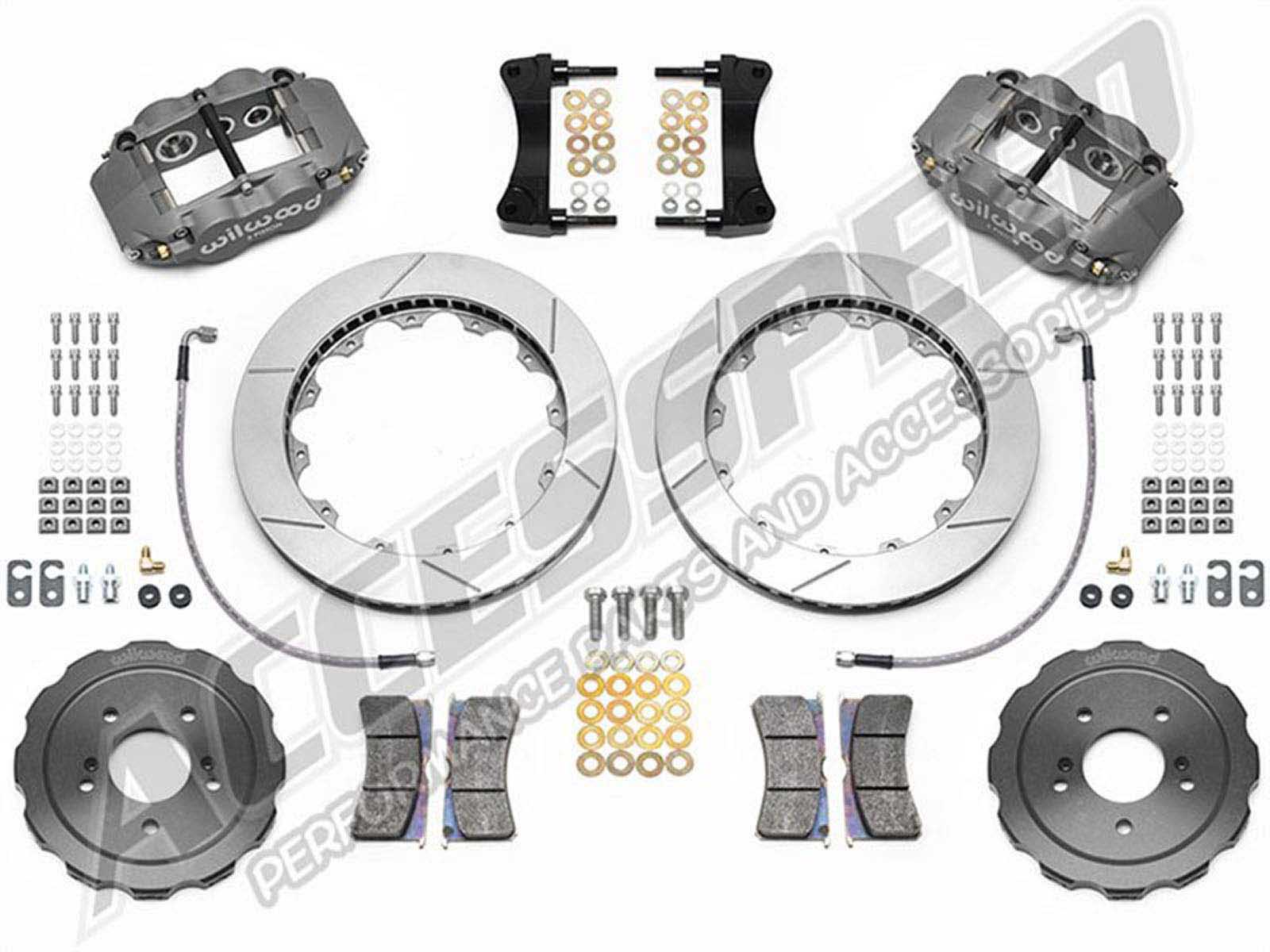

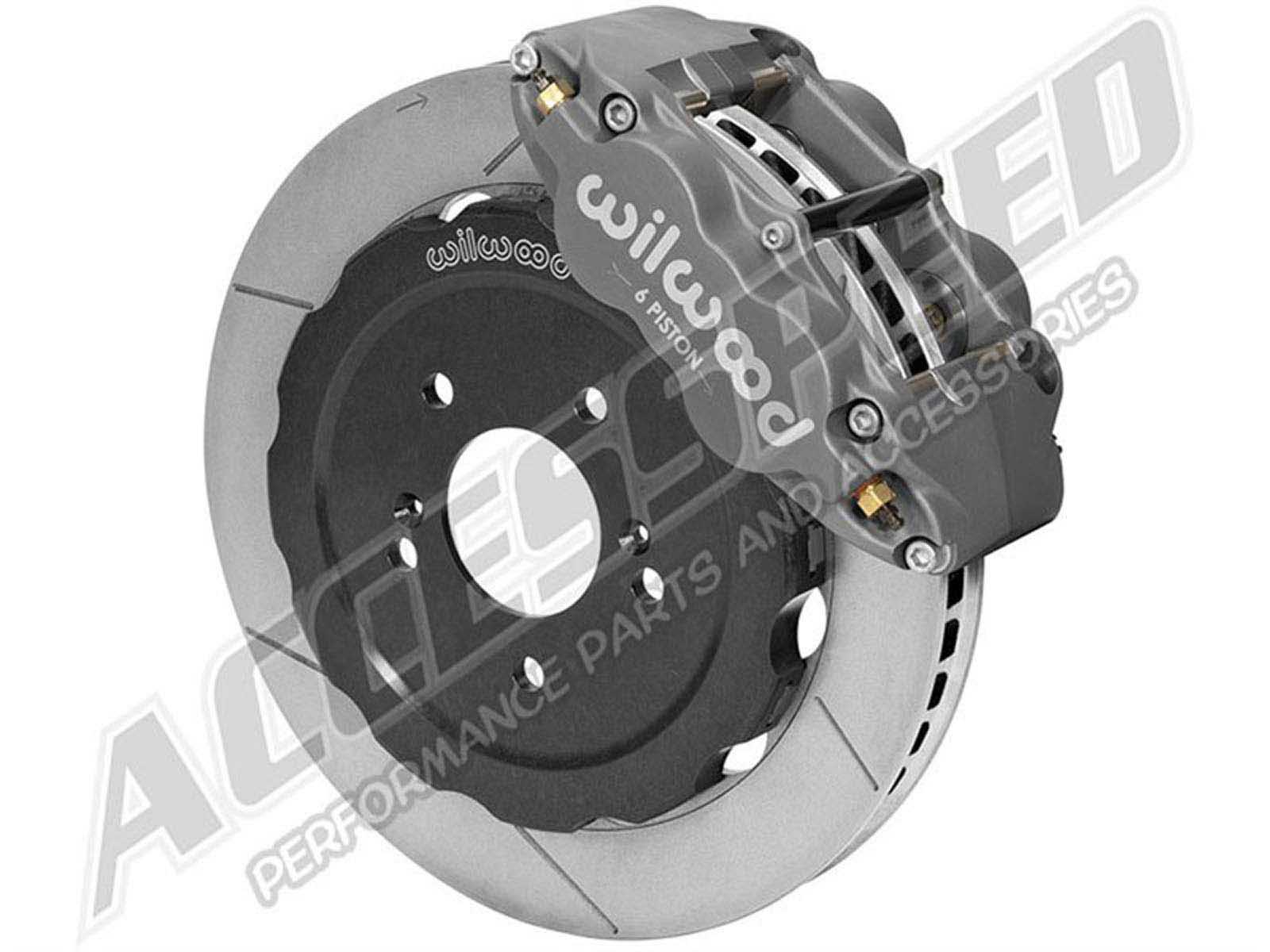

Wilwood's SL6R Race kit is configured for unrestricted category road racing. The six piston FSL6R/ST radial-mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.88" diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers to the spindles in the stock location, without the need for modifications. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided Flexlines are included in each kit to complete the installation.

NOTE: Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
