Wilwood 140-16202 AERO6-ST Front Lug Drive 14" Race Big Brake Kit, Ano Gray 1997-13 Corvette C5/C6

Wilwood 140-16202 AERO6-ST Front Lug Drive 14-in Race Big Brake Kit - Anodized Gray 1997-2013 Corvette C5/C6

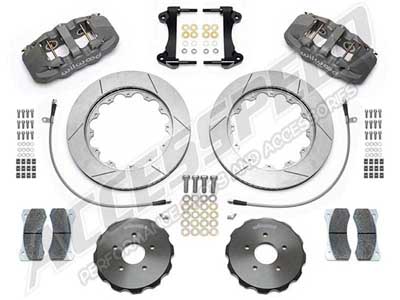

Wilwood’s AERO6R/ST Lug-Drive Front Race Big Brake Kit from Accesspeed is a game changer. Wilwood’s AERO6R/ST six piston radial mount race calipers are coupled with the high cooling capacity of 14-inch dynamically mounted Spec37 GT directional vane rotors to provide the ultimate brake package for unrestricted road race competition. AERO6R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the AERO6R/ST calipers features a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Thermlock pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life with decreased temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane rotors are dynamically mounted using our new Lug Drive mounting system to forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided Flexline kit that must be ordered according to the model year.

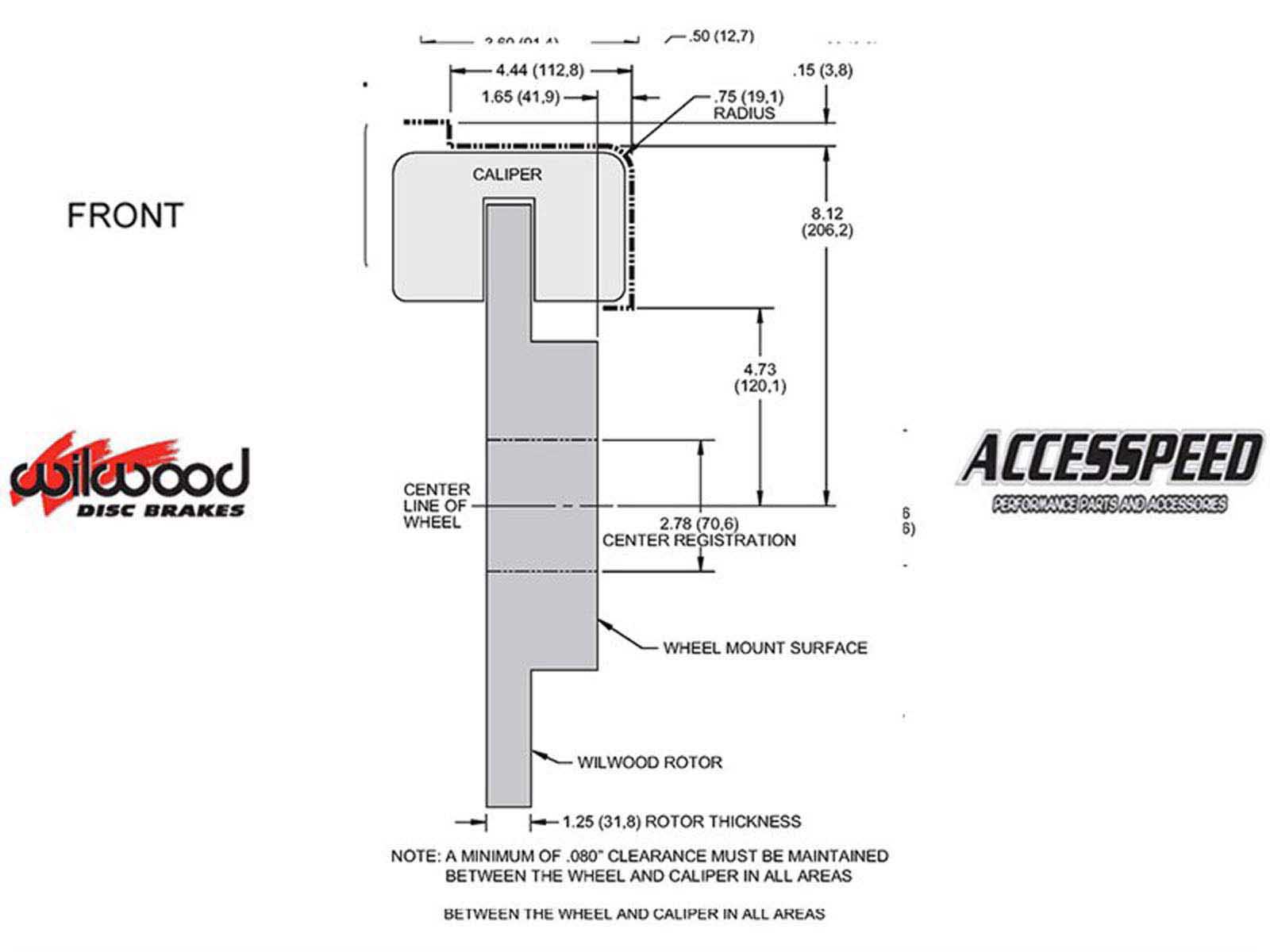

Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
