Wilwood 140-17045 Rear UTV6 Gray Ano Race Big Brake Kit 2014-up Polaris RZR XP 1000 / RS1 / S 1000

Wilwood 140-17045 Rear UTV6 Gray Ano Race Big Brake Kit for Polaris 2014-up RZR XP 1000 & 2020-up RZR RS1 & S 1000

Accesspeed is excited to offer Wilwood’s racing big brake kits to the Polaris UTV. Wilwood’s matched front and rear UTV Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. These Race Brake Kits combine fixed-mount multi-piston calipers for greater clamping force, high-friction PolyMatrix E or BP-20 brake pads, and large-diameter floating rotors for more brake torque to improve braking on higher-powered UTVs. Forged aluminum differential-bore UTV6 piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. Durable steel rotors are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain. The braking performance increase Accesspeed has seen is undeniable!

KIT FEATURES:

• Larger, thicker, dynamically mounted 11.25” x 0.25” steel rotors eliminate knockback and reduce thermal distortion; available plain face or drilled.
• Rigid, stress-flow net forged aluminum, opposed stainless piston calipers with strengthened body reduces deflection and increases clamping efficiency.
• Differential bore caliper pistons provide consistent engagement and increase pad life.
• UTV6 calipers offered in Type III Ano Gray color.
• Race-spec kits come complete with fade-resistant BP-20 or PolyMatrix E brake pads, banjo bolt and crush washers to connect to factory lines on most models. (Brake lines included where necessary.)
• Fully compatible with factory master cylinder, ABS, and pedals.
• Kits fit most 15” and larger wheels, as well as some 14” wheels.

Notes

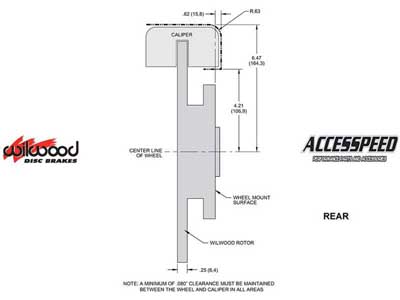

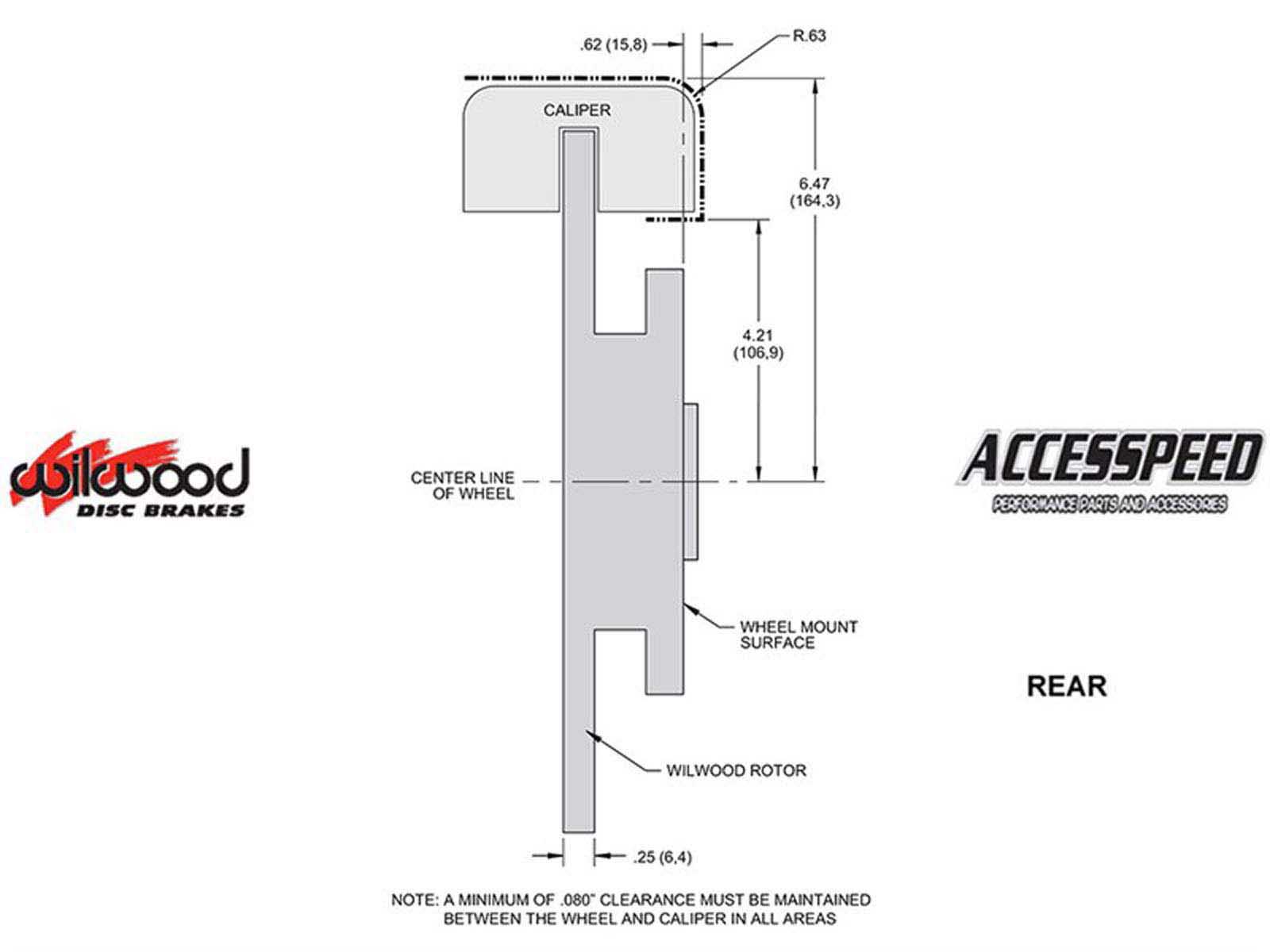

*This Brake Kit may require 14-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram image to verify wheel to caliper clearance.
