Wilwood 140-17275-R AERO6-DM Front 14" Direct Mount Brake Kit Red Slotted 2018-up Wrangler JL & JT

Wilwood 140-17275-R Front AERO6-DM 14" Direct-Mount Big Brake Kit with Red Calipers & Slotted Rotors for 2018-up Jeep Wrangler JL & 2020-up Jeep Gladiator JT

Accesspeed is proud to announce Wilwood’s new AERO6-DM direct-mount caliper brake kits, which are designed to fit most factory and aftermarket 17” wheels for 2007-2018 Jeep Wrangler JK, 2018-up Wrangler JL, and 2020 Jeep JT Gladiator. Replace the factory floating calipers with Wilwood’s net-forged aluminum, six piston calipers and premium alloy one-piece rotors. Forged aluminum AERO6-DM six-piston Aerolite direct-mount calipers have been optimized for the Jeep spindle to deliver increased clamping force. Rotors are 13.38” x 1.25” premium long-grain iron alloy, and substantially increase braking performance when paired with new Wilwood BP “Q” ceramic-based, dual-sport SmartPad brake pads, formulated for everyday street or performance driving. Rotors are available GT slotted or SRP drilled and slotted. Calipers are available in gloss red or black powder coat, and 22 additional colors (additional charges apply). Accesspeed includes Wilwood stainless braided Flexline brake lines.

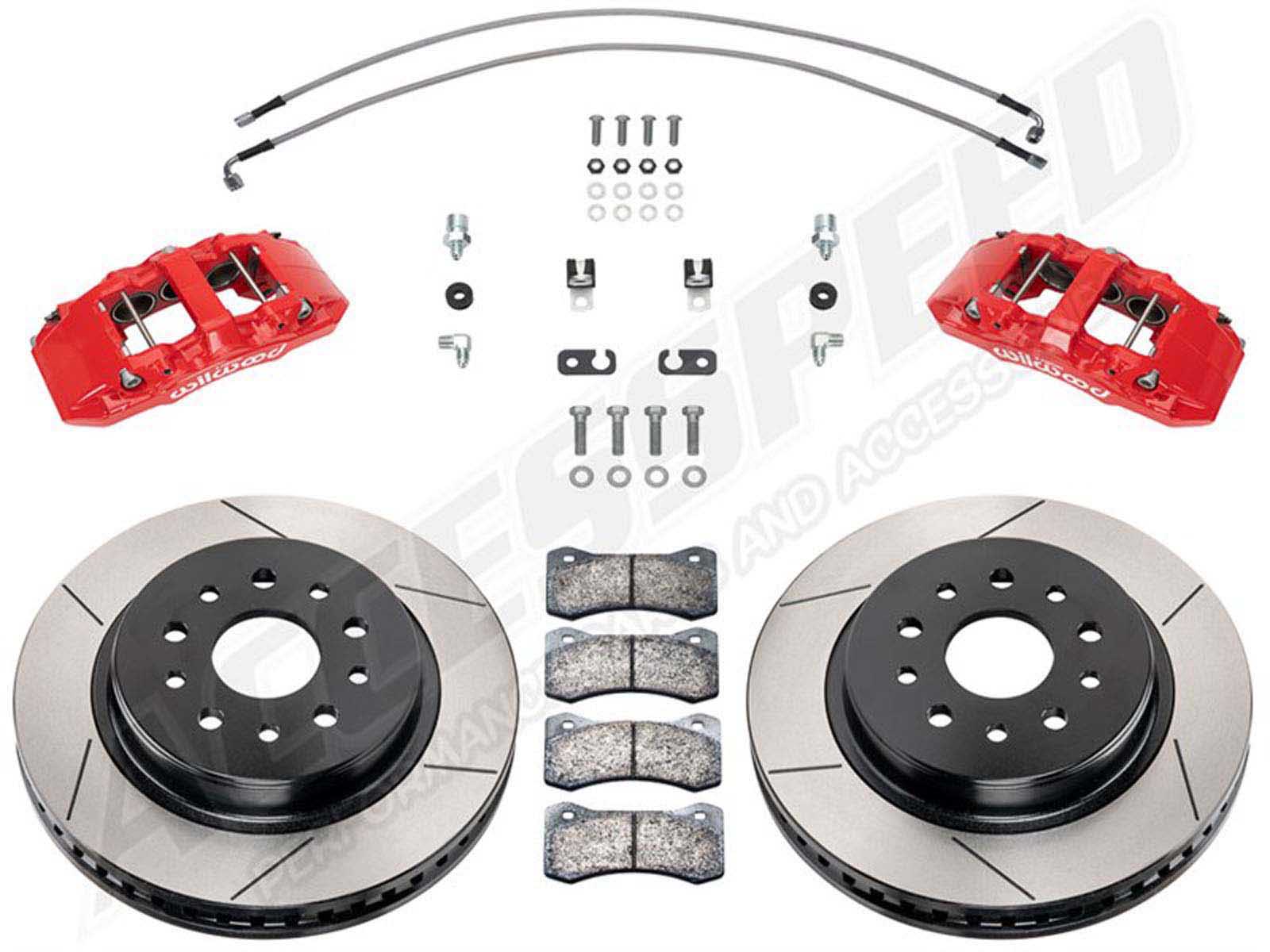

KIT FEATURES:

• Directly mounts to factory spindles and hubs with no modifications or additional brackets.
• Provides greater brake torque and increased thermal stability, yet fits behind most 17” wheels and larger.

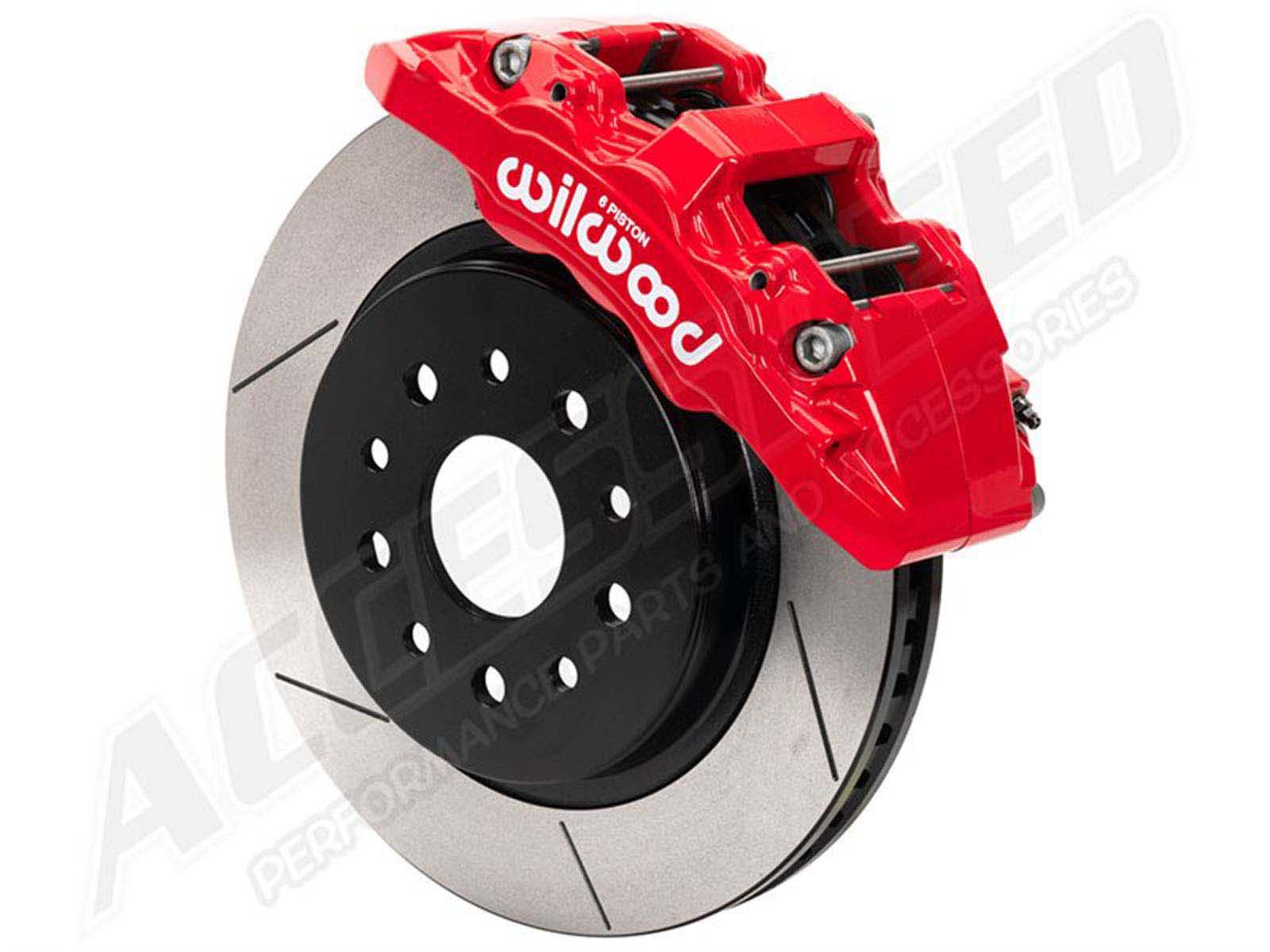

CALIPERS: AERO6-DM

• Stress-flow forged aluminum Aerolite calipers are engineered for direct-mounting with six differential bore pistons for more even clamping force, and closed bridge for minimal deflection.
• Compatible with the factory master cylinder, ABS and all electronic controls.
• Calipers available in gloss black or red powder coat, or 22 additional color options (additional charges may apply).

ROTORS: GT or SRP

• 13.38” x 1.25” premium-grade, long-grain carbon iron alloy vented rotors.
• Choose GT slotted, or SRP drilled and slotted rotors.

PADS:

• BP Series “Q” Compound SmartPad®.
• New “Q” ceramic-based, dual-sport SmartPad for everyday street or performance driving (additional compounds available).

INSTALLATION PARTS:

• Stainless steel flexlines and premium-grade hardware included.

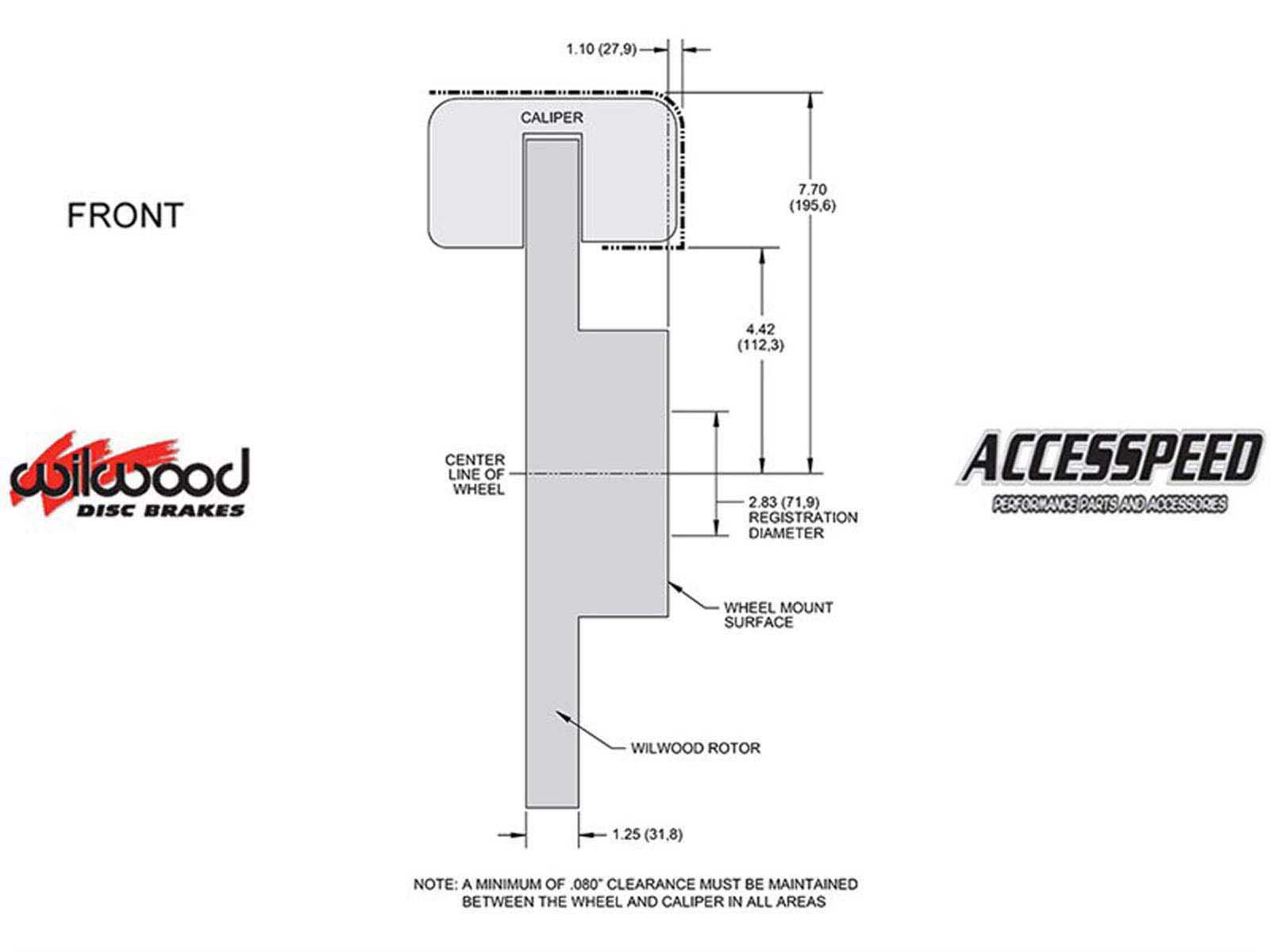

*This Brake Kit may require 17-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only. For all other areas, please contact us for a discounted rate quote.
