Wilwood 140-17389-R TX6R Front 16" Big Brake Kit with Red Calipers for 2021-2023 Ram 1500 TRX

Wilwood 140-17389-R TX6R Front 16" Big Brake Kit with Red Calipers for 2021-2023 Ram 1500 TRX
Part Number: WIL-140-17389-R
Brand: Wilwood
List Price: $3,599.96
Price: $2,870.89

This product qualifies for Free Ground Shipping*
Qty

Wilwood 140-17389-R TX6R Front 16" Big Brake Kit with Red Calipers for 2021-2023 Ram 1500 TRX



If you already own a RAM 1500 TRX, you know your truck is built for high speed over any terrain, but the factory brakes quickly become a weak point in your performance. If you are getting ready to buy a RAM 1500 TRX, you are in for a seat-of-your-pants driving experience.  Accesspeed is proud to offer Wilwood’s new large-capacity brakes to match the performance of your Ram TRX.

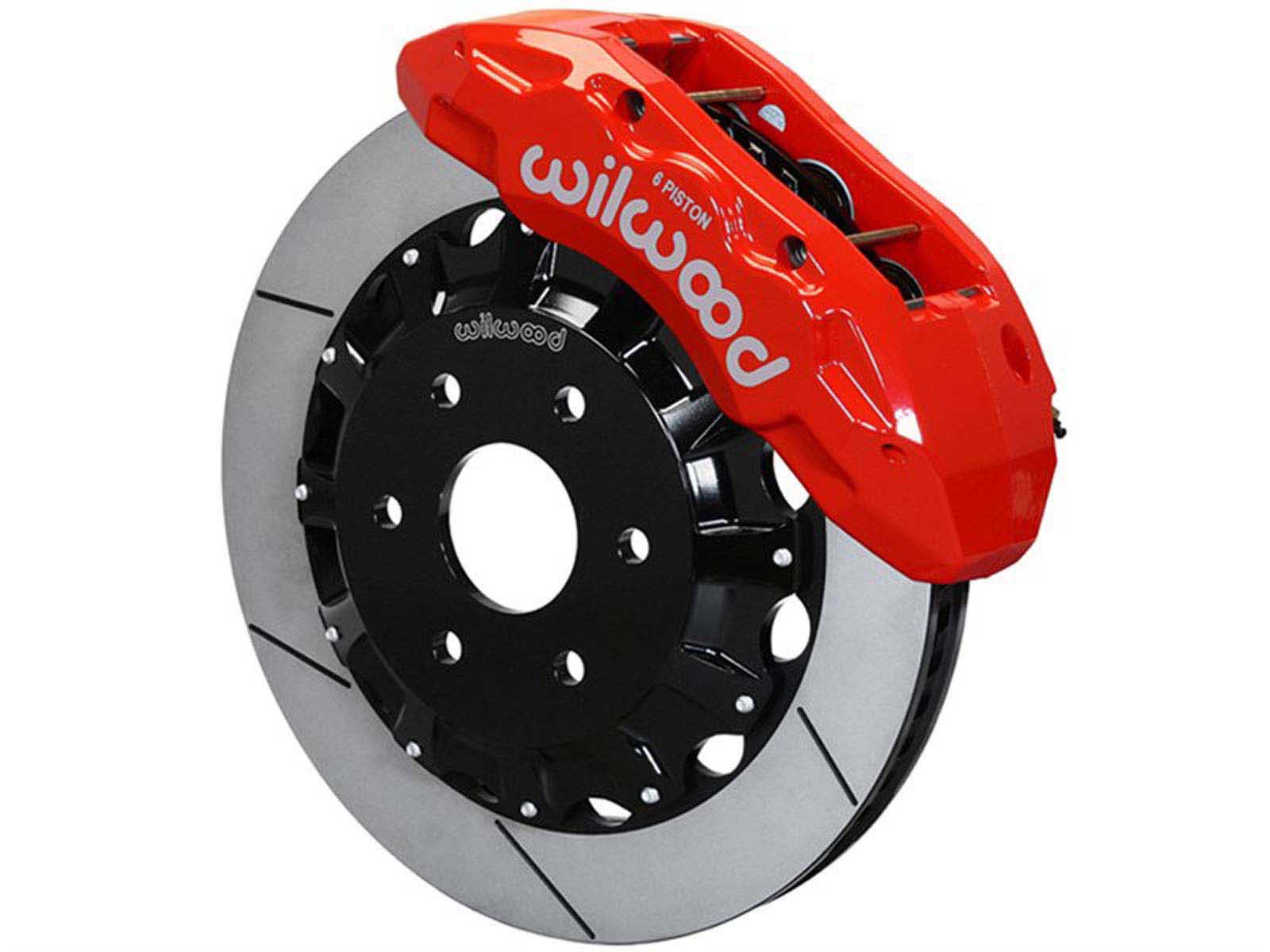

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. The Wilwood Rigid TX6R Tactical Xtreme six-piston calipers and 16” rotors provide an added margin of safety with increased confidence and control for desert pre-running, highway speeds, mountain driving, hauling, and towing. The 16” diameter Spec37 iron GT60 curved vane slotted rotors use an alloy developed for military vehicle use, and are sized over an inch larger for increased brake torque and thermal capacity. Rigid forged aluminum TX6R Tactical Xtreme 6-piston calipers feature stainless steel pistons and large pad volume, and deliver greater clamping force to stop your truck with precision and consistency.

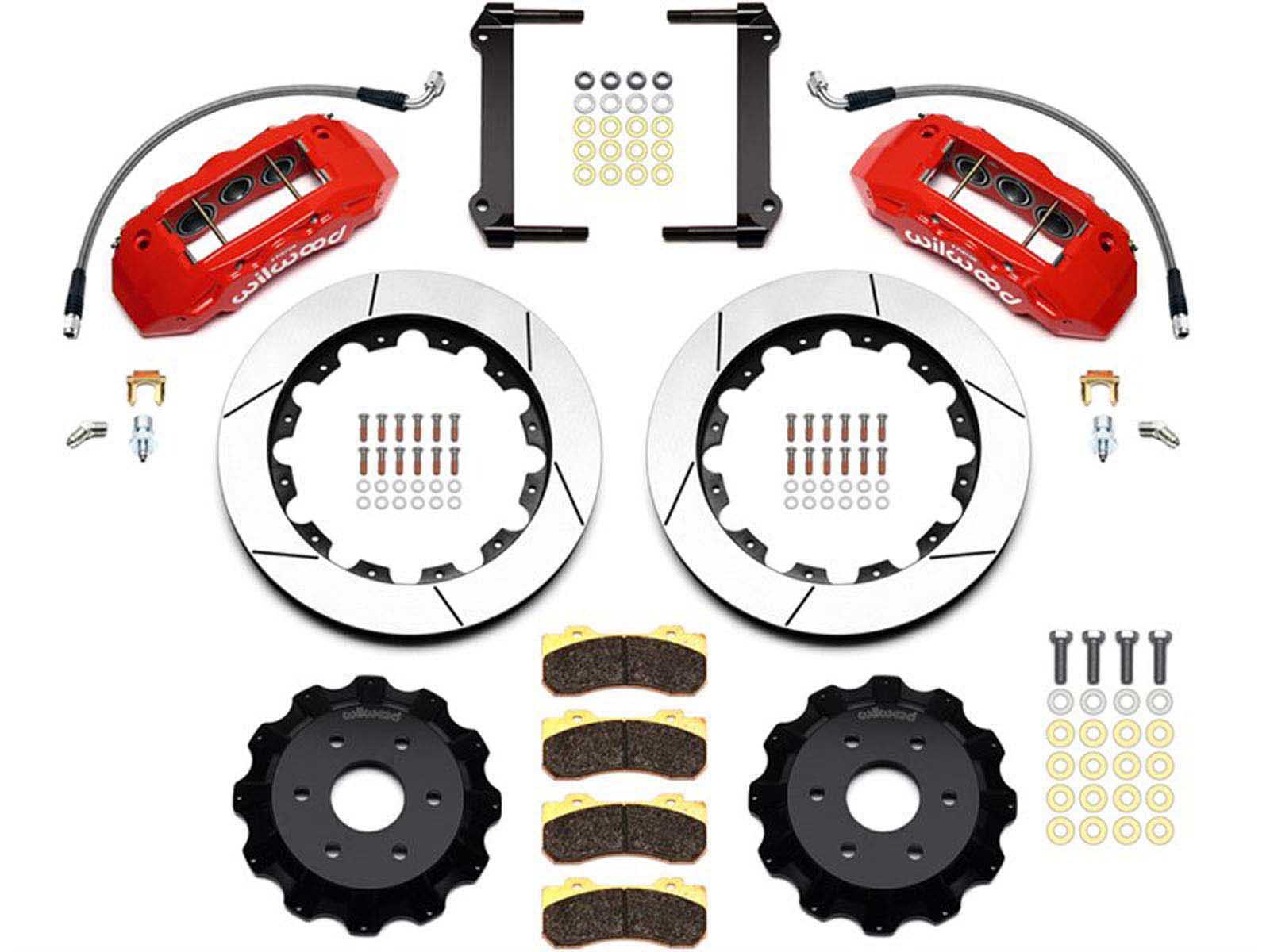

These kits come from Accesspeed complete with Wilwood’s Flexline braided stainless steel brake lines and SmartPad BP-Q high-performance ceramic compound brake pads. Engineered for optimal performance with the factory master cylinder, rear brakes, and ABS computer system. Calipers come finished in gloss red or black powder coat, plus 22 optional colors (additional charges may apply).

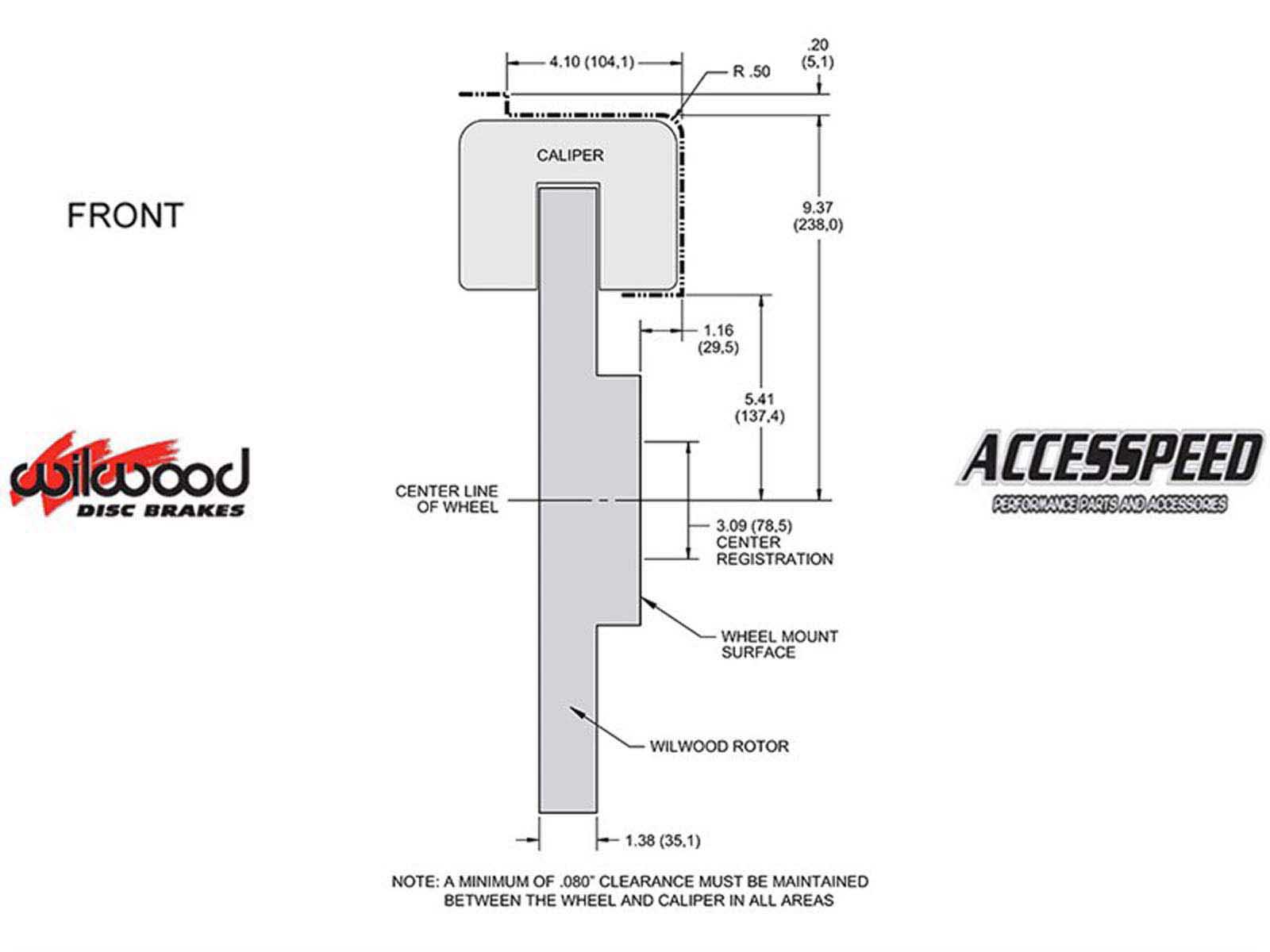

*This Brake Kit may require 20-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram image to check to see if it will fit your specific wheel.


Notes

Red Calipers. See separate listing for the black caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-140-17389-R Wilwood 140-17389-R TX6R Front 16" Big Brake Kit with Red Calipers for 2021-2023 Ram 1500 TRX $2,870.89 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
2024 RAM Truck 1500 TRX - Crew Cab 67-in Bed 6.2 4WD
2023 RAM Truck 1500 TRX - Crew Cab 67-in Bed 6.2 4WD
2022 RAM Truck 1500 TRX - Crew Cab 67-in Bed 6.2 4WD
2021 RAM Truck 1500 TRX - Crew Cab 67-in Bed 6.2 4WD
