Wilwood 140-17468-R TX6-DM Front 15" Big Brake Kit Red Slotted for 2020-Up GM 2500/3500 Truck

Wilwood 140-17468-R TX6-DM Front 15" Big Brake Kit with Red Calipers & Slotted Rotors for 2020-up GM 2500/3500 Truck

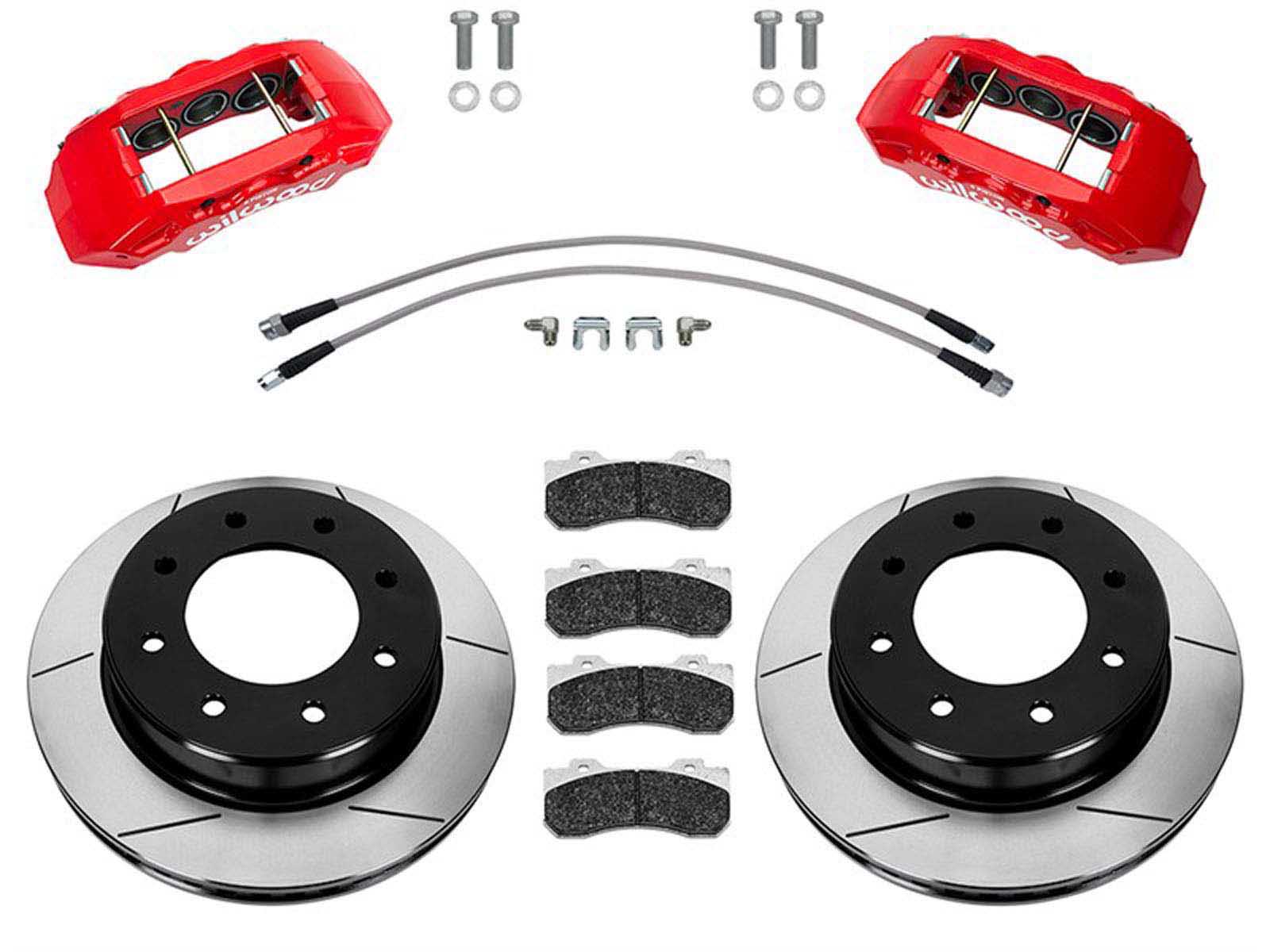

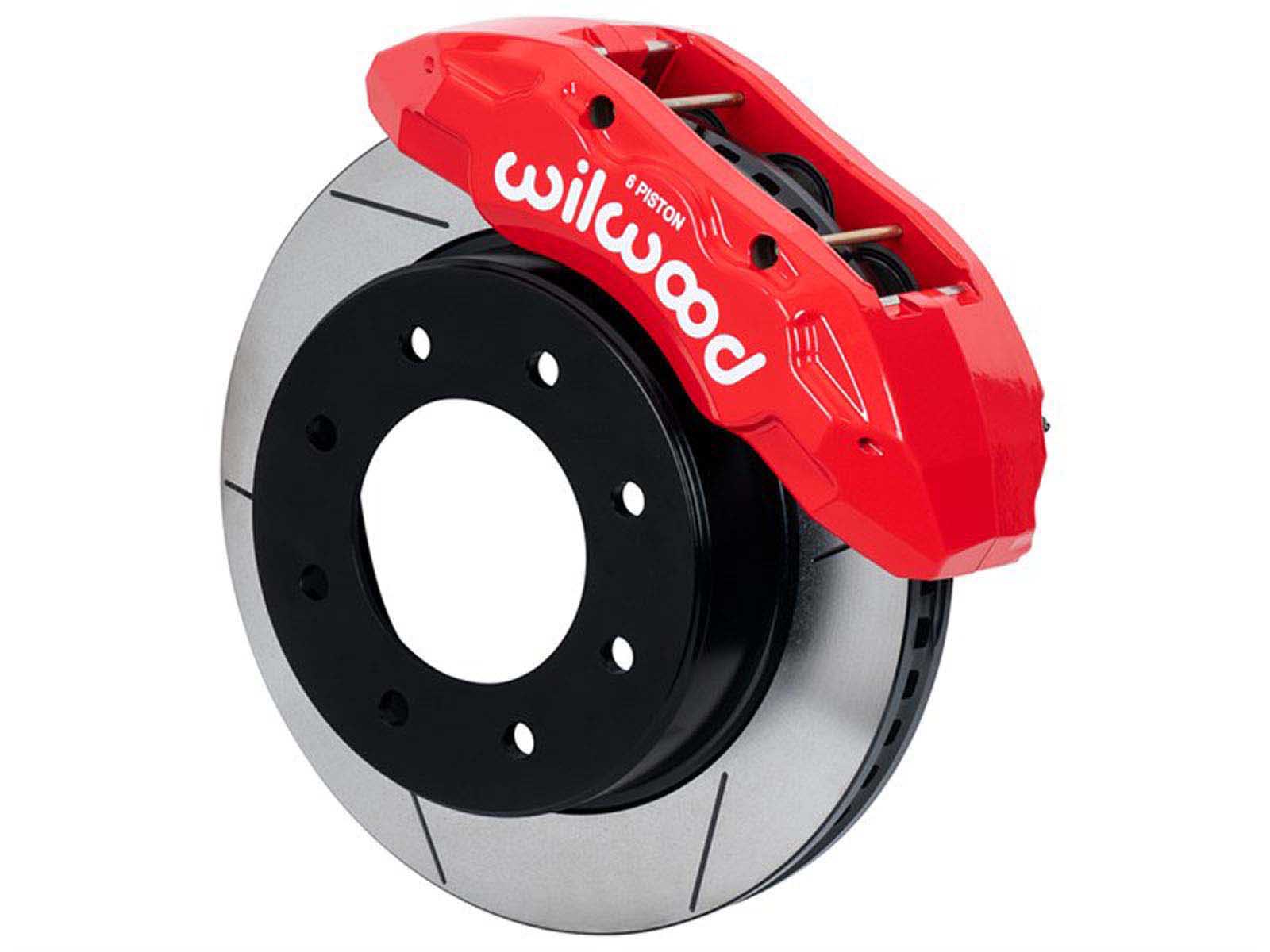

Accesspeed is proud to announce Wilwood’s new TX6-DM direct-mount caliper brake kits, which are designed to fit most factory and aftermarket 20” wheels for HD 3/4-ton and 1-ton trucks and SUVs. Upgrade the crude cast iron OE calipers and smaller rotors to Wilwood’s Direct-Mount, net-forged Truck Xtreme six piston calipers with 15” premium iron alloy rotors for more consistent braking and improved pedal feel. Drawing from motorsports and military expertise, these brake kits provide increased thermal capacity to inspire confidence in high-demand applications, including towing, hauling, and commercial use. Rotors are 15” x 1.5” premium long-grain iron alloy, and substantially increase braking performance when paired with new Wilwood BP “Q” ceramic-based, dual-sport SmartPad brake pads, formulated for everyday street or performance driving. Calipers are available in gloss red or black powder coat, and 22 additional colors (additional charges apply). Accesspeed includes Wilwood stainless braided Flexline brake lines.

KIT FEATURES:

• Directly mounts to factory spindles and hubs with no modifications or additional brackets.
• Provides greater brake torque and increased thermal stability, yet fits behind most 20” wheels and larger.

TX6-DM TACTICAL XTREME DIRECT-MOUNT CALIPERS:

• Stress-flow forged aluminum Truck Xtreme calipers are engineered for direct-mounting with six differential bore pistons for balanced engagement, and reinforced end bridges to reduce deflection.
• Compatible with the factory or Wilwood rear brakes, and OEM master cylinder, ABS and all electronic controls.
• Calipers available in gloss black or red powder coat, or 22 additional color options (additional charges may apply).

GTB SLOTTED ROTORS:

• 15.00” x 1.50” premium, iron alloy vented hat/rotor for heavy duty use.

• GTB slotted faces with 48 internal vanes for better thermal cooling.

• Complete E-coating applied to resist corrosion inside and out.

SMARTPAD BP-Q BRAKE PADS:

• BP Series “Q” Compound SmartPad.
• New “Q” ceramic-based, dual-sport SmartPad for everyday street or performance driving (additional compounds available).

INSTALLATION PARTS:

• Stainless steel flexlines and premium-grade hardware included.

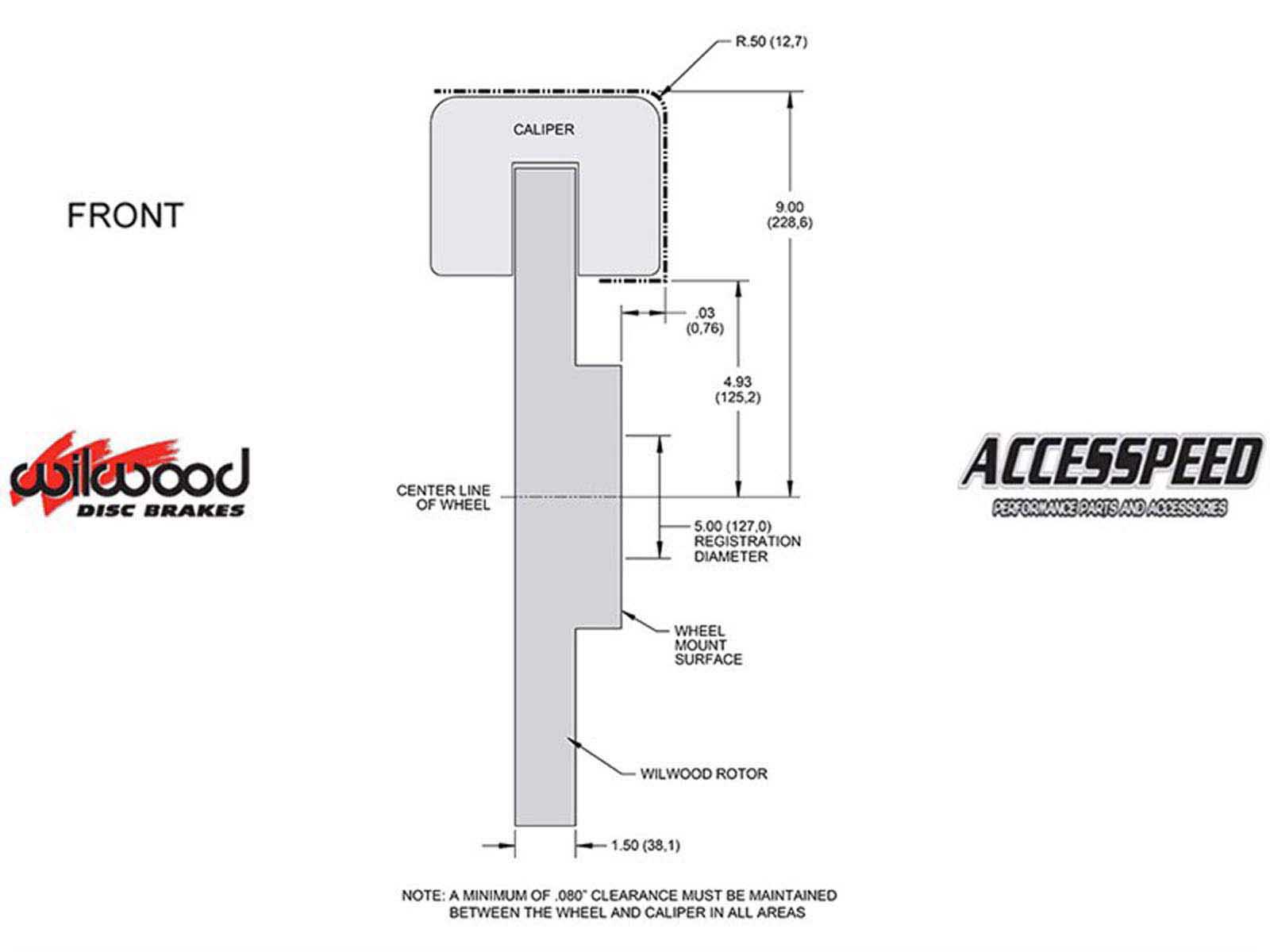

*This Brake Kit may require 20-inch or larger wheels. Please refer to the wheel clearance diagram image to verify wheel-caliper clearance.

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only. For all other areas, please contact us for a discounted rate quote.
