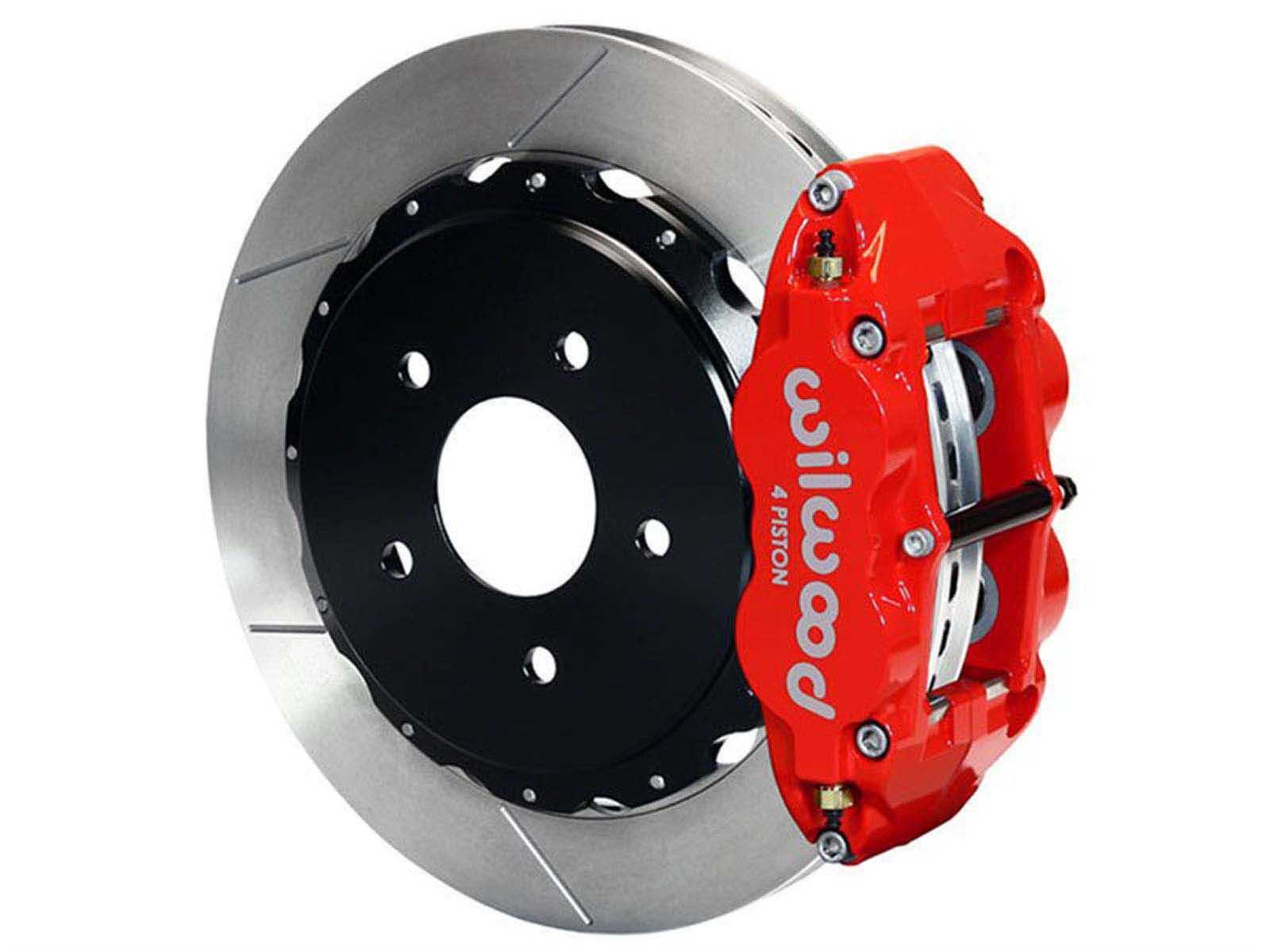

Wilwood 140-17542-R SL4R 13" Rear Drum-to-Disc Big Brake Kit, Red, Slotted, 1988-1998 GM 1500 5-Lug

Wilwood 140-17542-R Superlite 4R 12.88" Rear Drum-To-Disc Big Brake Kit with Red Calipers and Slotted Rotors for 1988-1998 GM 1500 5-Lug Truck & SUV

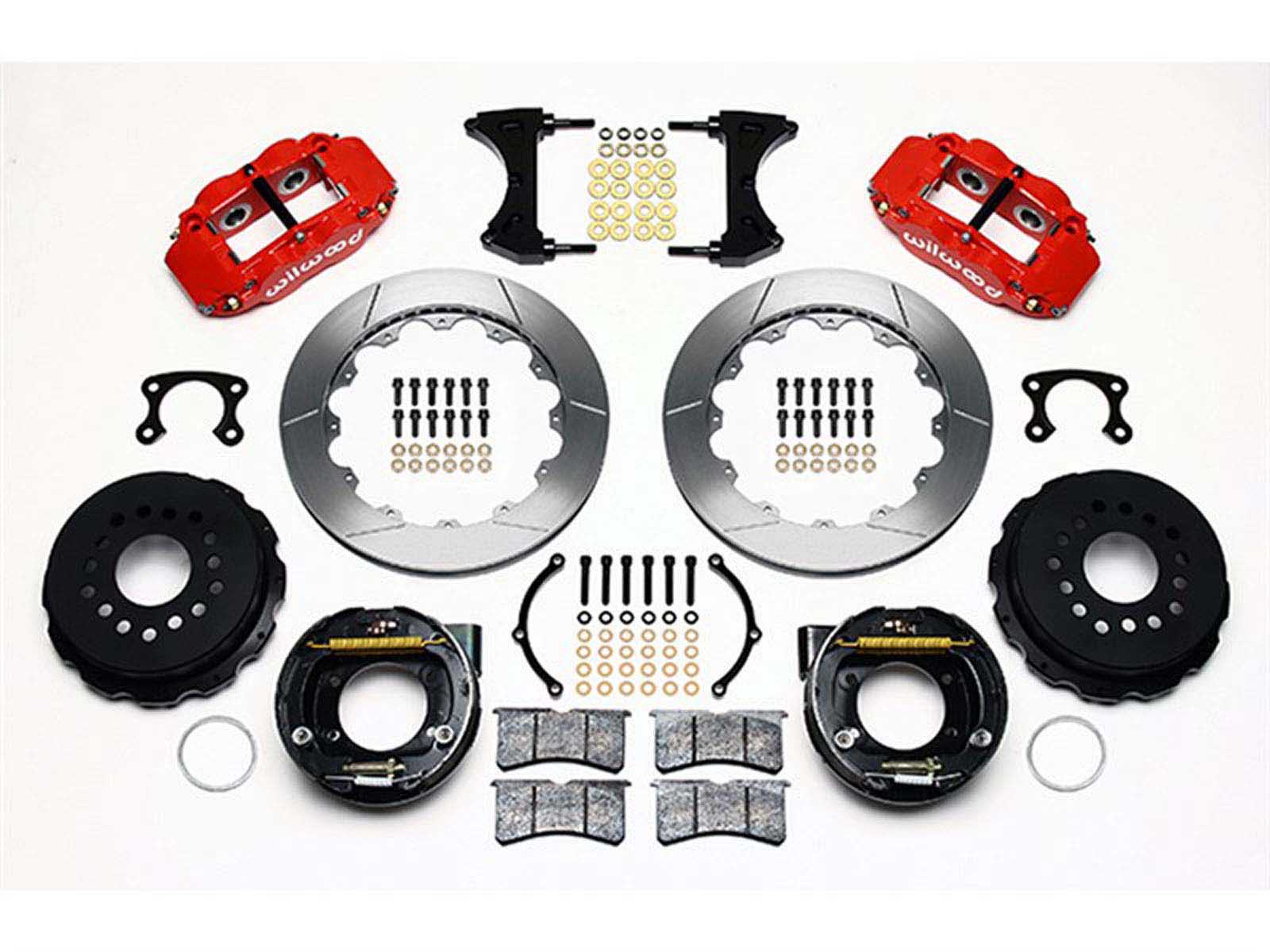

Wilwood Forged Narrow Superlite 4R rear disc big brake kits from Accesspeed provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 12.88” two-piece rotors, and high-performance BP-10 compound pads provide optimized and balanced braking to complement front big brake upgrades on all types of custom, show and high-performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Wilwood’s complete bolt-on brake kits provide an upgrade to make trucks safer with improved stopping power and include an internal parking brake assembly and parking brake cable connection kit to maintain the original feature. Experience more clamping force, better thermal capacity, and improved pedal feel for more confident braking in daily street performance to heavy-use applications including hauling, towing, off-road, and commercial workloads. These brake kits are designed to complement Wilwood front brake kits, and they are engineered to be compatible with factory ABS and OE master cylinders. The 14” proprietary Spec 37 iron alloy rotors come in a 5 x 5.00” lug pattern and feature 72 curved vanes.  Wilwood’s BP-10 street performance brake pads and premium-grade hardware are included. Calipers come in gloss red or black powder coat and 24 optional colors (additional charges apply).

This Brake Kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

• Wilwood 14" Flexline Brake Line Kit #WIL-220-7056. (Recommended for most applications.)
• Wilwood 12" Flexline Brake Line Kit #WIL-220-9886.
• Wilwood 10" Flexline Brake Line Kit #WIL-220-8999.

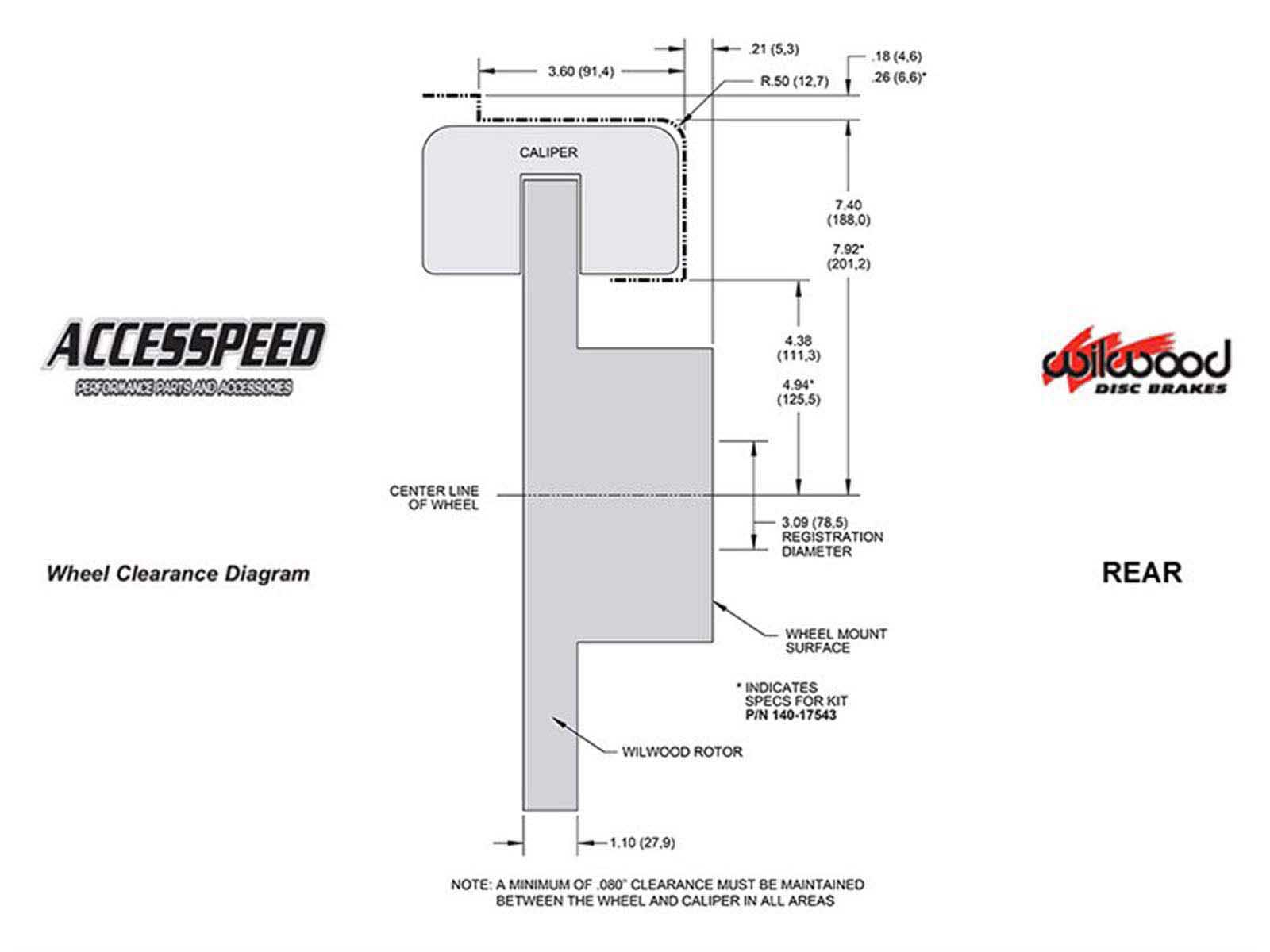

*This Brake Kit may require 17-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram image to verify your wheel clearance.

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
