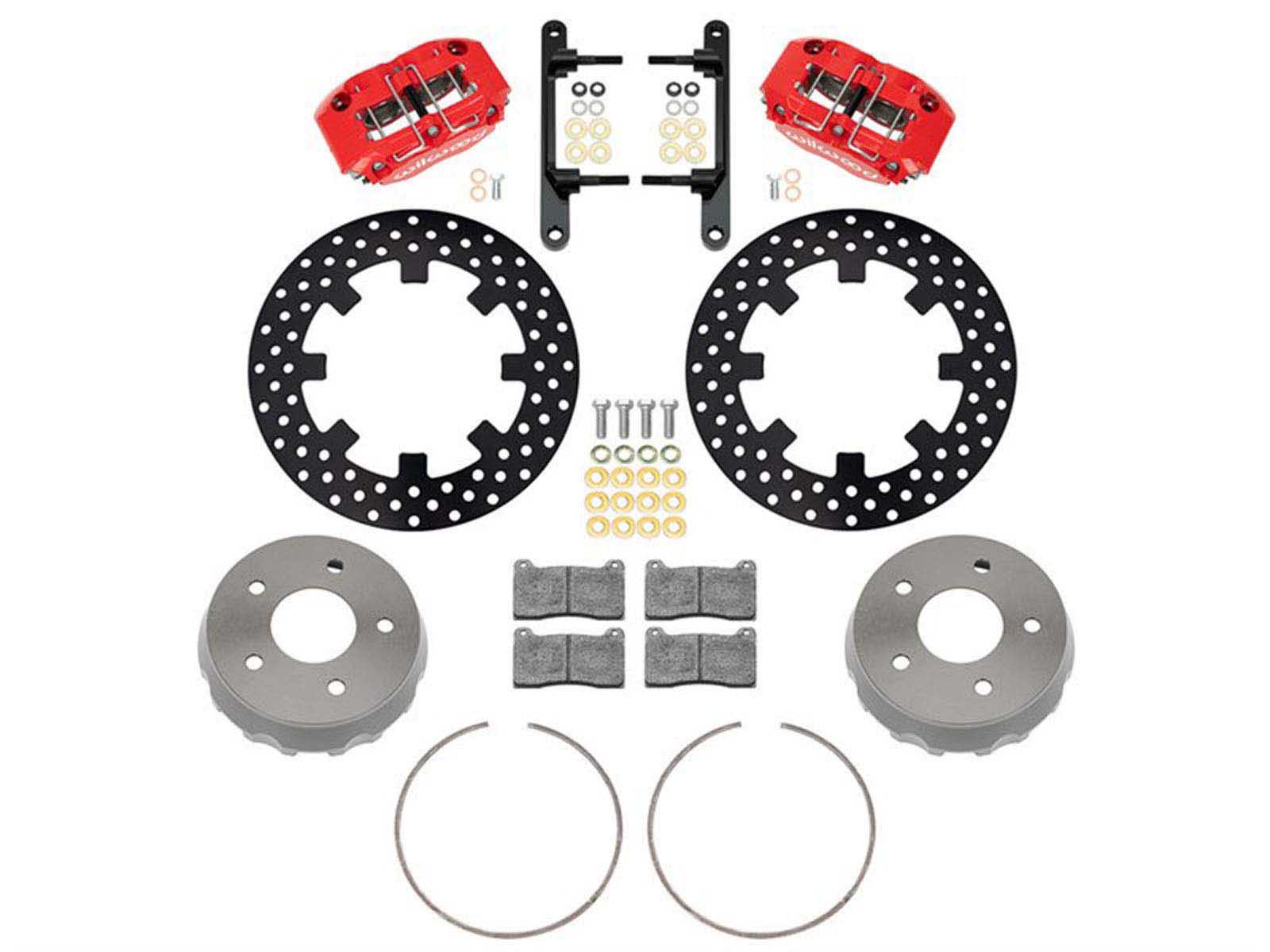

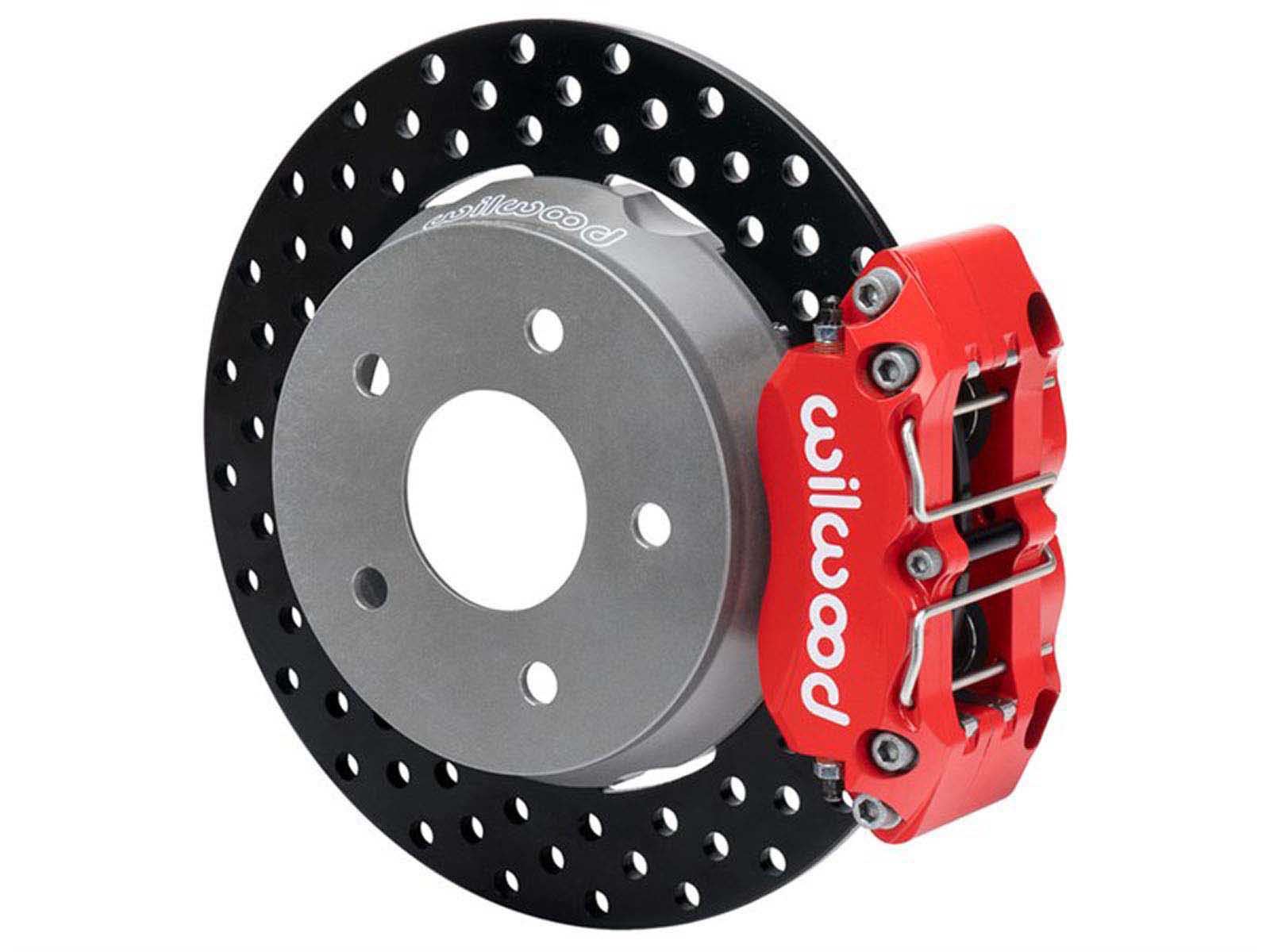

Wilwood 140-17735-DR Rear Big Brake Kit with Red Calipers and Drilled Rotors for 2022-up Polaris RZR Turbo & Pro R 5-Lug
Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.
Motorsports-proven, stress-flow forged aluminum Narrow Dynapro Radial Mount (NDPR) front and rear calipers provide superior strength to reduce deflection under extreme use. Users will experience better pedal feel, increased brake torque and longer pad life. Stainless steel pistons are equipped with high-temperature seals to protect brake fluid from heat and dirt.
Large 11.25” (285mm) steel rotors improve thermal capacity, are black E-coated and are available with a plain face or drilled options. Calipers are available in glossy red or black powder coat or 24 additional color options (additional charges apply). Wilwood’s high-performance BP-10 SmartPads come standard, while race-spec kits feature BP-28 pads and calipers finished in Type III hard anodize.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-140-17735-DR |
Wilwood 140-17735-DR Rear Big Brake Kit, Red, Drilled, 2022-up Polaris RZR Turbo & Pro R 5-Lug |
$1,407.50 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
| 2024 |
Polaris |
RZR Pro R |
|
|
|
|
| 2024 |
Polaris |
RZR Pro R 4 |
|
|
|
|
| 2024 |
Polaris |
RZR Turbo R |
|
|
|
|
| 2024 |
Polaris |
RZR Turbo R 4 |
|
|
|
|
| 2023 |
Polaris |
RZR Pro R |
|
|
|
|
| 2023 |
Polaris |
RZR Pro R 4 |
|
|
|
|
| 2023 |
Polaris |
RZR Turbo R |
|
|
|
|
| 2023 |
Polaris |
RZR Turbo R 4 |
|
|
|
|
| 2022 |
Polaris |
RZR Pro R |
|
|
|
|
| 2022 |
Polaris |
RZR Pro R 4 |
|
|
|
|
| 2022 |
Polaris |
RZR Turbo R |
|
|
|
|
| 2022 |
Polaris |
RZR Turbo R 4 |
|
|
|
|
