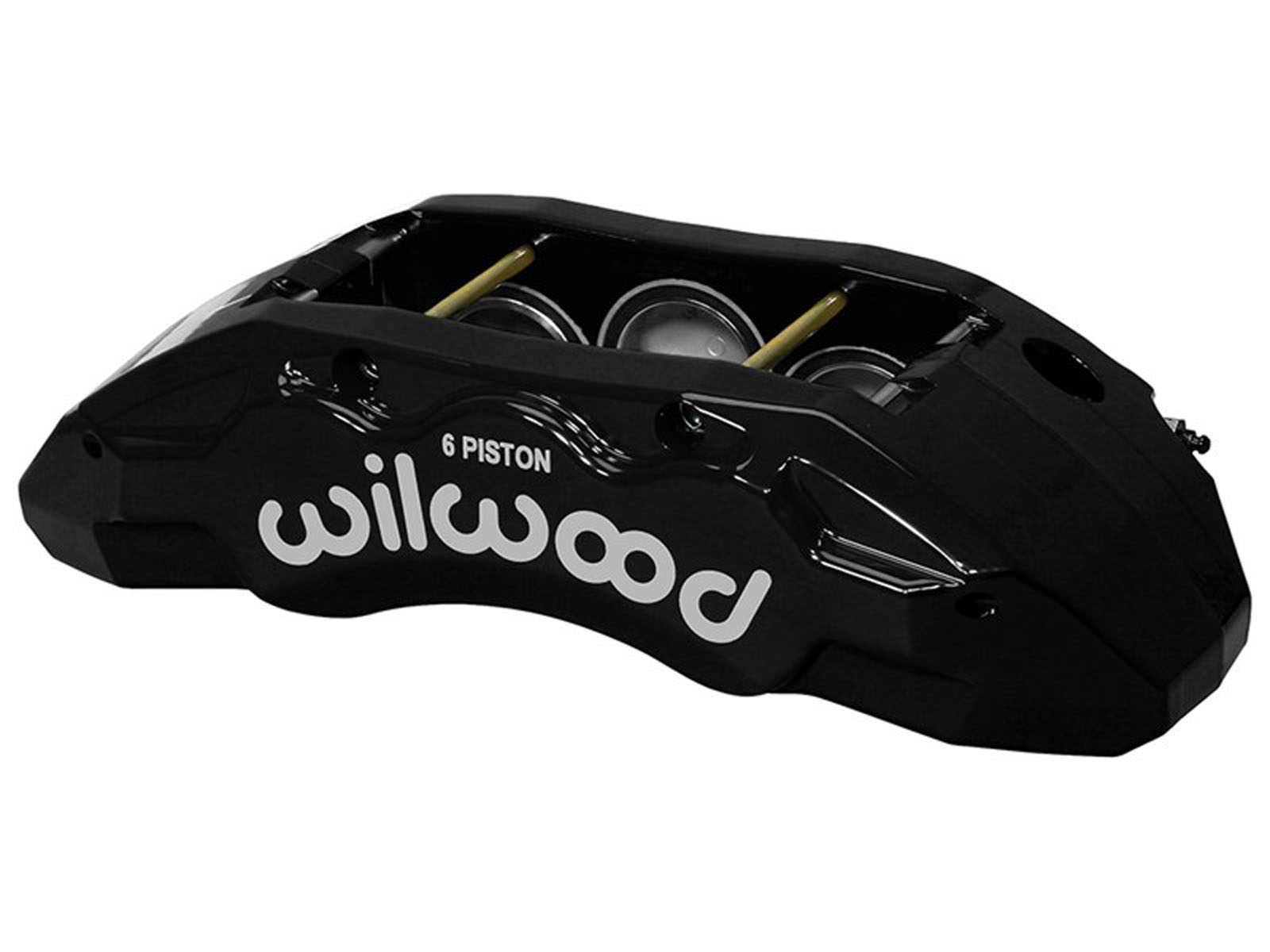

Wilwood 120-14599-BK TX6R Caliper Right-Hand, Black, 1.62/1.38/1.38" Pistons, 1.38" Disc

Wilwood 120-14599-BK TX6R Caliper Right-Hand, Black, 1.62/1.38/1.38" Pistons, 1.38" Disc

The Tactical Xtreme TX6R radial mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV's, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50" thick, make the TX6R the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX6R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.

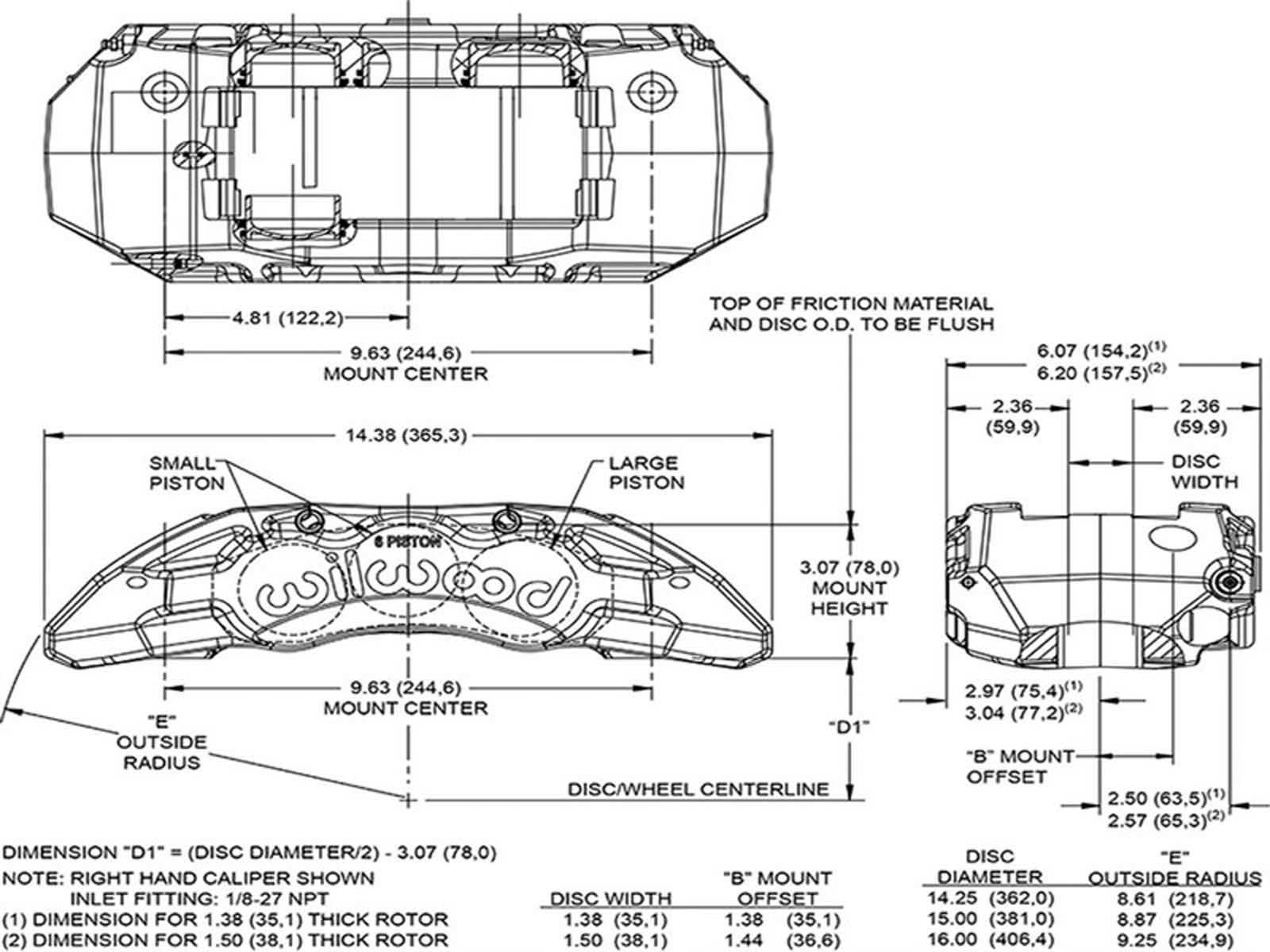

Tactical Xtreme TX6R calipers features include: a Versatile and easily adapted radial mount design. A Stress flow forged aluminum 6-piston body design with Stainless steel pistons with high-temp internal bore seals. Developed for rotors from 14.25" to 16.00" diameter and rotor widths from 1.38" to 1.50". Easy access top loaded type 10120,.770" thick pads with rigid .240" thick backing plates. Stainless steel bridge plates and protected single bleed design with internal fluid ports.

Notes

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only. For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
