Wilwood 120-17295 AERO-DM Caliper Bronco/Ranger, Left-Hand Gray Anodized, 1.75/1.62/1.62 Pistons

Wilwood 120-17295 AERO-DM Caliper Bronco/Ranger, Left-Hand Gray Anodized, 1.75/1.62/1.62 Pistons
Part Number: WIL-120-17295
Brand: Wilwood
List Price: $896.00
Price: $699.95

This product qualifies for Free Ground Shipping*
Qty

Wilwood 120-17295 AERO-DM Caliper Ford Bronco/Ranger, Left-Hand Gray Ano, 1.75/1.62/1.62 Pistons, 1.25" Disc

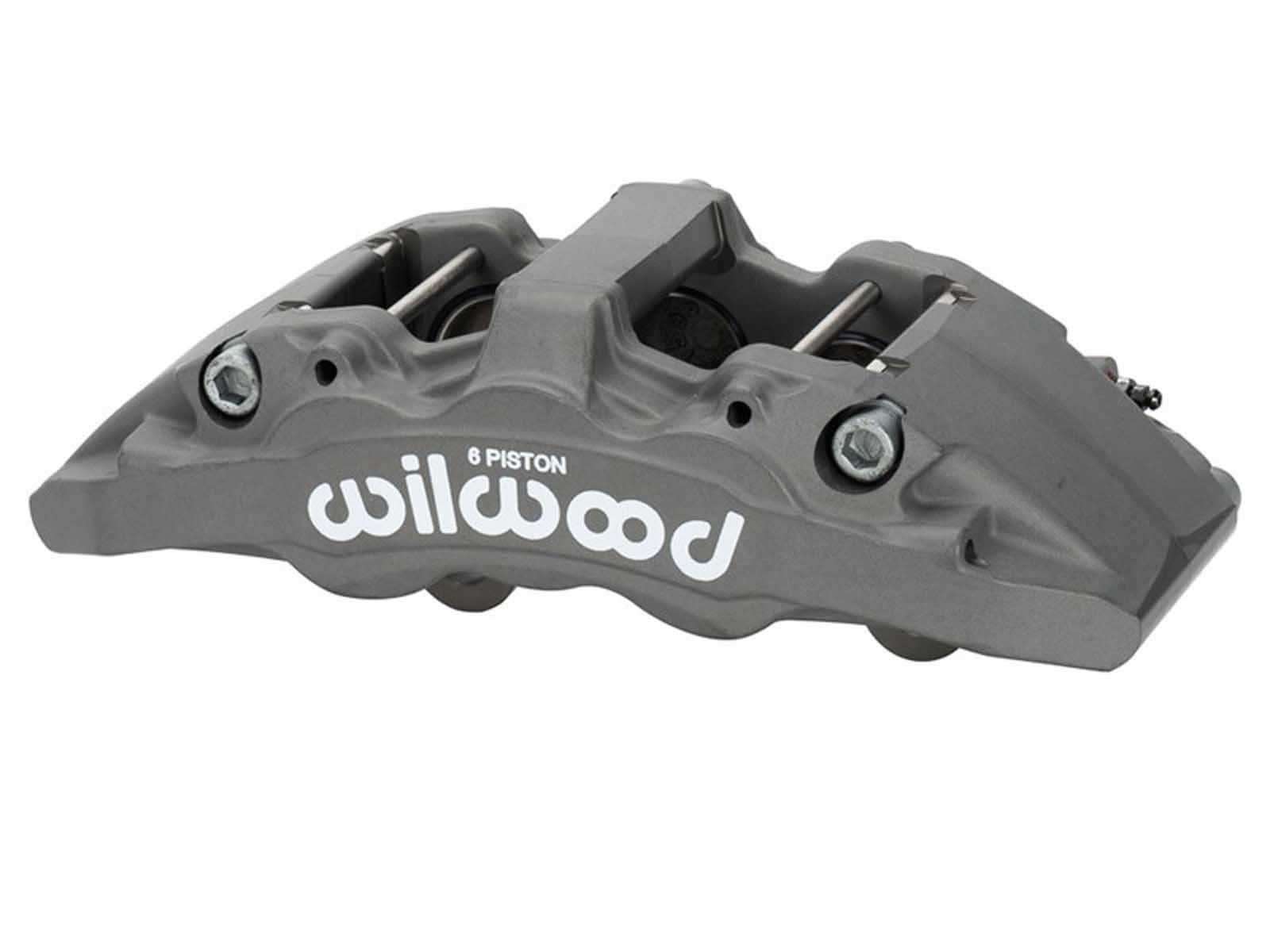

The new Wilwood AERO-DM forged six-piston calipers from Accesspeed deliver heavy duty stopping power for the street and off road. The caliper incorporates race technology into a body design with widespread adaptability. With variable lug geometry the AERO-DM offers direct spindle mounting with proprietary 13.38” diameter rotors on many late model trucks with multiple options for piston volume give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new AERO-DM is the latest innovation to the AERO series of calipers. It has been designed with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly for extra rigidity.

The body of AERO series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results we have found at Accesspeed are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.




Notes

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only. For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-120-17295 Wilwood 120-17295 AERO-DM Caliper Bronco/Ranger, Left-Hand Gray Anodized, 1.75/1.62/1.62 Pistons $699.95 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
