Wilwood 120-17565-RD NDPR Caliper Thin Pad -Red, 1.75" Pistons, .25" Disc

Wilwood 120-17565-RD NDPR Caliper  Thin Pad -Red, 1.75" Pistons, .25" Disc
Part Number: WIL-120-17565-RD
Brand: Wilwood
List Price: $496.00
Price: $346.45

Qty

Wilwood 120-17565-RD NDPR Caliper (Thin Pad)-Red, 1.75" Pistons, .25" Disc

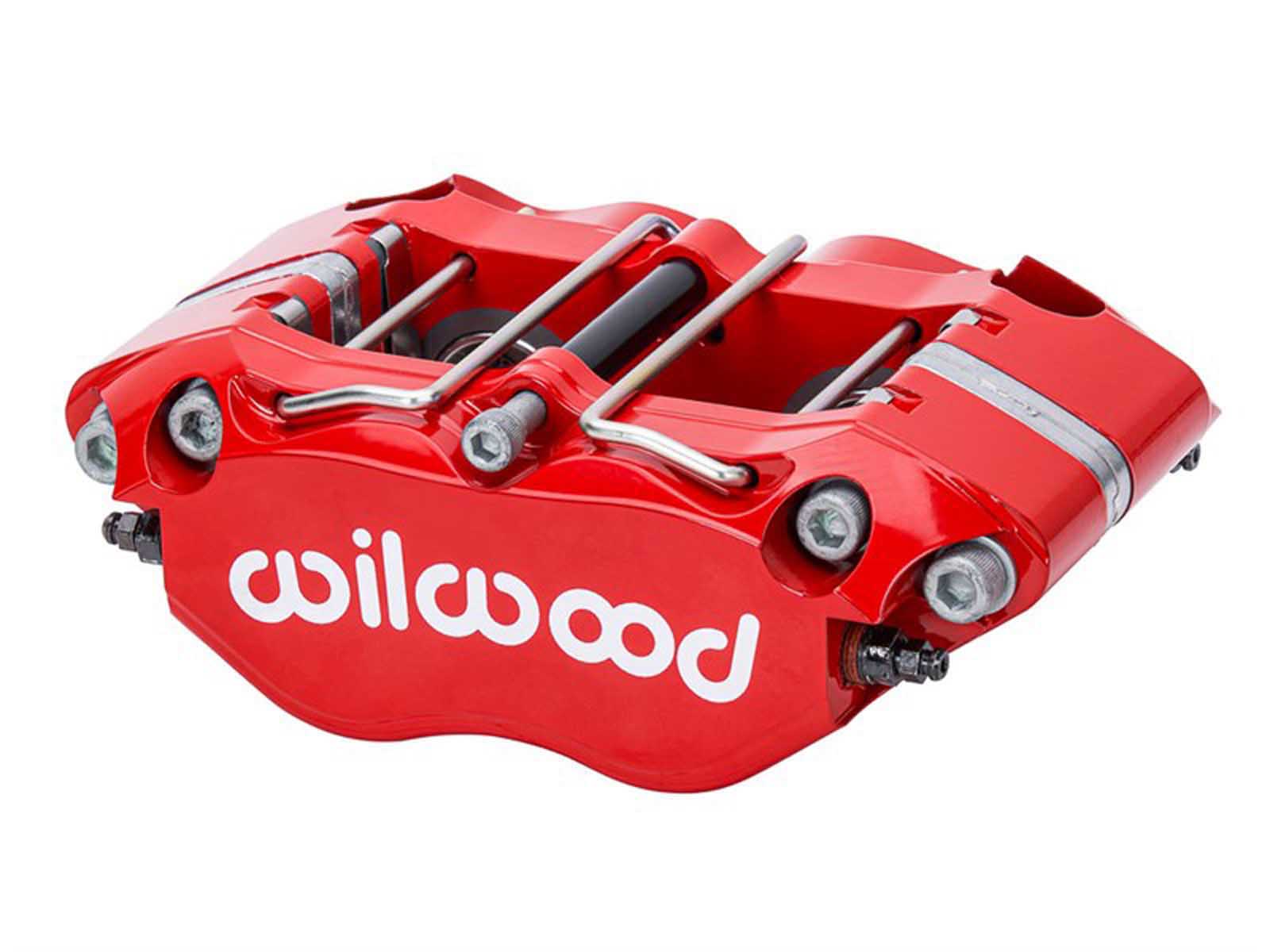

Wilwood Narrow Dynapro four-piston radial mount calipers from Accesspeed combine the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the Dynapro has become a favored choice for a broad range of sports, rally, and off-road driving applications. Narrow Dynapro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements.

The strength of the Wilwood Dynapro is a combination of process and design. The process of stress-flow forging re-aligns the internal grain structure of the metal to flow within the contour of the caliper body. This produces a part with superior strength over machined block billet parts or castings. The FEA generated body design features a radial transition between the piston bores and caliper bridges. This eliminates machined steps and shoulders in this critical strength area and substantially increases the resistance against deflection and body separation under high load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. The bottom line is a firm pedal with outstanding stopping power.

Wilwood Narrow Dynapro fits rotors up to 12.19” and features heavy wall stainless pistons to provide additional protection against corrosion and heat transfer from the pads. All Dynapro calipers can also be optioned with Thermlock pistons for maximum thermal protection in sustained high-heat applications. The Dynapro incorporates other exclusive Wilwood performance enhancements. Stainless SRS bridge plates eliminate caliper bridge wear from pad gouging while dampening noise and vibration during engagement. Internal fluid passages eliminate the need for external crossover tubes, and four corner bleed screws allow effective gas evacuation regardless of the mounting location.


Notes

Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only. For all other areas, please contact us for a discounted rate quote.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-120-17565-RD Wilwood 120-17565-RD NDPR Caliper Thin Pad -Red, 1.75" Pistons, .25" Disc $346.45 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
