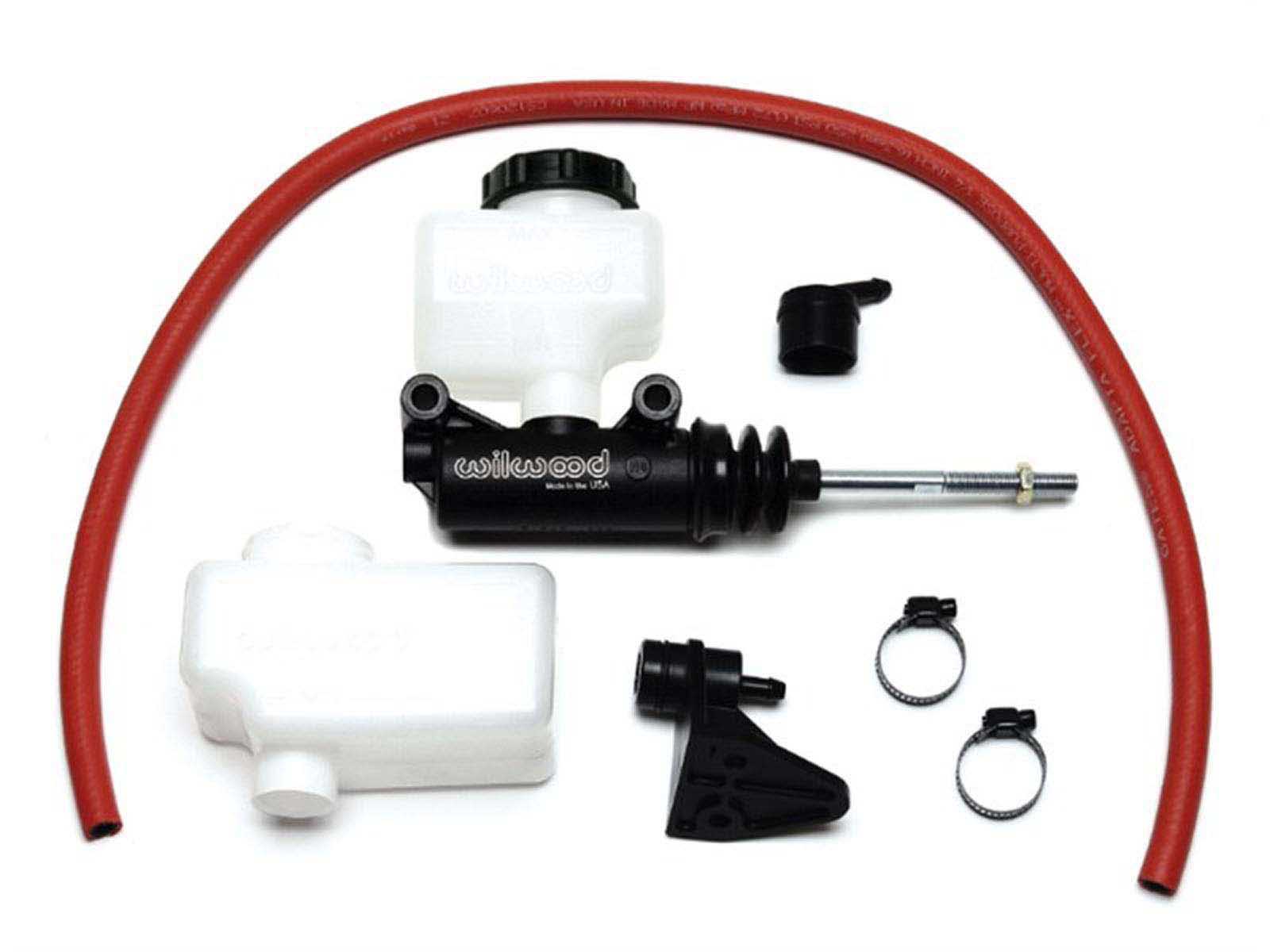

Wilwood 260-14787 Short Remote Master Cylinder Kit 15/16-in Bore, 3/8-in-24 Banjo Outlet

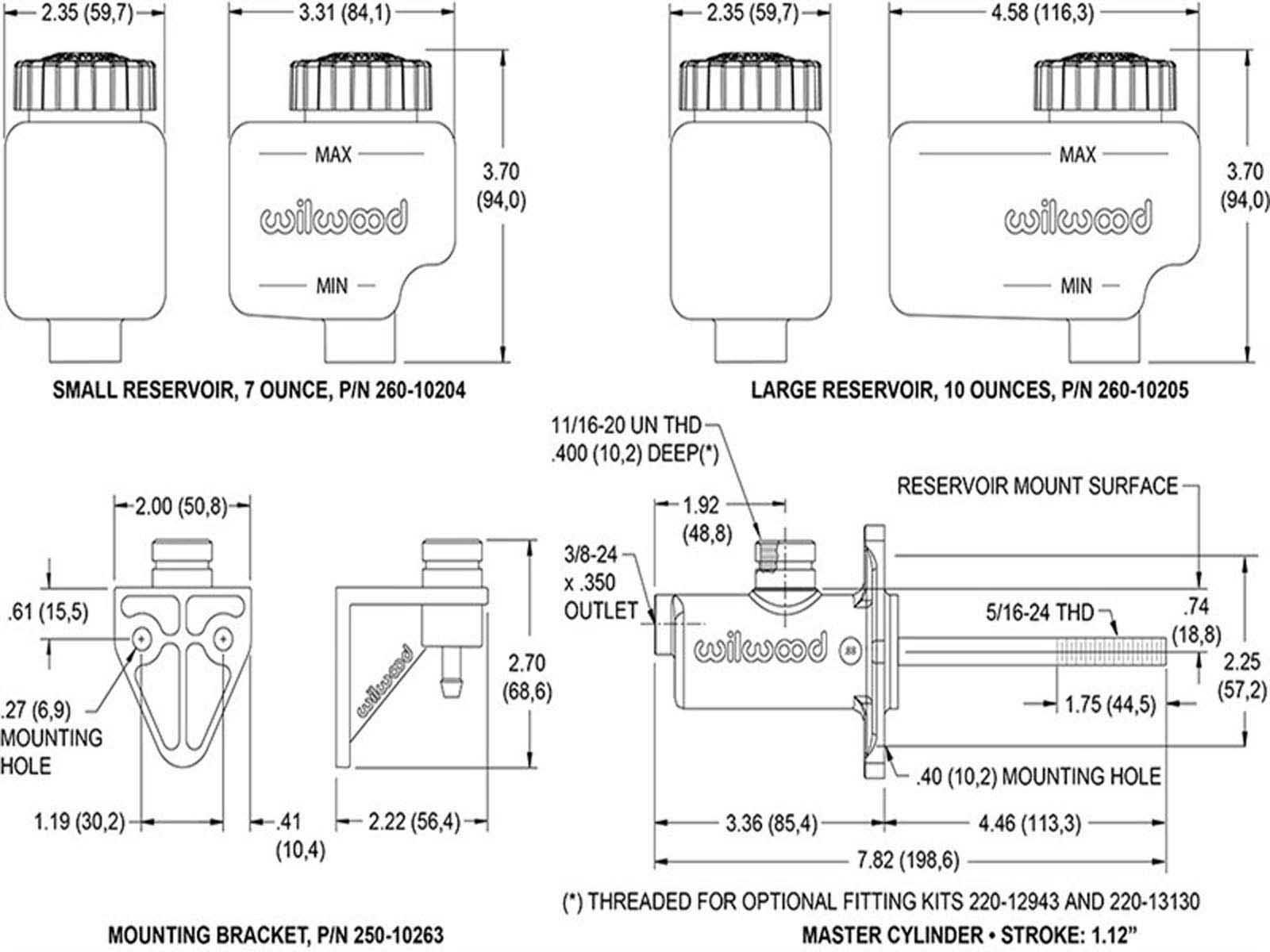

This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37"compact body provides 2.16" of additional clearance between the mounting flange and the fluid outlet. A full 1.12" of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-260-14787 |
Wilwood 260-14787 Short Remote Master Cylinder Kit 15/16" Bore, 3/8"-24 Banjo Outlet |
$107.25 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
