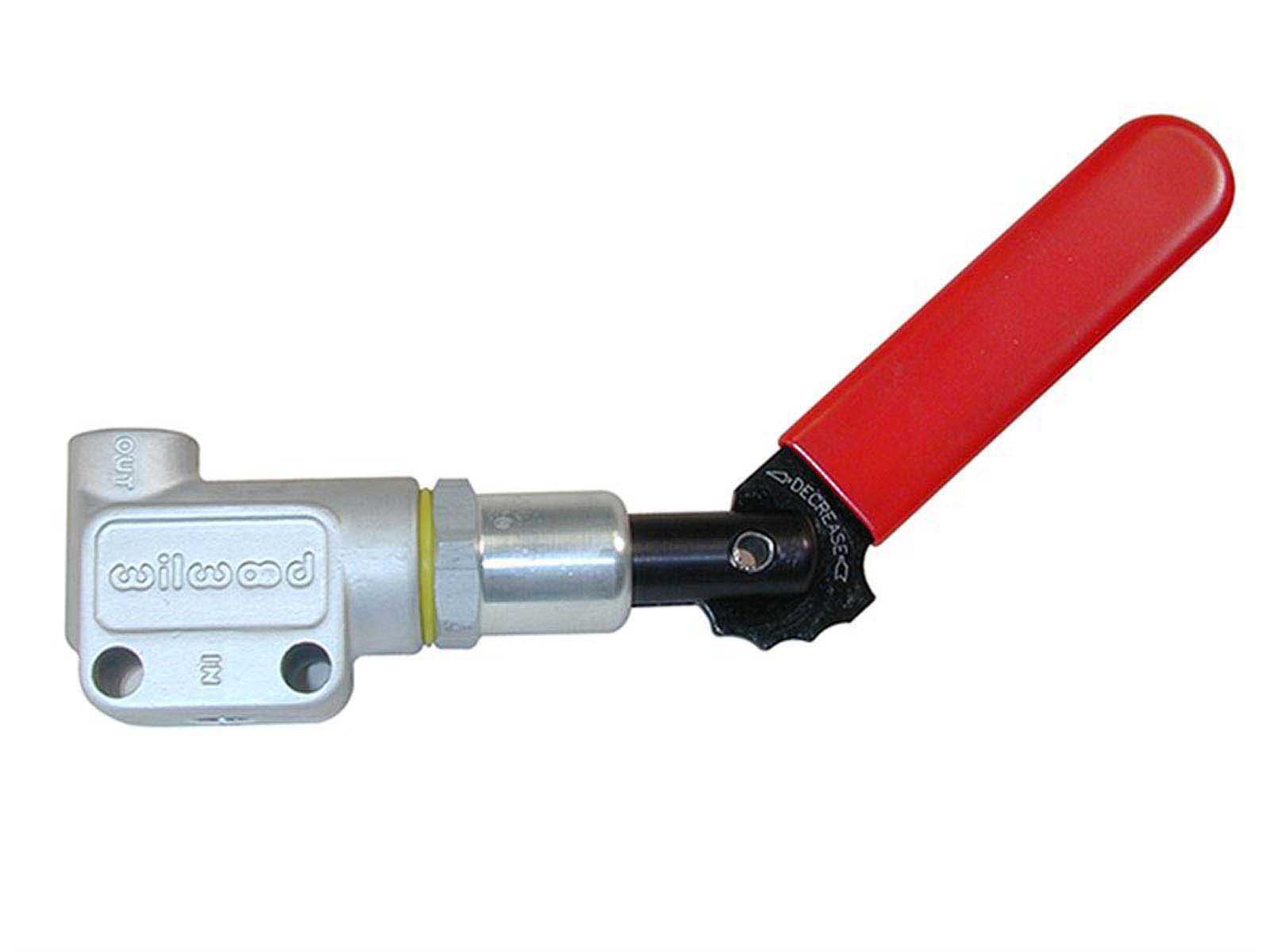

Wilwood 260-8420 Lever Style Proportioning Valve

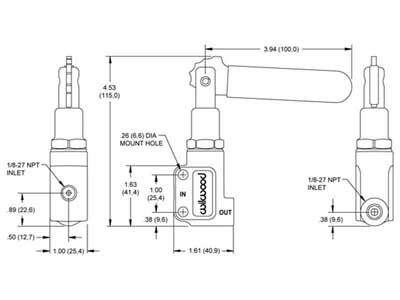

Wilwood's new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever "clicks" into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25" side mounting holes spaced 1.00" apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-260-8420 |
Wilwood 260-8420 Lever Style Proportioning Valve |
$96.18 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
