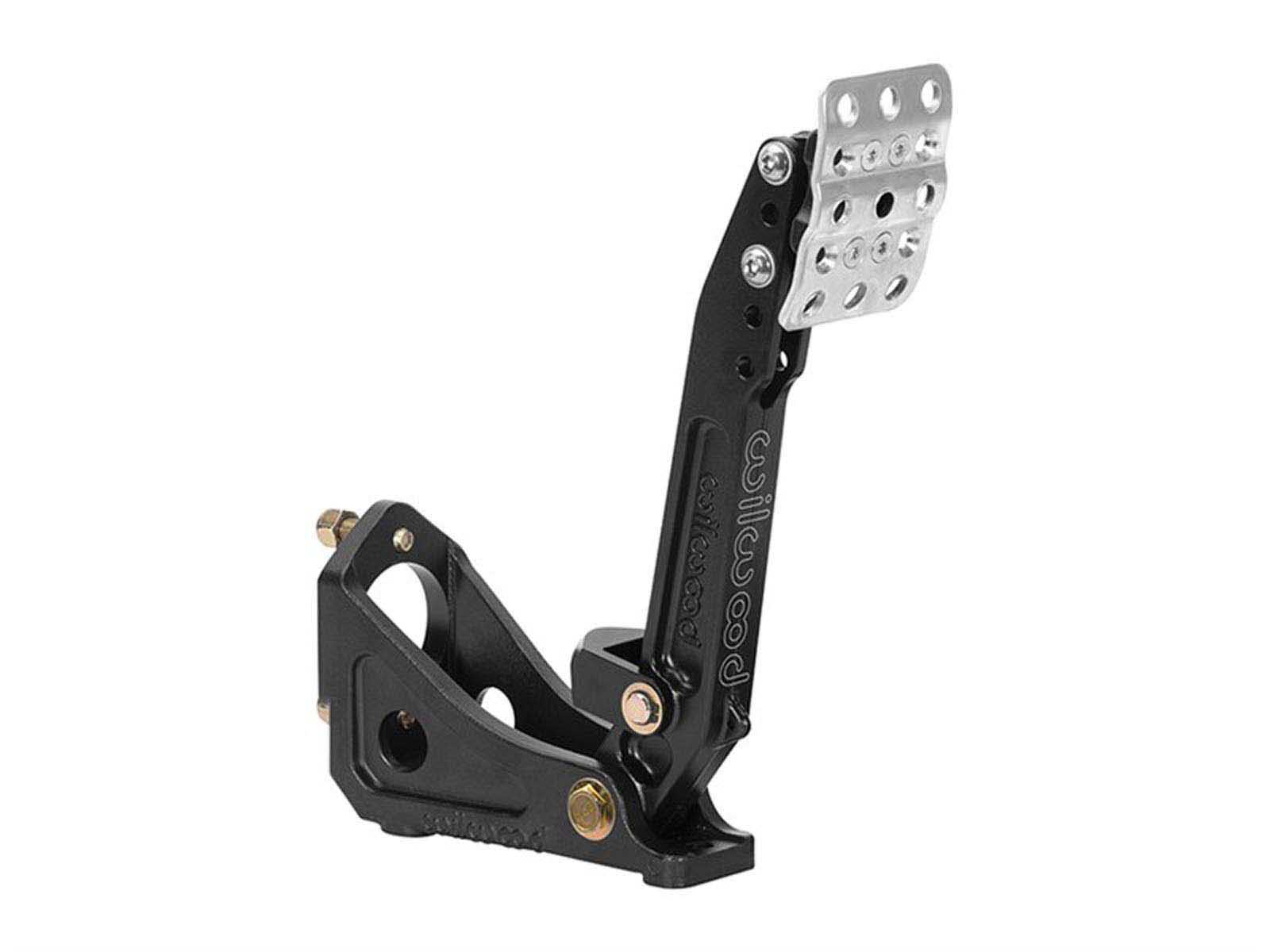

Wilwood 340-16378 Adjustable 5.25-6:1 Ratio Floor Mount Single Brake/Clutch Pedal

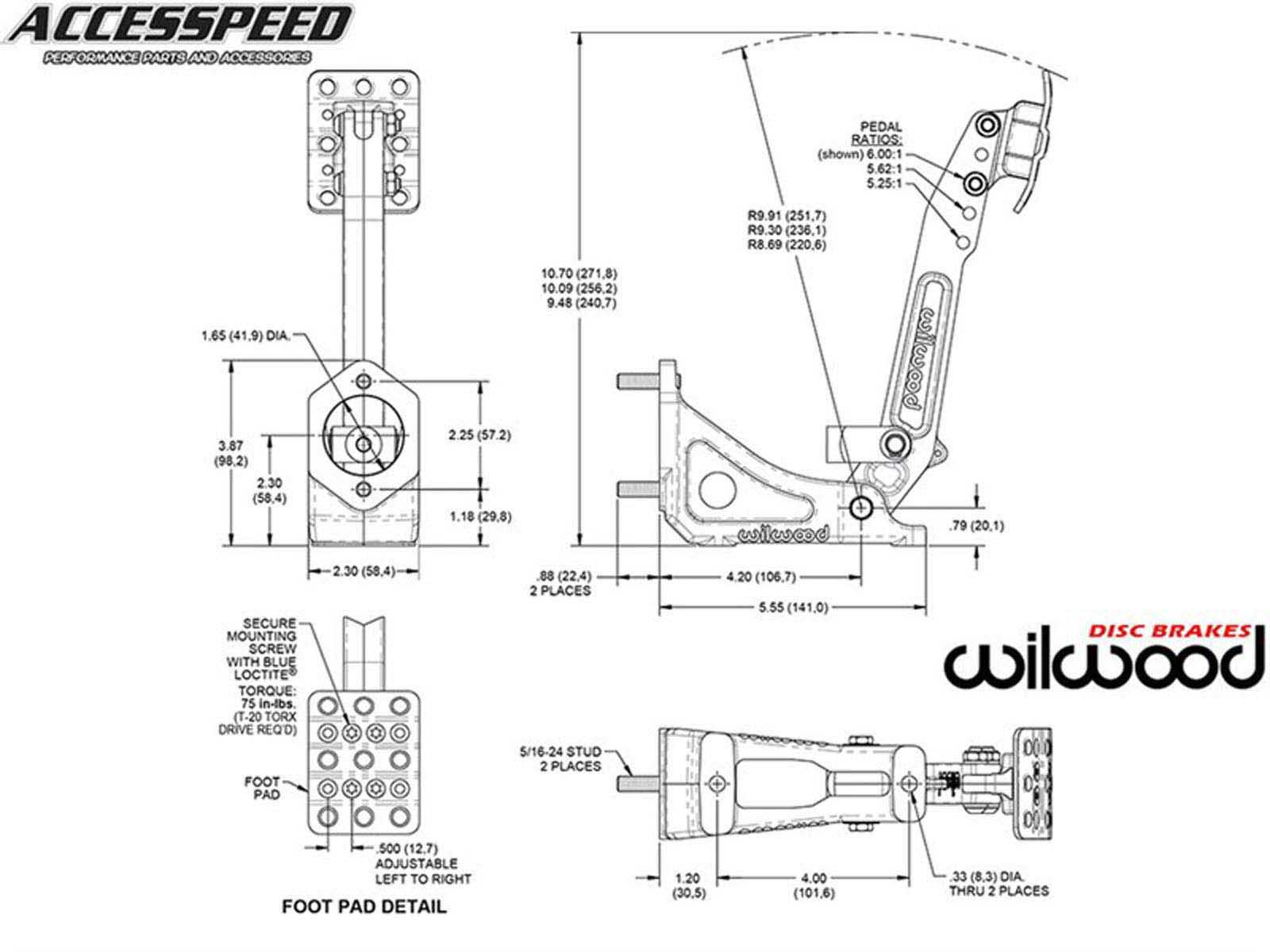

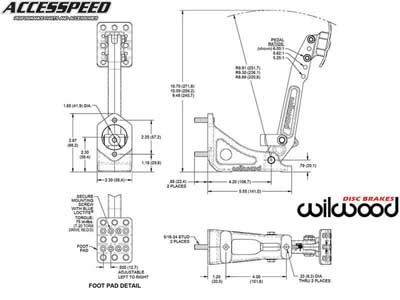

Wilwood adjustable ratio single clutch pedal from Accesspeed is available in a floor mount assembly. Pedal head adjusts vertically to provide a 5.25, 5.63, or 6.00:1 ratio for more feel or less pedal effort. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-340-16378 |
Wilwood 340-16378 Adjustable 5.25-6:1 Ratio Floor Mount Single Brake/Clutch Pedal |
$135.78 |
Add to Cart |
Scroll to view product options.
