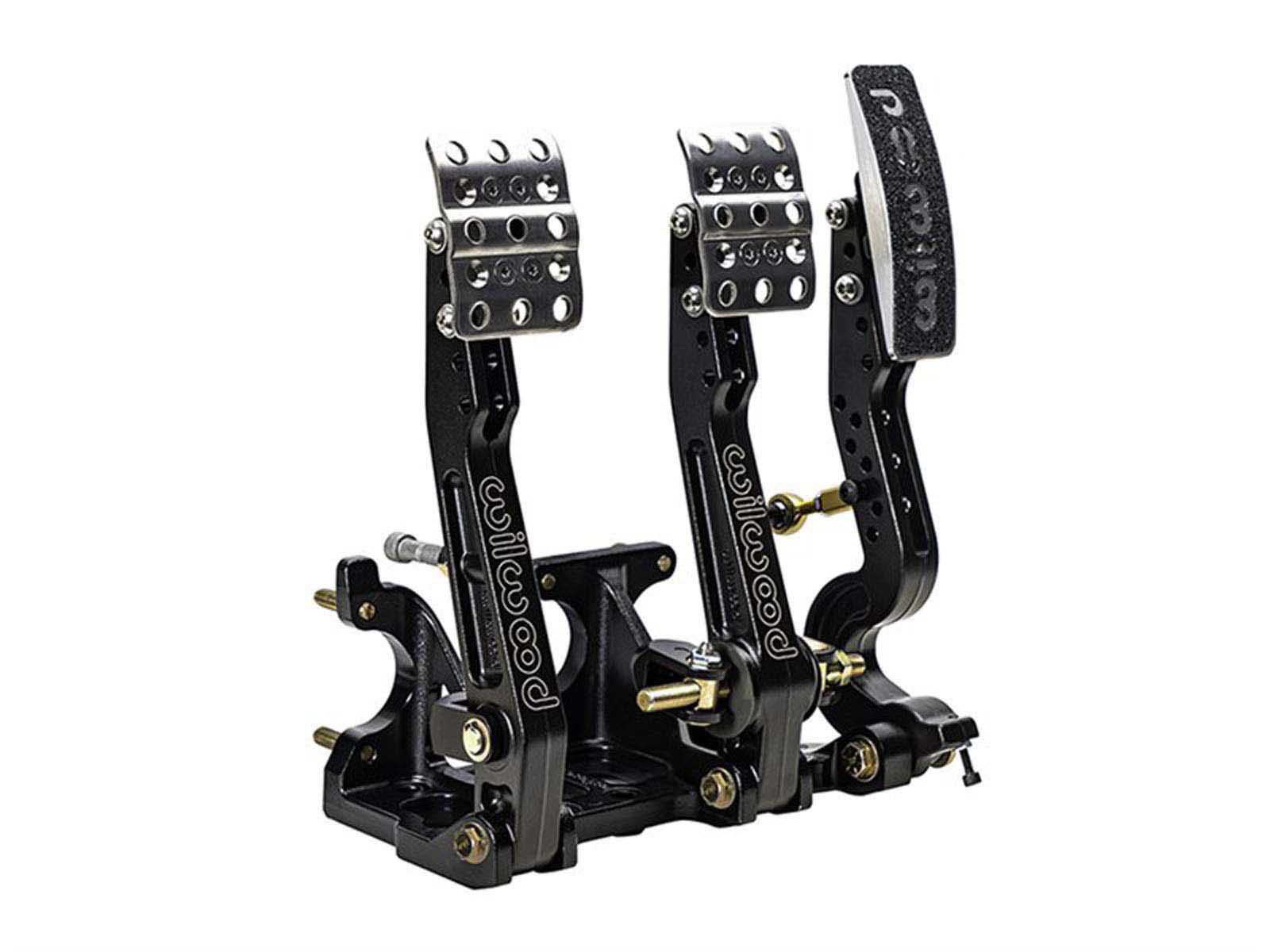

Wilwood 340-16603 Adjustable 4.75-5.75 Ratio Floor Mount Brake Clutch & Throttle Pedals w/Throttle Linkage

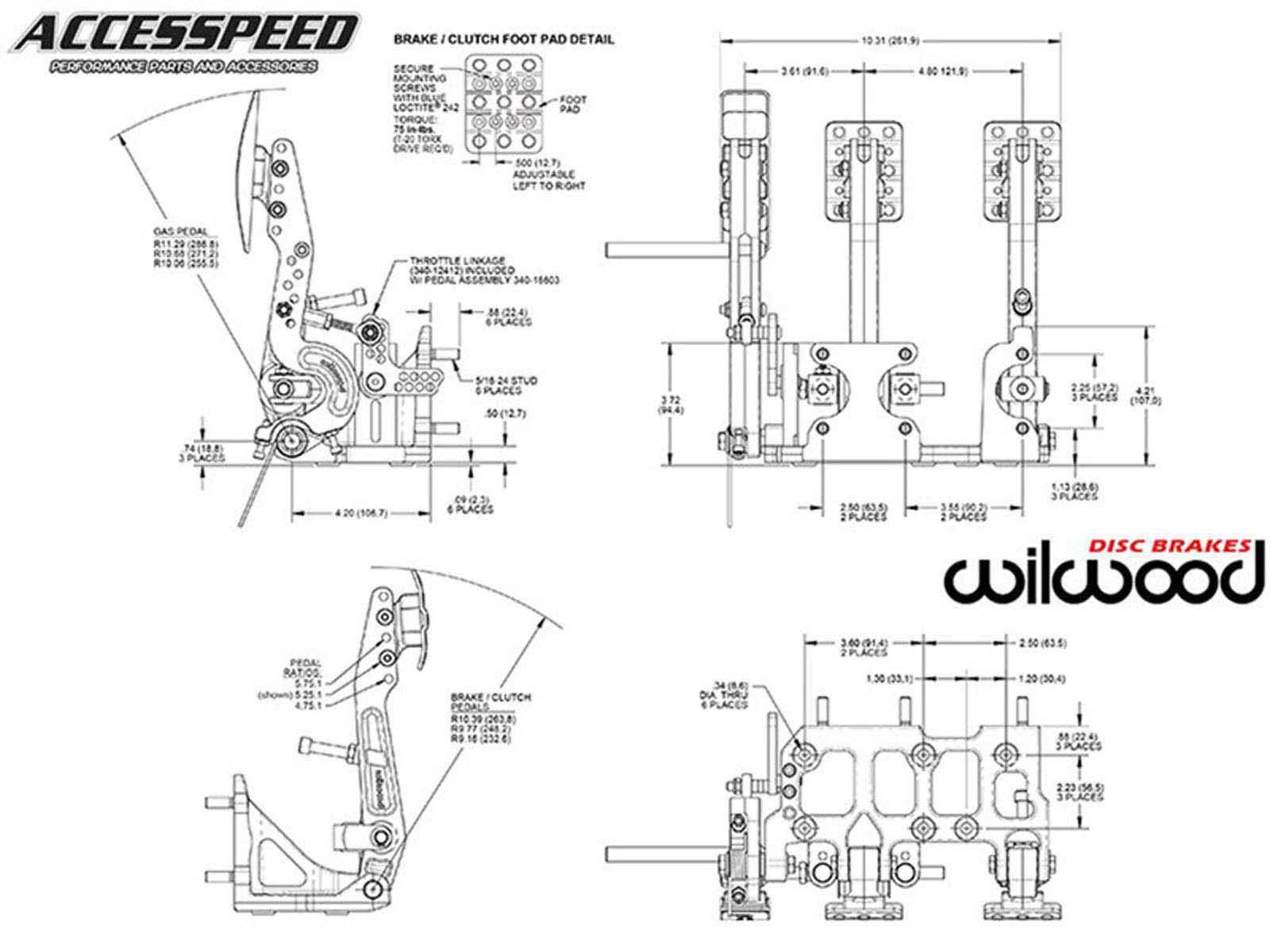

Wilwood adjustable ratio balance bar brake pedal from Accesspeed is available in a floor mount throttle, brake and clutch pedal assembly with throttle linkage for front engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The throttle pedal includes an adjustable ratio bell crank for front engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob, which is an Accesspeed favorite for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-340-16603 |
Wilwood 340-16603 Adjustable 4.75-5.75 Ratio Floor Mount Brake Clutch & Throttle Pedals w/Linkage |
$566.21 |
Add to Cart |
