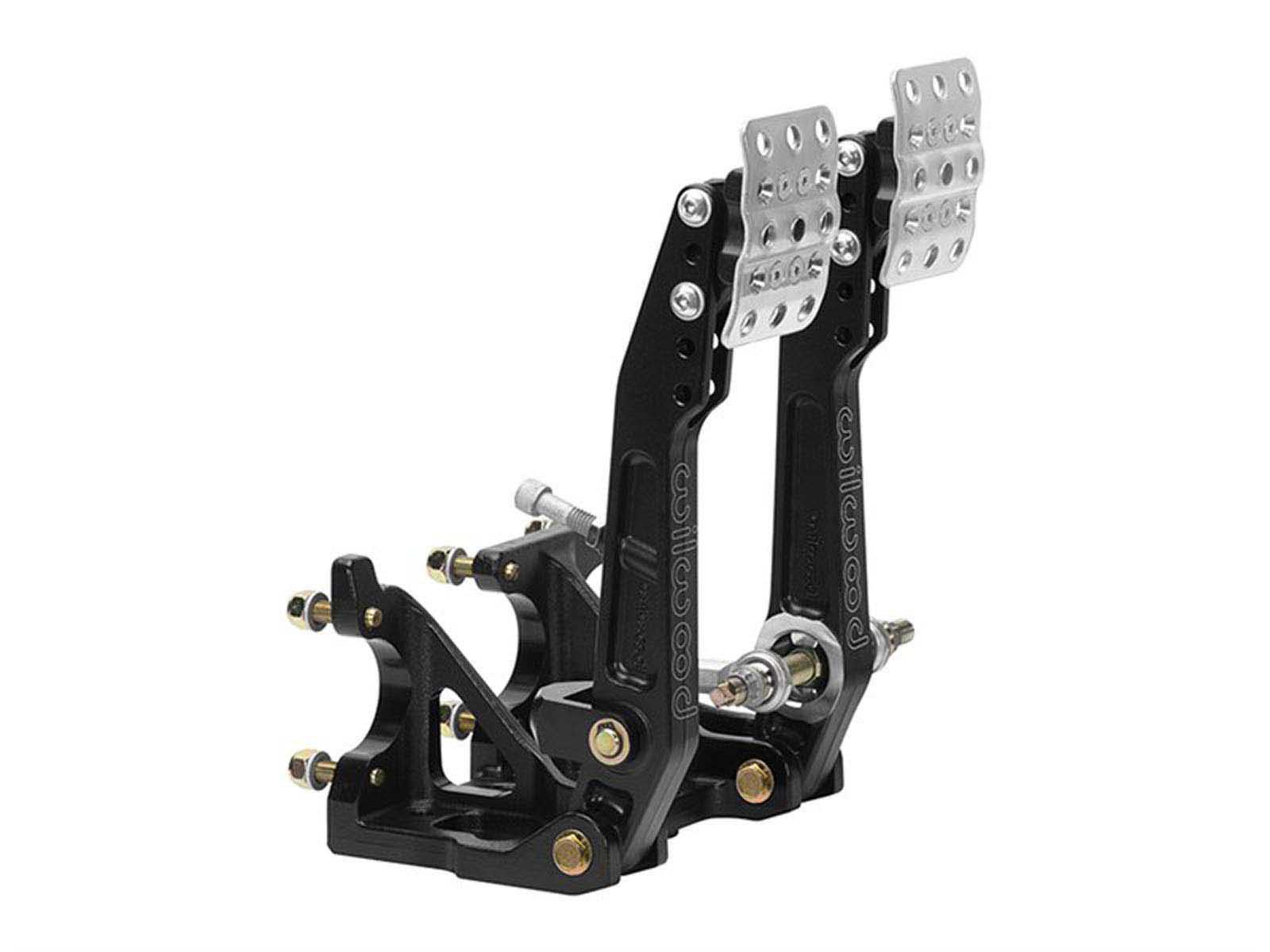

Wilwood 340-16607 Adjustable 4.75-5.75:1 Ratio Floor Mount Tru-Bar Brake and Clutch Pedals
Wilwood adjustable ratio Tru-Bar brake pedal from Accesspeed is available in a floor mount brake and clutch pedal assembly. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob, which is an Accesspeed customer favorite for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.
WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
Scroll to view product options.
| Part # |
Description |
Price |
|
| WIL-340-16607 |
Wilwood 340-16607 Adjustable 4.75-5.75:1 Ratio Floor Mount Tru-Bar Brake and Clutch Pedals |
$835.05 |
Add to Cart |
Scroll to view product options.
Fits These Applications:
| Year |
Make |
Model |
SubModel |
Engine |
Transmission |
Drive |
