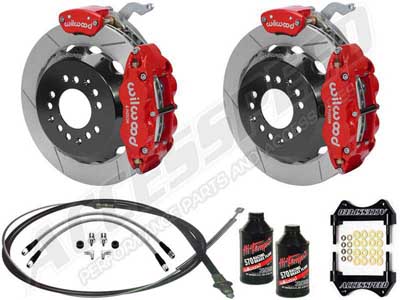

Wilwood SL6R 13" Rear Big Brake Kit With Brake Lines & Fluid, Red, Slotted, 1988-1996 Corvette

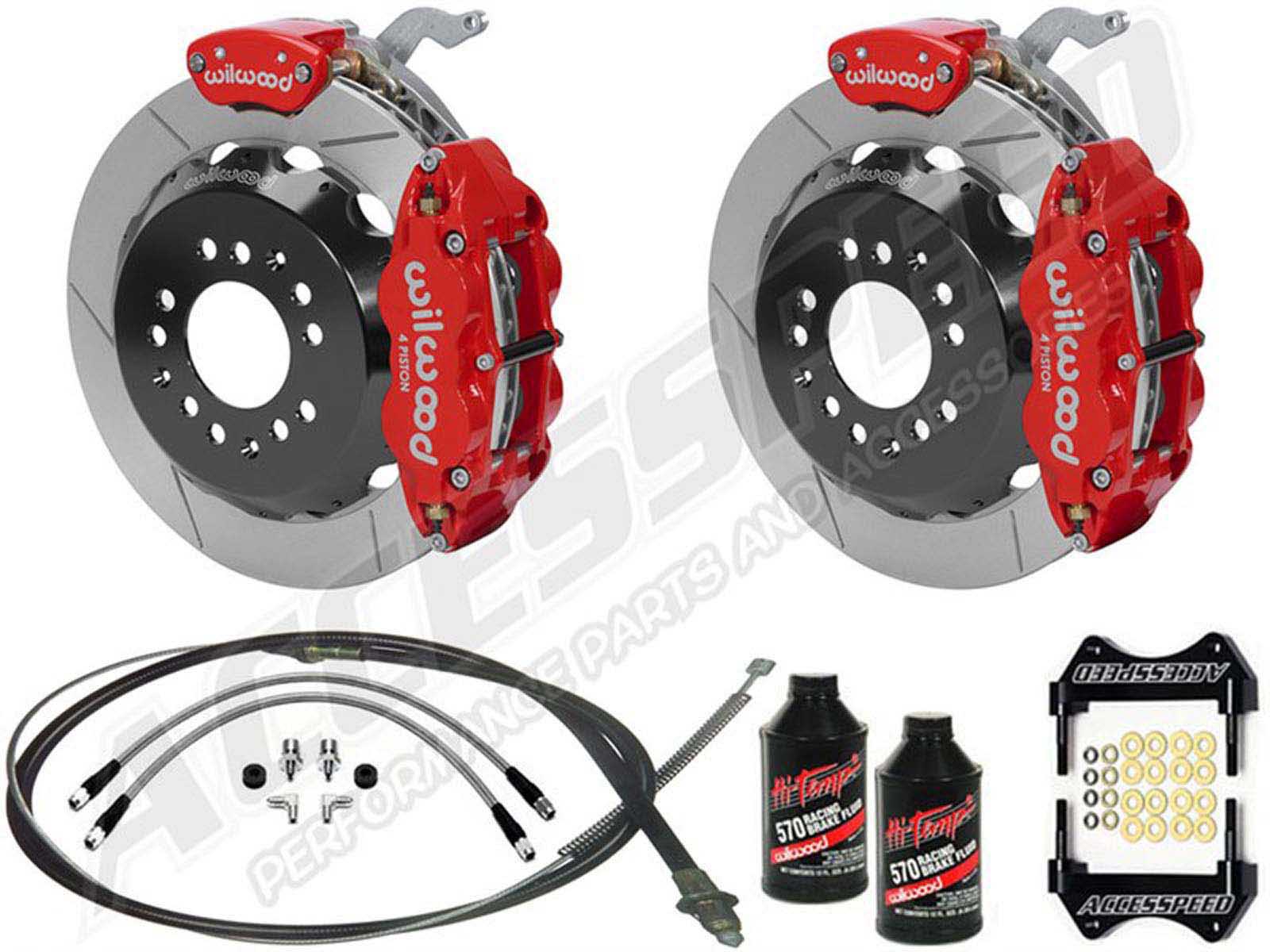

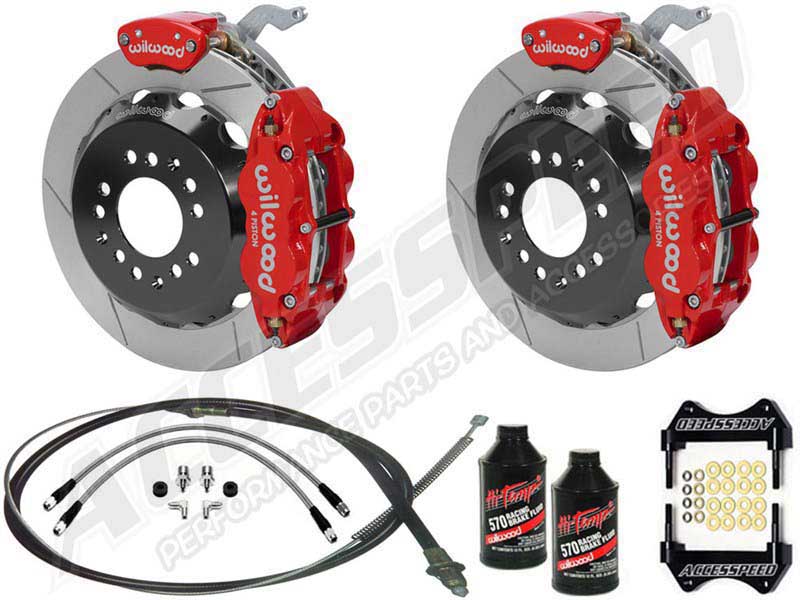

Wilwood Superlite 13" Rear Big Brake Kit Combo With Parking Brake Cable, Brake Lines & Fluid, Red, Slotted, Fits 1988-1996 Corvette

This is an all-inclusive Rear Big Brake Kit with Rear Stainless Brake Lines, Rear Parking Brake Cable and 2 Bottles of Wilwood 570 Brake Fluid!

REAR:

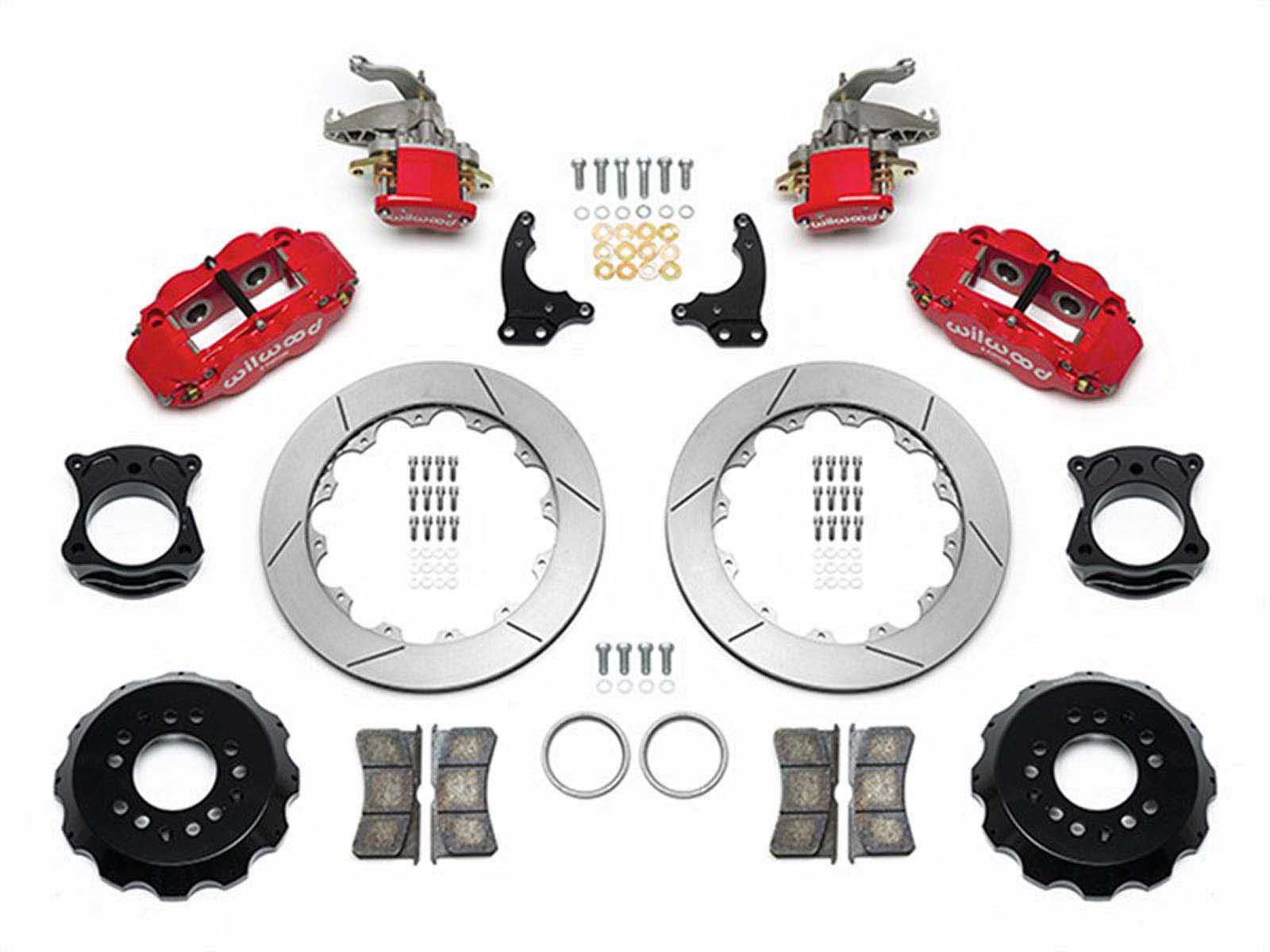

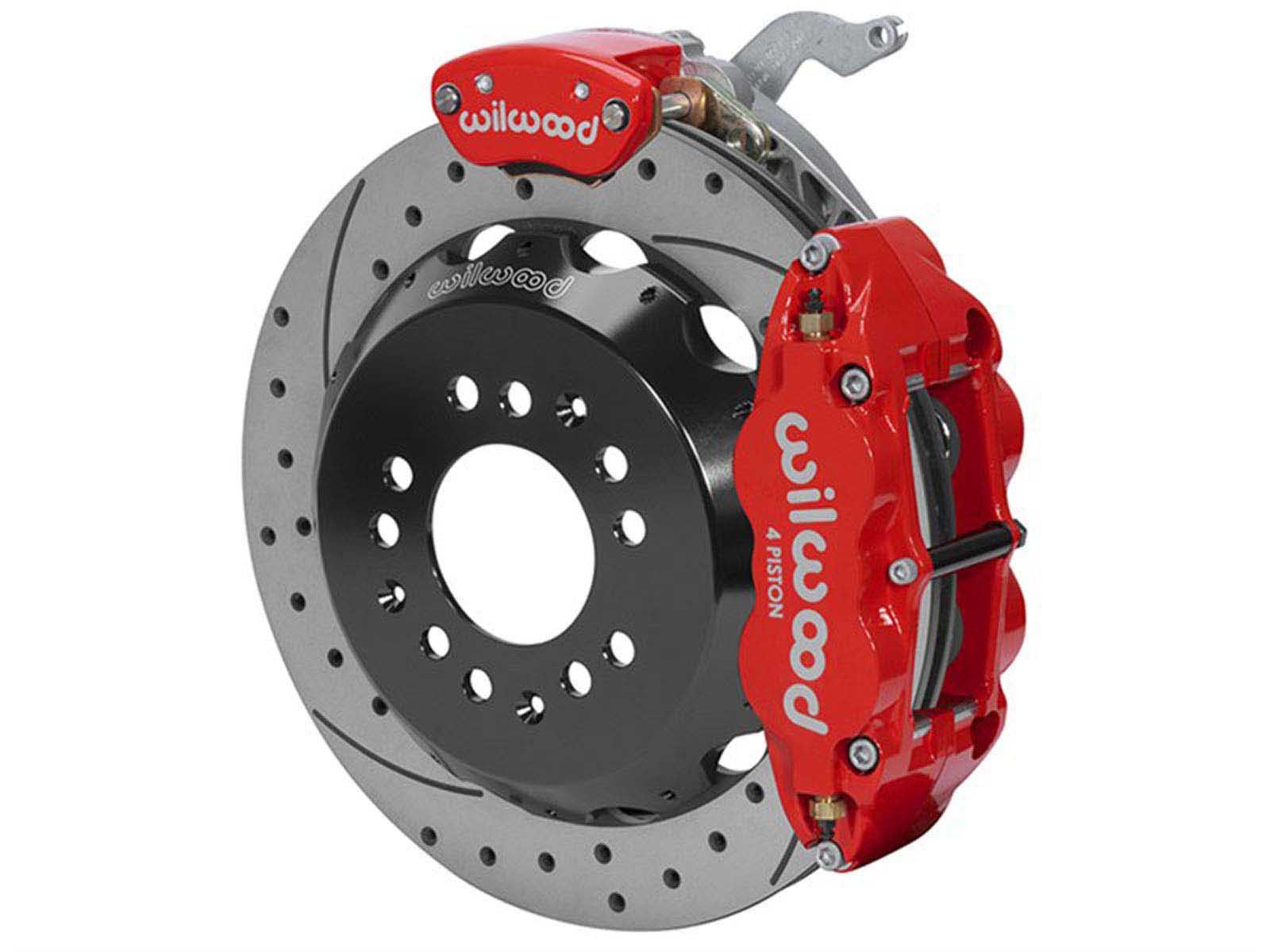

FNSL4R rear big brake kits provide high-capacity braking with contemporary styling for high performance street and show Corvettes, and all other custom-built vehicles equipped with 1988-1996 C4 Corvette rear suspension. The original equipment single piston combination caliper is replaced with a high efficiency, forged aluminum narrow Superlite four-piston caliper for normal braking, and an auxiliary MC4 mechanical caliper for the parking brake. Rotor size is increased to 12.88", adding brake leverage and cooling capacity while complimenting the look inside custom wheel and tire upgrades.

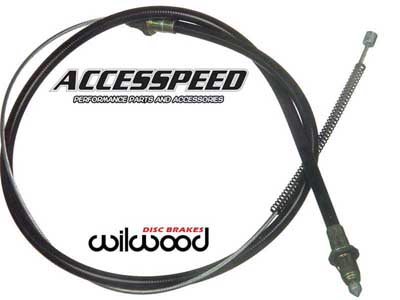

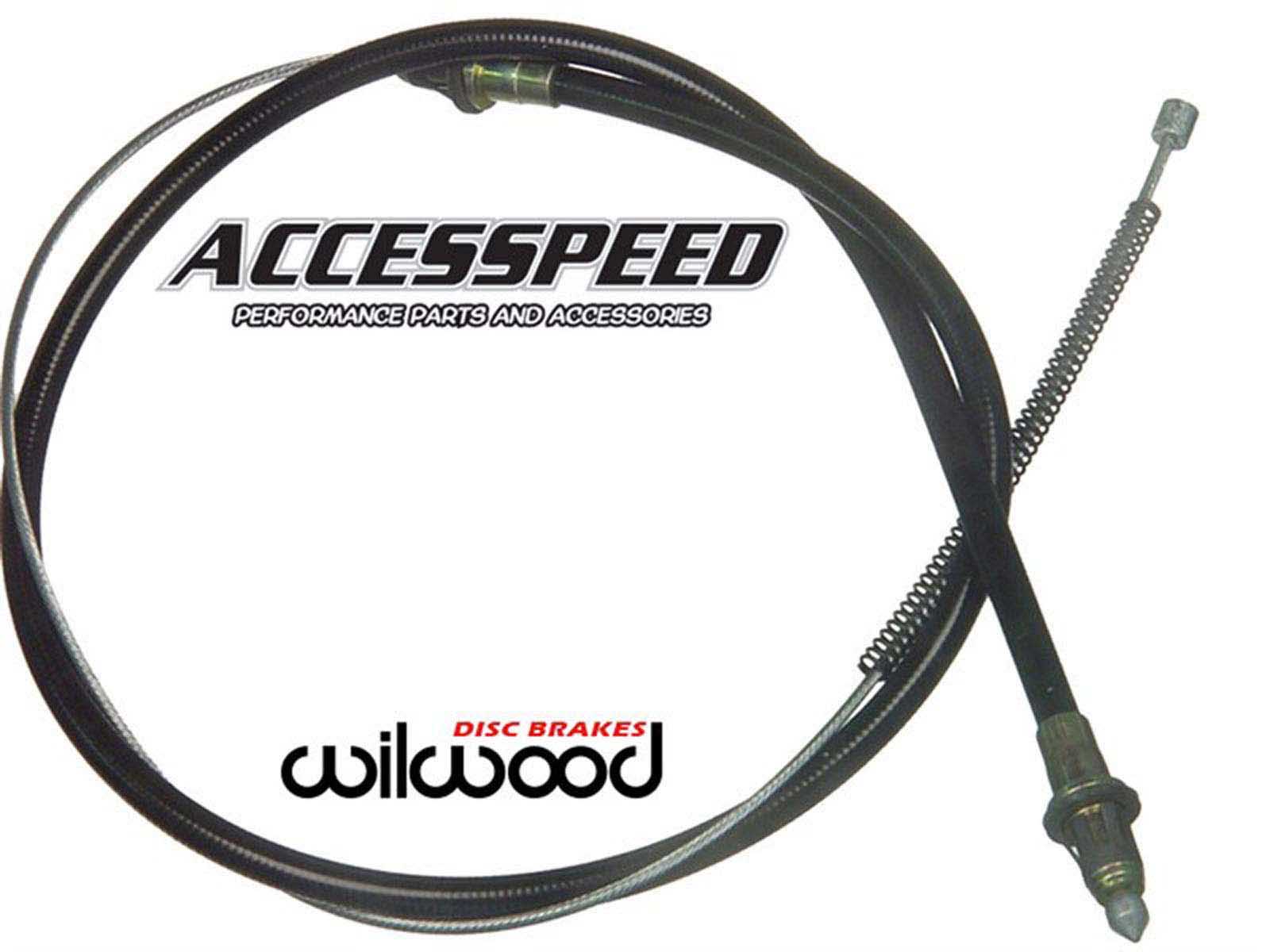

PARKING BRAKE CABLE KIT:

This Parking Brake Cable Kit is for Wilwood Rear Big Brake Kits.  Wilwood’s Caliper Cable Kit contains all parts necessary for effective installation on most vehicles. Kit contents include cable and sheath assemblies, clevises and hardware.

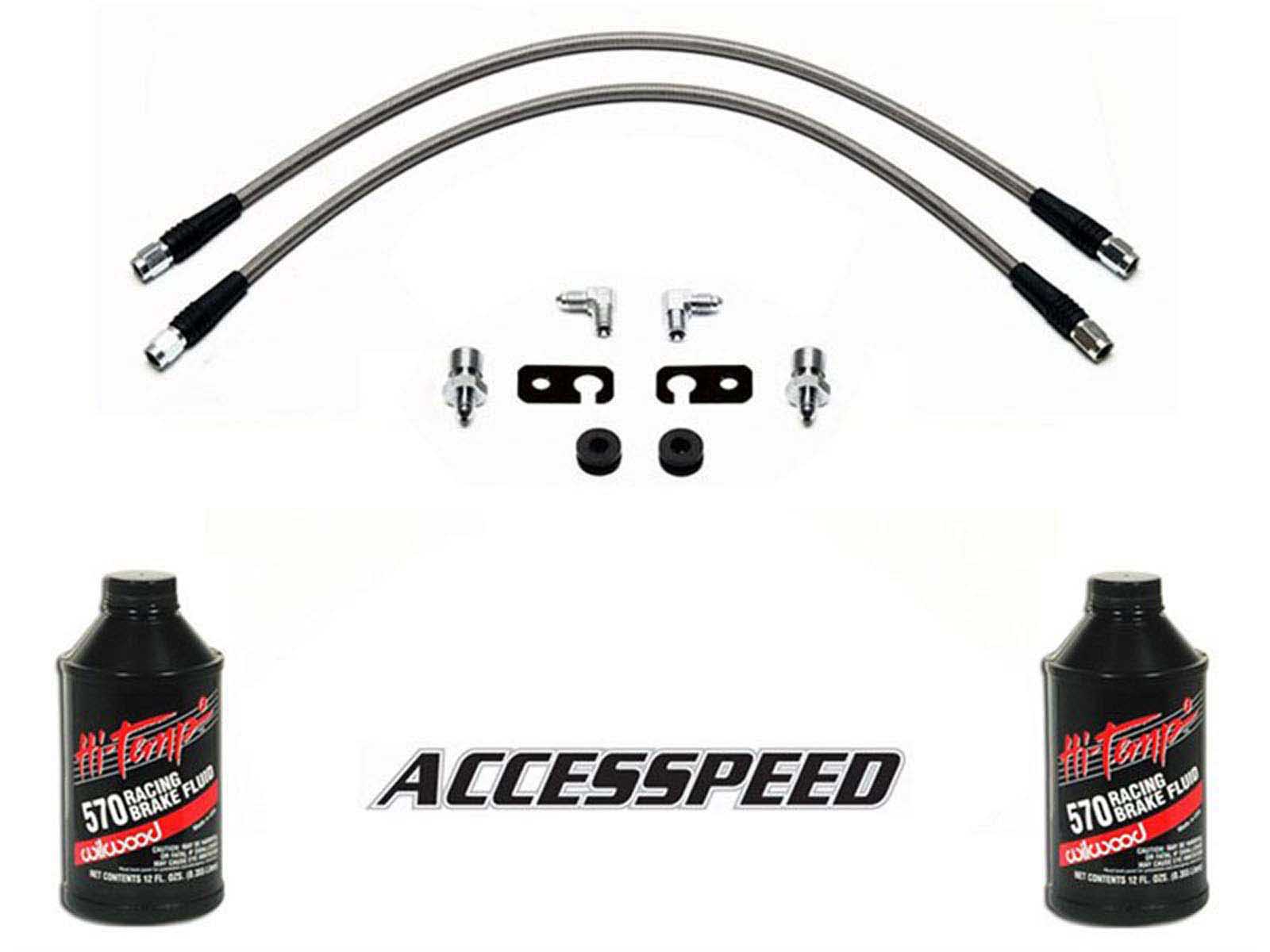

BRAKE LINES:

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

BRAKE FLUID:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

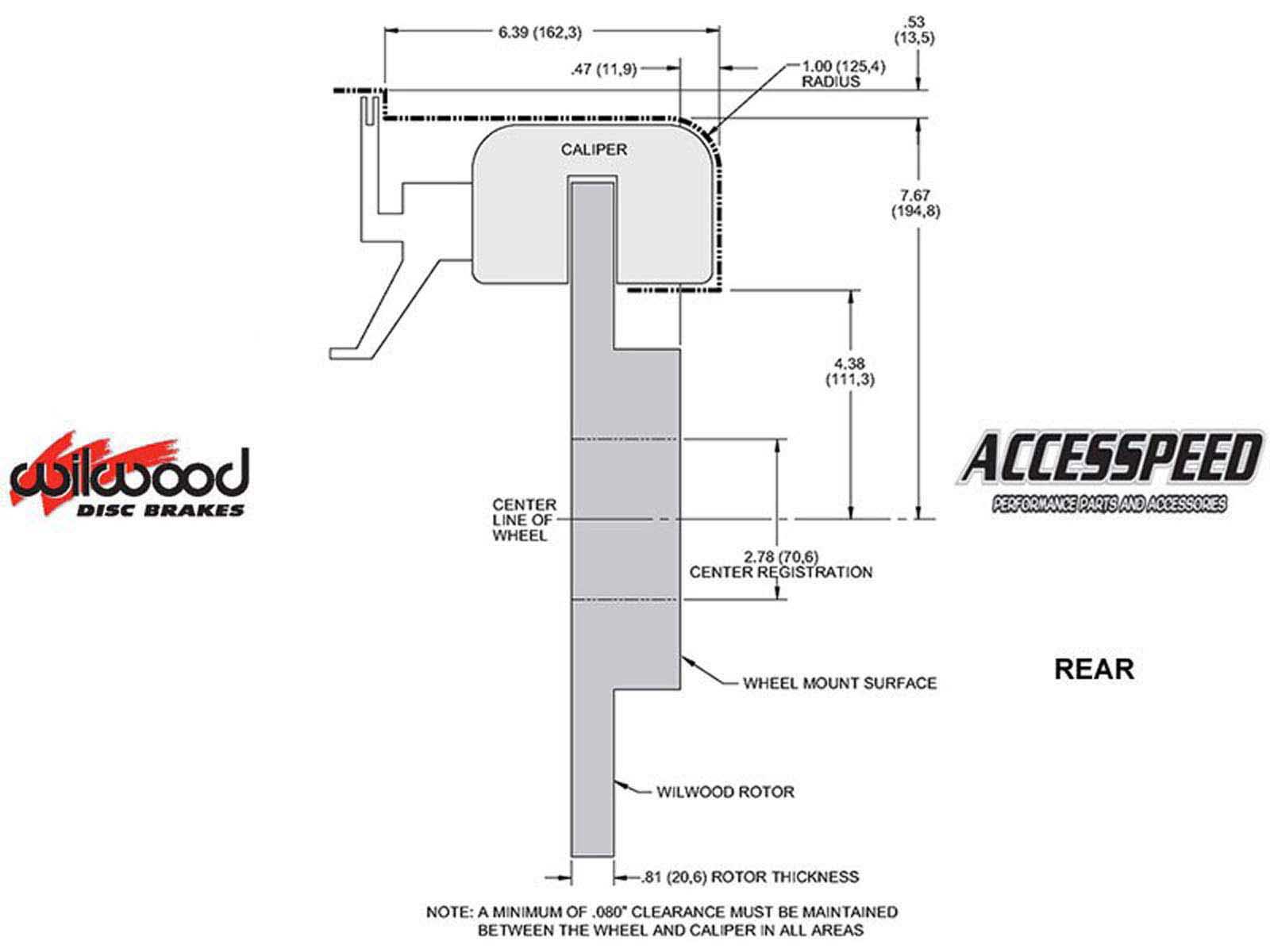

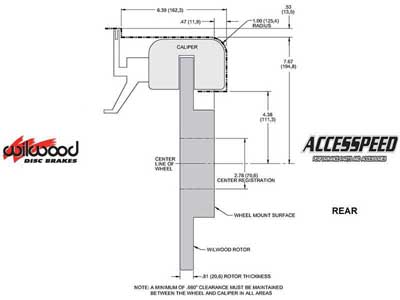

*This Brake Kit may require 17-inch or larger wheels and/or wheel spacers for proper clearance. Please refer to the wheel clearance diagram images to verify your specific wheel and vehicle fit.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
