Wilwood SX6R 15" Front & SL4R Rear Brakes, Black, Slotted, Brake Lines, Fluid 2005-2013 Corvette C6

ACCESSPEED-WIL-C6-SX-E Wilwood SX6R 15" Front & Superlite 4R 14" Rear Big Brake Combo Package With Black Calipers & Slotted Rotors + Stainless Brake Lines and Brake Fluid, 2005 2006 2007 2008 2009 2010 2011 2012 2013 Corvette C6

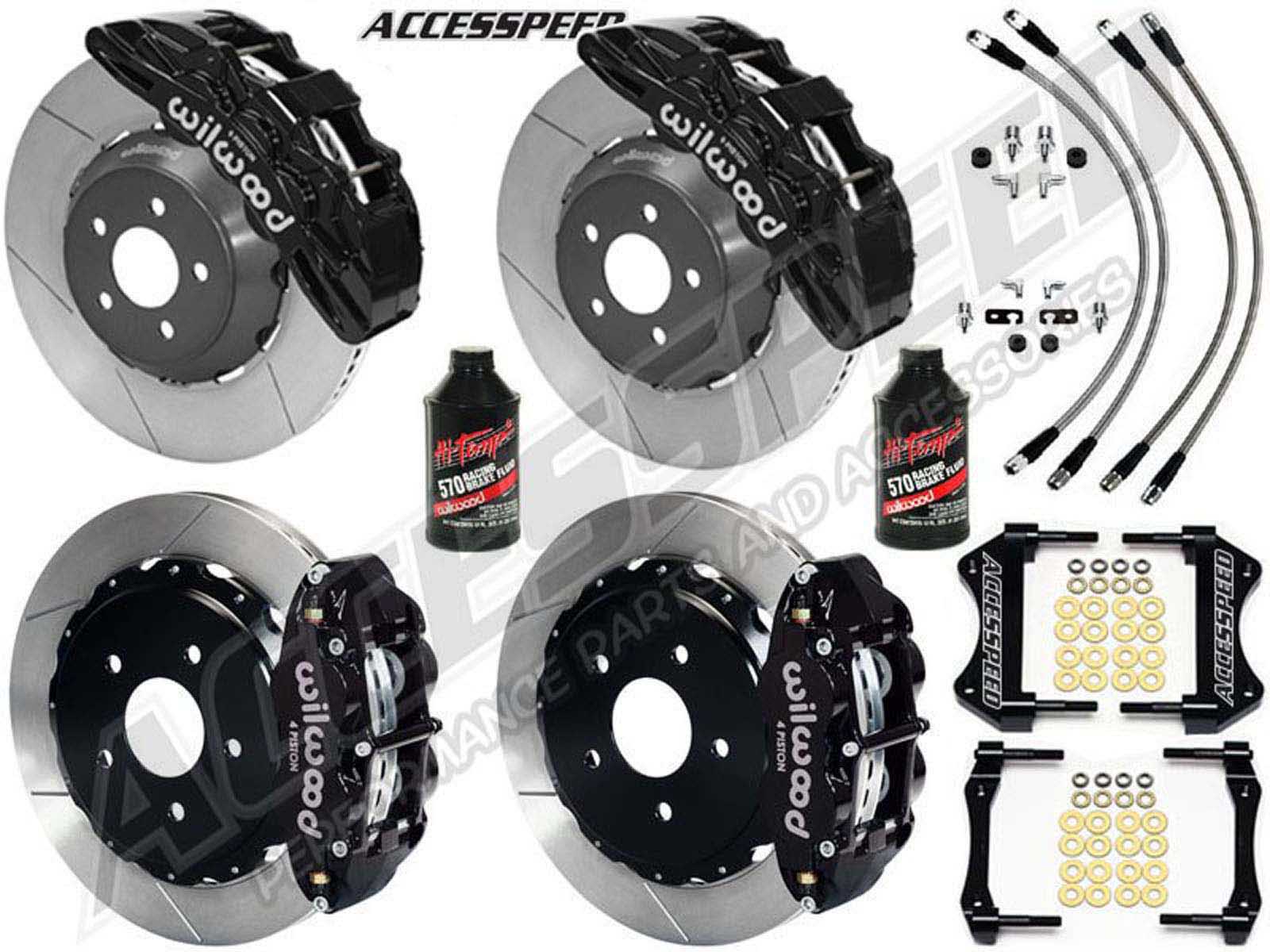

This is an all-inclusive Front & Rear Big Brake Kit, with Front & Rear Stainless Brake Lines, and 2 Bottles of Wilwood 570 Brake Fluid!

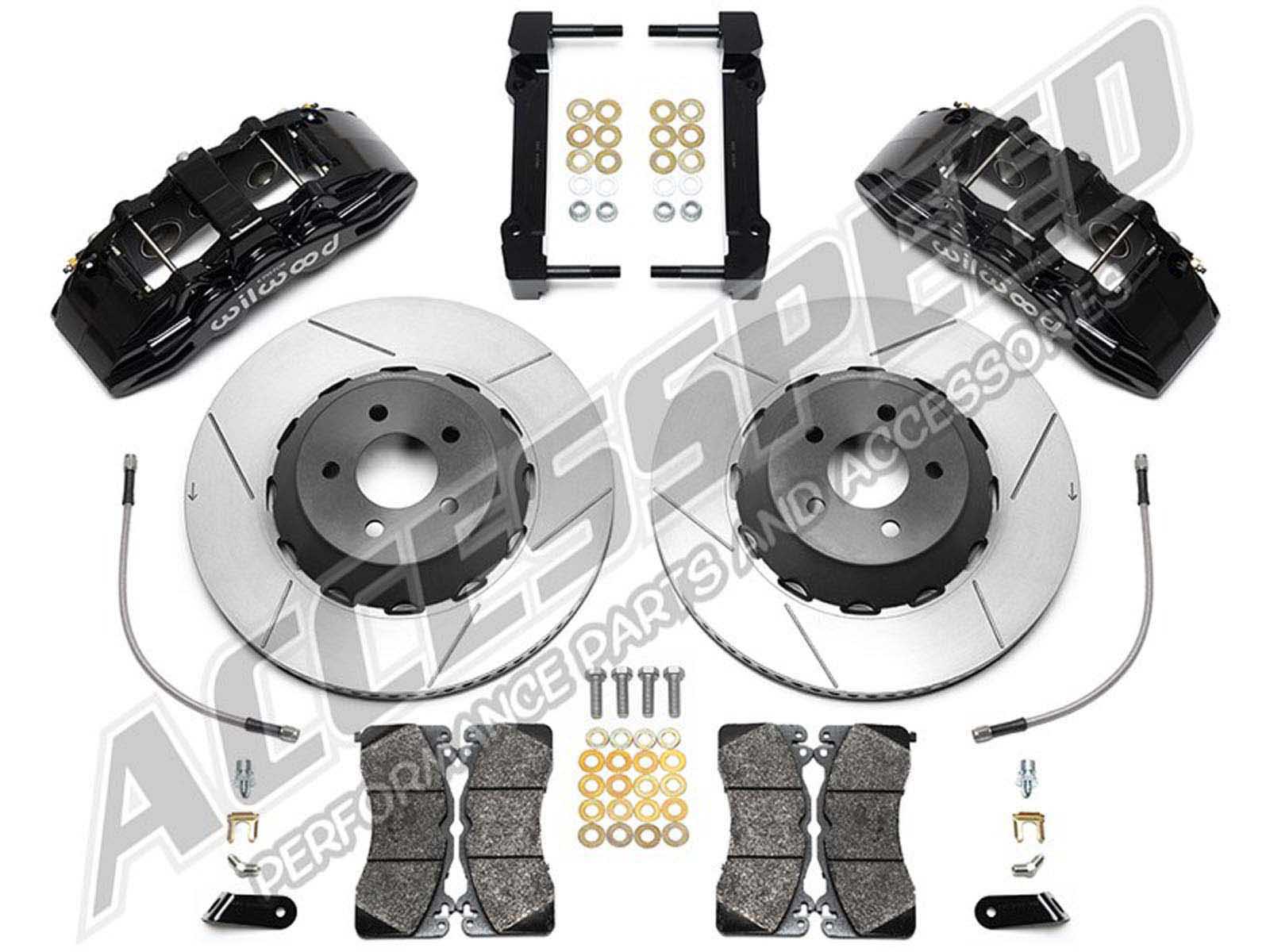

FRONT:

The king of the hill brake system SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme performance duty and race vehicles. It is the largest dual-purpose caliper Wilwood has produced, providing big brake performance for street, track and show vehicles. Offering additional enhanced braking with wheel and tire upgrades, highly recommended by Accesspeed. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 15.00” rotors provide maximum cooling for sustained high heat durability.

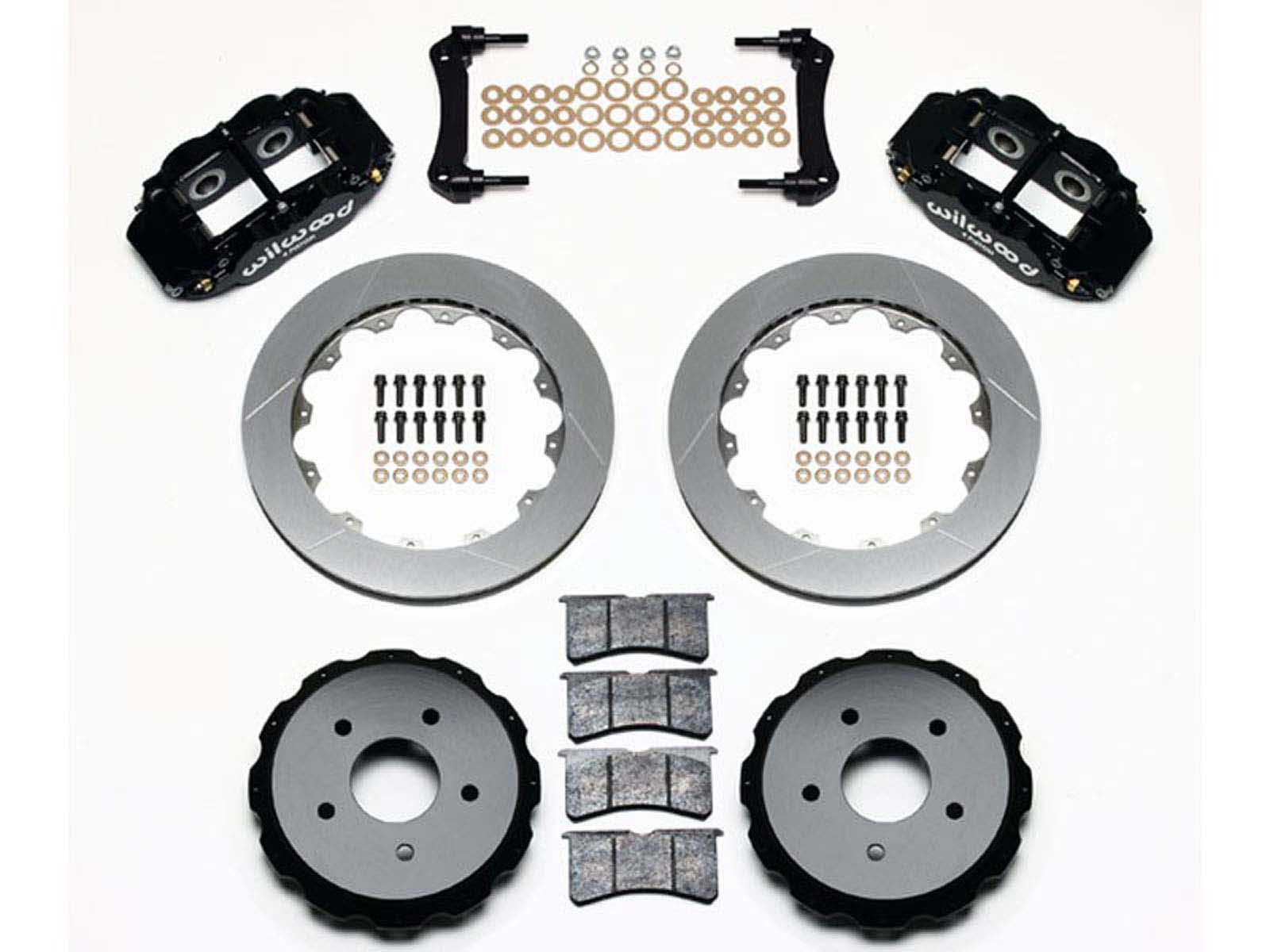

REAR:

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV’s retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance when paired with front brake kits in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.

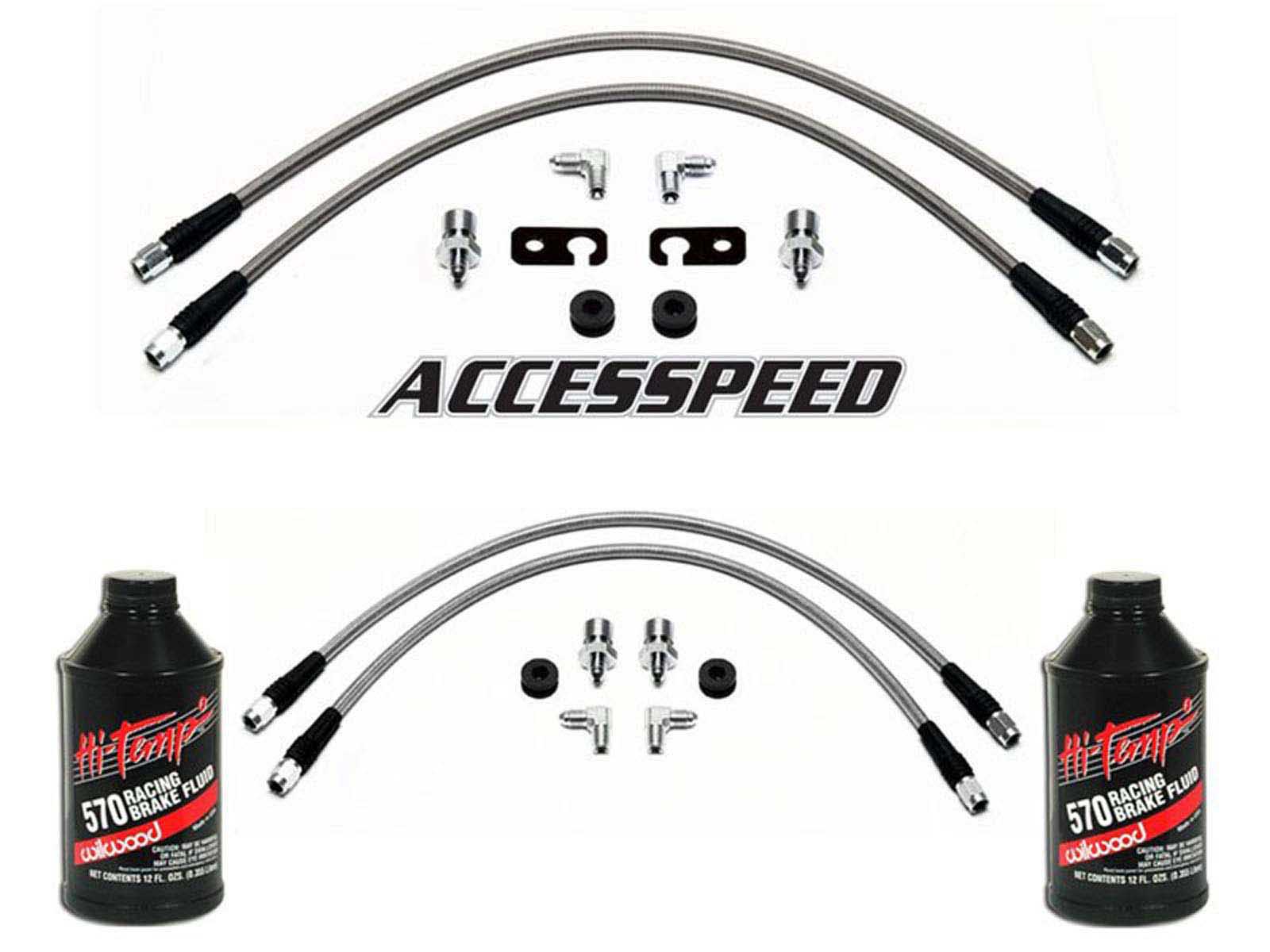

BRAKE LINES:

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.  Accesspeed can also upgrade your brake line kits for various modified applications, such as lowered or lifted vehicles, to ensure proper and adequate brake line lengths.

BRAKE FLUID:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

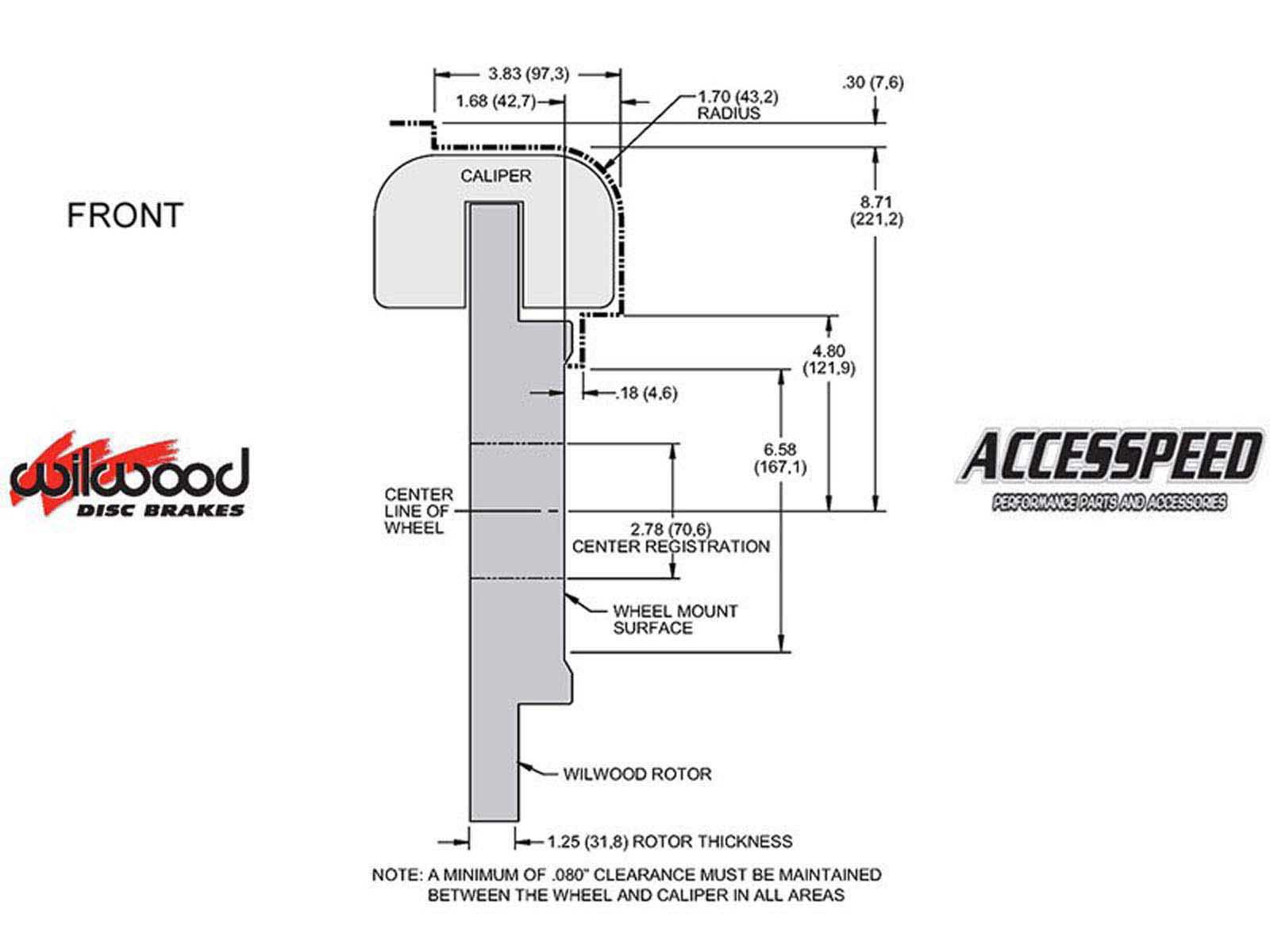

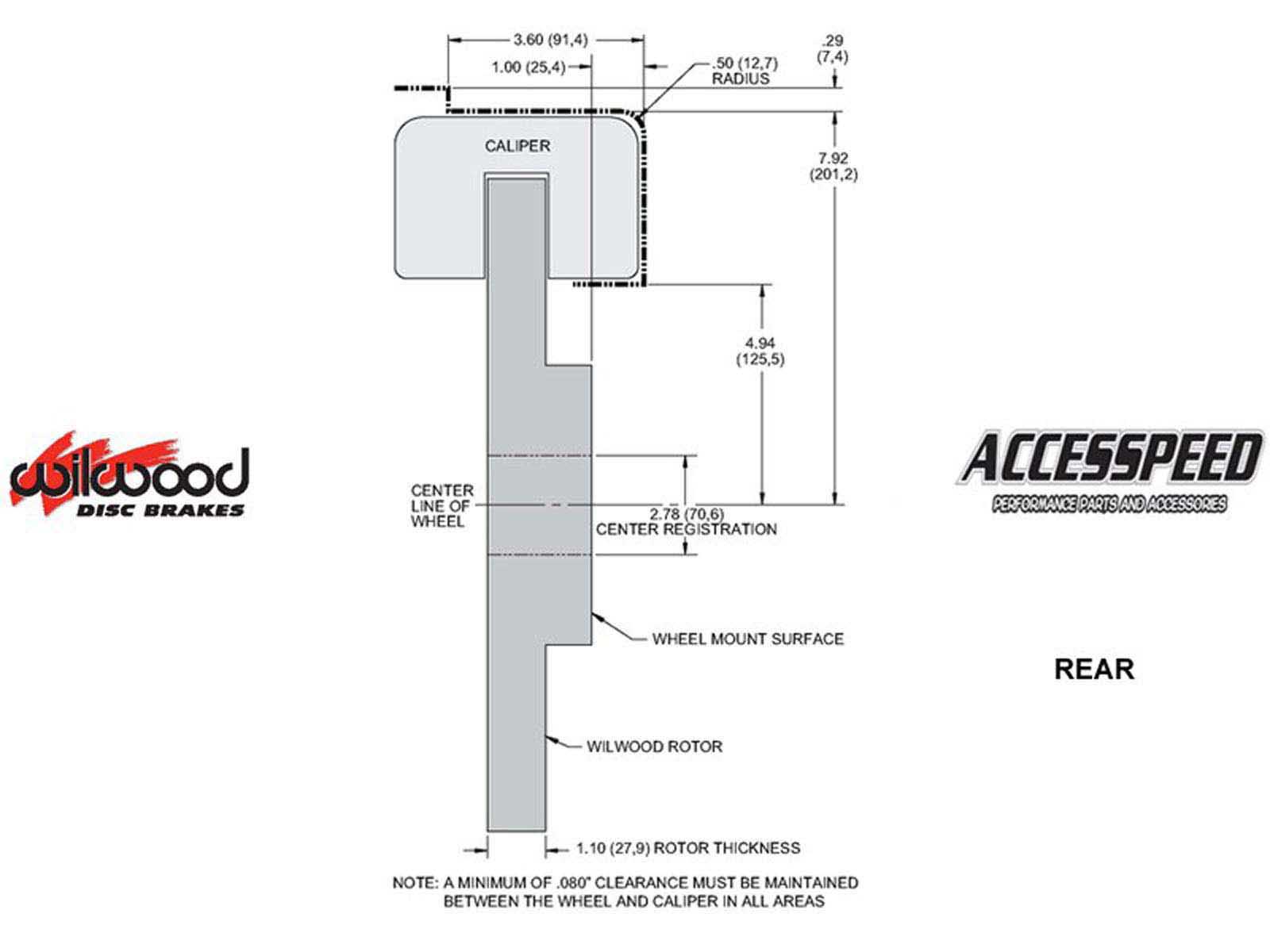

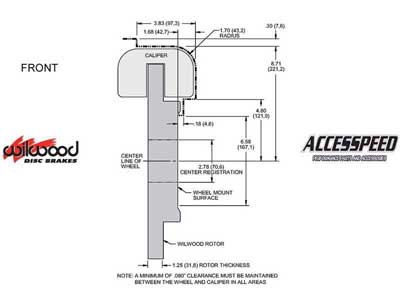

*This Brake Kit may require 19-inch or larger wheels or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Below are great videos showing How To Install Corvette C5 and C6 Brakes:

Notes

Black Calipers.  Please see other listings for Red Calipers.  Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
