Wilwood TX6R 15.5" Front Big Brake Kit Red, Slotted Rotors, Brake Lines & Fluid 2015-Up Ford F150

Accesspeed-WIL-F150-15-D Wilwood TX6R 15.5" Front Big Brake Kit With Red Calipers, Slotted Rotors, Stainless Brake Lines & Brake Fluid 2015-Up Ford F-150 (Exc. Raptor)

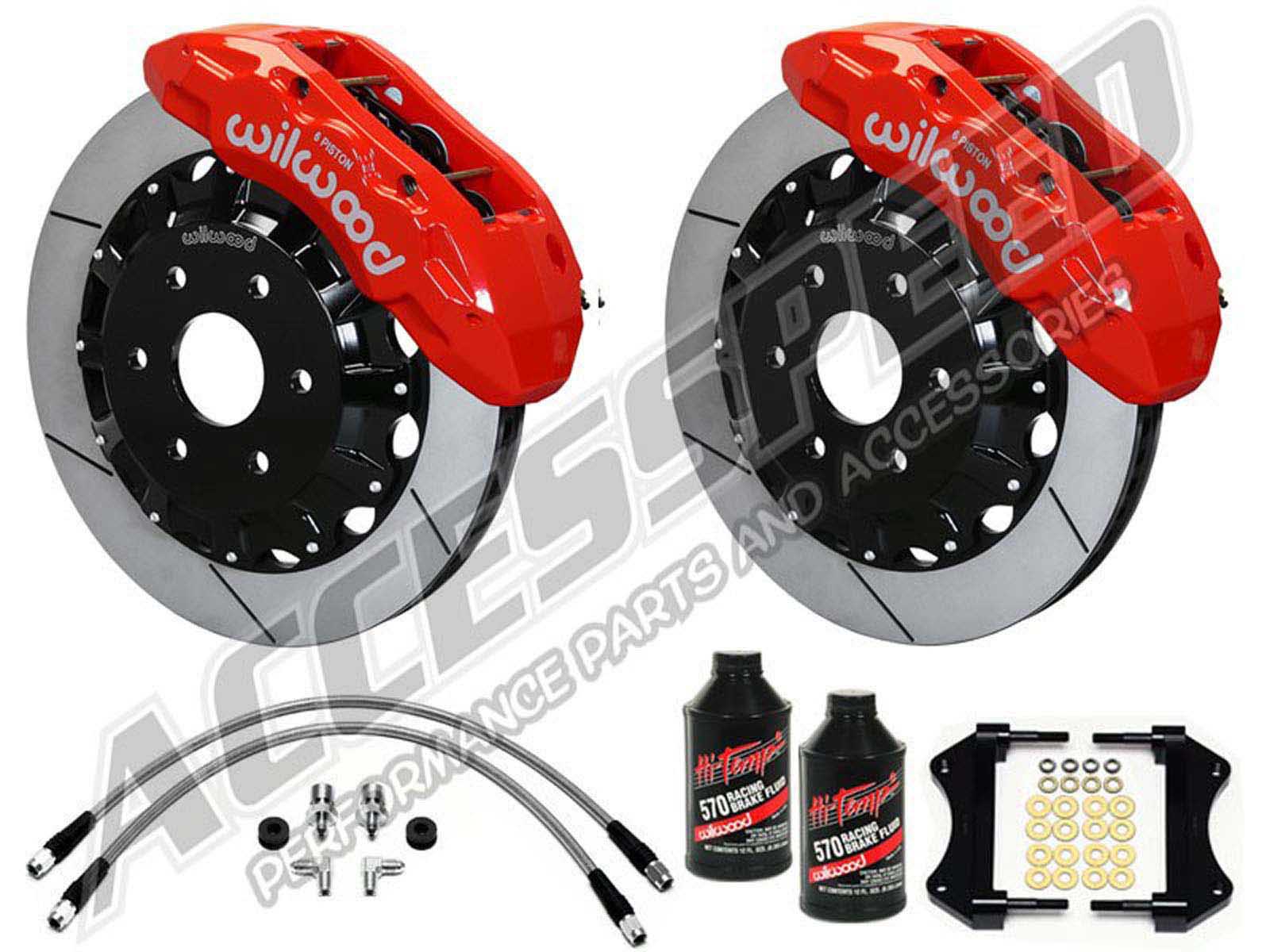

This is an all-inclusive Front Brake Kit, with Front Stainless Brake Lines, and 2 Bottles of Wilwood 570 Brake Fluid!

FRONT:

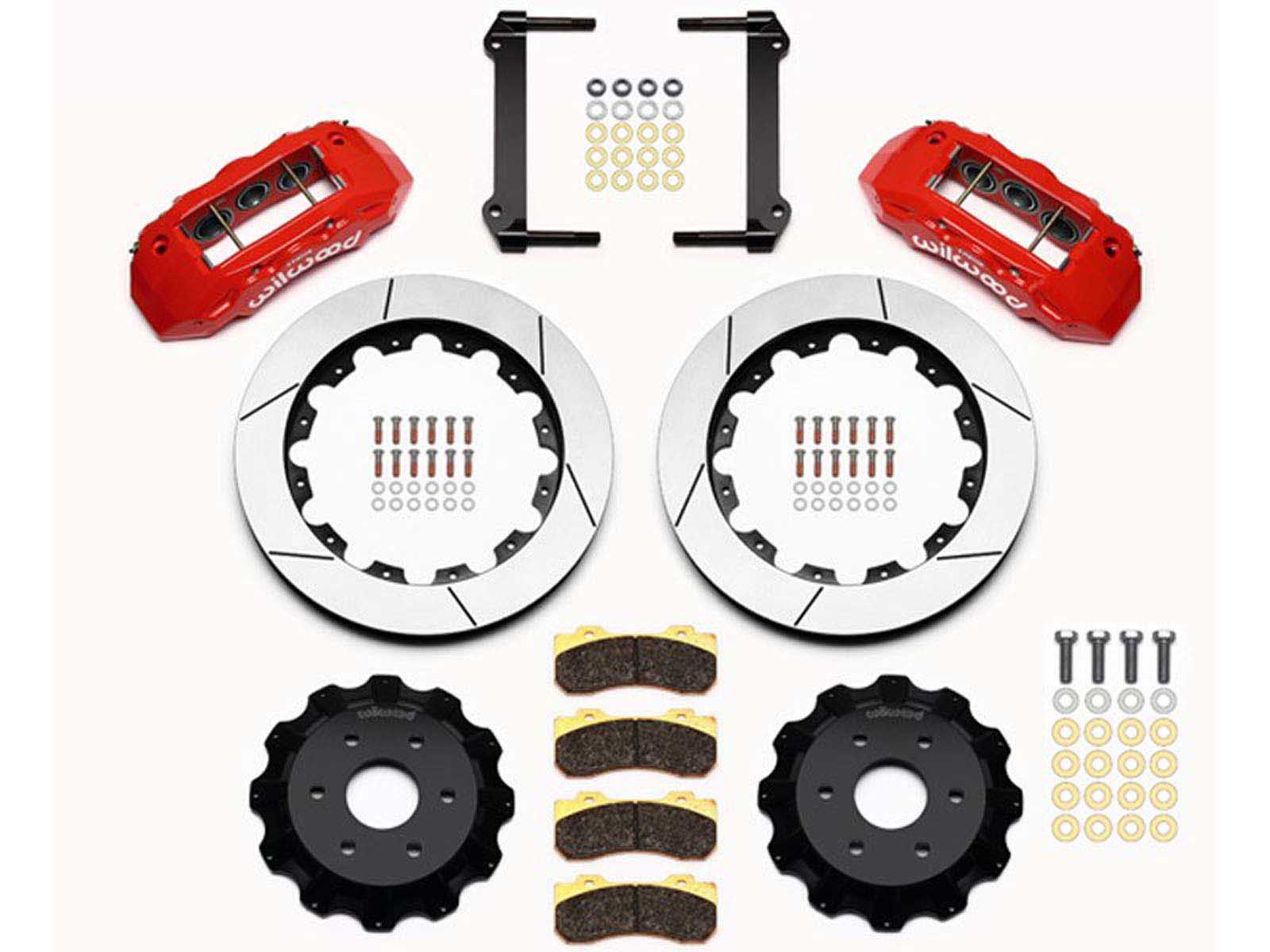

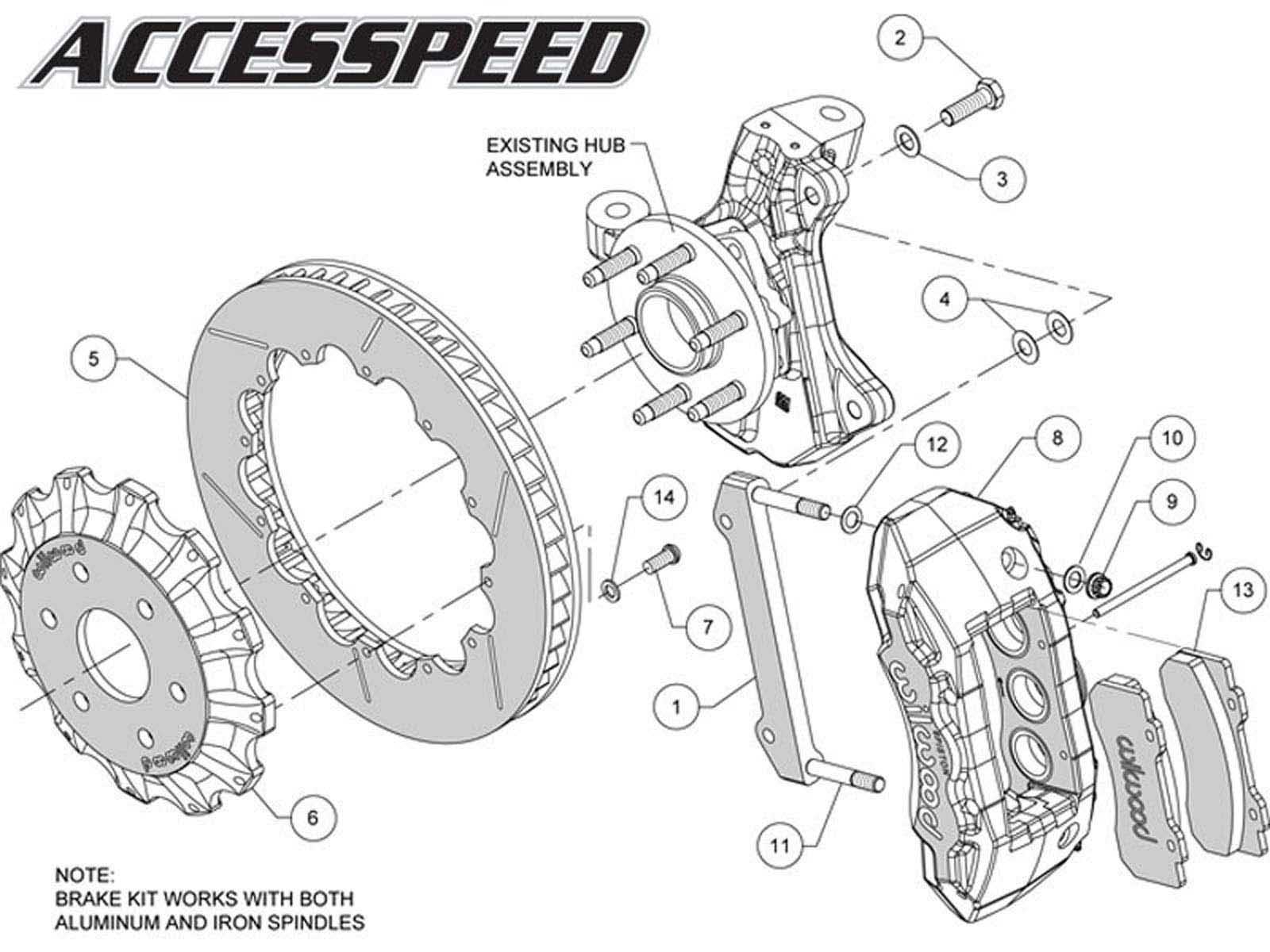

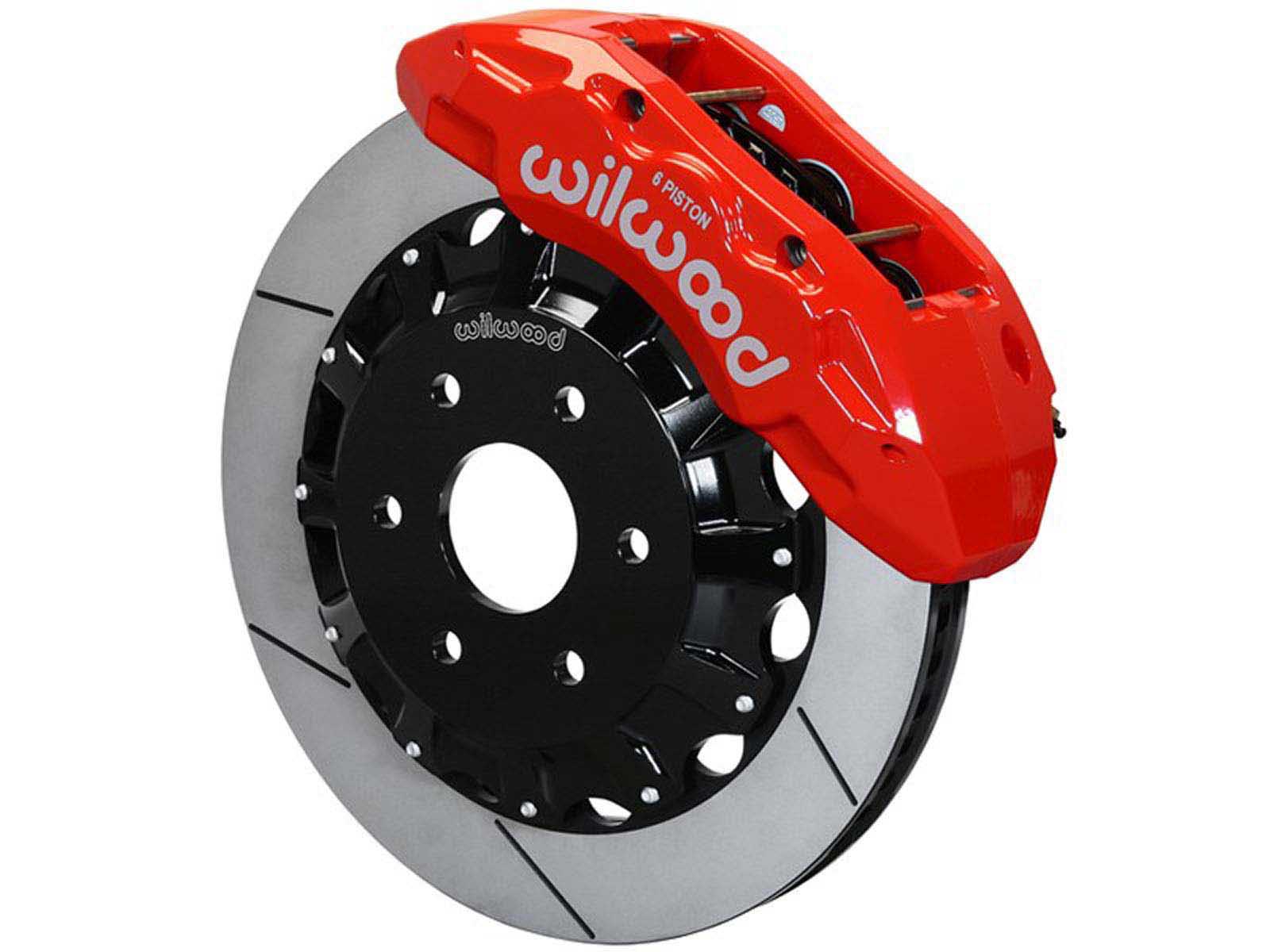

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.5” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

BRAKE LINES:

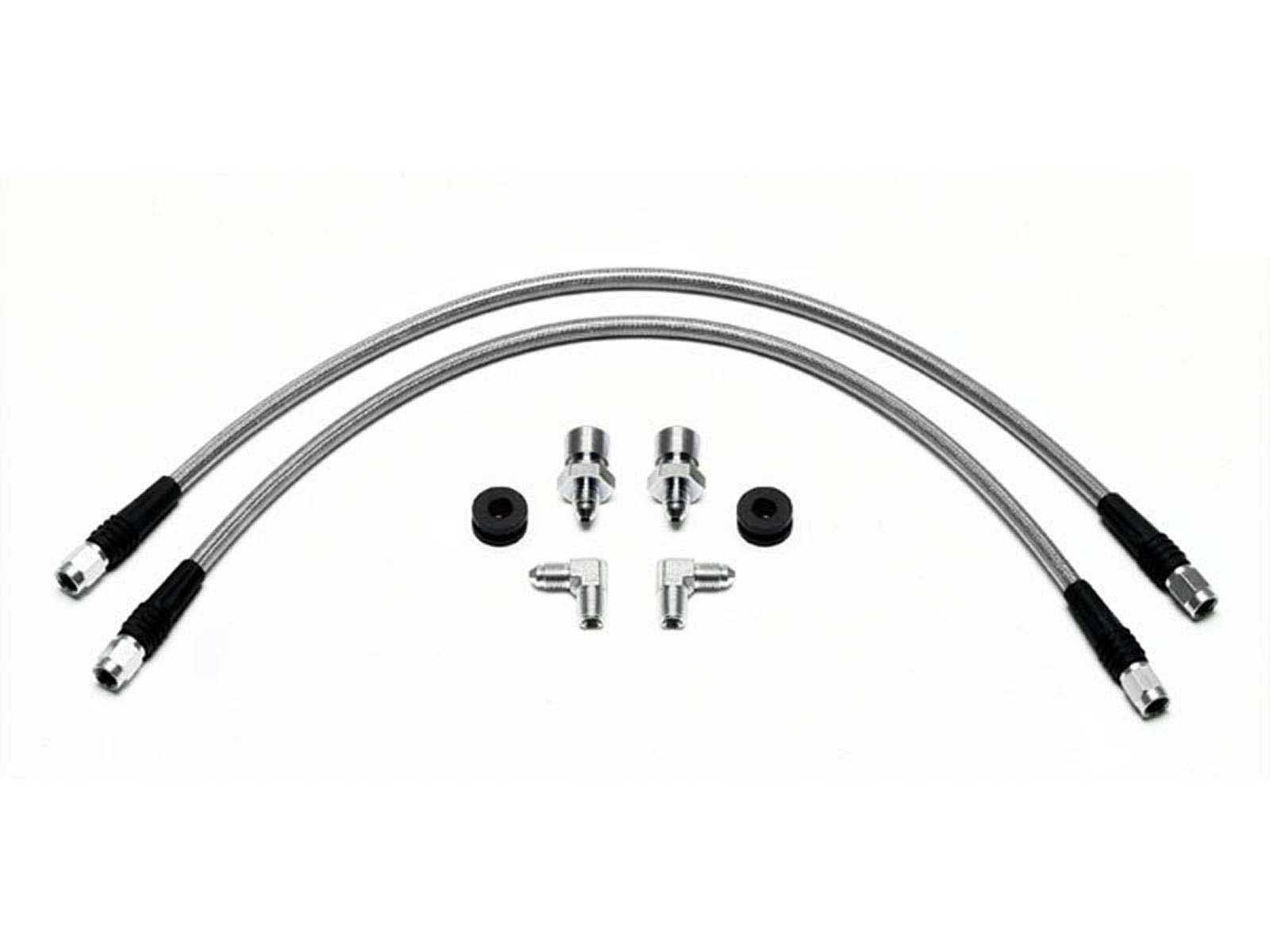

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

BRAKE FLUID:

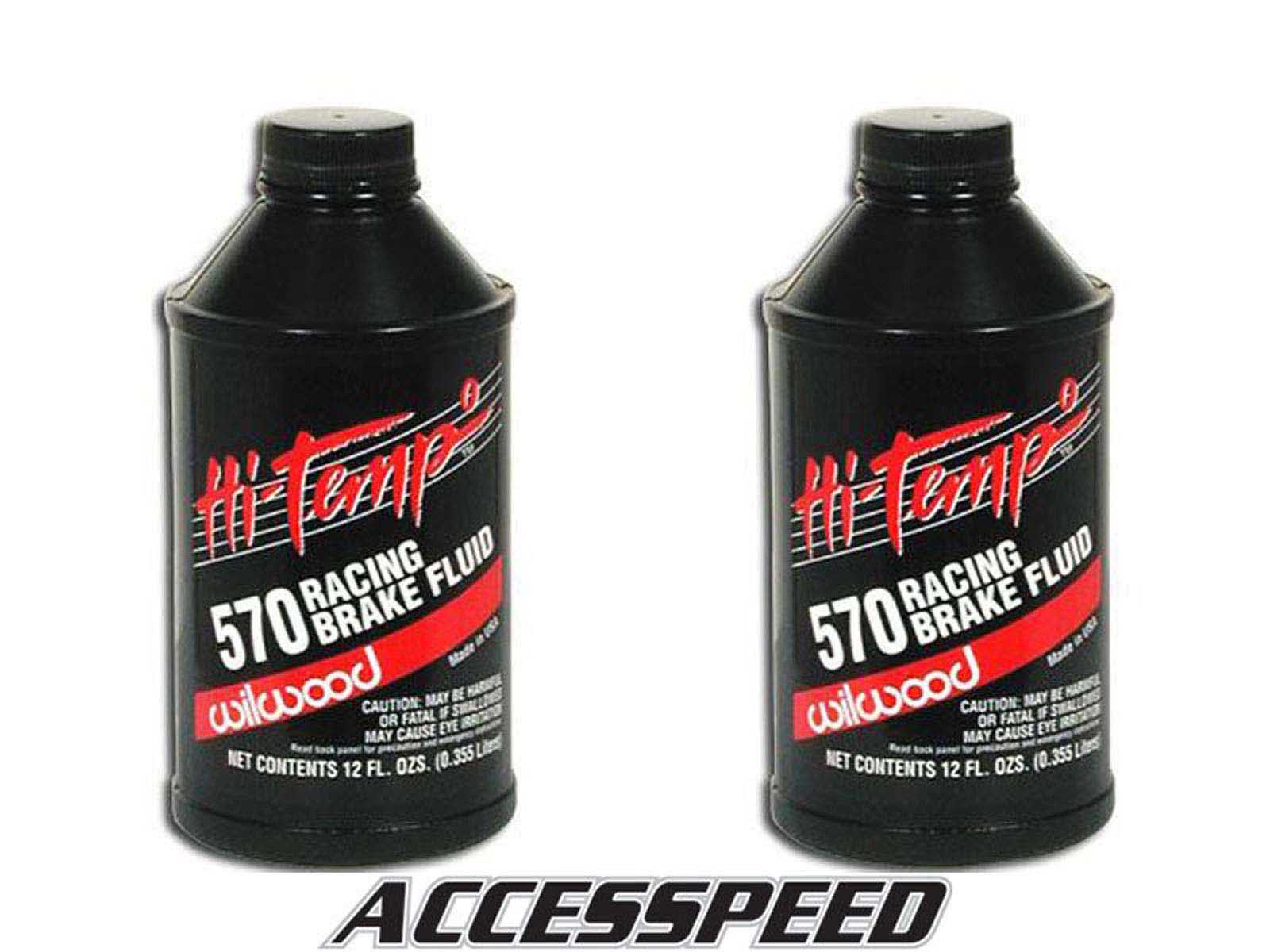

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

*This Brake Kit may require 20-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram images for fitment infomation.

Notes

Red Calipers. Please see separate listing for the Black Caliper system.  Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov
