Wilwood Dynapro 12-inch Front & D154 12-inch Rear Big Brake Kit Combo Package With Wilwood 2-inch Drop Spindle, Parking Brake Cable, Brake Lines & Fluid, Red Calipers, Fits 1964-1974 GM A/F/X Body With 12 Bolt W/ C-Clips 2.75/2.81" Offset Staggered Mount
This ACCESSPEED-WIL-GM-AFX-1-1212-O-R is an all-inclusive Front & Rear Big Brake Kit WITH 2-inch Drop Spindles, Front & Rear Stainless Brake Lines, Rear Parking Brake Cable Kit, and 2 Bottles of Wilwood 570 Fluid for a turn-key installation!
FRONT:

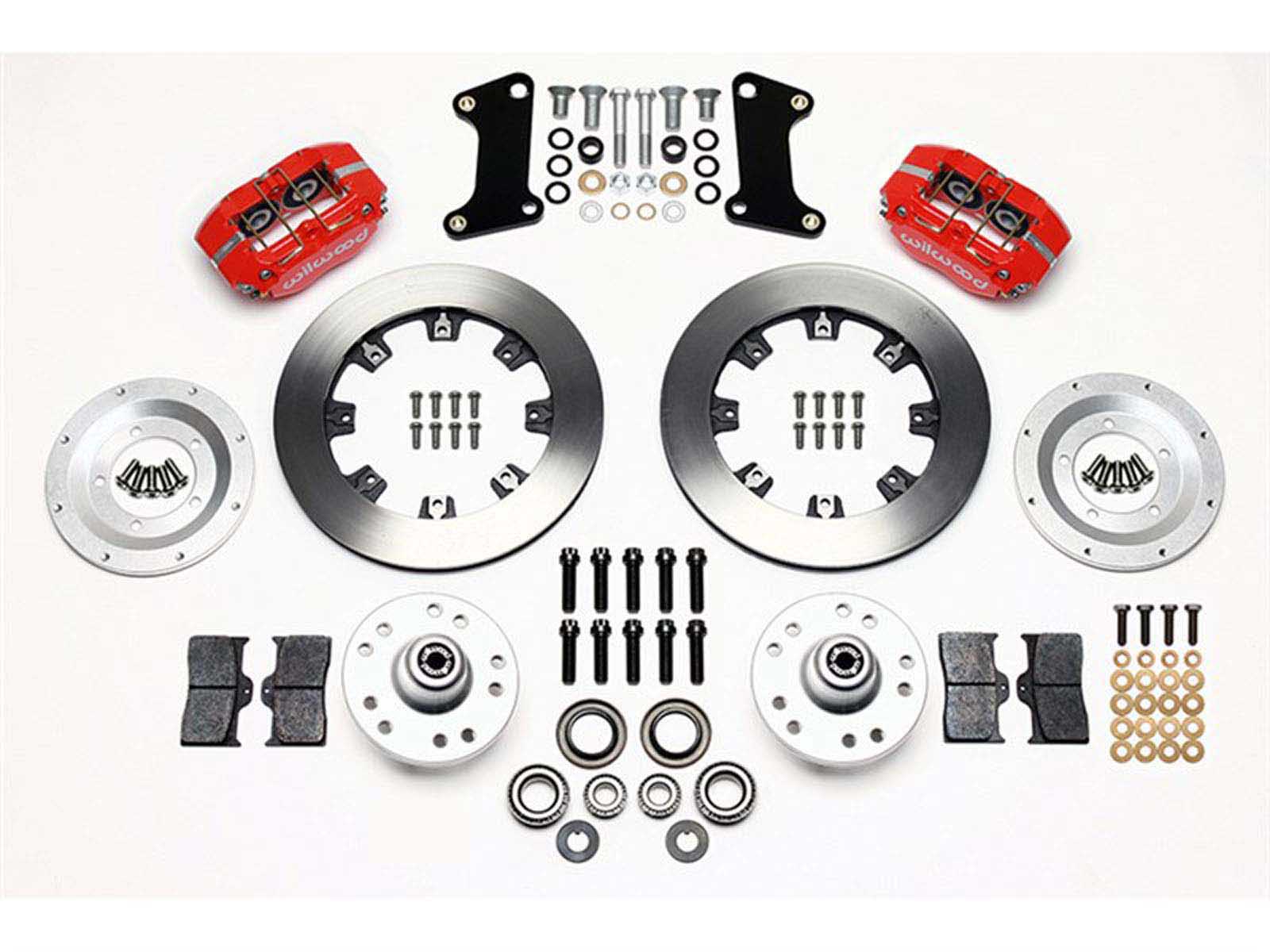

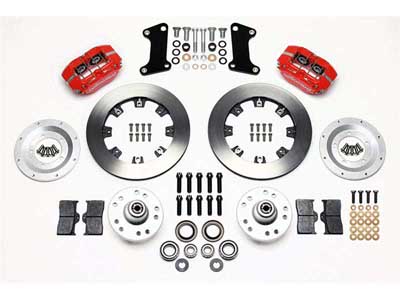

This DPR Forged Dynapro Big Brake Kit is designed for the WWE AFX Pro spindles. AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles. NDPR Brake Kits feature Aluminum Hub assemblies, Forged Narrow Dynapro 4-piston calipers and two-piece 11.75” SRP drilled or HD plain face rotors with aluminum rotor adapters to deliver the ultimate combination for braking power. Built exclusively for 14” and larger wheels, NDPR kits enhance tire and suspension upgrades on street and track machines. The 140-15909-R kit comes complete with calipers, rotors, hub assembly, brackets and hardware. THIS FRONT BRAKE KIT HAS A HUB OFFSET OF: +.19 (This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.)
REAR:

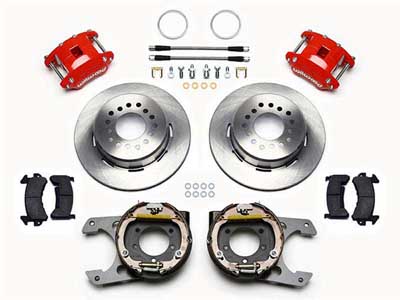

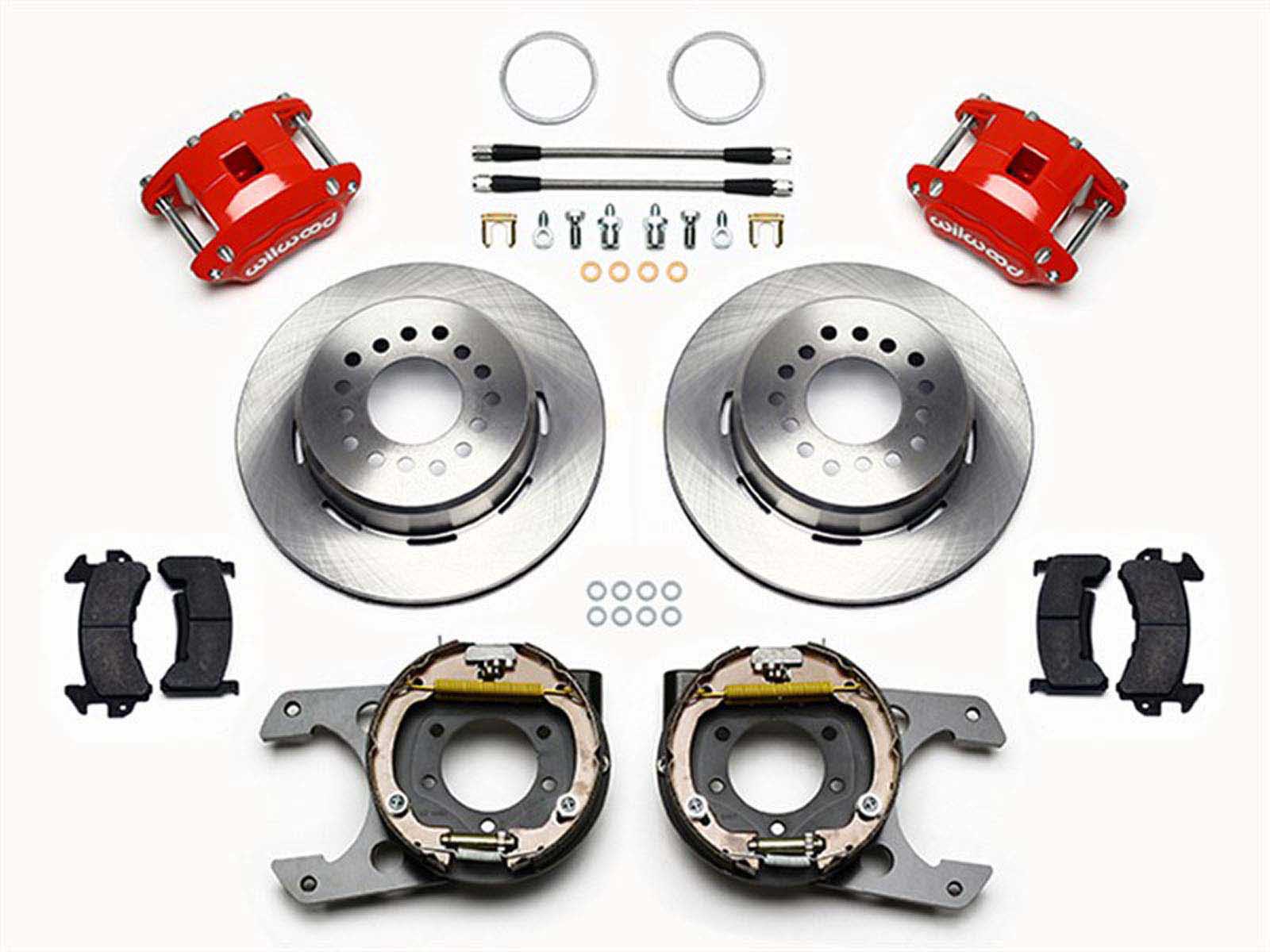

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance. This rear kit 140-12570-R is designed for rear shock mount rear ends.
DROP SPINDLE KIT:
Wilwood’s AFX ProSpindle Kits contain a pair of high strength steel spindles for 1964-1972 GM A Body, 1967-1969 GM F Body, 1968-1974 GM X Body vehicles that use the original bolt on steering arms. Specifically designed for use with Wilwood’s disc brake kits with a 2.00” drop for a more aggressive stance without affecting steering geometry. With the added benefits of providing a lower center of gravity, raised front roll center and a decreased camber change also improve handling with less body roll. Installs using the OE ball joints using original or aftermarket control arms. A unique caliper mounting feature provides fortified attachment of four new brake kit options ranging in rotor sizes from 11.00” to 14.00” diameters, with options for both four and six piston calipers. The 831-15890 spindles mount with OE ball joints in stock or aftermarket control arms, and retain the original bolt-on steering arms. Includes Driver/Left and Passenger/Right spindles.
BRAKE LINES:
Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application. Accesspeed inlcudes 14" front & rear brake line kits. These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation. Wilwood Flexline Brake Line Kit 220-7056 or 220-8307. (Recommended for most applications.)
PARKING BRAKE CABLE KIT:
This Parking Brake Cable Kit is for Wilwood Rear Big Brake Kits. Wilwood’s Caliper Cable Kit contains all parts necessary for effective installation on most vehicles. Kit contents include cable and sheath assemblies, clevises and hardware.
BRAKE FLUID:
Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

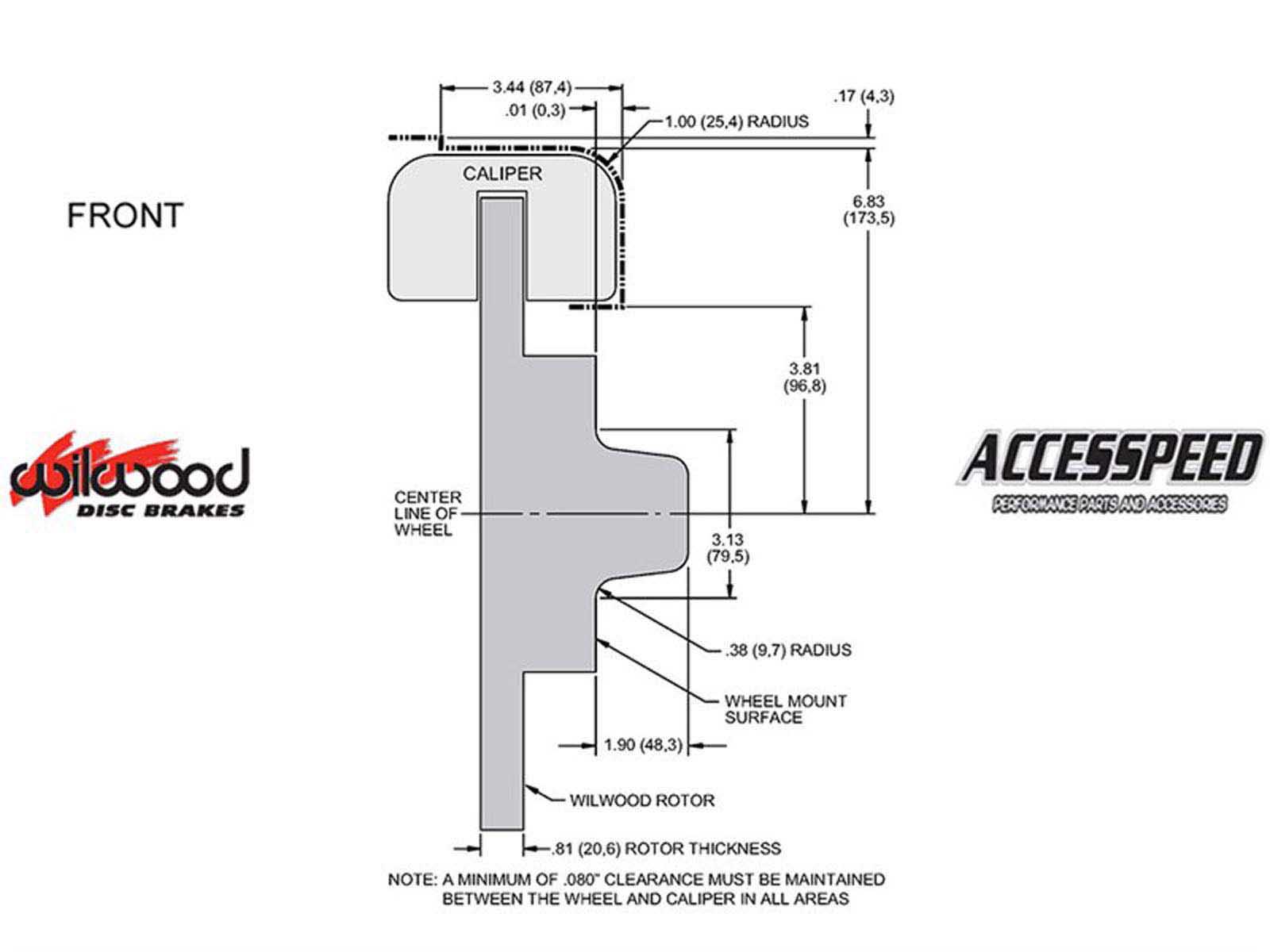

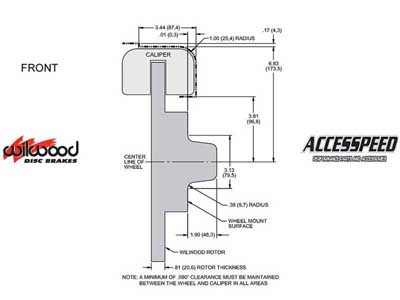

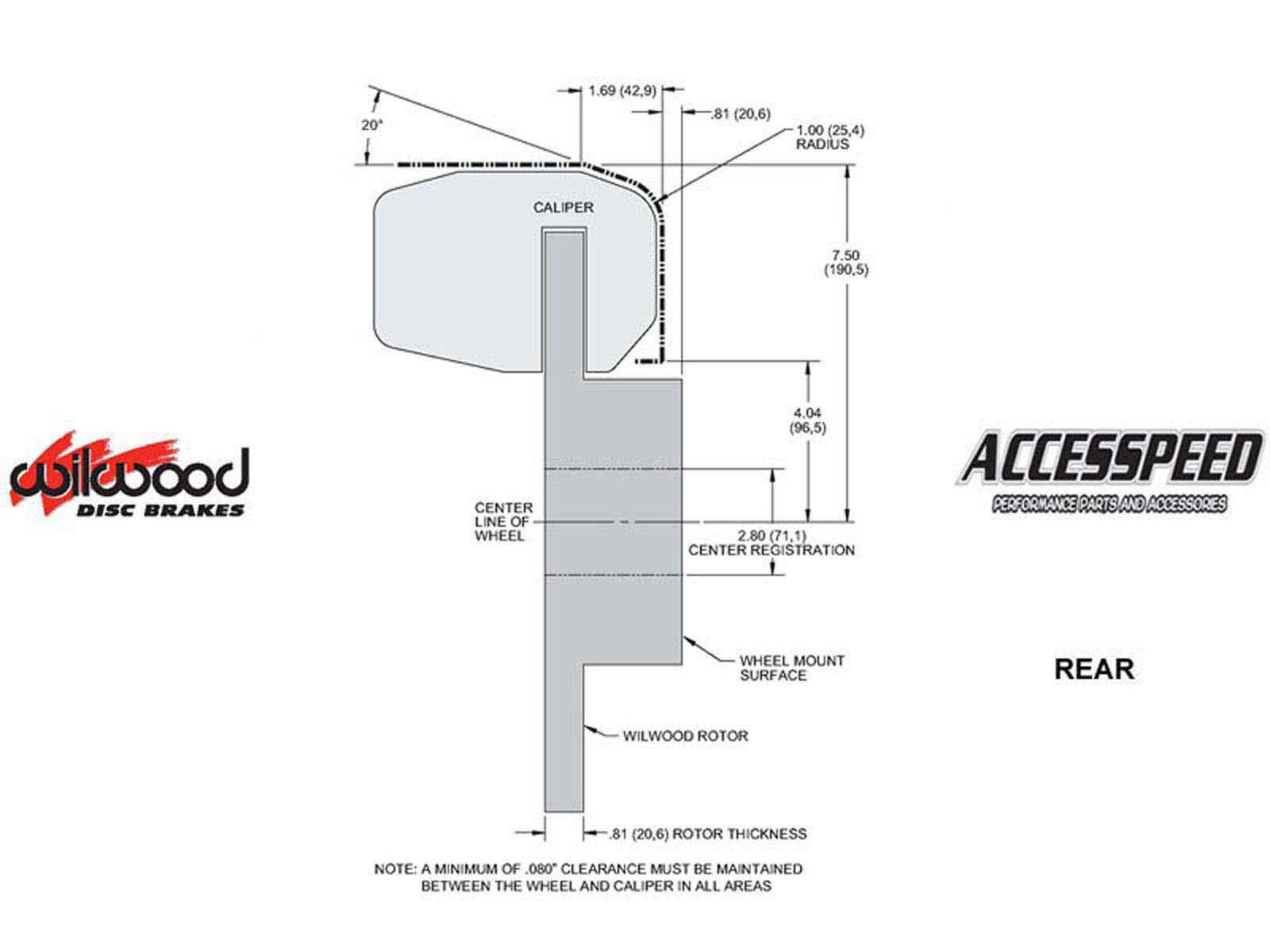

*This Brake Kit may require 15-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Notes
Red Calipers. Please see separate listing for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only. For all other areas, please contact us for a discounted rate quote.
