Wilwood TC6R 16" Front & Rear Big Brake Kit Combo, Black, Drilled, Brake Lines 2003-2006 Hummer H2

ACCESSPEED-WIL-GM-H2-C Wilwood TC6R 16" Front & Rear Big Brake Kit Combo With Black Calipers, Drilled Rotors, Stainless Brake Lines & Brake Fluid 2003 2004 2005 2006 Hummer H2

This is an all-inclusive Front & Rear Brake Kit, with Front & Rear Stainless Brake Lines, and 2 Bottles of Wilwood 570 Brake Fluid!

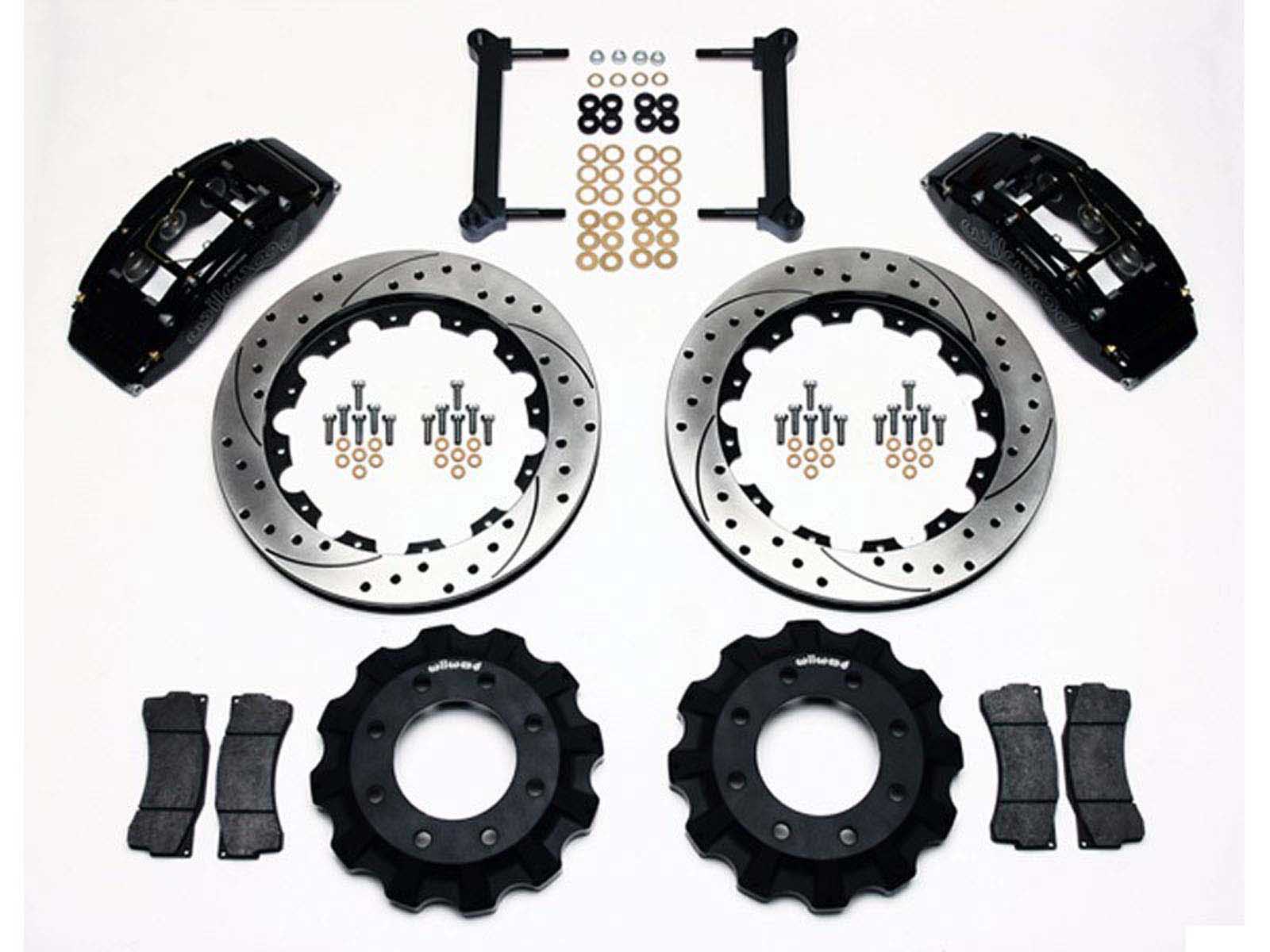

FRONT:

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). Combining the high clamping efficiency of the TC6R caliper with 16” diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

REAR:

TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels. TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.

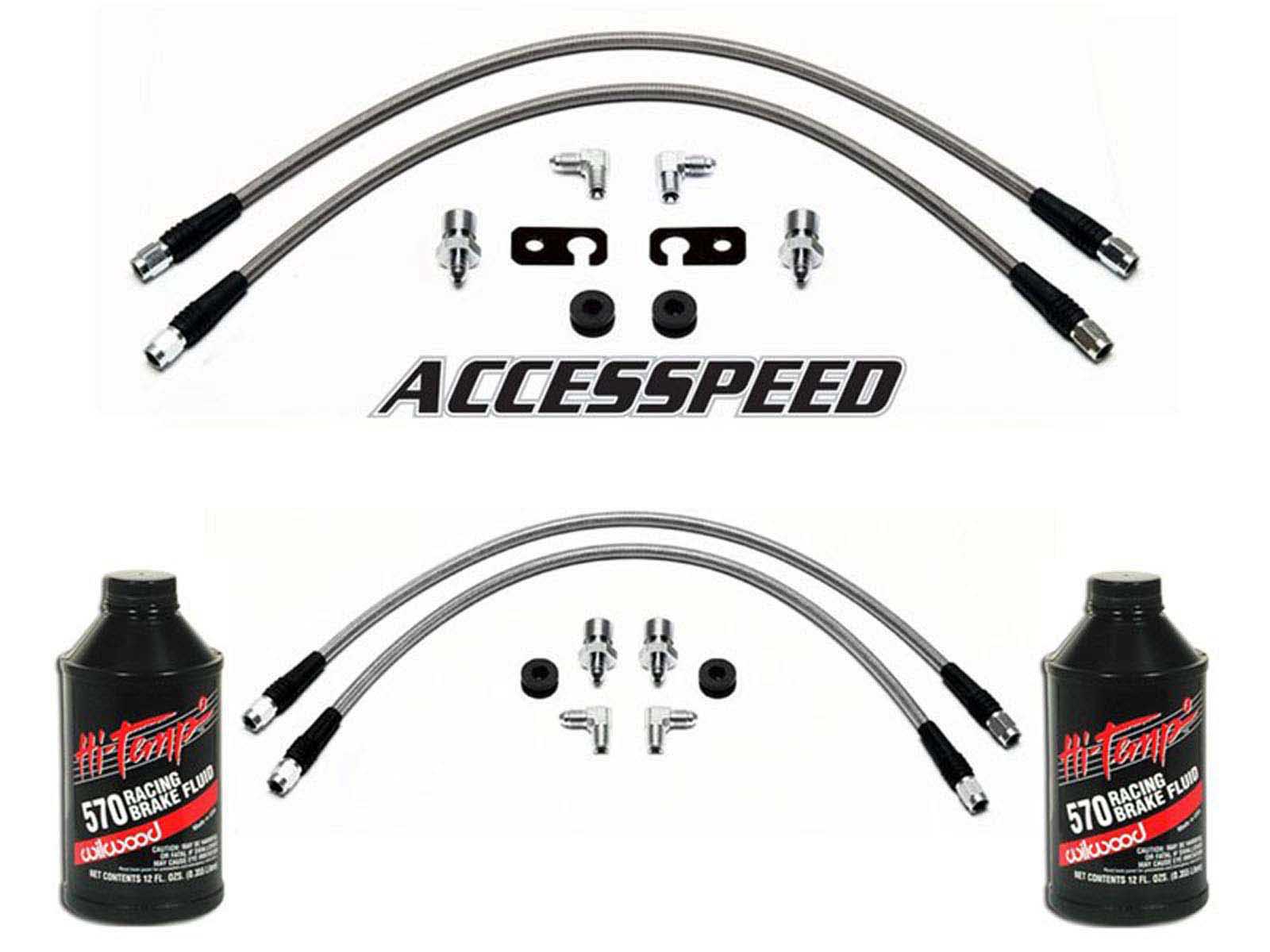

BRAKE LINES:

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

BRAKE FLUID:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12-ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

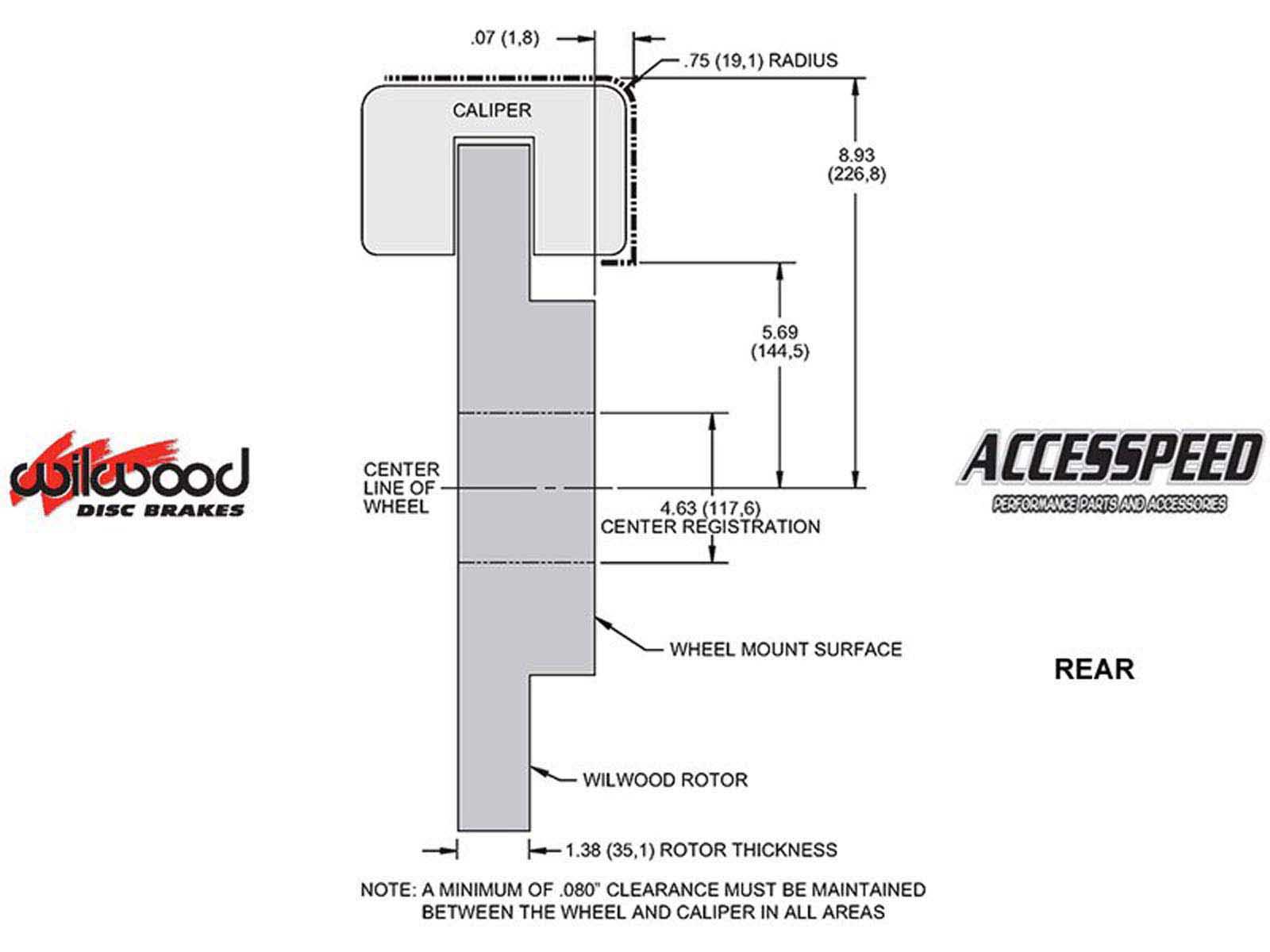

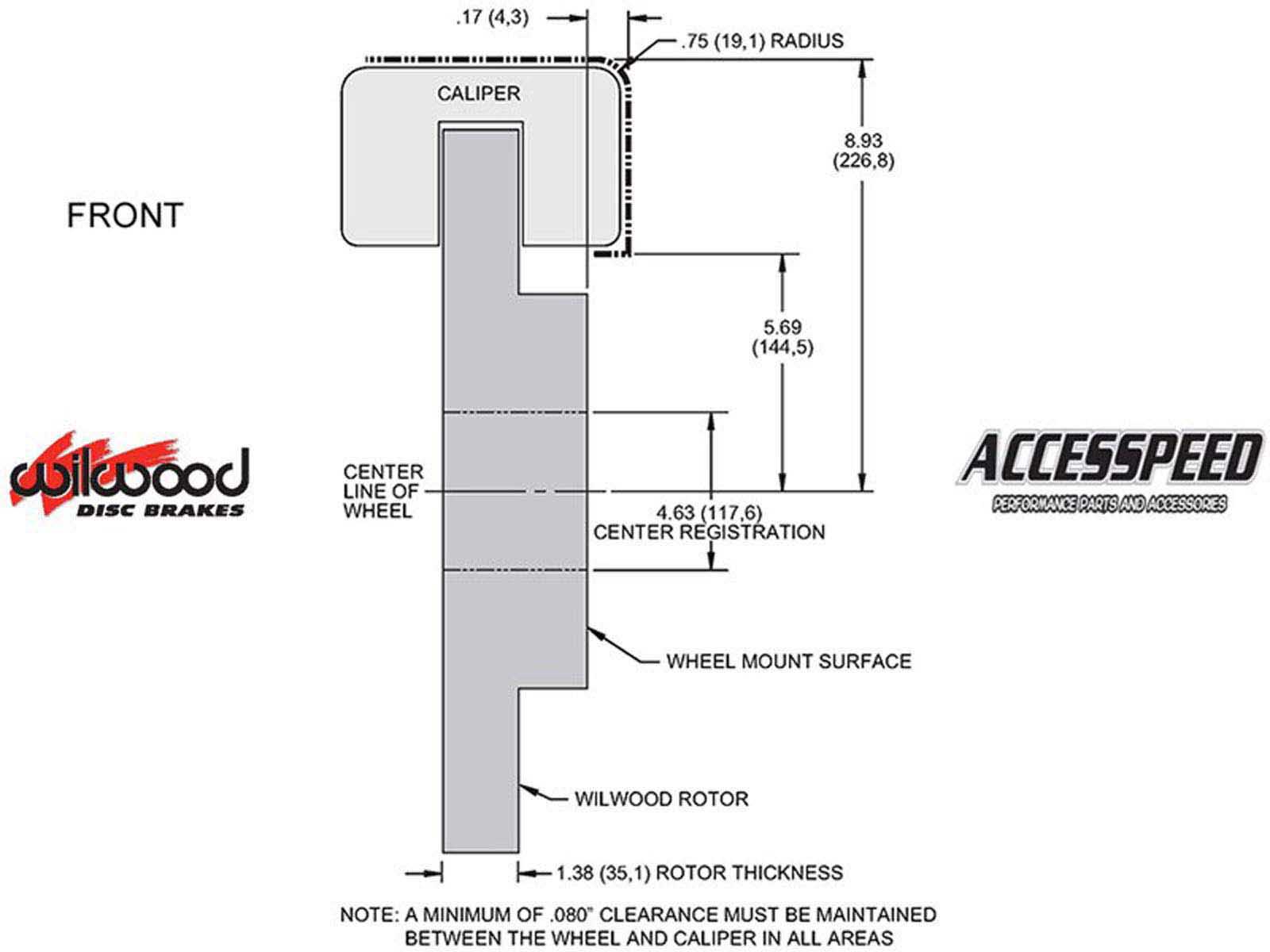

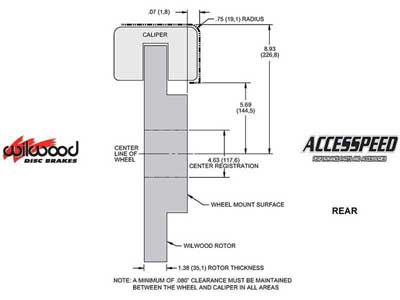

*This Brake Kit may require 20-inch or larger wheels and/or wheel spacers for proper clearance. Please refer to the wheel clearance diagram images to verify your specific wheel and vehicle fit.

Notes

Black Calipers & Drilled Rotors. See separate listing for the red caliper and slotted rotor systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
