Wilwood Forged SL6R 13-in Front Big Brake Kit, Red, Slotted, Brake Lines, Fluid 2005-2014 Mustang

ACCESSPEED-WIL-MUS-F-05-E-R Wilwood Forged Narrow Superlite 6R 13.06" Front Big Brake Kit, Red Calipers, Slotted Rotors, Stainless Brake Lines & Brake Fluid for 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Ford Mustang

This is an all-inclusive Front Big Brake Kit, WITH Stainless Steel Brake Lines and 2 Bottles of Wilwood 570 Fluid!

FRONT KIT DETAILS:

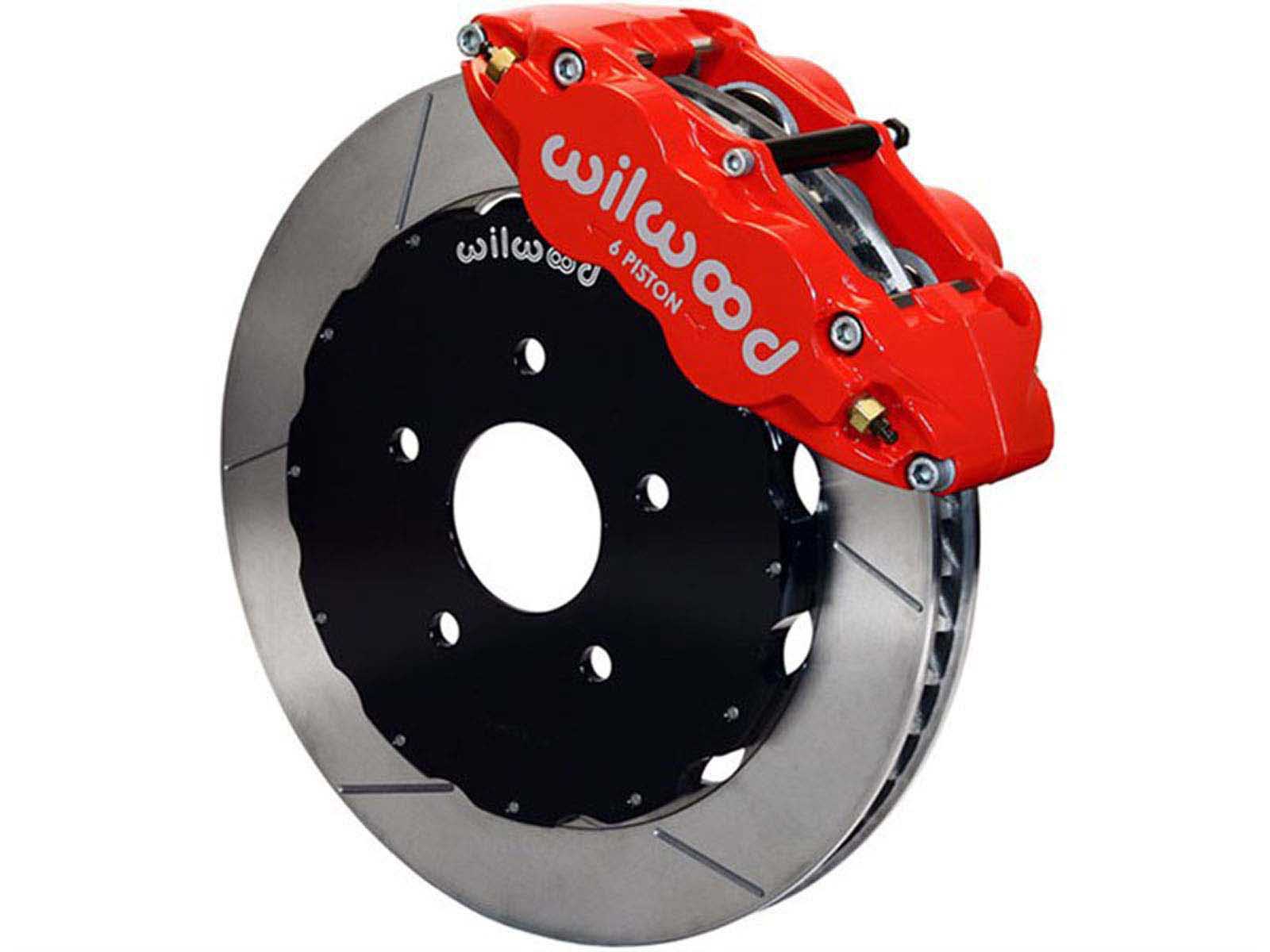

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13.06” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Accesspeed feels that the key to the superior performance of the FNSL6R 140-9109-R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

BRAKE LINE DETAILS:

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

BRAKE FLUID DETAILS:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

This system includes:

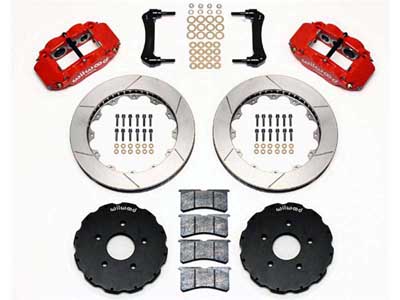

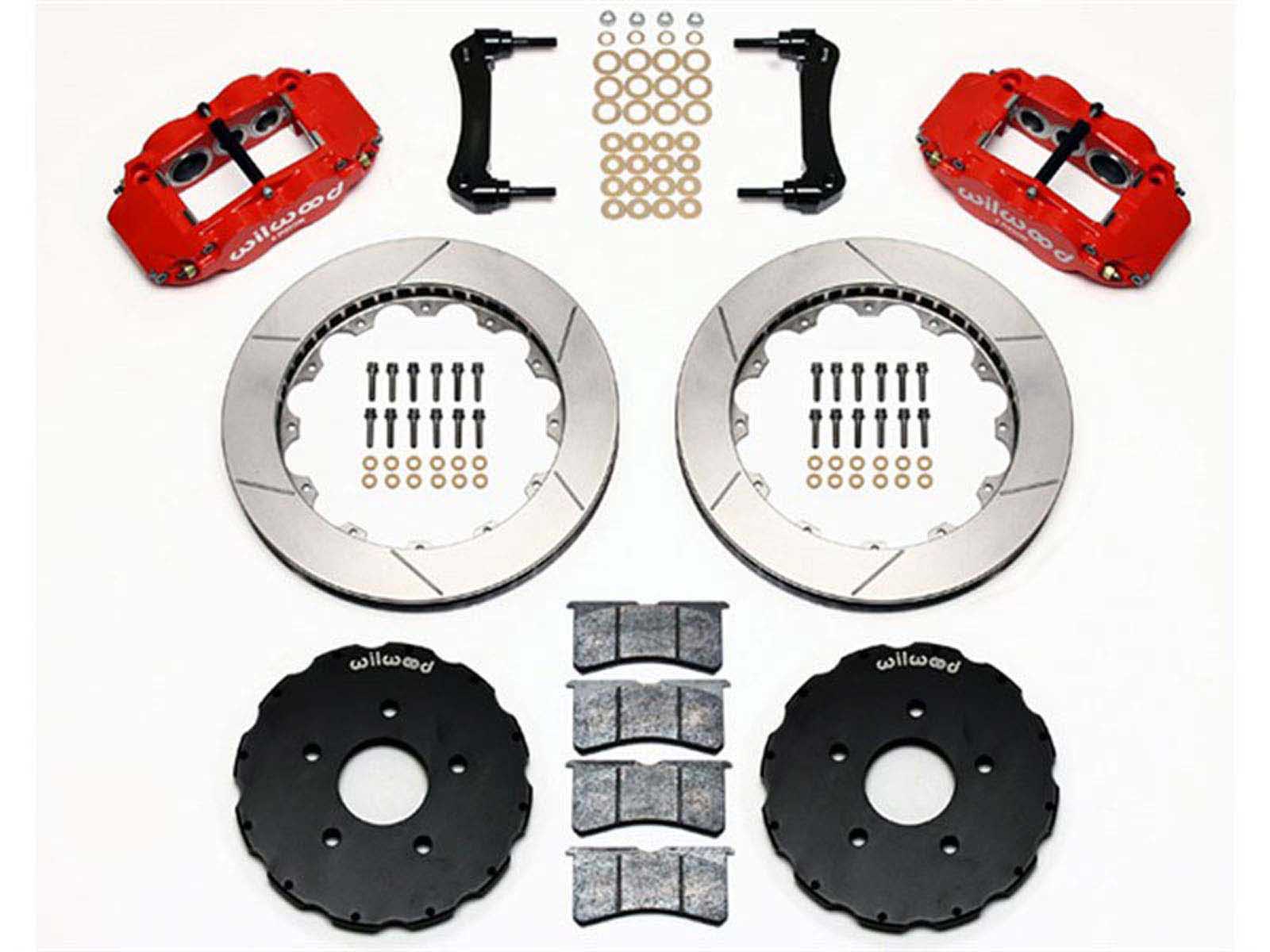

1 - Forged Narrow Superlite 6 Front 13" Kit;

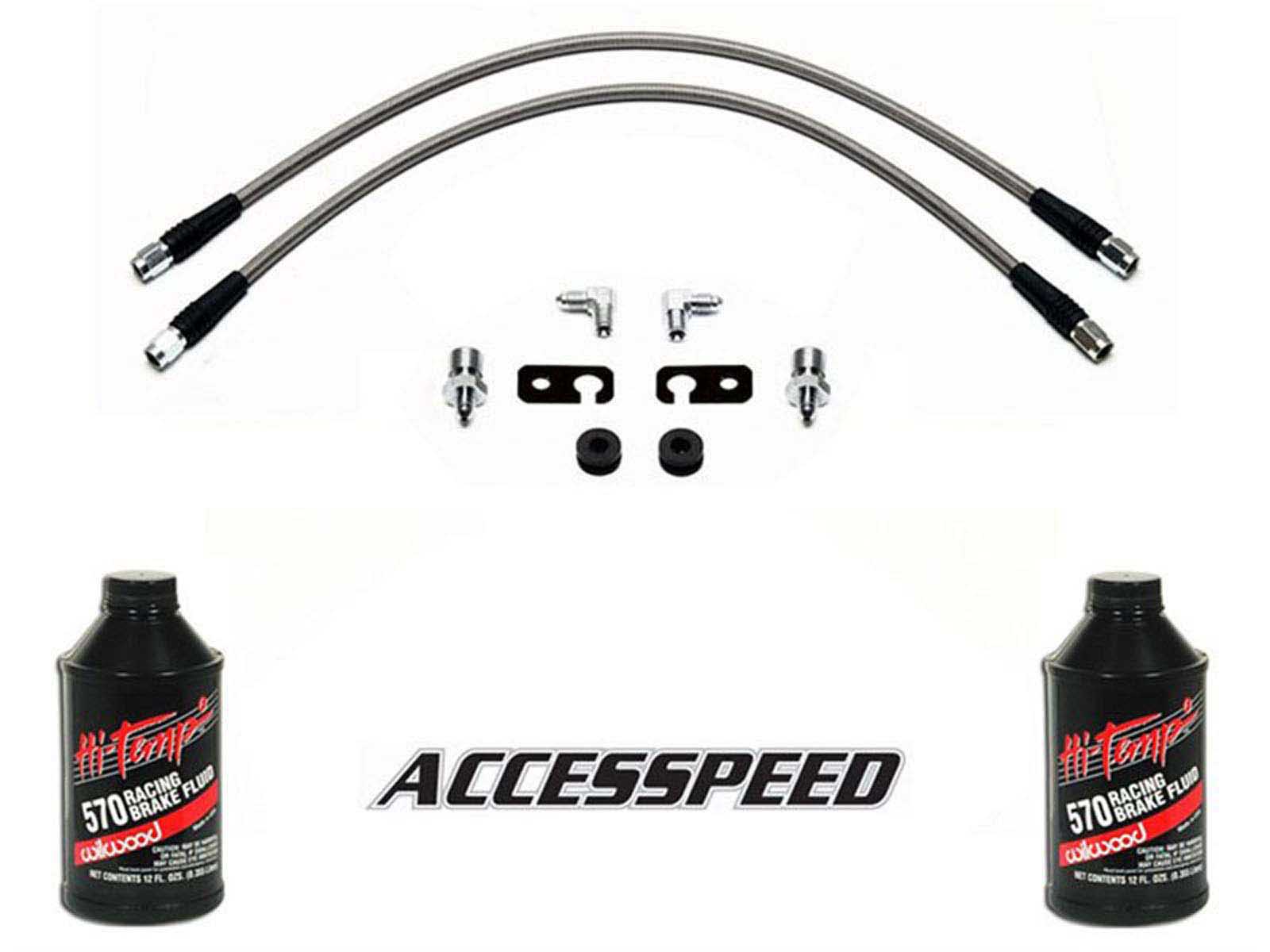

1 - Stainless Front Brake Line Kit;

2 - 570 Brake Fluid Bottles.

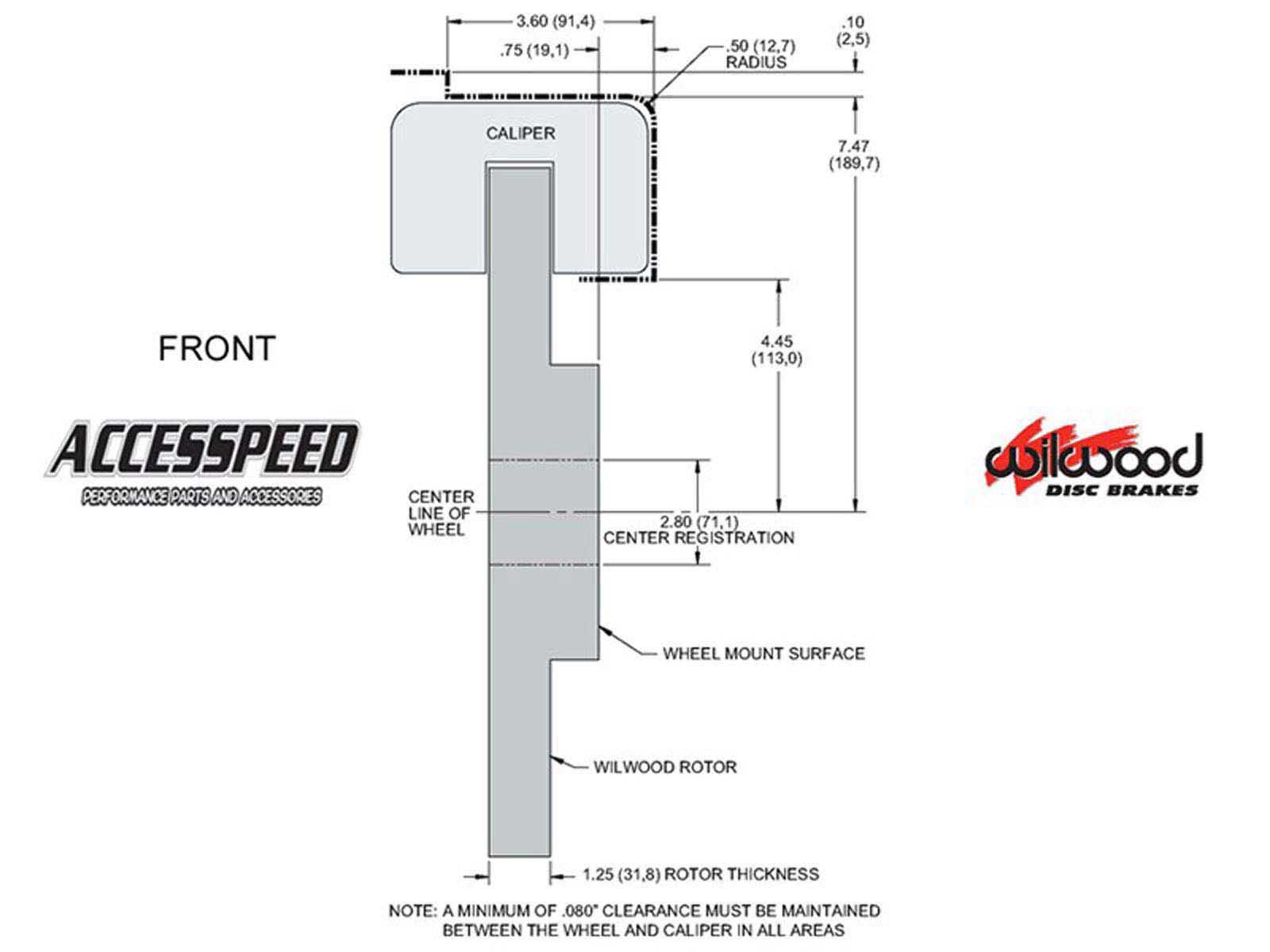

*This Brake Kit may require 17-inch or larger wheels and or wheel spacers. Please refer to the wheel clearance diagram image to verify wheel fitment.

Notes

Red Calipers.  Please see other listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
