Wilwood AERO4 Rear 14" Big Brake Kit, Red, Slotted, Brake Lines & Fluid 2005-2014 Mustang

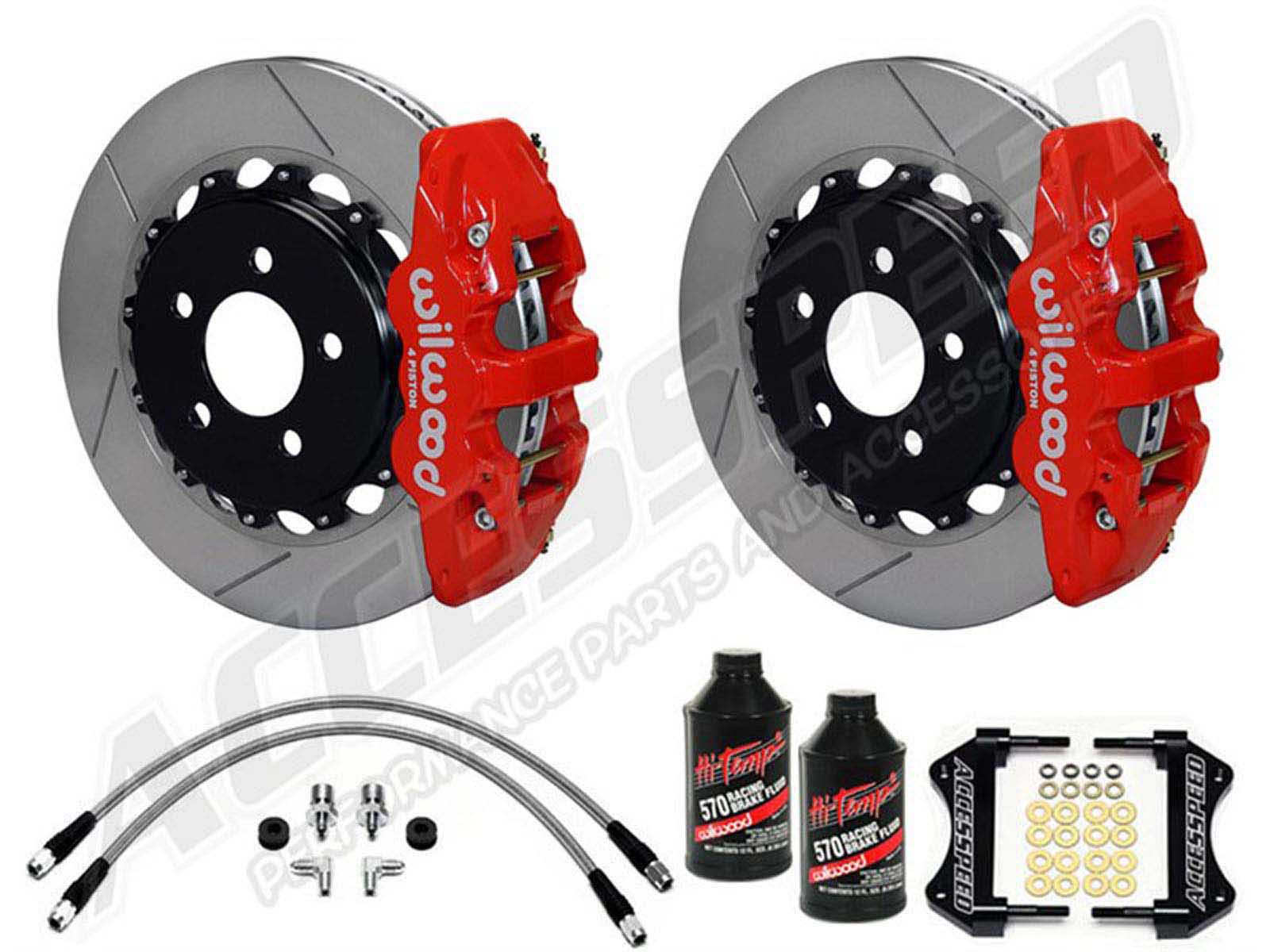

ACCESSPEED-WIL-MUS05-F-R Wilwood AERO4 Rear 14" Big Brake Kit With Red Calipers, Slotted Rotors, Stainless Brake Lines & Brake Fluid 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Ford Mustang

This is an all-inclusive Rear Brake Kit, WITH Stainless Steel Brake Lines and 2 Bottles of Wilwood 570 Fluid!

REAR KIT DETAILS:

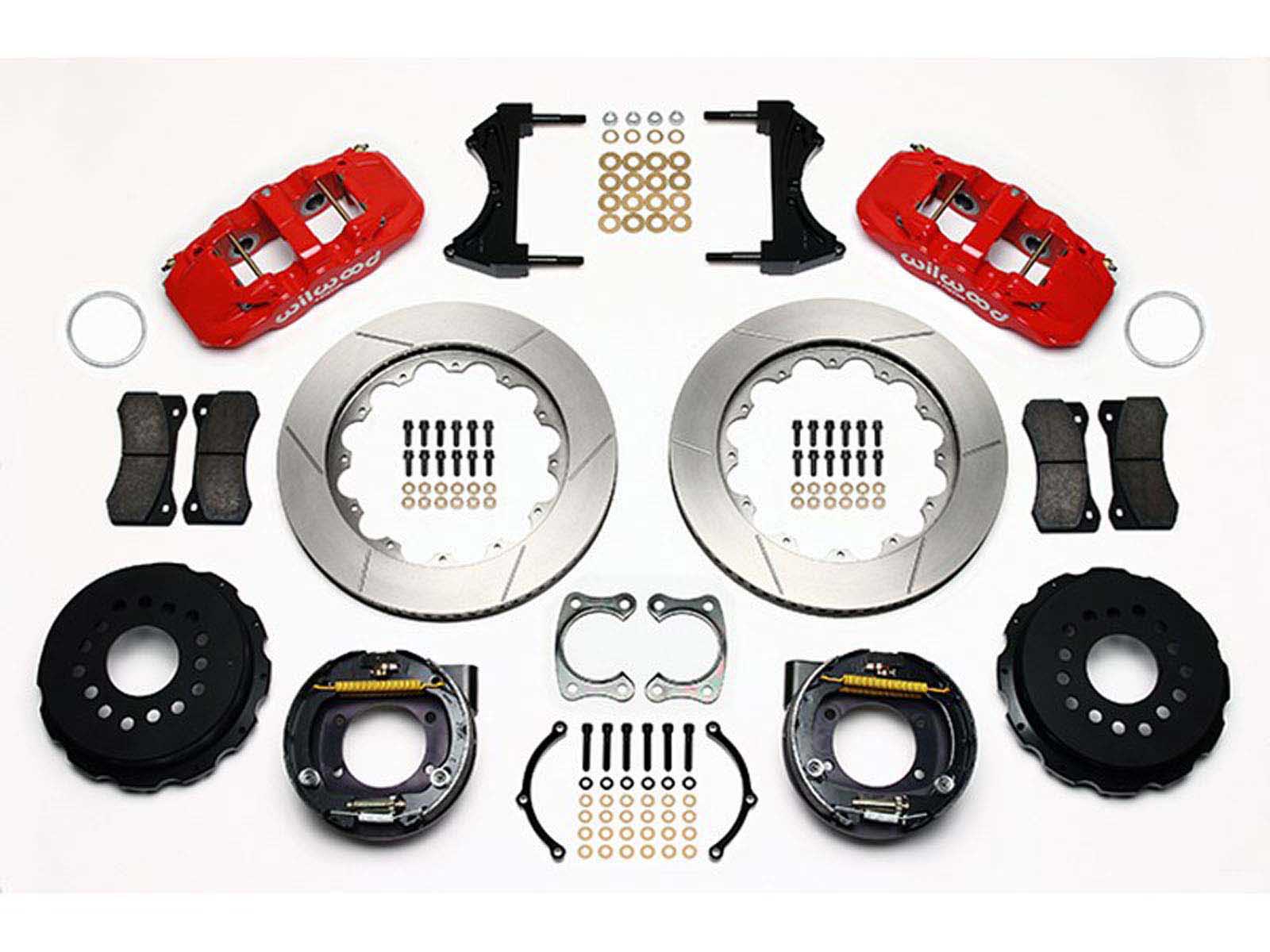

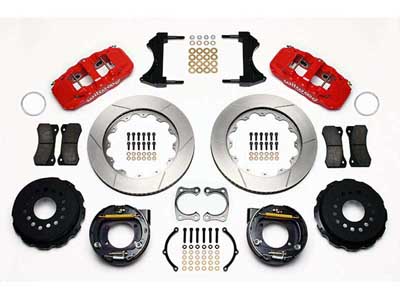

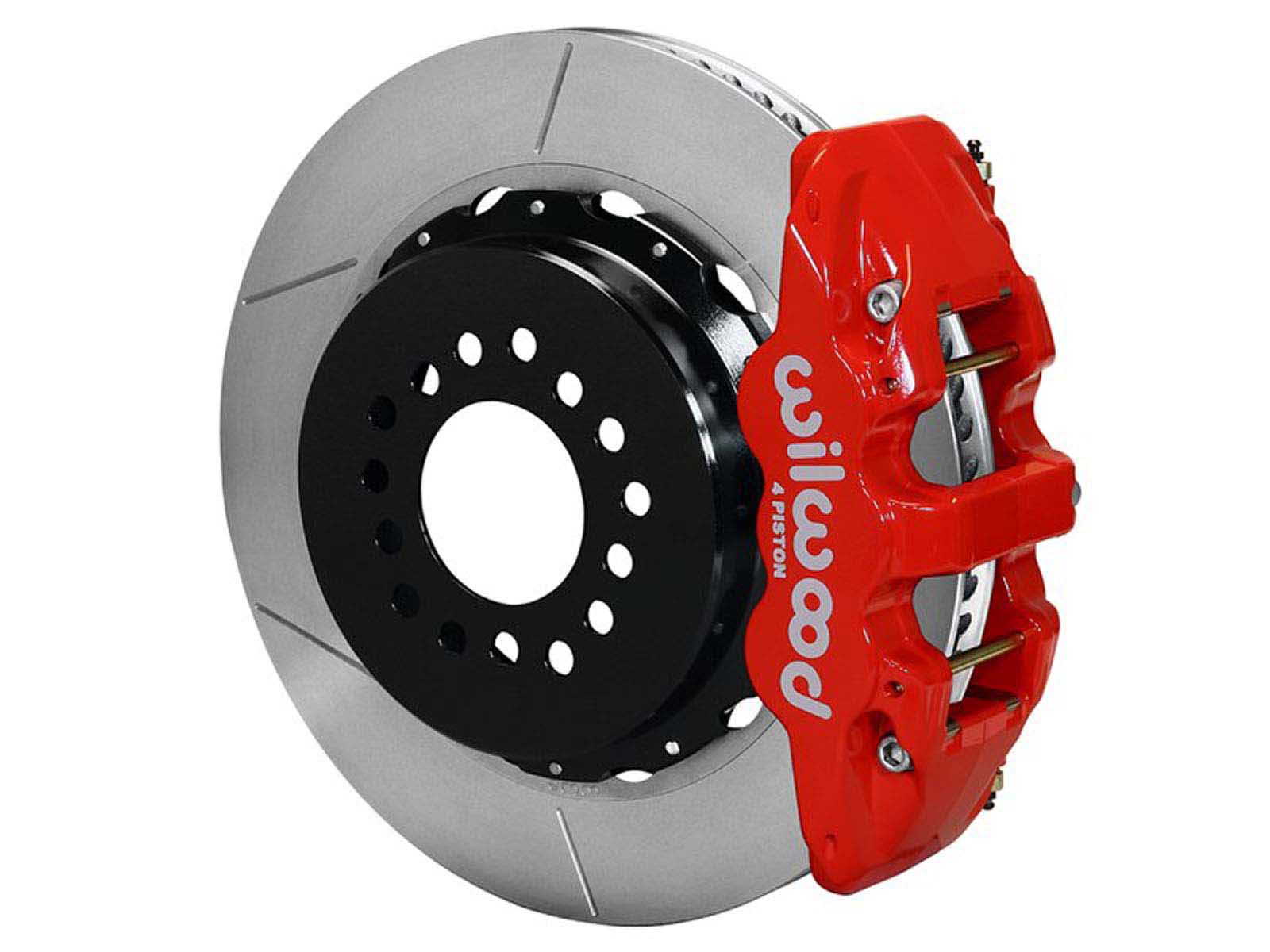

AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

• Axle Type: OEM
• Caliper Type: 4-Piston AERO4
• Caliper Mount Type: Radial Mount
• Rotor Type: Slotted
• Rotor Diameter: 14"
• Rotor Thickness: 1.1"
• Minimum Wheel Size: 18"

BRAKE LINE DETAILS:

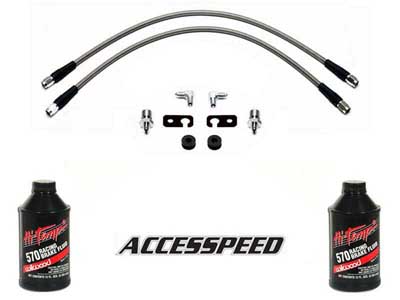

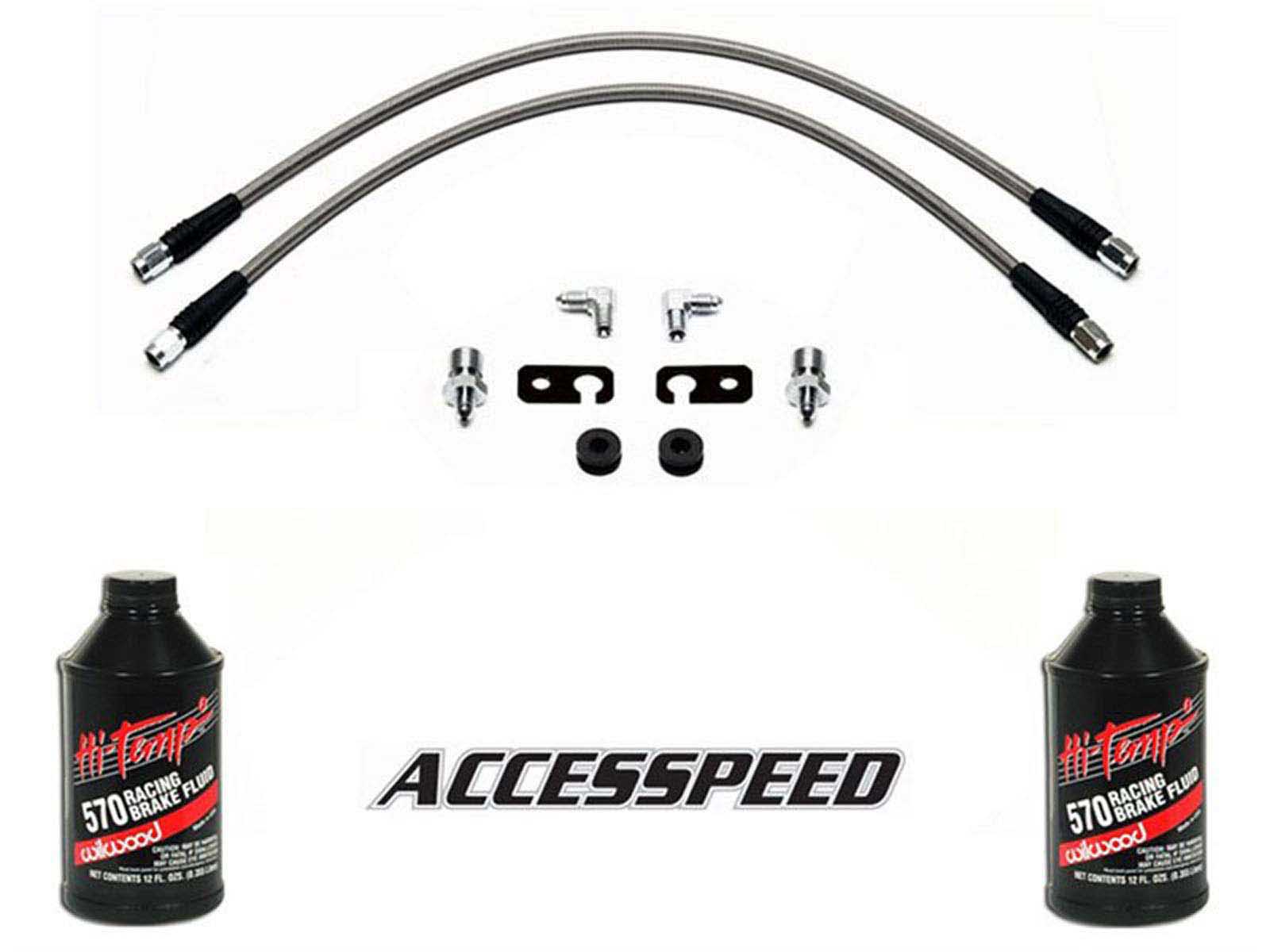

Wilwood’s stainless steel braided Flexlines are manufactured to the highest quality standards, and are designed to fit each application.  These premium grade Flexlines are durable and provide “hard line” pedal feel, while allowing braided line heat dissipation.

BRAKE FLUID DETAILS:

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

This kit requires an extended rear parking brake cable # WIL-330-11221 for 2005-2010 Models and #WIL-330-12335 for 2011-2014 Models.

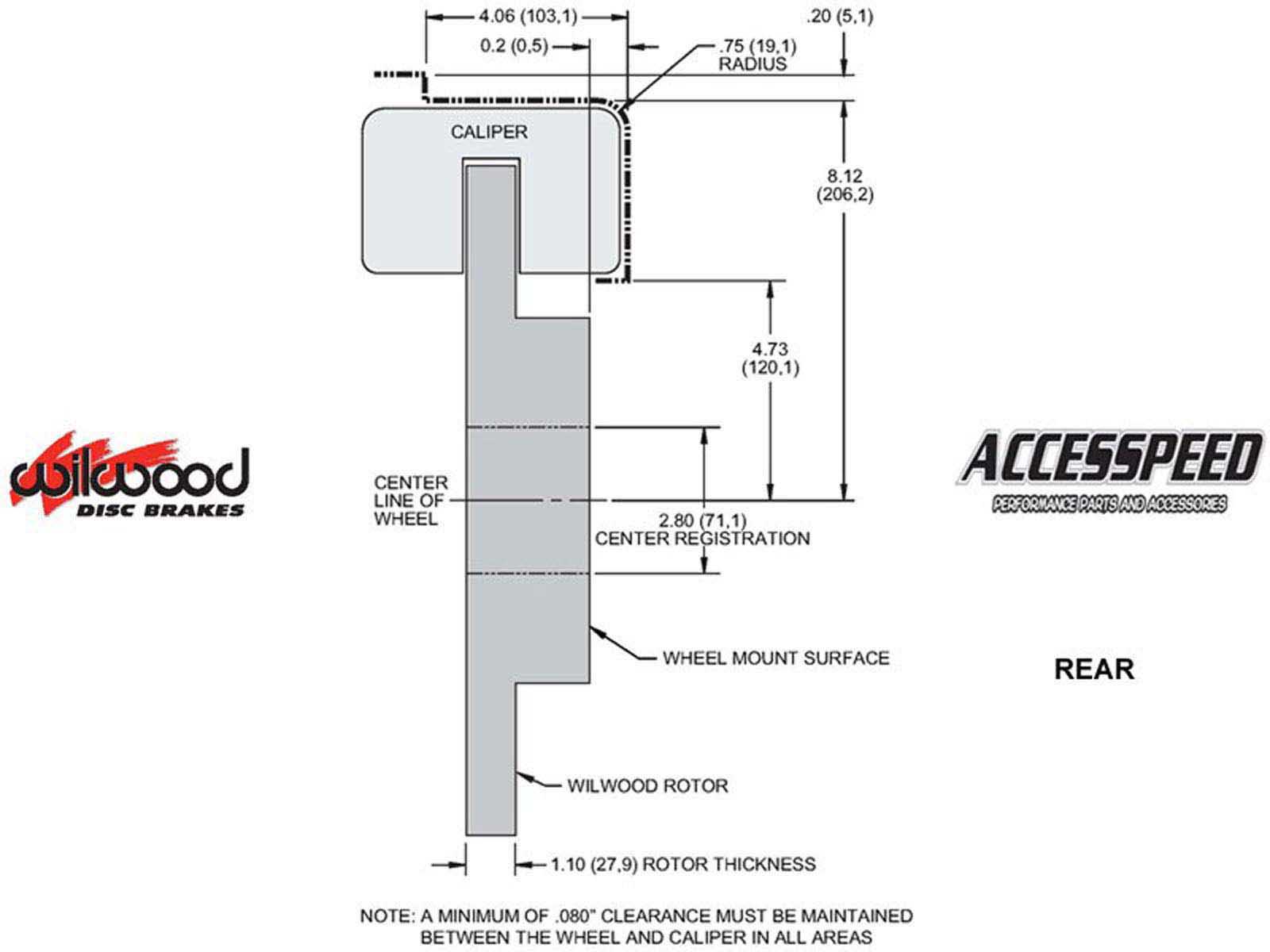

*This Brake Kit may require 18-inch or larger wheels or wheels spacers for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

Red Calipers. Please see separate listing for Black Calipers.  Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
