Wilwood Rear UTV Big Brake Kit Combo with Fluid, Red, 2022-up Polaris RZR Turbo & Pro R 5-Lug

Wilwood Rear UTV Big Brake Kit Combo with Fluid, Red, 2022-up Polaris RZR Turbo & Pro R 5-Lug
Part Number: WIL-UTV-RZR-TP22-E-R
Brand: Wilwood
List Price: $1,633.96
Price: $1,369.00

This product qualifies for Free Ground Shipping*
Qty

Wilwood Rear UTV Big Brake Kit Combo with FREE Brake Fluid Red Calipers and Plain Rotors for 2022-up Polaris RZR Turbo & Pro R

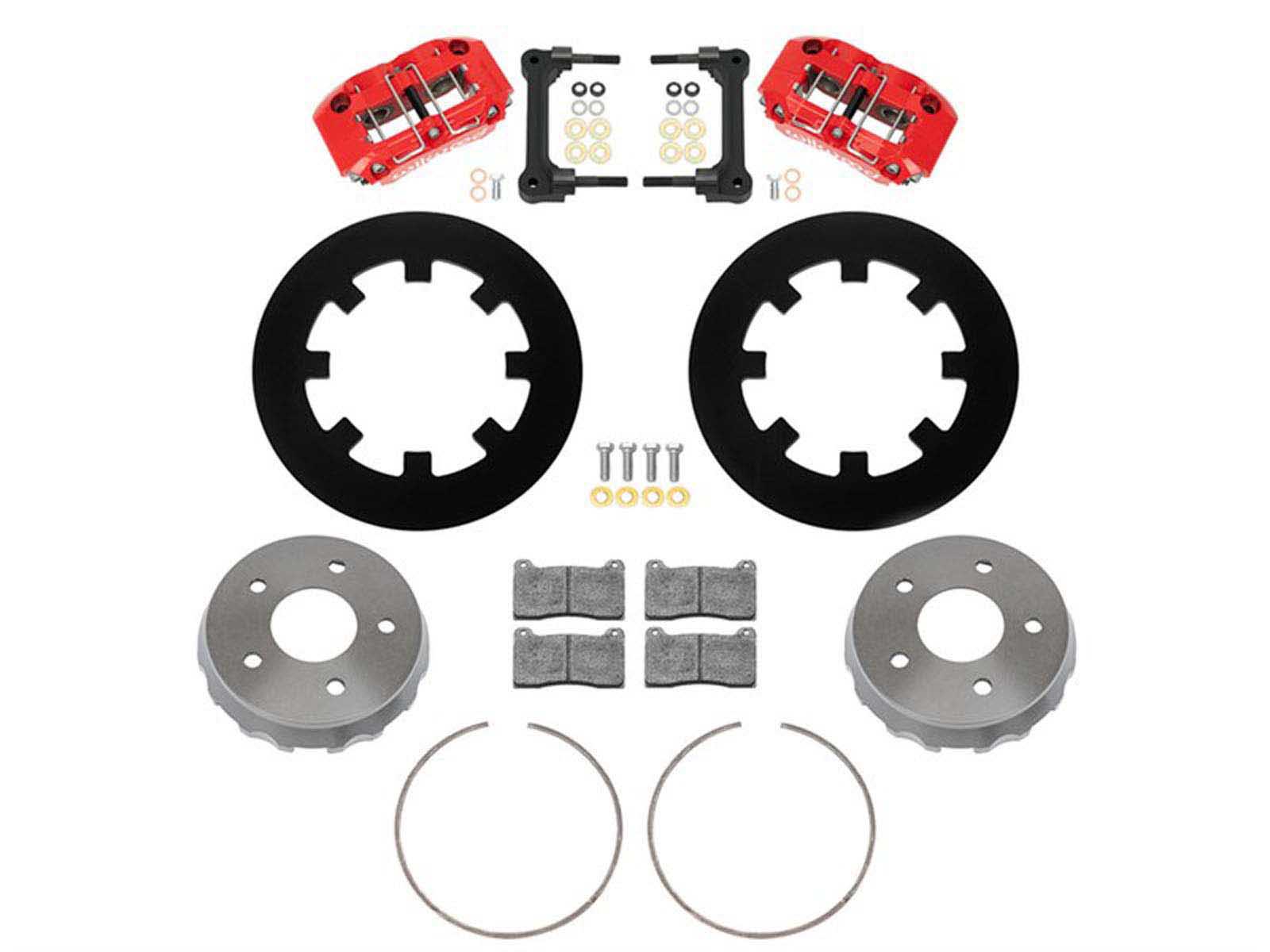

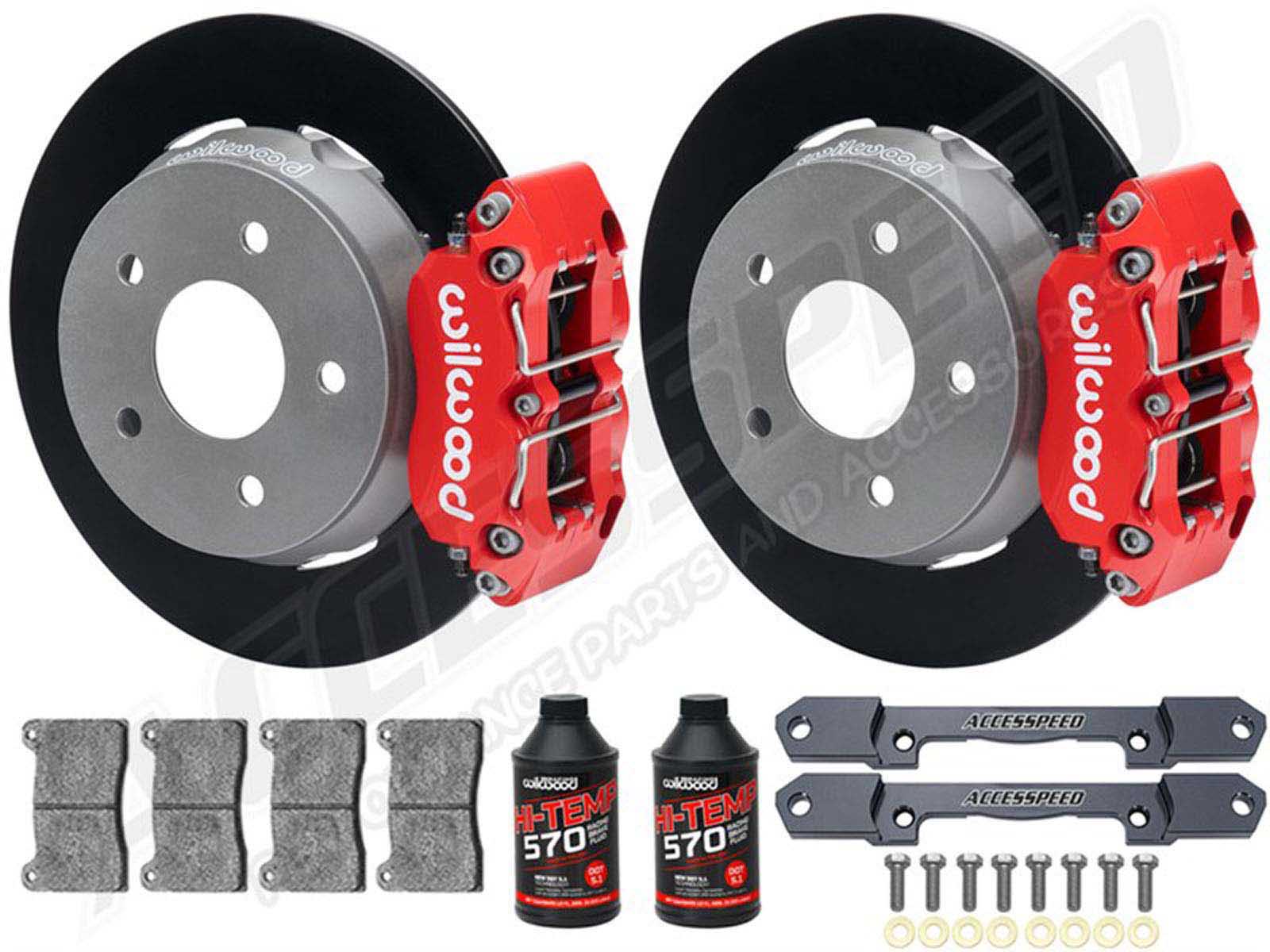

This ACCESSPEED- WIL-UTV-RZR-TP22-E-R is an all-inclusive, turn-key Rear Big Brake Kit with 2 Bottles of Wilwood 570 Brake Fluid!

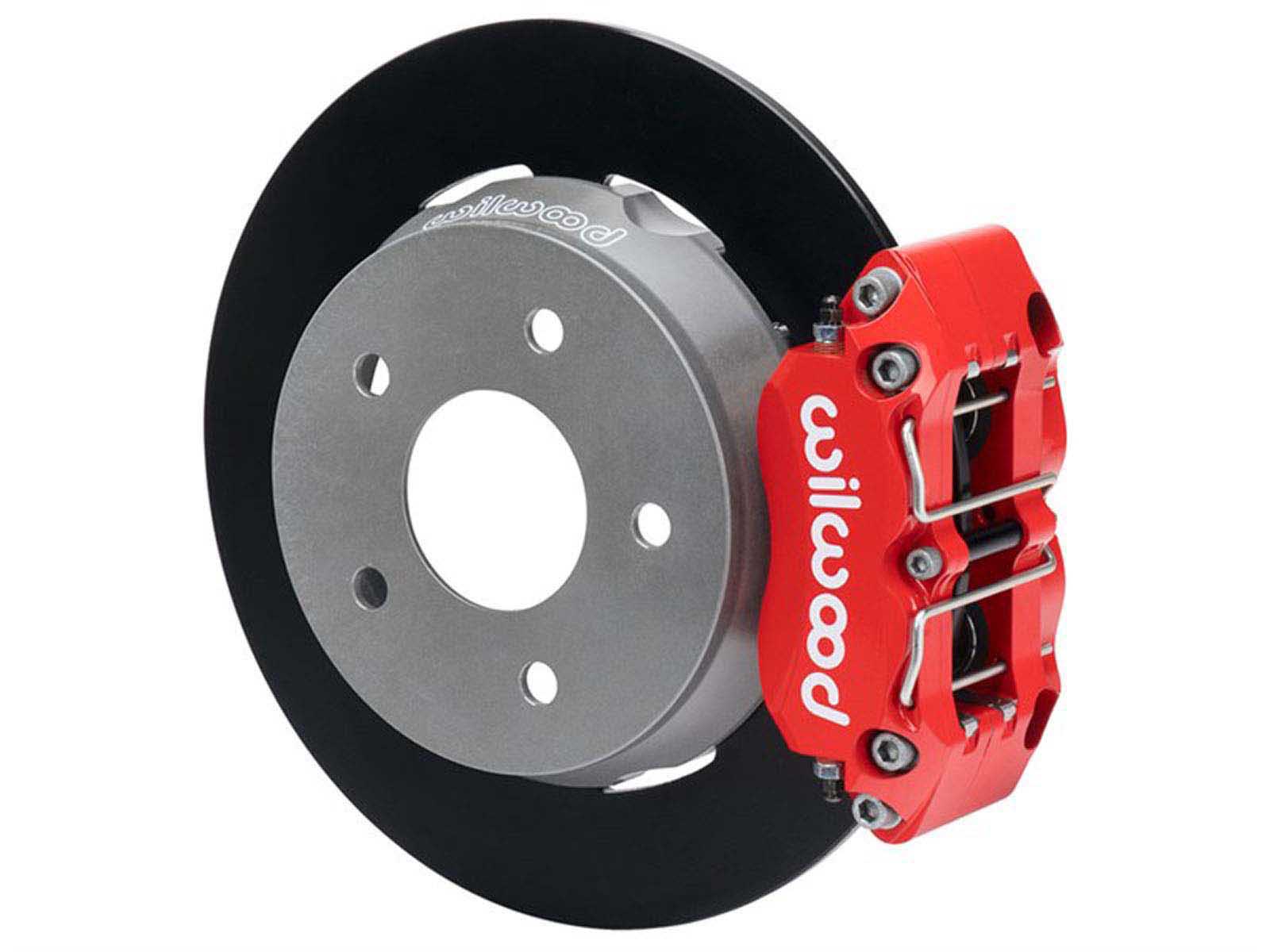

Wilwood’s NDPR rear UTV brake kits from Accesspeed feature dynamically mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain. Motorsports-proven, stress-flow forged aluminum Narrow Dynapro Radial Mount (NDPR) front and rear calipers provide superior strength to reduce deflection under extreme use. Users will experience better pedal feel, increased brake torque and longer pad life. Stainless steel pistons are equipped with high-temperature seals to protect brake fluid from heat and dirt. Large 11.25” (285mm) steel rotors improve thermal capacity, are black E-coated and are available with a plain face or drilled options. Calipers are available in glossy red or black powder coat or 24 additional color options (additional charges apply). Wilwood’s high-performance BP-10 SmartPads come standard.

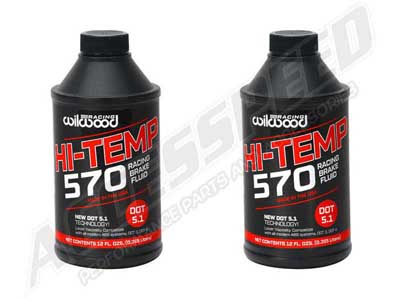

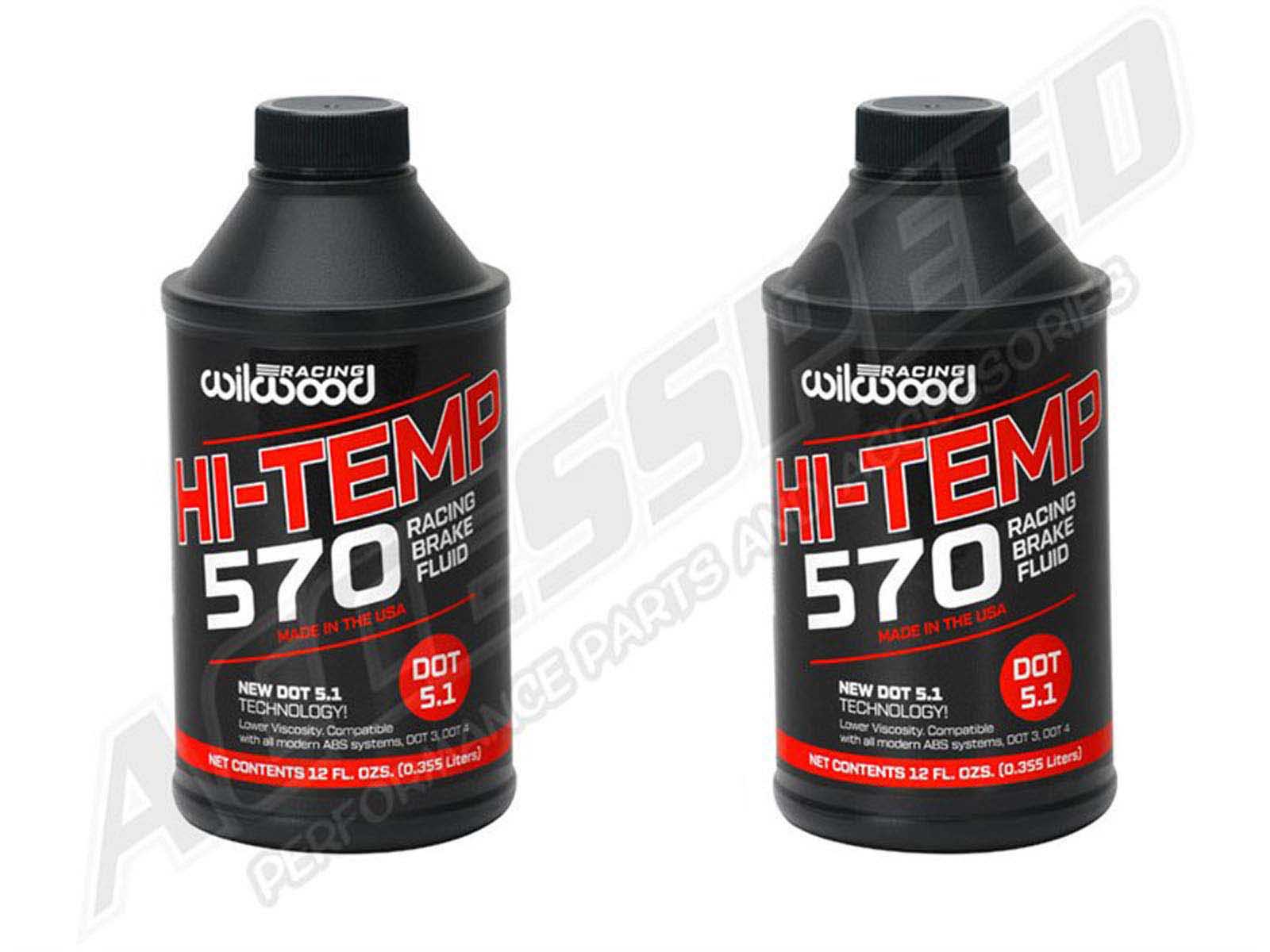

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

The braking performance increase Accesspeed has seen on the RZR is undeniable!


Notes

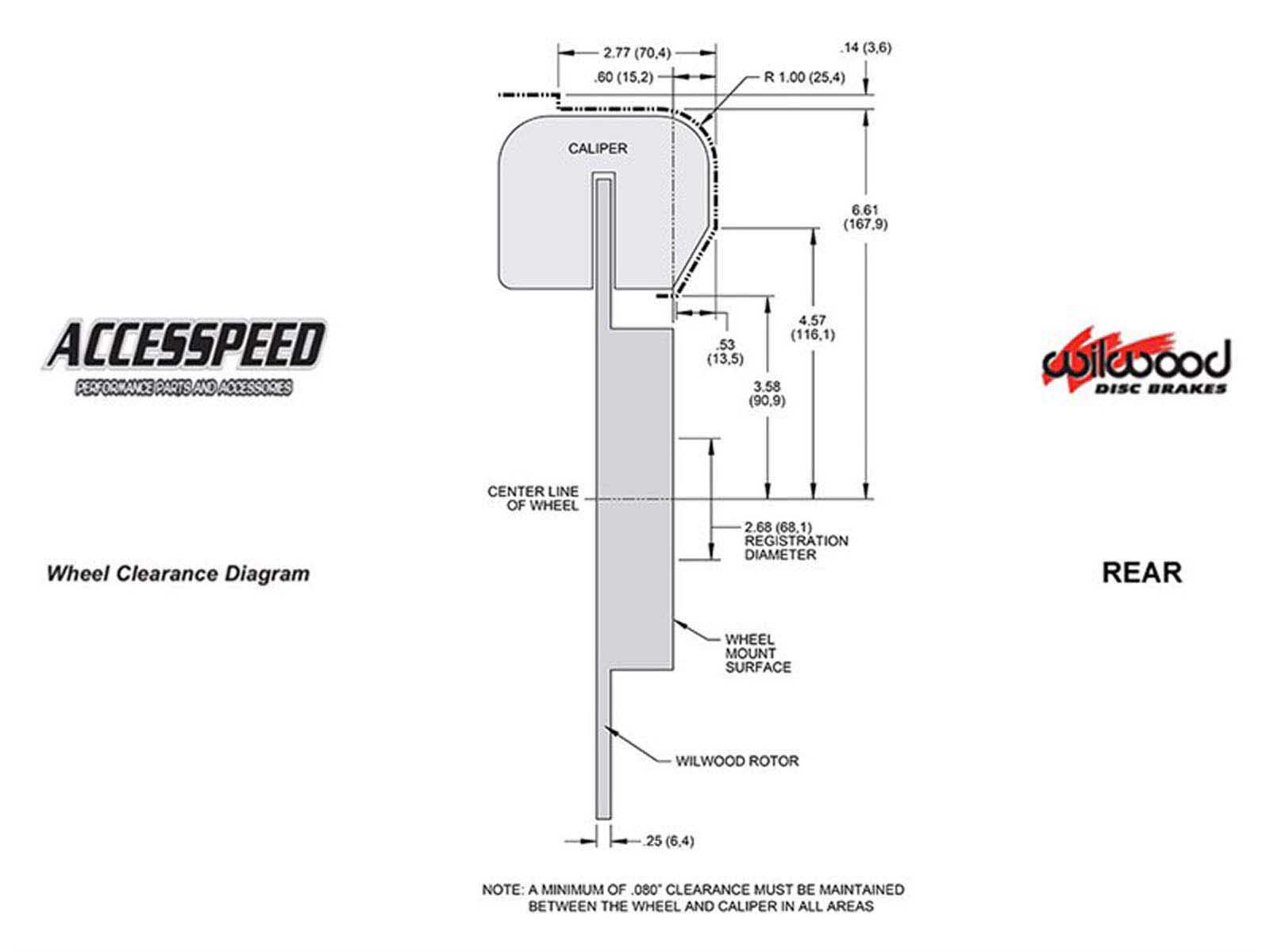

*This Brake Kit may require 14-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram image to verify wheel to caliper clearance.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-UTV-RZR-TP22-E-R Wilwood Rear UTV Big Brake Kit Combo with Fluid, Red, 2022-up Polaris RZR Turbo & Pro R 5-Lug $1,369.00 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
2024 Polaris RZR Pro R
2024 Polaris RZR Pro R 4
2024 Polaris RZR Turbo R
2024 Polaris RZR Turbo R 4
2023 Polaris RZR Pro R
2023 Polaris RZR Pro R 4
2023 Polaris RZR Turbo R
2023 Polaris RZR Turbo R 4
2022 Polaris RZR Pro R
2022 Polaris RZR Pro R 4
2022 Polaris RZR Turbo R
2022 Polaris RZR Turbo R 4
