Wilwood Rear UTV Big Brake Kit Combo, Black, Drilled Rotor for 2016-2021 Polaris RZR XP Turbo

Wilwood Rear UTV Big Brake Kit Combo, Black, Drilled Rotor for 2016-2021 Polaris RZR XP Turbo
Part Number: WIL-UTV-RZR-XPT16-F
Brand: Wilwood
List Price: $1,796.00
Price: $1,299.00

This product qualifies for Free Ground Shipping*
Qty

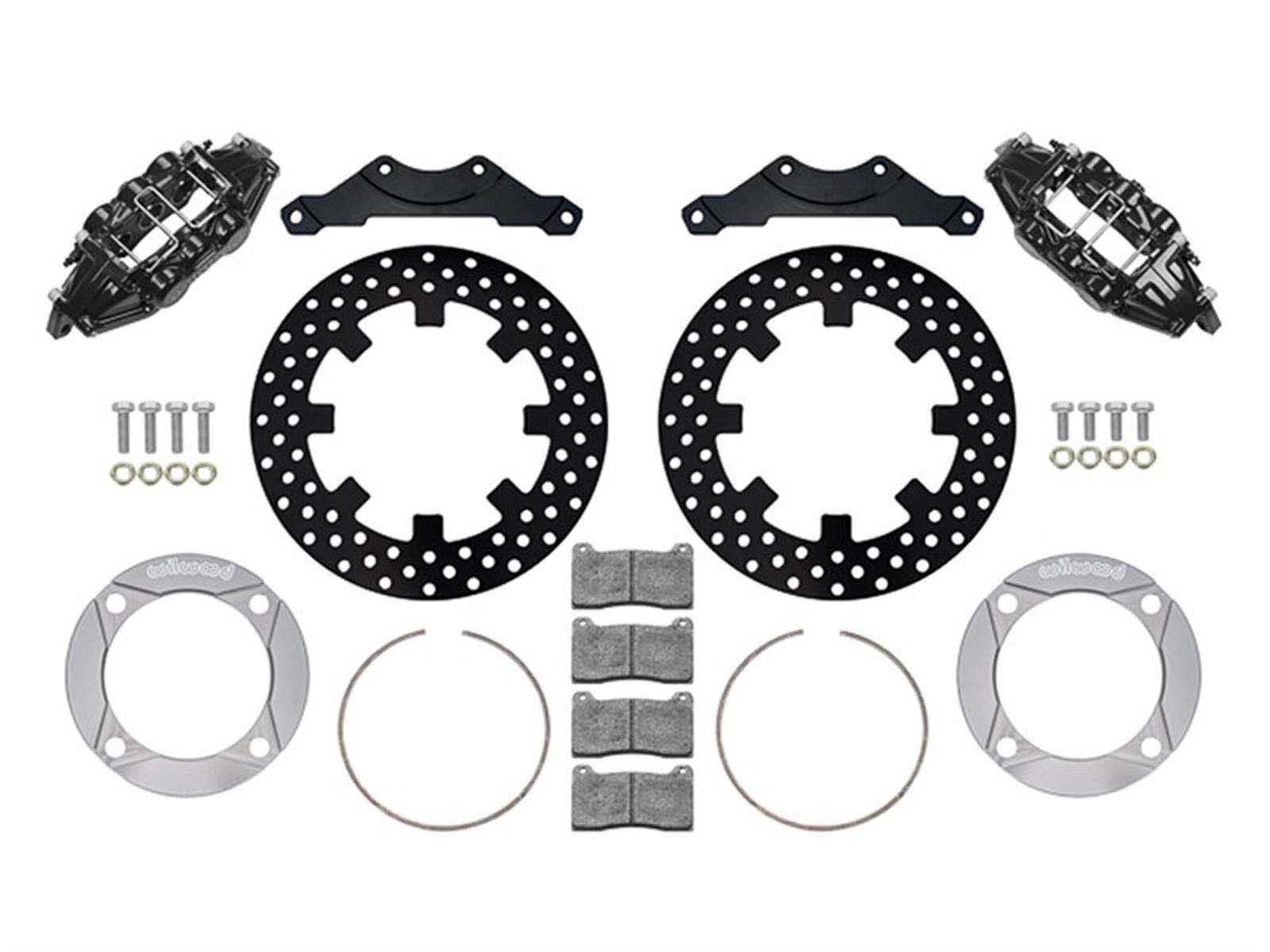

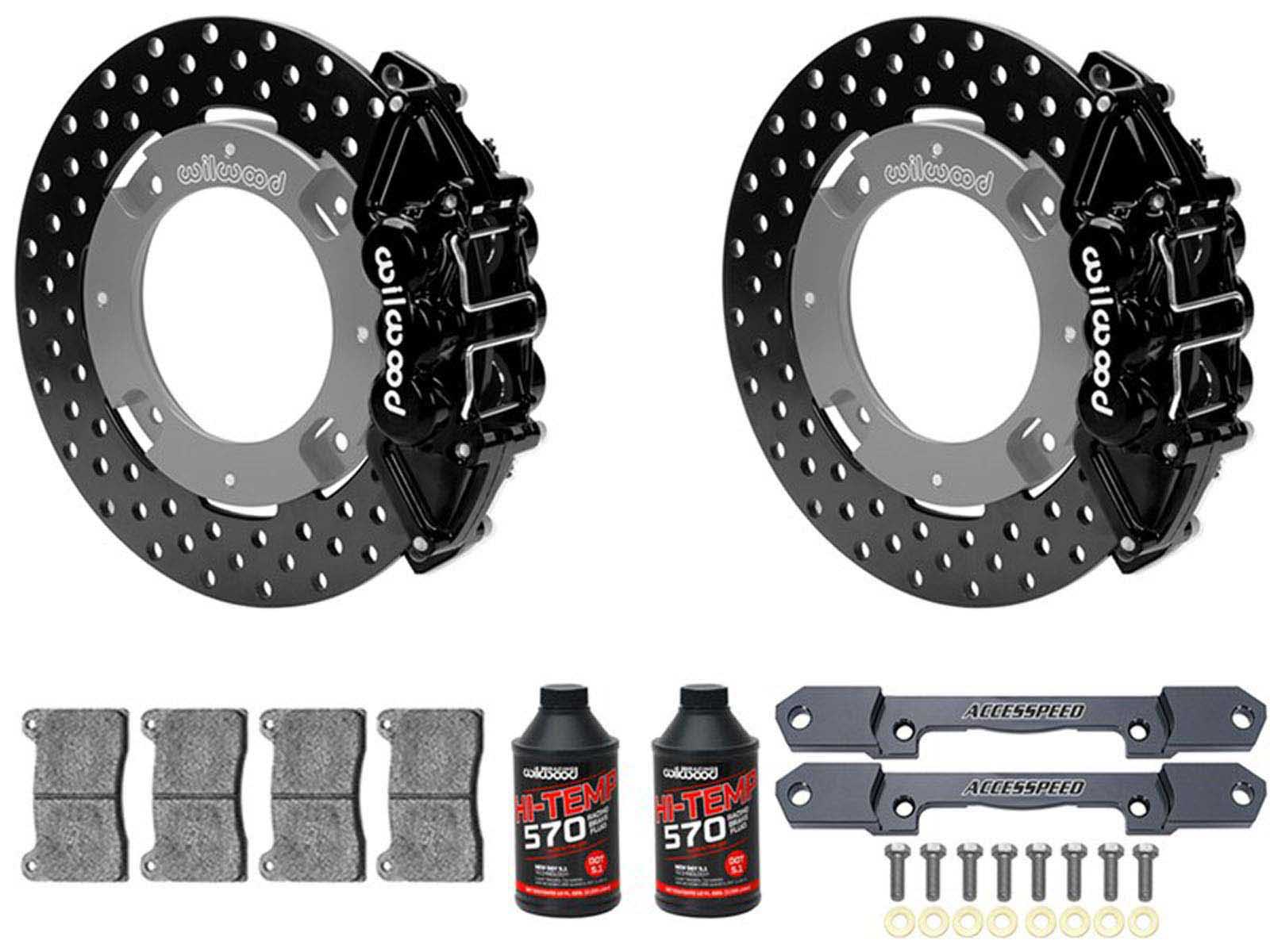

Wilwood Rear UTV Big Brake Kit Combo with Black Calipers Drilled Rotor & Brake Fluid for 2016-2021 Polaris RZR XP Turbo & XP 4 Turbo



This ACCESSPEED-WIL-UTV-RZR-XPT16-F is an all-inclusive Rear Big Brake Kit with 2 Bottles of Wilwood 570 Brake Fluid!

Accesspeed is excited to offer Wilwood’s premium performance brake kits to the Polaris RZR XP Turbo platforms. An entirely new caliper and rotor design have been engineered and manufactured in Wilwood’s US headquarters, using the same technology Wilwood has been employing for decades for race cars, trucks and military vehicles, only scaled down appropriately for SXS side-by-side UTVs. Rear kits employ fixed-mount UTV6 six-piston calipers and larger dynamically-mounted steel floating rotors to reduce piston knockback and improve thermal capacity.

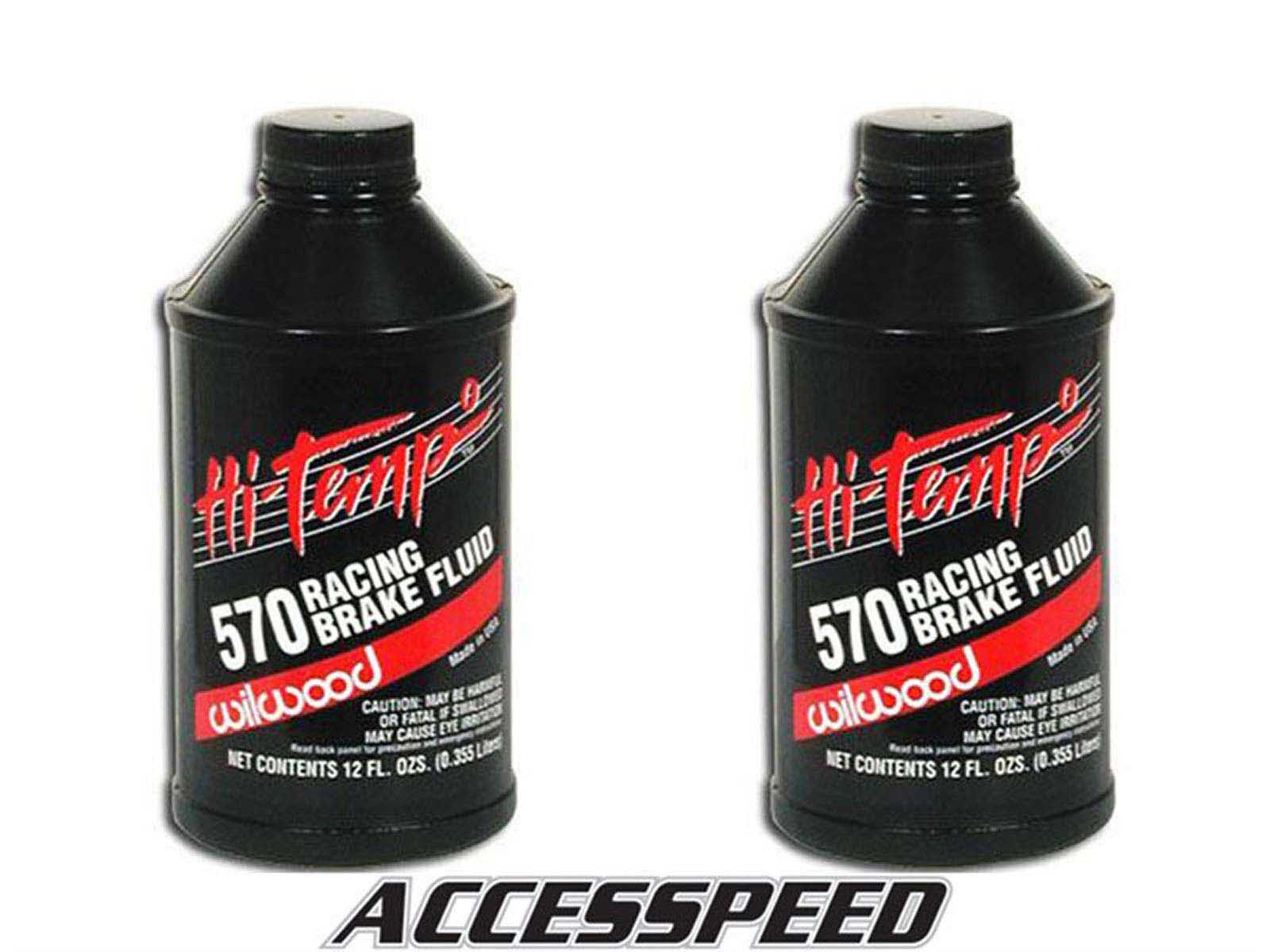

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F dry boiling point to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal. Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications).

The braking performance increase Accesspeed has seen is undeniable!



KIT FEATURES:

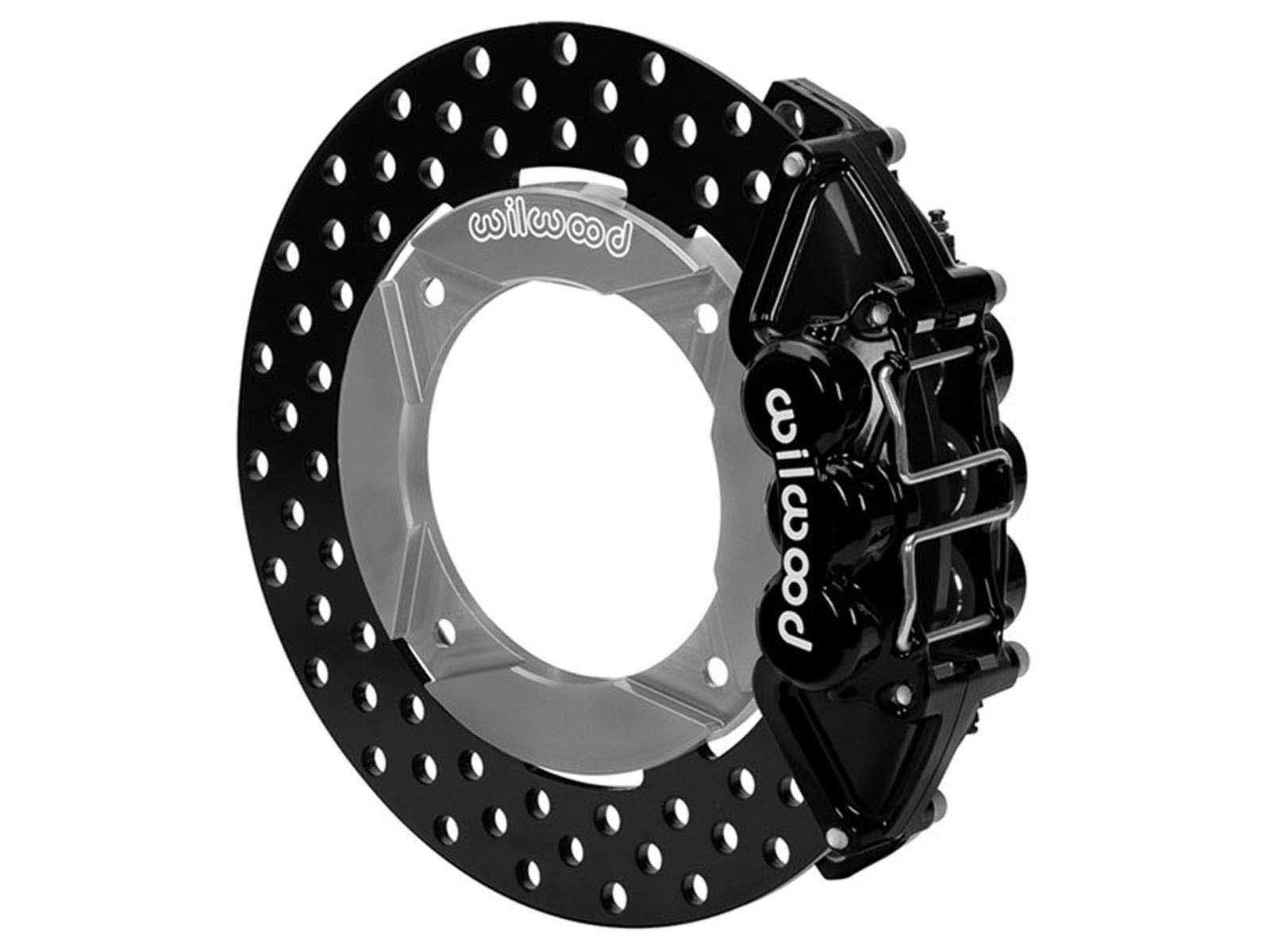

  • 20% larger dynamically mounted 11.25” x 0.25” steel rotors eliminate knockback and reduce thermal distortion; available plain face or drilled.
  • Rigid, stress-flow net forged aluminum, UTV6 opposed piston calipers with strengthened body reduces deflection and increases clamping efficiency.
  • Differential bore caliper pistons increase pad life and maintain proper front/rear bias.
  • Calipers offered in gloss red and black powder coat, or 24 additional caliper color upgrade options.
  • Standard kits come complete with fade-resistant BP-10 brake pads, banjo bolt and crush washers to connect to factory brake lines.
  • Race-spec kits use Type III hard anodized calipers and more aggressive, fade-free PolyMatrix E brake pads.
  • Fully compatible with factory master cylinder, ABS, and pedals.
  • Kits fit most 14” and larger wheels.




Notes

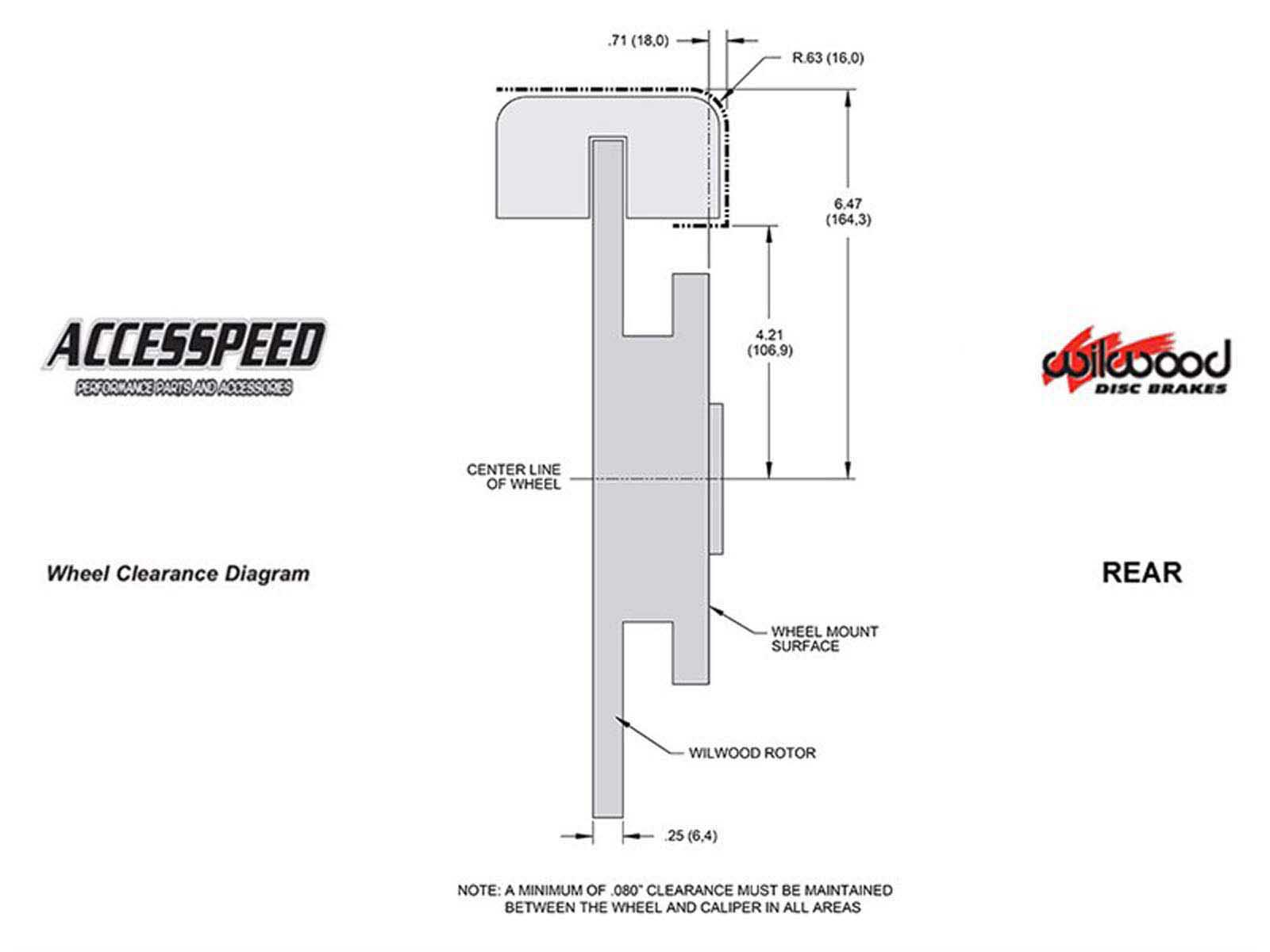

*This Brake Kit may require 14-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram image to verify wheel to caliper clearance.

Prop 65 Warning WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Part # Description Price
WIL-UTV-RZR-XPT16-F Wilwood Rear UTV Big Brake Kit Combo, Black, Drilled Rotor for 2016-2021 Polaris RZR XP Turbo $1,299.00 Add to Cart

Scroll to view product options.

Fits These Applications:

Year Make Model SubModel Engine Transmission Drive
2021 Polaris RZR XP 4 Turbo
2021 Polaris RZR XP Turbo
2020 Polaris RZR XP 4 Turbo
2020 Polaris RZR XP Turbo
2019 Polaris RZR XP 4 Turbo
2019 Polaris RZR XP Turbo
2018 Polaris RZR XP 4 Turbo
2018 Polaris RZR XP Turbo
2017 Polaris RZR XP 4 Turbo
2017 Polaris RZR XP Turbo
2016 Polaris RZR XP 4 Turbo
2016 Polaris RZR XP Turbo
