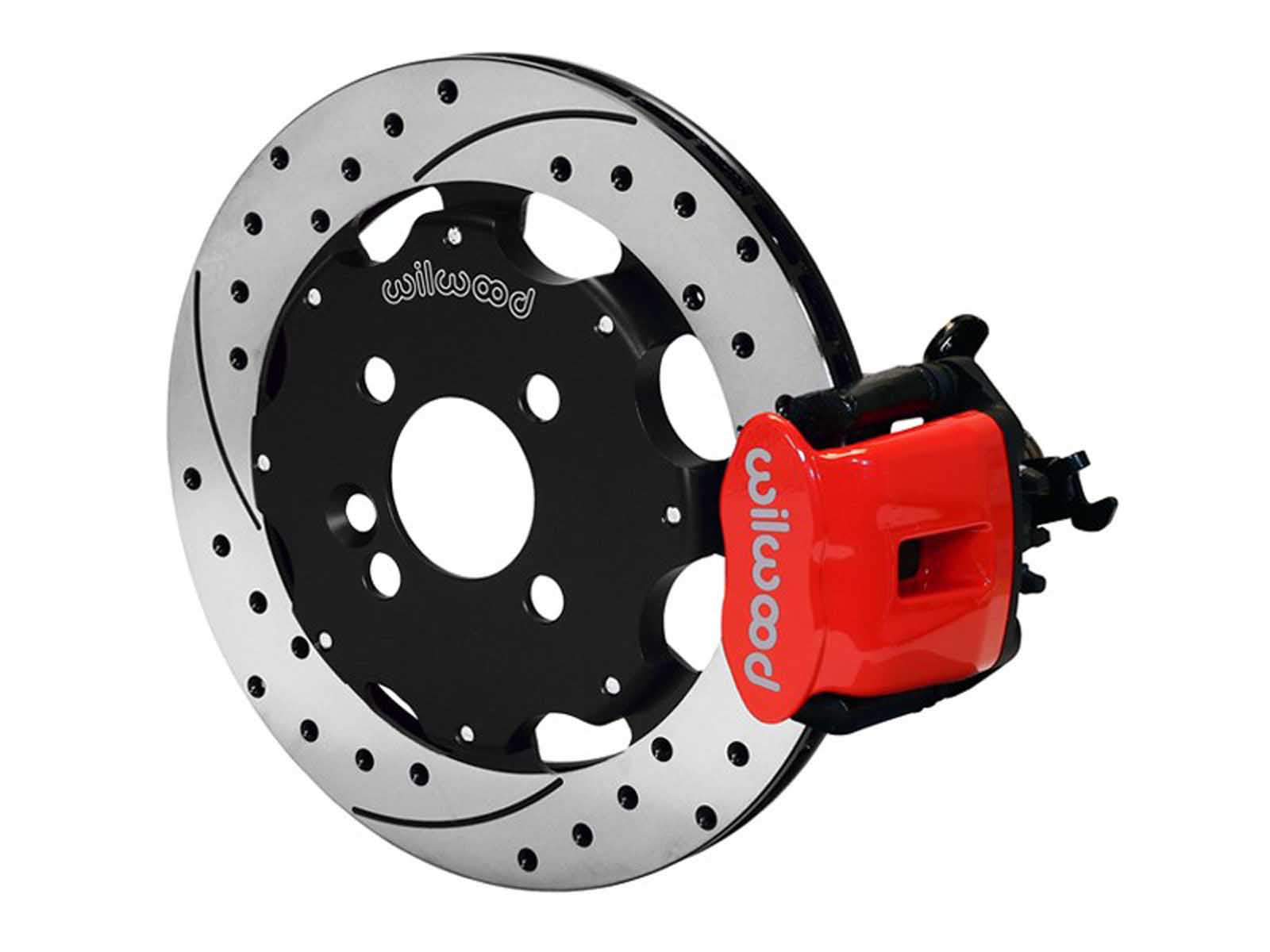

Wilwood 140-10206-DR CPB 11" Rear Big Brake Kit, Drilled, Red, 1990-2000 Civic, 1990-2001 Acura

Wilwood 140-10206-DR Combination Parking Brake Rear 11" Big Brake Kit With Red Calipers & Drilled Rotors, Fits 1990-2001 Acura & 1992-2000 Honda With OE Rear Disc & 2.39 Hub Offset

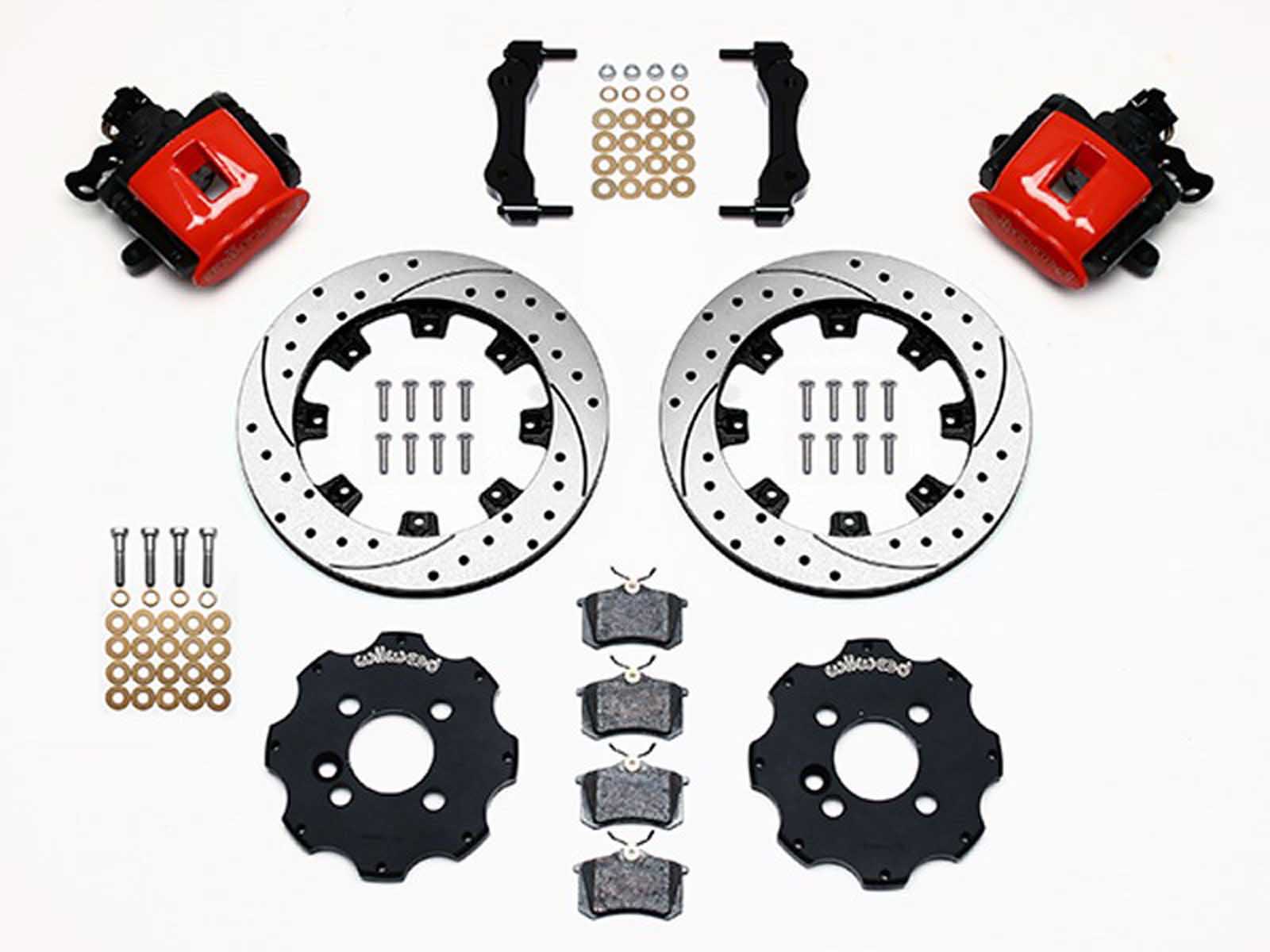

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. Some vehicles may require an extended rear parking brake cable for proper function, which is sold separately. See below for brake line and extended parking brake cable kit options:

Wilwood Flexline 16-inch Stainless Braided Brake Line Kit # WIL-220-10840

Acura Integra & Honda Civic applications, use Wilwood PBC kit # WIL-330-10966

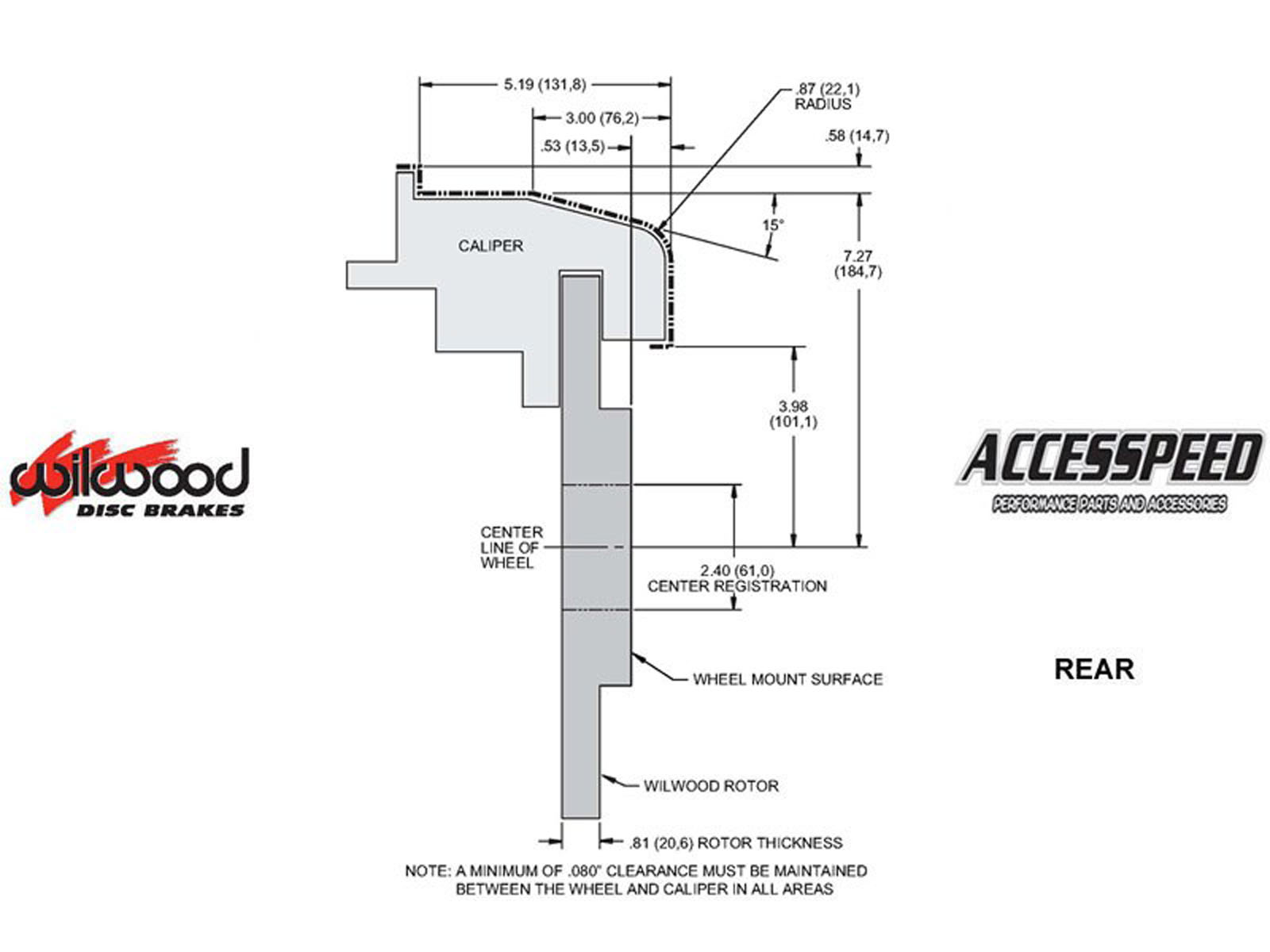

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram image to verify fitment for your specific wheel.

This kit fits the following vehicles with OE Rear Disc and 2.39 Hub Offset:

Acura Integra 1990-1996 Acura Integra 1997-2001 Honda Civic 1992-1993 Honda Civic 1992-1995 Honda Civic 1994-1995 Honda Civic 1999-2000 Honda Civic del Sol 1993 Honda Civic del Sol 1994 Honda Civic del Sol 1995-1997 Honda CRX 1990-1991

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
