Wilwood 140-10211-R CPB 12" Rear Big Brake Kit, Red, 1988-1997 Honda Civic del Sol CRX

Wilwood 140-10211-R Combination Parking Brake Rear 12.19" Big Brake Kit With Red Calipers, Fits 1988-1997 Honda Civic With OE Rear Drum & 2.71 Hub Offset

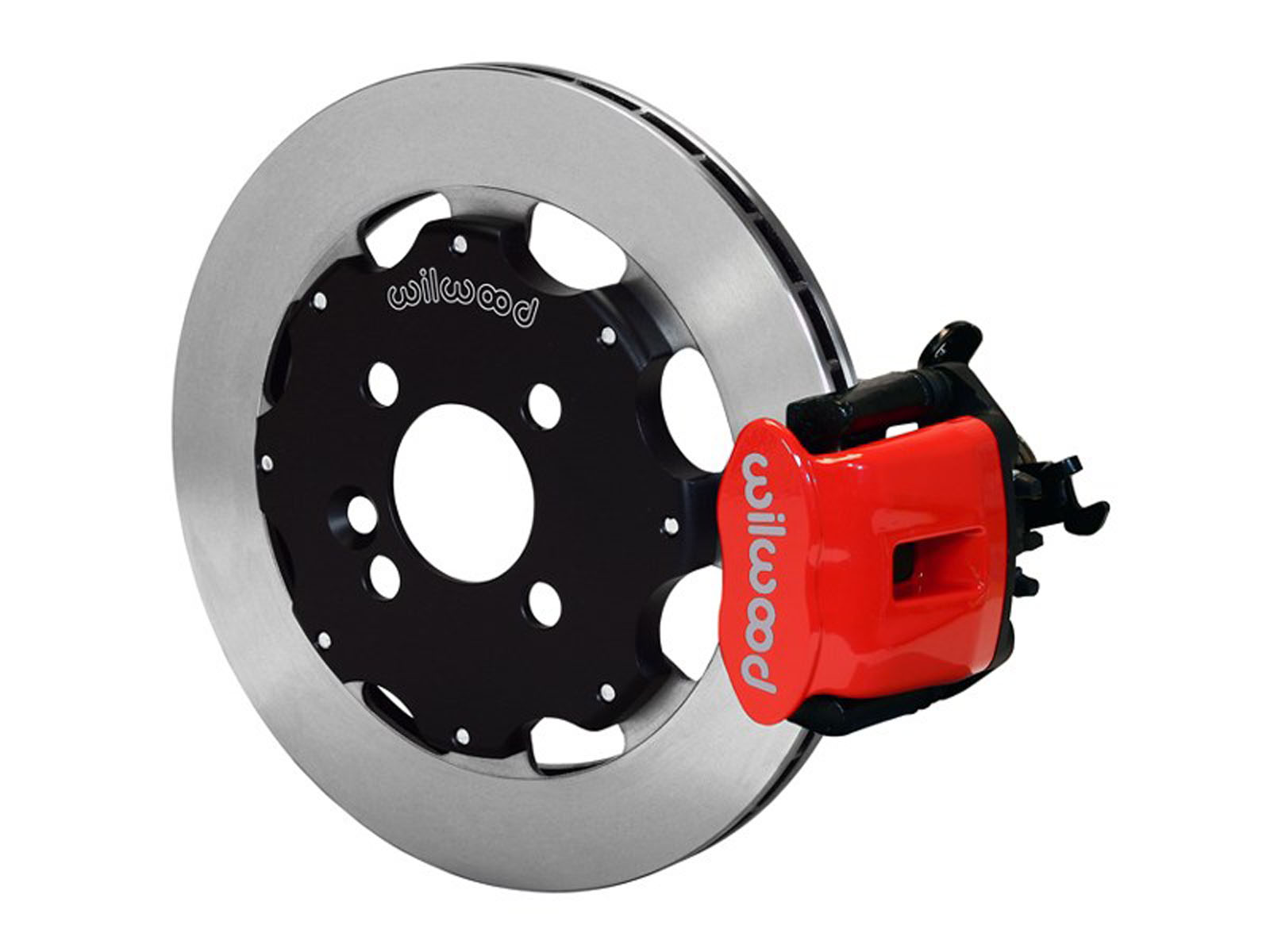

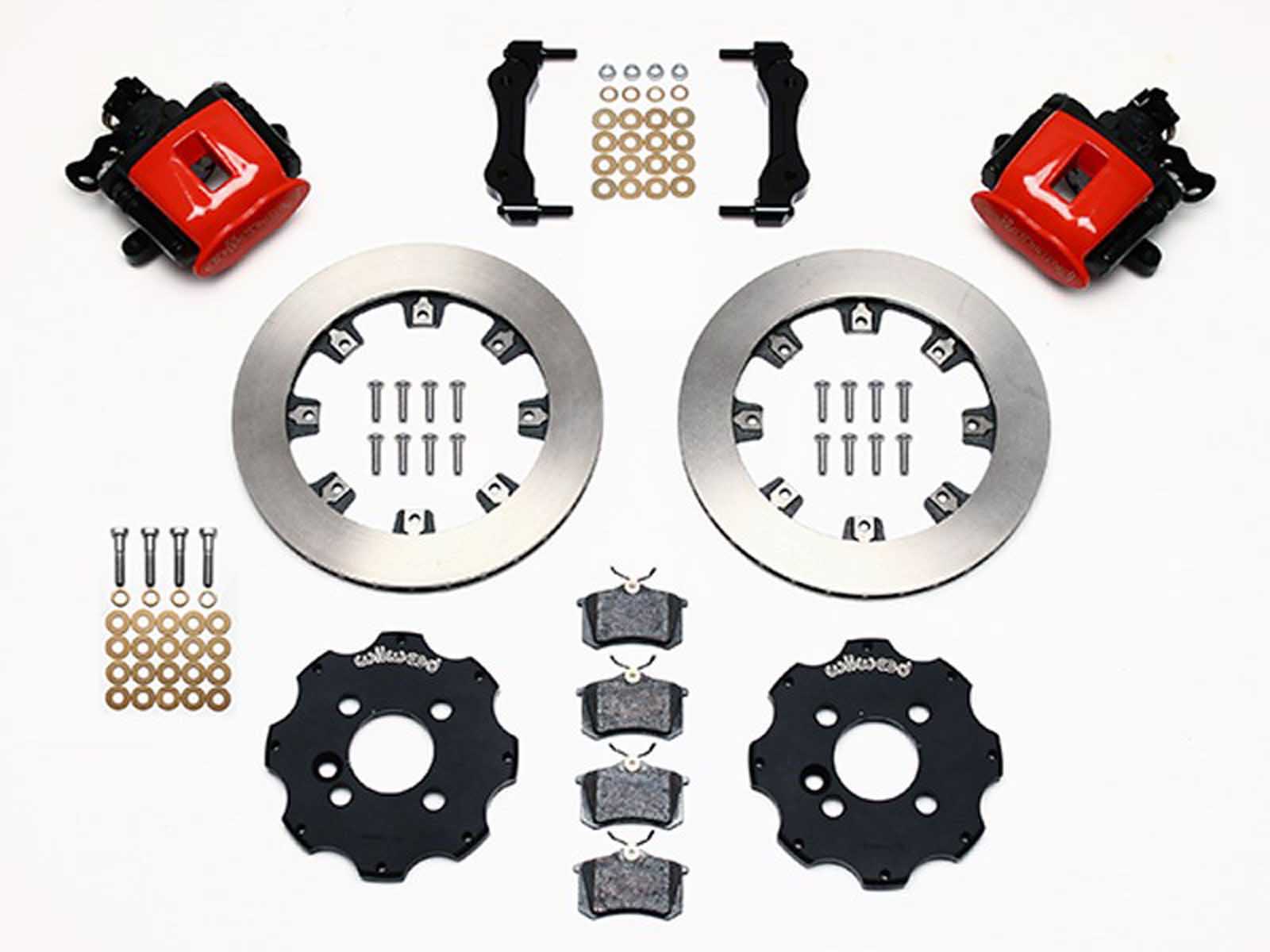

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. Some vehicles may require an extended rear parking brake cable for proper function, which is sold separately. See below for brake line and extended parking brake cable kit options:

Wilwood Flexline 16-inch Stainless Braided Brake Line Kit # WIL-220-10840

Honda Civic applications, use Wilwood PBC kit # WIL-330-10966

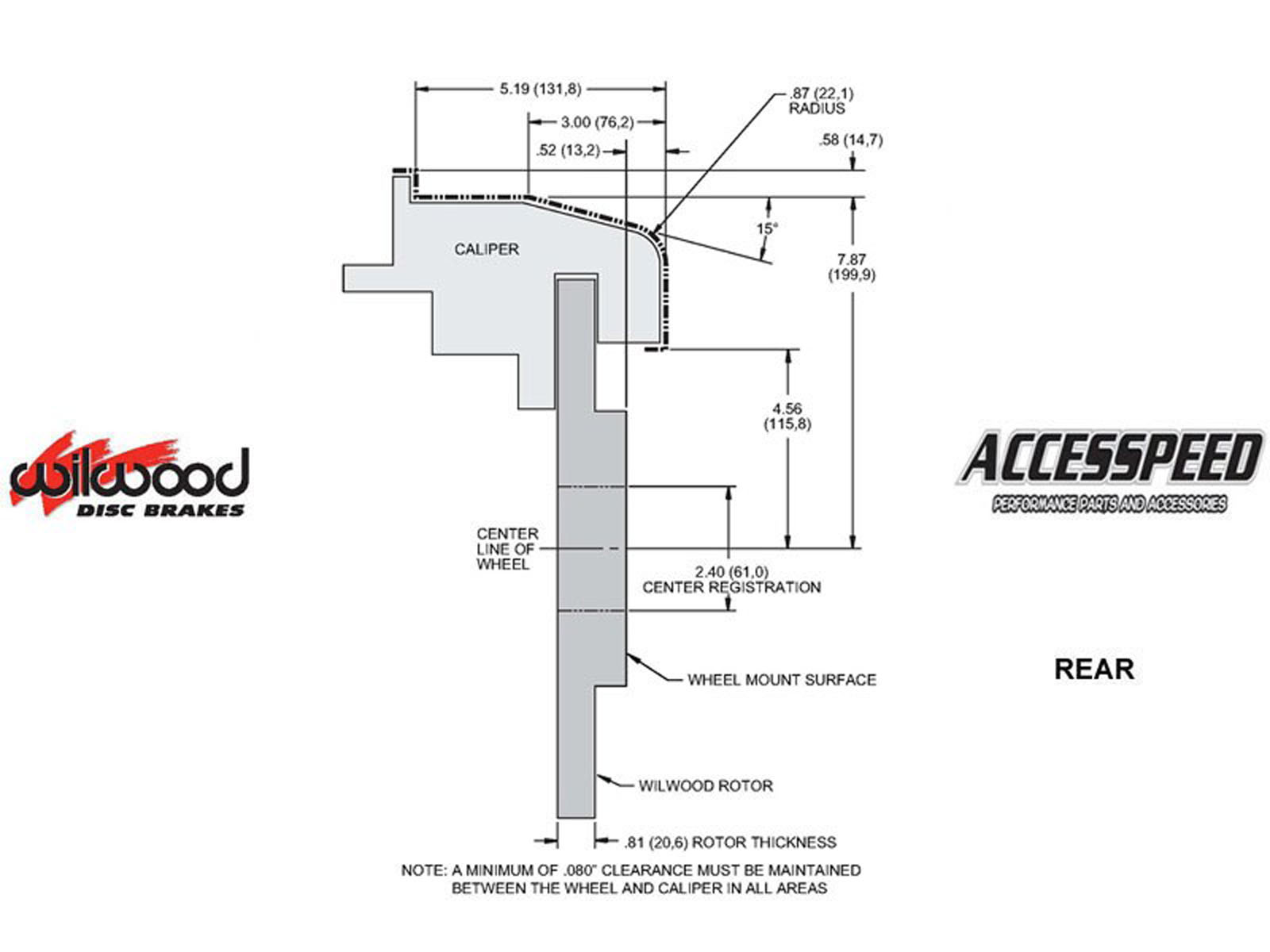

*This Brake Kit may require 17-inch or larger wheels. Please refer to the wheel clearance diagram image to verify fitment for your specific wheel.

This kit fits the following vehicles with OE Rear Drum and 2.71 Hub Offset:

Honda Civic 1988 Honda Civic 1988-1991 Honda Civic 1989-1991 Honda Civic 1990-1991 Honda Civic 1992-1993 Honda Civic 1992-1995 Honda Civic 1993-1995 Honda Civic 1994 Honda Civic 1994-1995 Honda Civic 1995 Honda Civic del Sol 1993-1997 Honda CRX 1988-1989 Honda CRX 1988-1991 Honda CRX 1990-1991

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.?
