Wilwood 140-10943-R AERO4 Rear 14" Brake Kit Red Slotted 1967-1992 GM 12-Bolt 2.81 Offset w/C-Clips

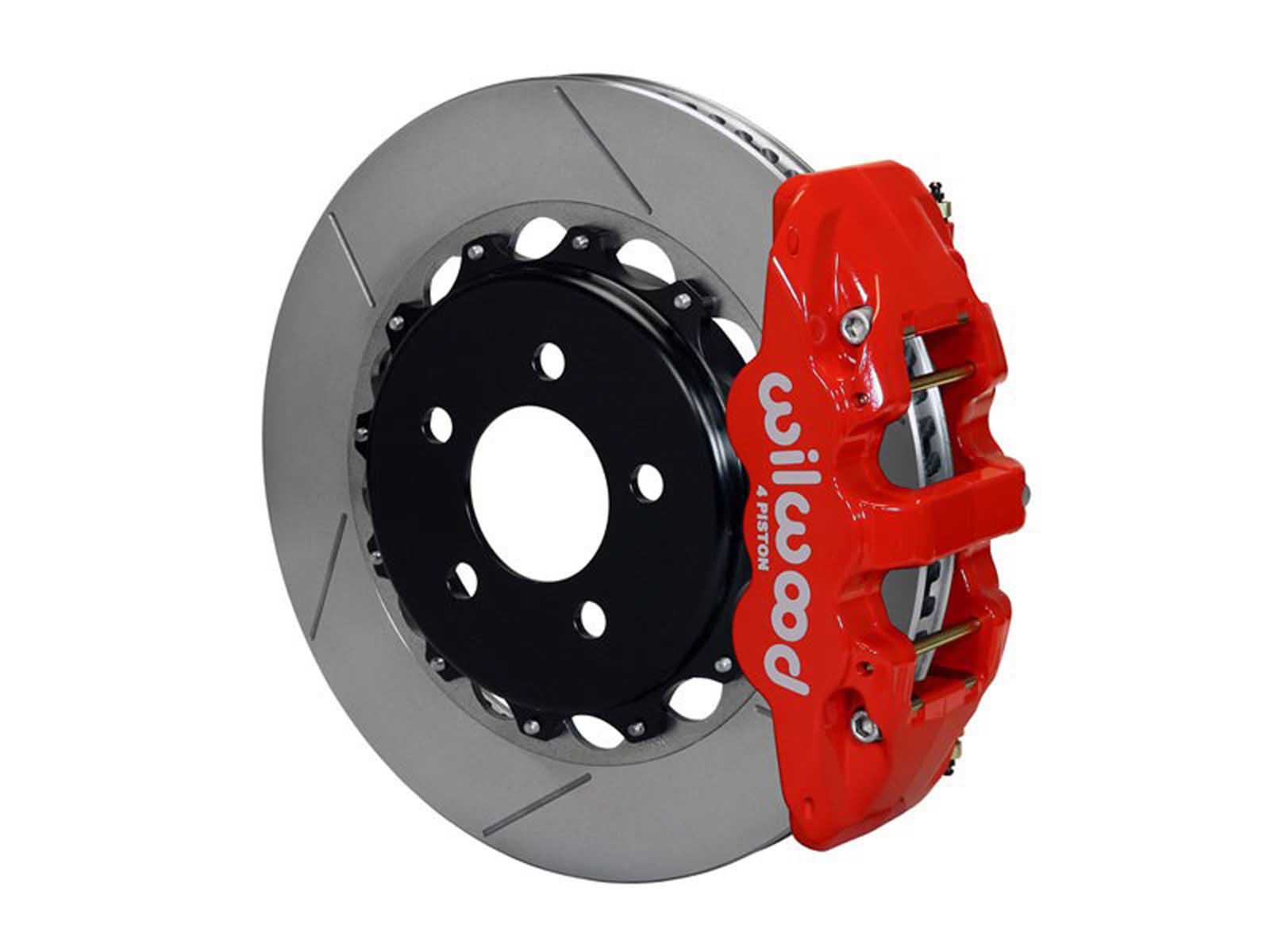

Wilwood 140-10943-R AERO4 Rear 14" Big Brake Kit With Red Calipers & Slotted Rotors 1963-1987 C-10/C15 Truck/SUV With 2.81 Axle & OEM C-Clips

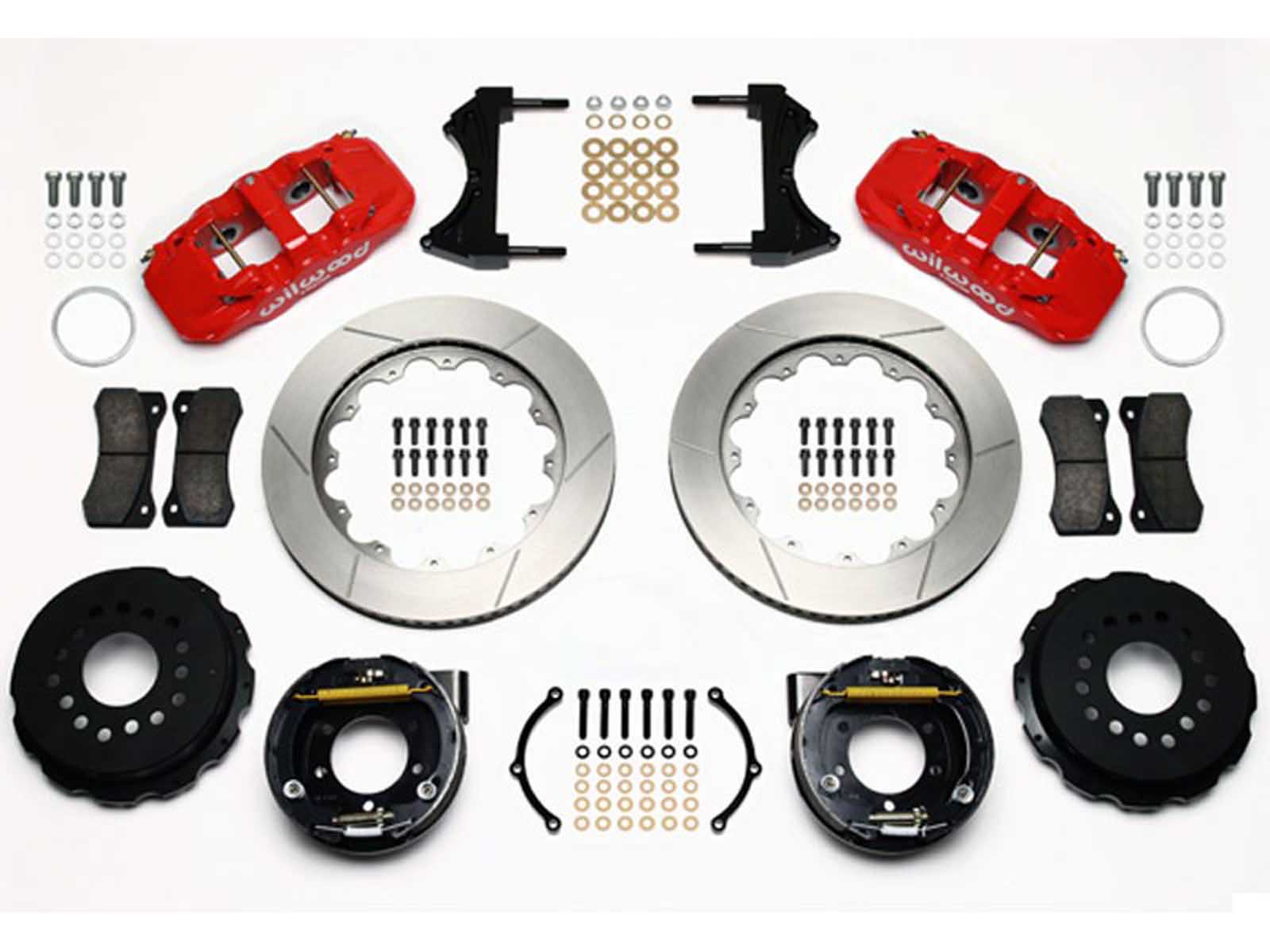

Billet AERO4 Radial rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Billet AERO4 four piston calipers, 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

• Axle Offset: 2.81
• Mount Type: Radial
• Caliper Type: 4-Piston
• Rotor Size: 14" x 1.1"
• Minimum Wheel Size: 18"

Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately. Order Kit # WIL-220-7056

This kit requires an extended rear parking brake cable # WIL-330-9371 for proper function.

For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications.

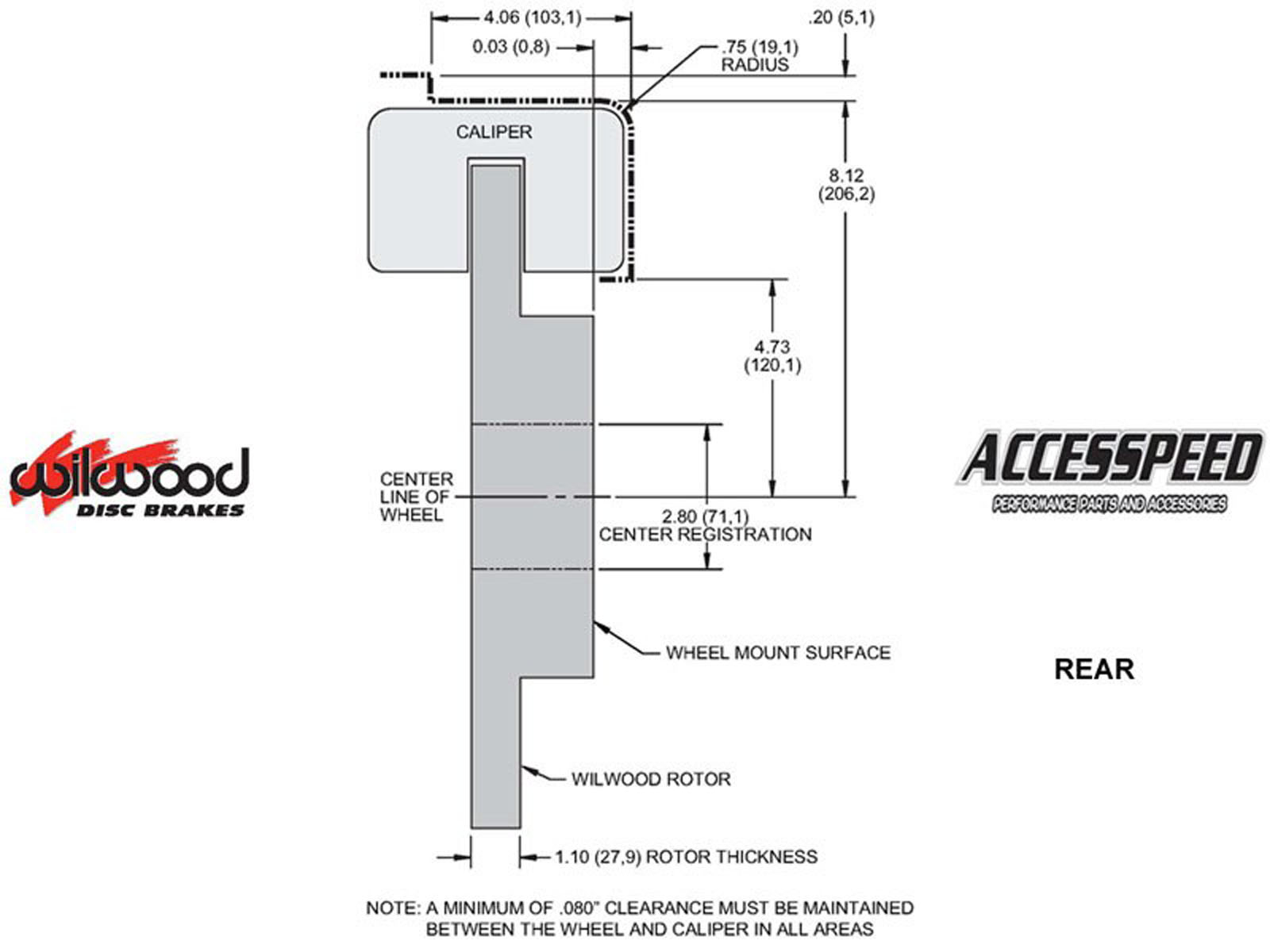

*This Brake Kit may require 18-inch or larger wheels or wheels spacers for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Black Calipers. Please see additional listing for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
