Wilwood 140-10950 AERO4 Drilled & Slotted 14" Rear Big Brake Kit W/Park Brake 2005-2014 Ford Mustang

Wilwood 140-10950-D AERO4 Drilled & Slotted 14" Rear Big Brake Kit With Parking Brake 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Ford Mustang

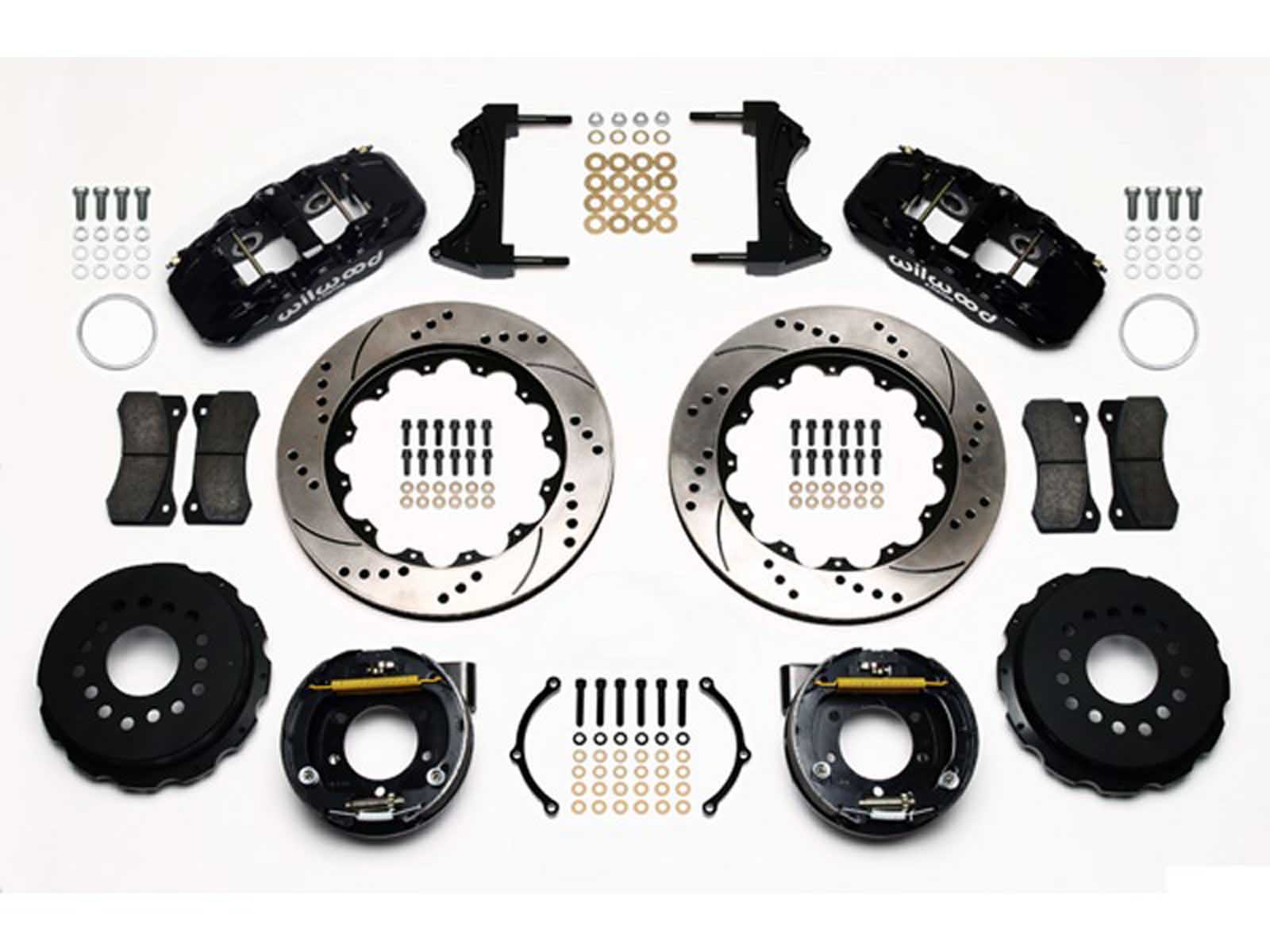

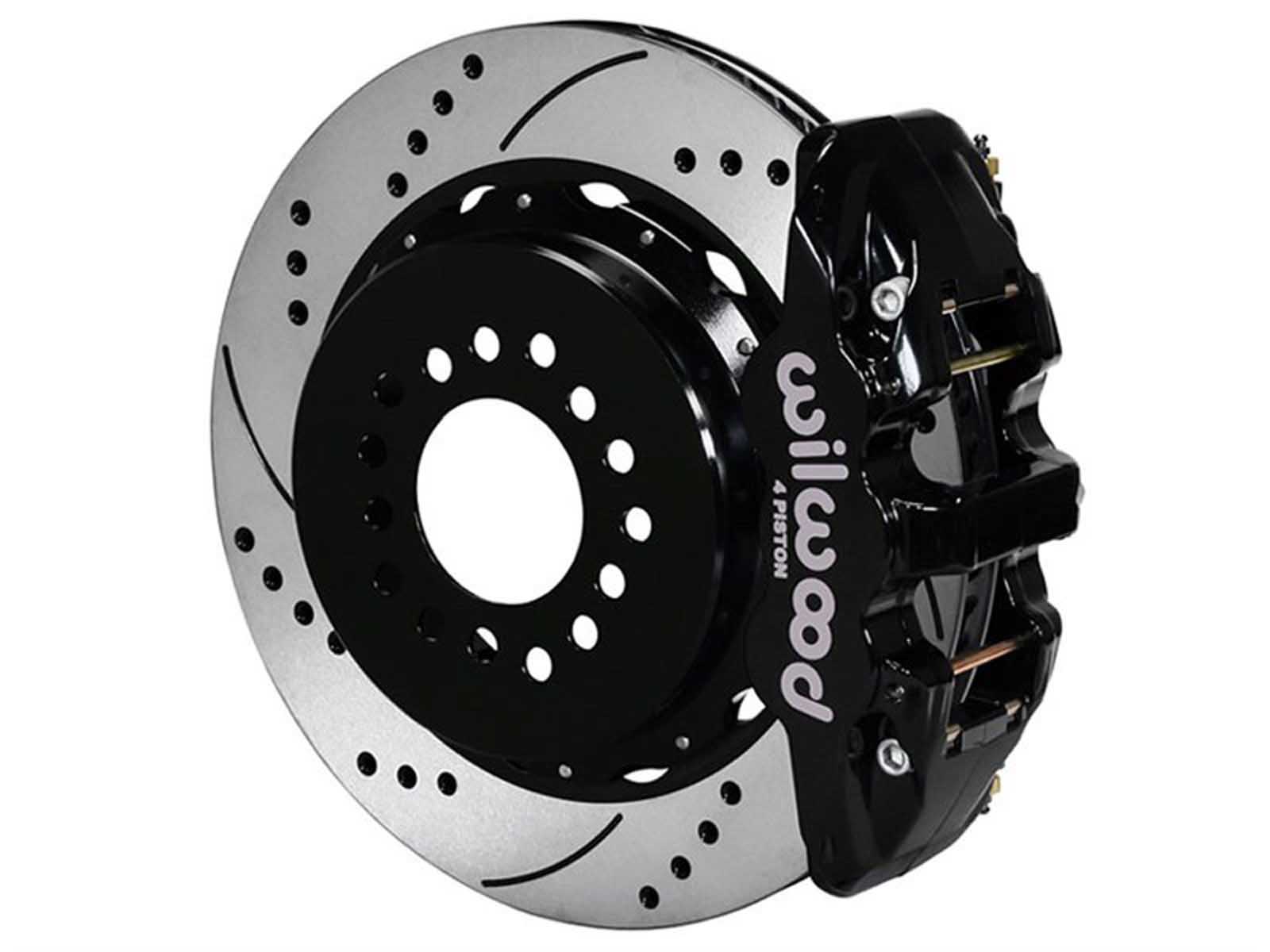

Billet AERO4 Radial rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. Billet AERO4 four piston calipers, 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

• Axle Offset: 2.66
• Mount Type: Radial
• Caliper Type: 4-Piston
• Rotor Size: 14" x 1.1"
• Minimum Wheel Size: 18"

Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately. Order Kit # WIL-220-9248

This kit requires an extended rear parking brake cable # WIL-330-11221 for 2005-2010 Models and #WIL-330-12335 for 2011-2014 Models.

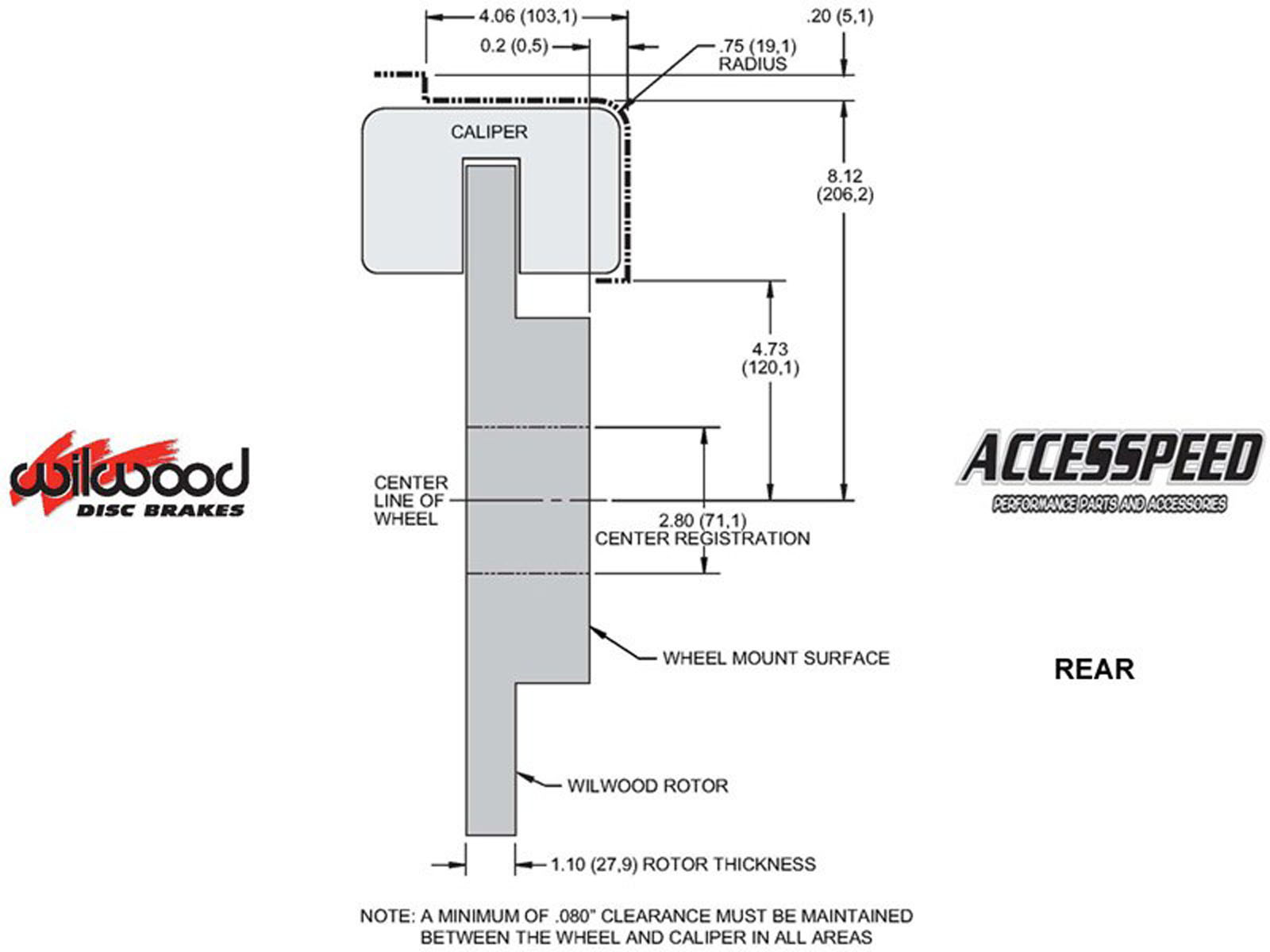

*This Brake Kit may require 18-inch or larger wheels or wheels spacers for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Red Calipers. Please see additional listing for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
