Wilwood 140-11275-DR Dynalite 12" Front Brake Kit Drilled Red, 1982-92 Camaro/Firebird W/OE 1-Pisto

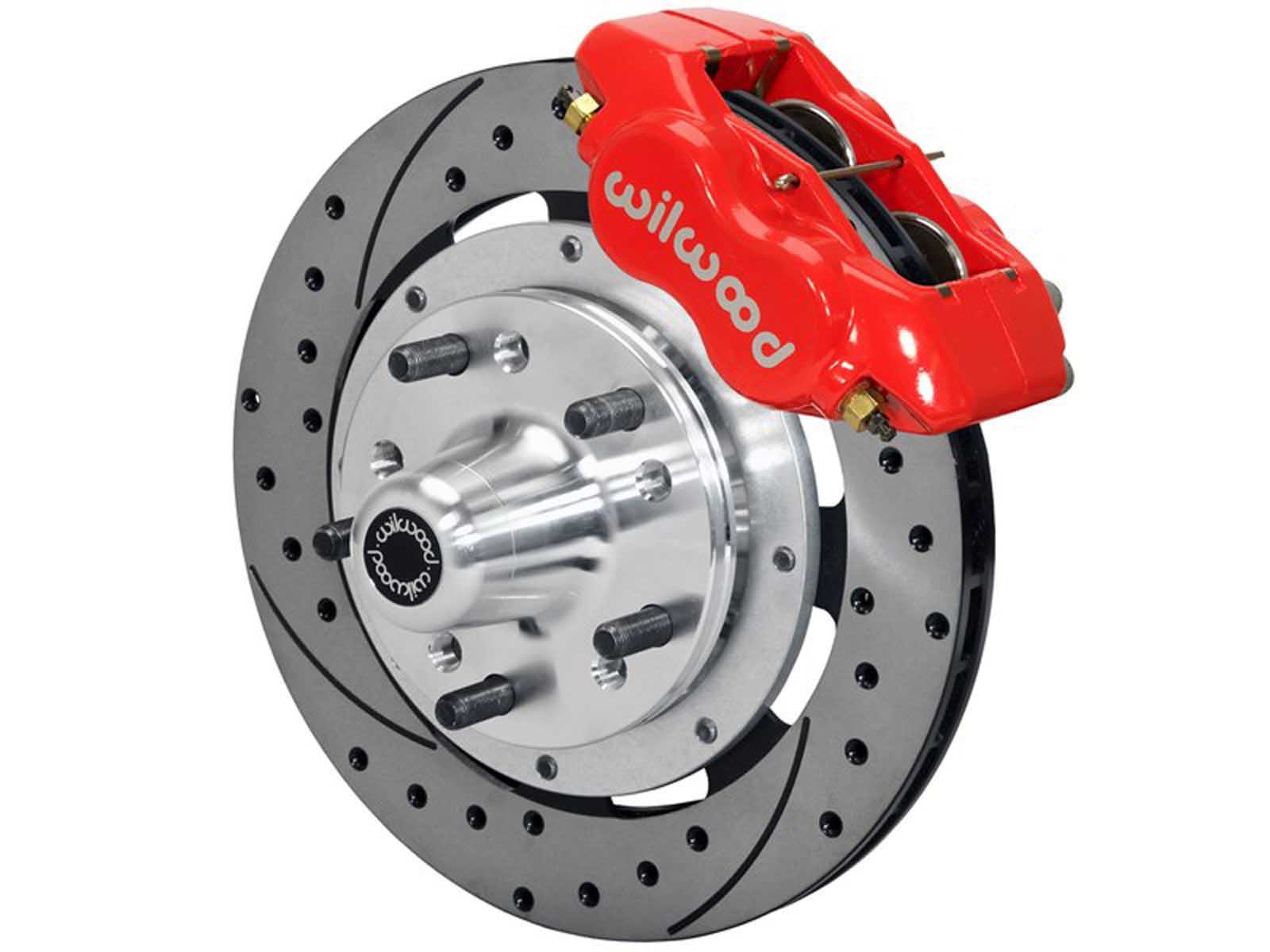

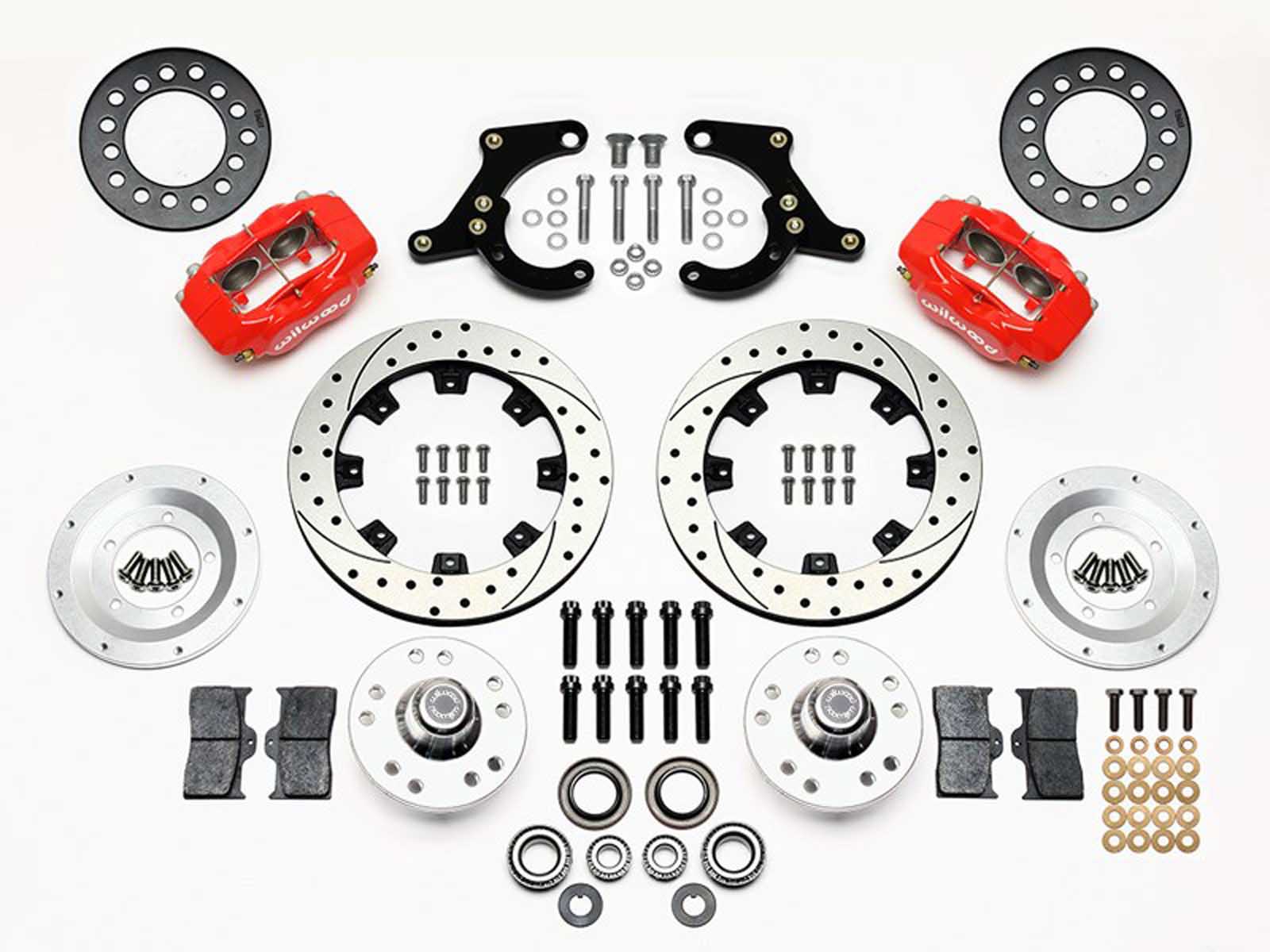

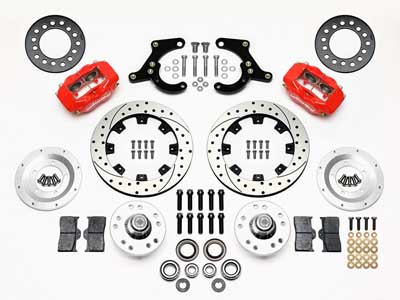

Wilwood 140-11275-DR Forged Dynalite 12.19" Front Hub Big Brake Kit With Drilled Rotors and Red Calipers, Fits 1982-1992 Camaro & Firebird With OE 1-Piston Caliper

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines. Brake Kit does not include flex lines. Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately.

Wilwood Flexline Brake Line Kit for 1984-1992 # WIL-220-6856.

Wilwood Flexline Brake Line Kit for 1982-1983 # WIL-220-8307.

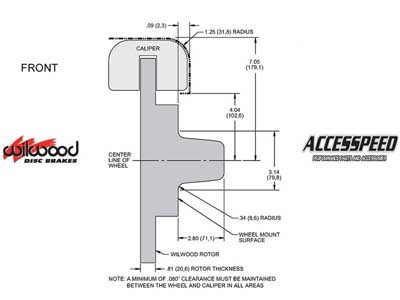

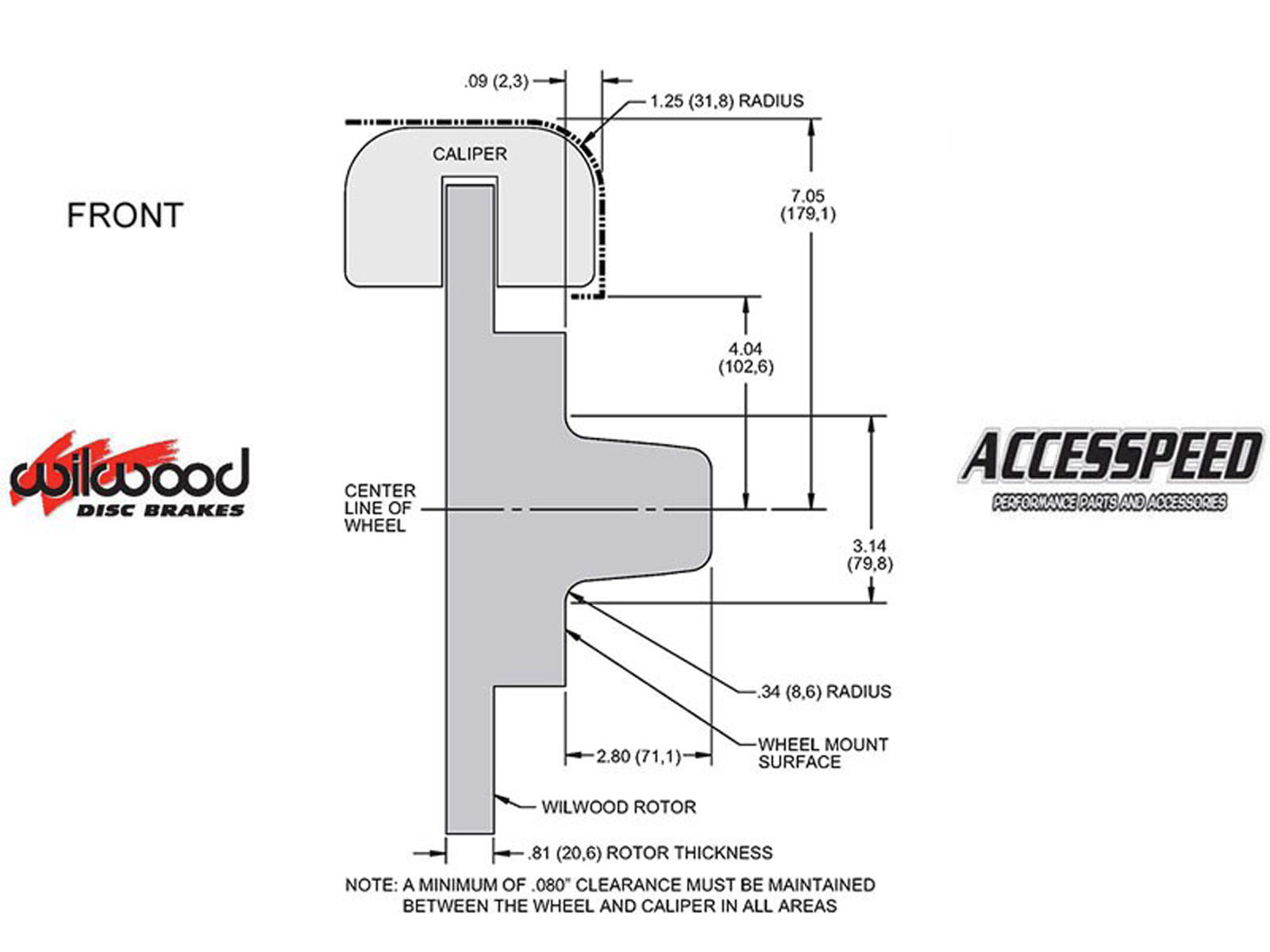

*This Brake Kit may require 15-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

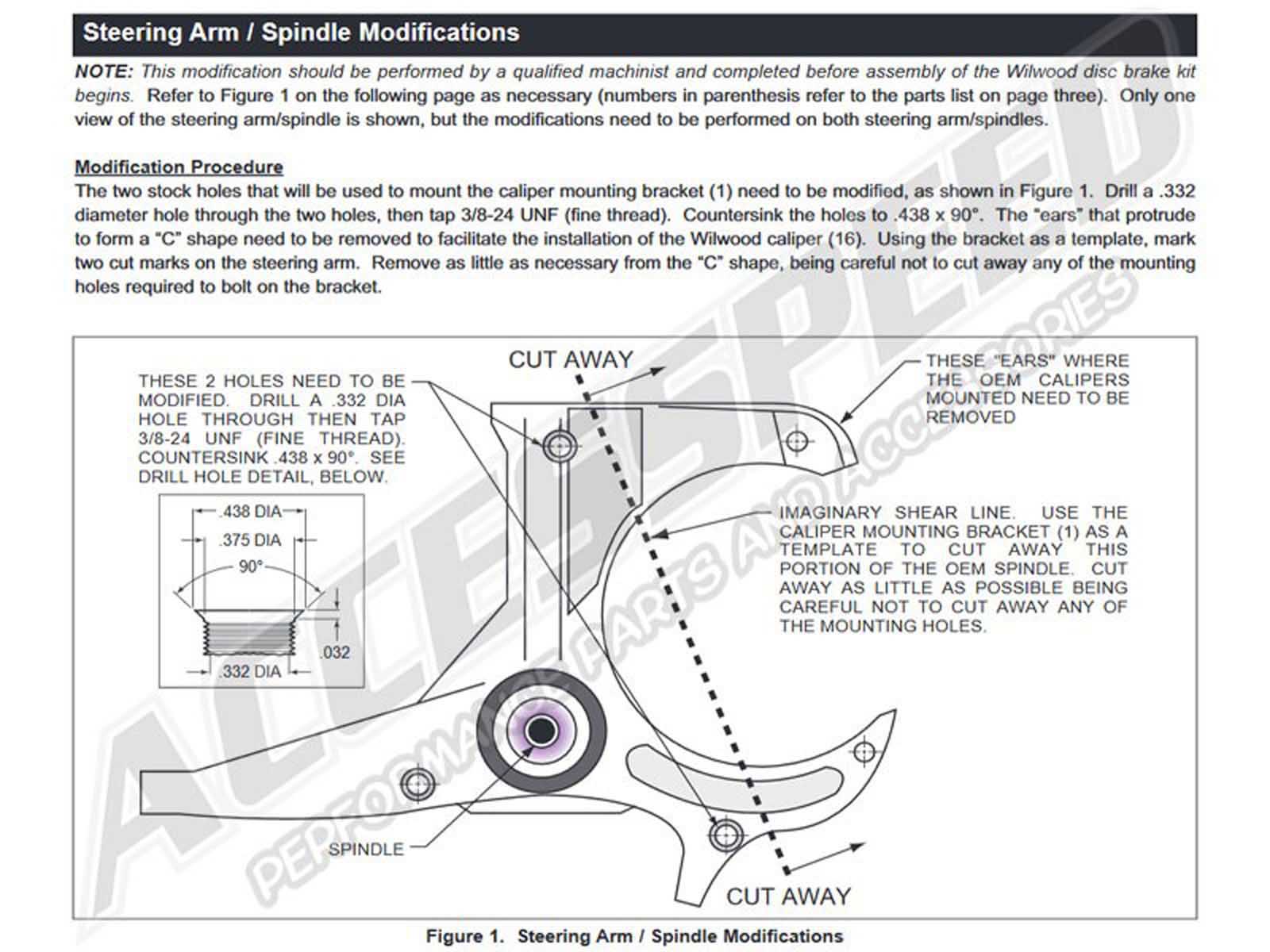

**Front Brake kits fit OE Single piston caliper spindles only, and requires modification to original spindle.

This kit fits the following vehicles:

Chevrolet Camaro 1982-1987 Chevrolet Camaro 1988-1992 Pontiac Firebird 1982-1987 Pontiac Firebird 1988-1992

Notes

Red Calipers. See separate listing for the black caliper systems. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
