Wilwood 140-11291-BK Front D52 2-Piston Caliper Kit Black 1968-1996 GM Vehicles W/0.81"-1.04" Rotor

Wilwood 140-11291-BK D52 Front 2-Piston Caliper Upgrade Kit, Black, Fits 1968-1996 GM Vehicles With 0.81" - 1.04" OE Rotor Width

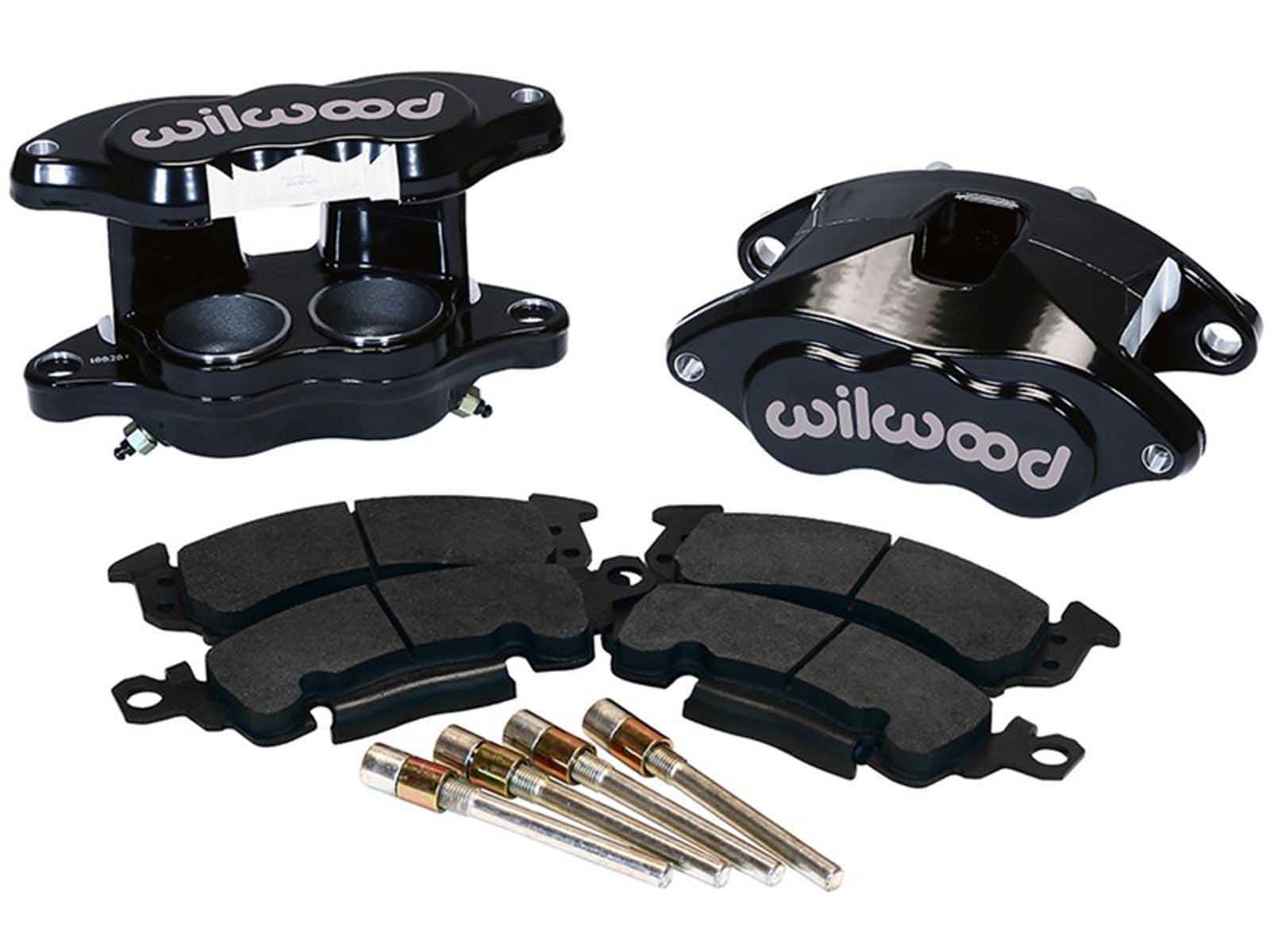

Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00” piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new Wilwood Flexline brake lines. See links below for length options. Click on each link to verify your vehicle brake line fittings.

For 14" Kit Order # WIL-220-11371

For 16" Kit Order # WIL-220-11372

For 18" Order Kit # WIL-220-11373

For 22" Order Kit # WIL-220-11719

For 24" Order Kit # WIL-220-15868

This kit fits the following vehicles:
Buick Apollo 1973-1974 Buick Apollo 1975 Buick Century 1973-1977 Buick Electra 1977 Buick Electra 1978-1984 Buick Estate Wagon 1977-1978 Buick Estate Wagon 1977-1991 Buick Estate Wagon 1979-1985 Buick GS 1970-1972 Buick GS 350 1969 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1970-1972 Buick LeSabre 1977-1978 Buick LeSabre 1977-1985 Buick LeSabre 1979-1985 Buick LeSabre 1986-1990 Buick Park Avenue 1978-1979 Buick Park Avenue 1980-1984 Buick Regal 1973-1977 Buick Riviera 1977-1978 Buick Roadmaster 1991-1996 Buick Skylark 1969-1972 Buick Skylark 1975-1978 Buick Skylark 1979 Buick Special 1969 Buick Sportwagon 1969-1972 Cadillac DeVille 1977-1984 Cadillac DeVille Concours 1977-1984 Cadillac Fleetwood 1977-1984 Cadillac Fleetwood 1978-1984 Cadillac Fleetwood 1985-1996 Cadillac Seville 1976 Cadillac Seville 1977-1979 Chevrolet Astro 1985-2002 Chevrolet C10 1981-1986 Chevrolet C10 Suburban 1981-1986 Chevrolet Camaro 1969 Chevrolet Camaro 1970-1978 Chevrolet Camaro 1979-1981 Chevrolet Caprice 1977-1990 Chevrolet Caprice 1979-1990 Chevrolet Caprice 1991-1992 Chevrolet Caprice 1993 Chevrolet Caprice 1994-1995 Chevrolet Caprice 1994-1996 Chevrolet Chevelle 1969-1972 Chevrolet Chevelle 1973-1977 Chevrolet Chevelle Concours 1977-1978 Chevrolet El Camino 1969-1972 Chevrolet El Camino 1973-1977 Chevrolet Impala 1977-1978 Chevrolet Impala 1977-1985 Chevrolet Impala 1979-1985 Chevrolet Malibu 1973-1977 Chevrolet Monte Carlo 1970-1972 Chevrolet Monte Carlo 1973-1977 Chevrolet Nova 1969-1974 Chevrolet Nova 1975-1978 Chevrolet Nova 1979 Chevrolet R10 Pickup 1987 Chevrolet R10 Suburban 1987 GMC C1500 Pickup 1981-1986 GMC C1500 Suburban 1981-1986 GMC R1500 Pickup 1987 GMC R1500 Suburban 1987 GMC Safari Van 1985-2002 GMC Sprint 1971-1972 GMC Sprint 1973-1977 Oldsmobile 442 1969-1972 Oldsmobile 442 1973 Oldsmobile 88 1992-1993 Oldsmobile 98 1977 Oldsmobile 98 1978-1984 Oldsmobile Custom Cruiser 1977-1978 Oldsmobile Custom Cruiser 1977-1985 Oldsmobile Custom Cruiser 1979-1985 Oldsmobile Custom Cruiser 1986-1992 Oldsmobile Cutlass 1969-1972 Oldsmobile Cutlass 1973-1977 Oldsmobile Cutlass Supreme 1969-1972 Oldsmobile Cutlass Supreme 1973-1977 Oldsmobile Cutlass Supreme 1974-1975 Oldsmobile Cutlass Supreme 1975 Oldsmobile Cutlass Supreme 1976 Oldsmobile Delta 88 1977 Oldsmobile Delta 88 1978 Oldsmobile Delta 88 1978-1985 Oldsmobile Delta 88 1979-1985 Oldsmobile F85 1969-1972 Oldsmobile Omega 1973-1974 Oldsmobile Omega 1975-1978 Oldsmobile Omega 1979 Oldsmobile Vista Cruiser 1969-1972 Oldsmobile Vista Cruiser 1973-1976 Pontiac Acadian 1969-1971 Pontiac Beaumont 1969 Pontiac Bonneville 1977-1978 Pontiac Bonneville 1977-1981 Pontiac Bonneville 1979-1981 Pontiac Bonneville 1987-1988 Pontiac Catalina 1977-1978 Pontiac Catalina 1977-1981 Pontiac Catalina 1979-1981 Pontiac Firebird 1969 Pontiac Firebird 1970-1978 Pontiac Firebird 1979-1981 Pontiac Grand Am 1973-1975 Pontiac Grand Prix 1969-1972 Pontiac Grand Prix 1973-1977 Pontiac GTO 1969-1972 Pontiac GTO 1973-1974 Pontiac LeMans 1969-1972 Pontiac LeMans 1973-1977 Pontiac Parisienne 1979-1986 Pontiac Parisienne 1980-1986 Pontiac Phoenix 1977-1978 Pontiac Phoenix 1979 Pontiac Tempest 1969-1972 Pontiac Ventura II 1971-1974 Pontiac Ventura II 1975-1977

This kit fits the following vehicles:Buick Apollo 1973-1974 Buick Apollo 1975 Buick Century 1973-1977 Buick Electra 1977 Buick Electra 1978-1984 Buick Estate Wagon 1977-1978 Buick Estate Wagon 1977-1991 Buick Estate Wagon 1979-1985 Buick GS 1970-1972 Buick GS 350 1969 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1970-1972 Buick LeSabre 1977-1978 Buick LeSabre 1977-1985 Buick LeSabre 1979-1985 Buick LeSabre 1986-1990 Buick Park Avenue 1978-1979 Buick Park Avenue 1980-1984 Buick Regal 1973-1977 Buick Riviera 1977-1978 Buick Roadmaster 1991-1996 Buick Skylark 1969-1972 Buick Skylark 1975-1978 Buick Skylark 1979 Buick Special 1969 Buick Sportwagon 1969-1972 Cadillac DeVille 1977-1984 Cadillac DeVille Concours 1977-1984 Cadillac Fleetwood 1977-1984 Cadillac Fleetwood 1978-1984 Cadillac Fleetwood 1985-1996 Cadillac Seville 1976 Cadillac Seville 1977-1979 Chevrolet Astro 1985-2002 Chevrolet C10 1981-1986 Chevrolet C10 Suburban 1981-1986 Chevrolet Camaro 1969 Chevrolet Camaro 1970-1978 Chevrolet Camaro 1979-1981 Chevrolet Caprice 1977-1990 Chevrolet Caprice 1979-1990 Chevrolet Caprice 1991-1992 Chevrolet Caprice 1993 Chevrolet Caprice 1994-1995 Chevrolet Caprice 1994-1996 Chevrolet Chevelle 1969-1972 Chevrolet Chevelle 1973-1977 Chevrolet Chevelle Concours 1977-1978 Chevrolet El Camino 1969-1972 Chevrolet El Camino 1973-1977 Chevrolet Impala 1977-1978 Chevrolet Impala 1977-1985 Chevrolet Impala 1979-1985 Chevrolet Malibu 1973-1977 Chevrolet Monte Carlo 1970-1972 Chevrolet Monte Carlo 1973-1977 Chevrolet Nova 1969-1974 Chevrolet Nova 1975-1978 Chevrolet Nova 1979 Chevrolet R10 Pickup 1987 Chevrolet R10 Suburban 1987 GMC C1500 Pickup 1981-1986 GMC C1500 Suburban 1981-1986 GMC R1500 Pickup 1987 GMC R1500 Suburban 1987 GMC Safari Van 1985-2002 GMC Sprint 1971-1972 GMC Sprint 1973-1977 Oldsmobile 442 1969-1972 Oldsmobile 442 1973 Oldsmobile 88 1992-1993 Oldsmobile 98 1977 Oldsmobile 98 1978-1984 Oldsmobile Custom Cruiser 1977-1978 Oldsmobile Custom Cruiser 1977-1985 Oldsmobile Custom Cruiser 1979-1985 Oldsmobile Custom Cruiser 1986-1992 Oldsmobile Cutlass 1969-1972 Oldsmobile Cutlass 1973-1977 Oldsmobile Cutlass Supreme 1969-1972 Oldsmobile Cutlass Supreme 1973-1977 Oldsmobile Cutlass Supreme 1974-1975 Oldsmobile Cutlass Supreme 1975 Oldsmobile Cutlass Supreme 1976 Oldsmobile Delta 88 1977 Oldsmobile Delta 88 1978 Oldsmobile Delta 88 1978-1985 Oldsmobile Delta 88 1979-1985 Oldsmobile F85 1969-1972 Oldsmobile Omega 1973-1974 Oldsmobile Omega 1975-1978 Oldsmobile Omega 1979 Oldsmobile Vista Cruiser 1969-1972 Oldsmobile Vista Cruiser 1973-1976 Pontiac Acadian 1969-1971 Pontiac Beaumont 1969 Pontiac Bonneville 1977-1978 Pontiac Bonneville 1977-1981 Pontiac Bonneville 1979-1981 Pontiac Bonneville 1987-1988 Pontiac Catalina 1977-1978 Pontiac Catalina 1977-1981 Pontiac Catalina 1979-1981 Pontiac Firebird 1969 Pontiac Firebird 1970-1978 Pontiac Firebird 1979-1981 Pontiac Grand Am 1973-1975 Pontiac Grand Prix 1969-1972 Pontiac Grand Prix 1973-1977 Pontiac GTO 1969-1972 Pontiac GTO 1973-1974 Pontiac LeMans 1969-1972 Pontiac LeMans 1973-1977 Pontiac Parisienne 1979-1986 Pontiac Parisienne 1980-1986 Pontiac Phoenix 1977-1978 Pontiac Phoenix 1979 Pontiac Tempest 1969-1972 Pontiac Ventura II 1971-1974 Pontiac Ventura II 1975-1977

Notes

This system includes Black Calipers. Please see additional listings for Gray or Red Calipers. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
