Wilwood 140-12210-DR D154 Pro-Series 12" Rear Big Brake Kit, Drilled, Red, Ford Small Flange 2.66 O

Wilwood 140-12210-DR D154 Pro Series Rear 12.19" Big Brake Kit With Red Calipers and Drilled Rotors, Fits Ford Small Flange Rear Axle With 2.66 Offset

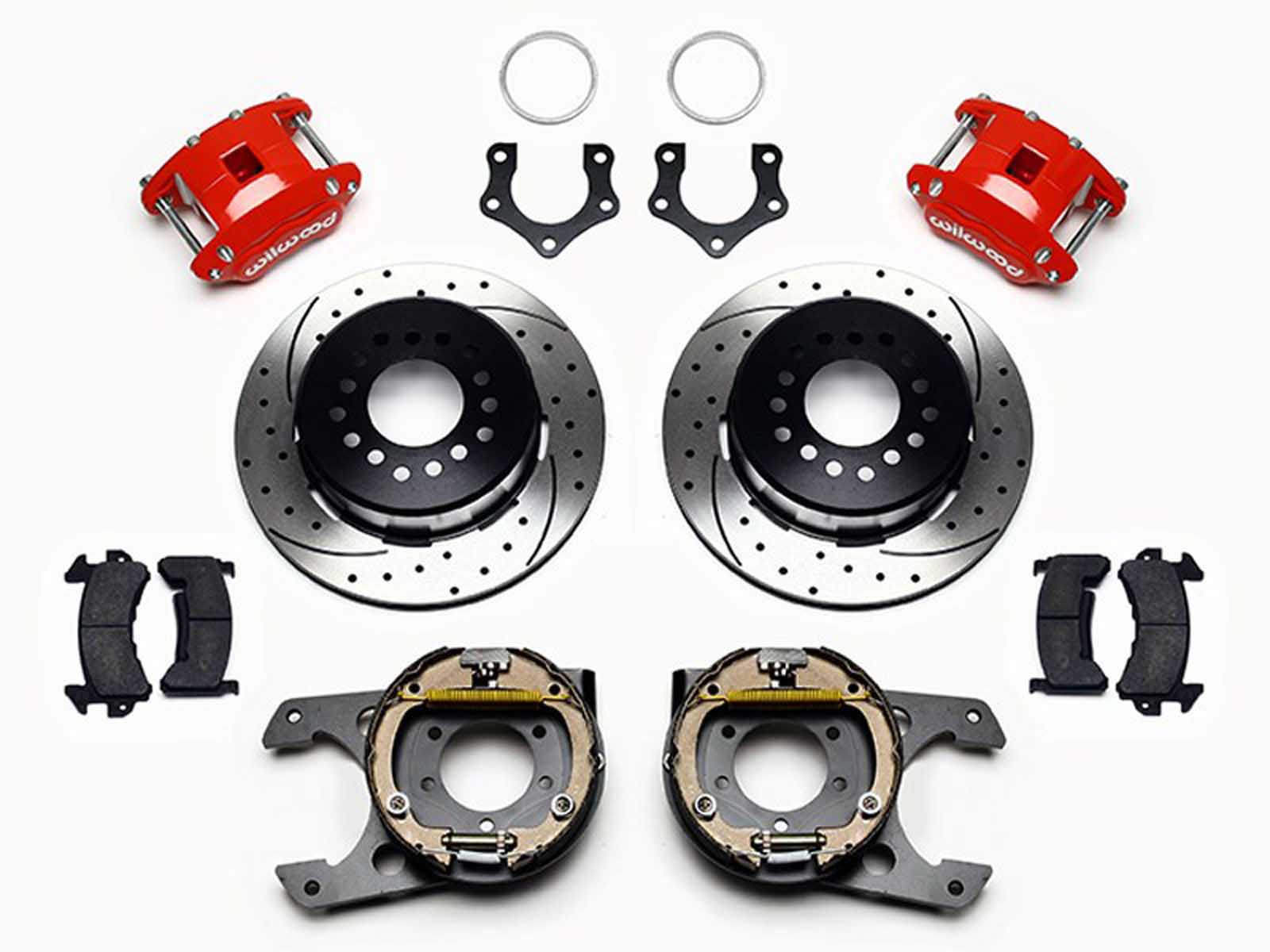

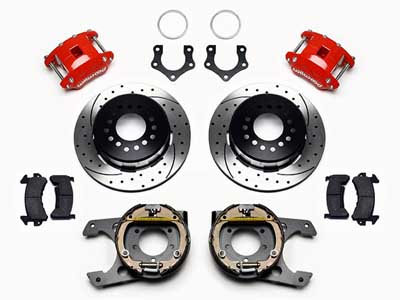

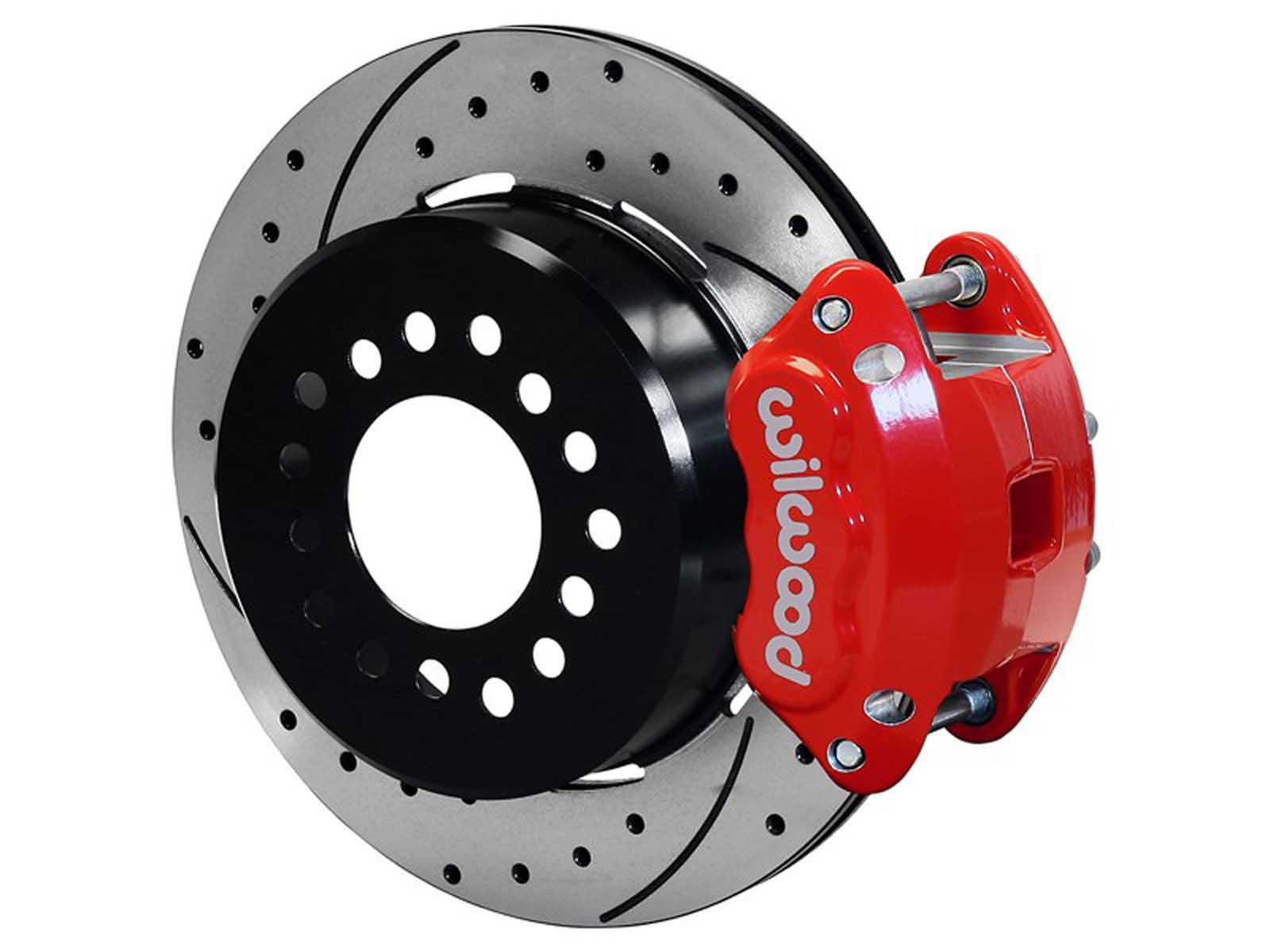

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.  This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Flexline 10-inch Stainless Braided Brake Line Kit # WIL-220-12630

Some vehicles may require an extended rear parking brake cable for proper function, which is sold separately. Please use kit # WIL-330-9371

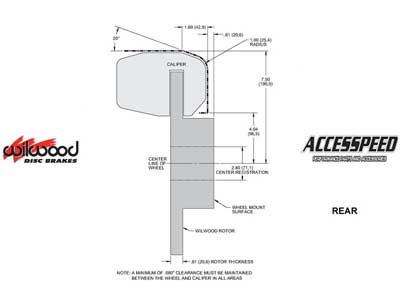

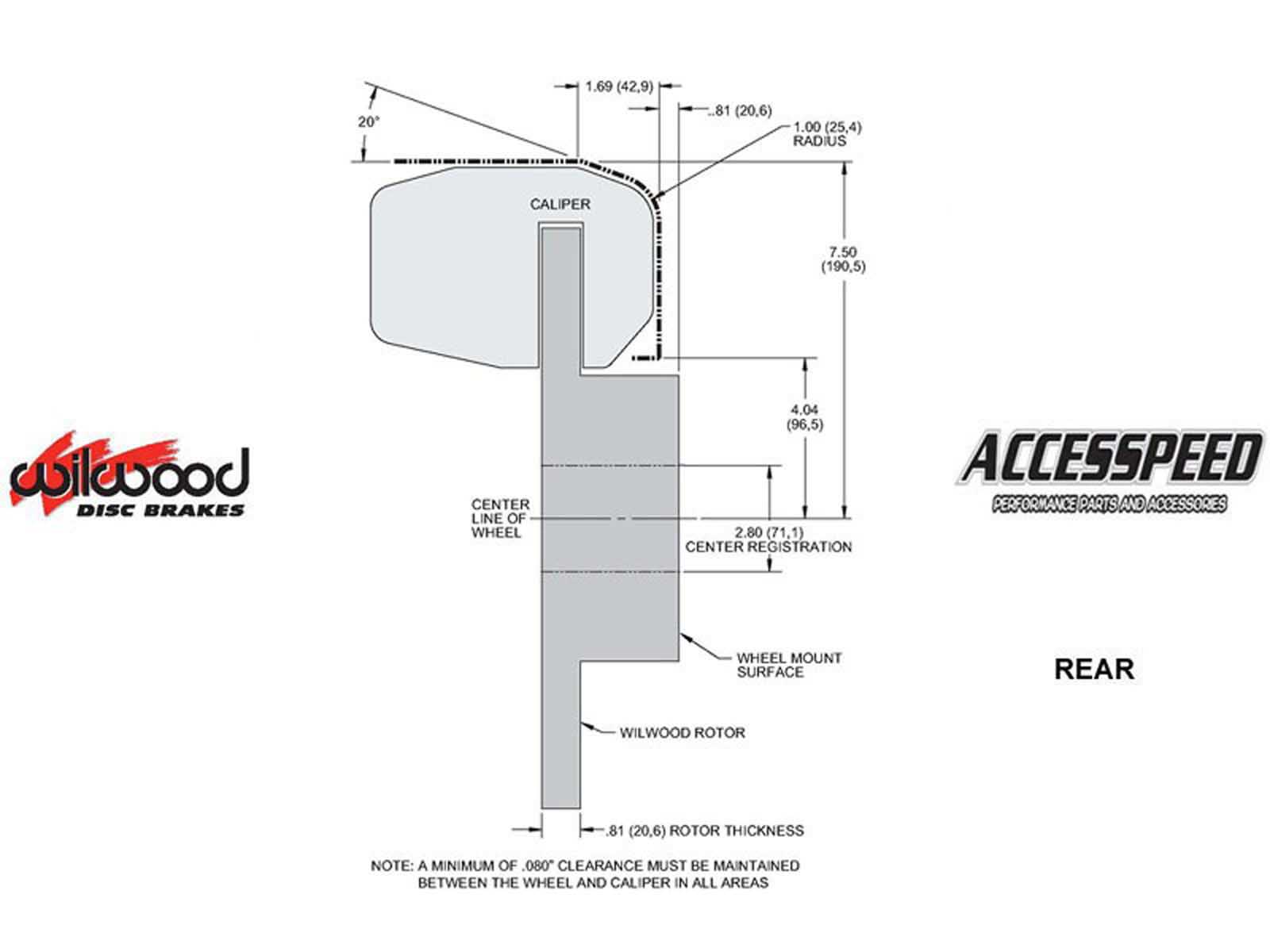

*This Brake Kit may require 16-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
