Wilwood 140-13203-D Dynapro DB 12.19" Front Hub Brake Kit, Drilled, Black, 1964-1974 GM Cars

Wilwood 140-13203-D Dynapro Dust-Boot 12.19" Front Hub Big Brake Kit With Drilled Rotors and Black Calipers, 1967-1969 F-Body & 1964-1974 A-Body Buick, Chevrolet, Oldsmobile, Pontiac, GMC and Ridetech & Heidts Spindle Kits

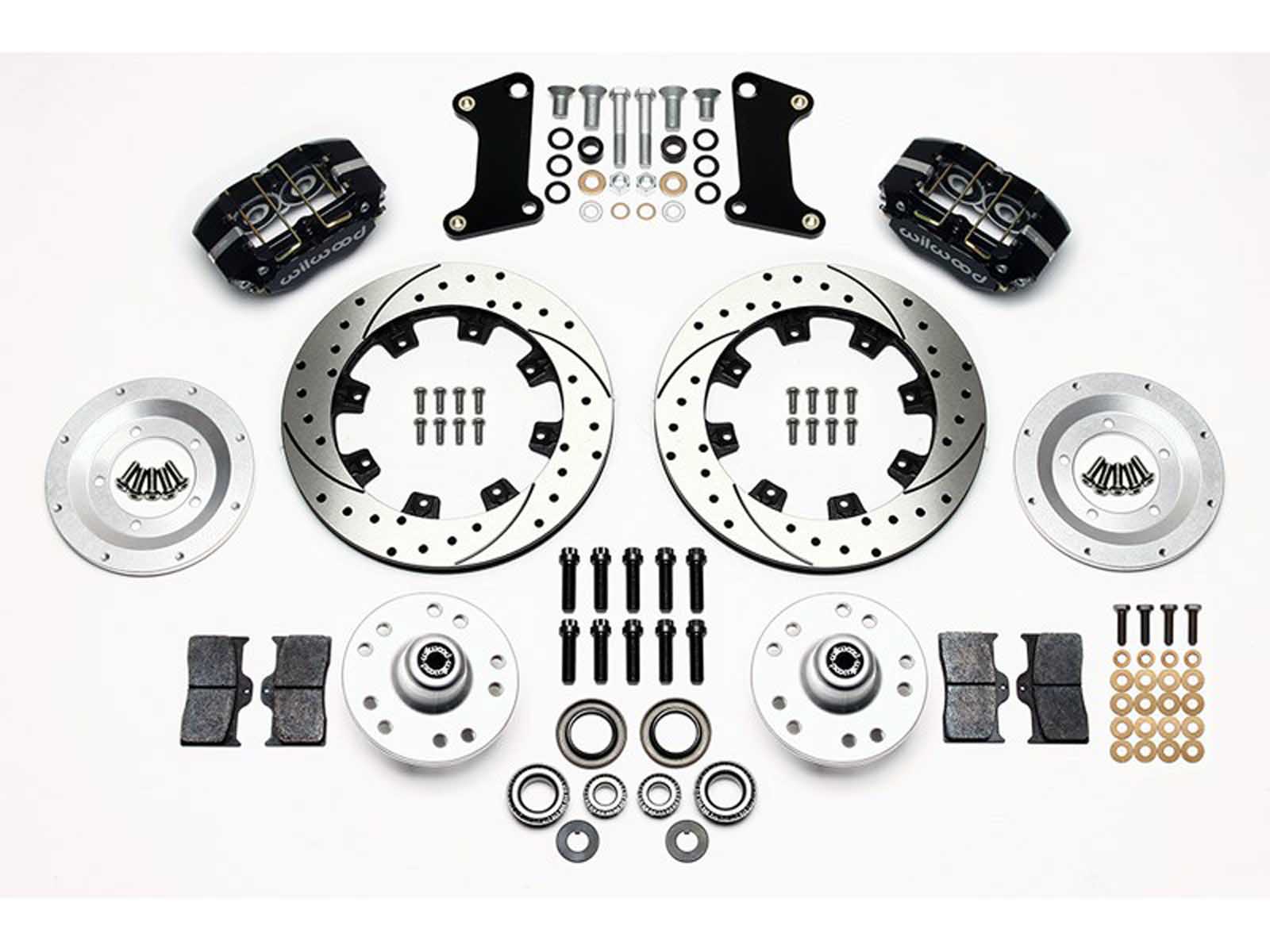

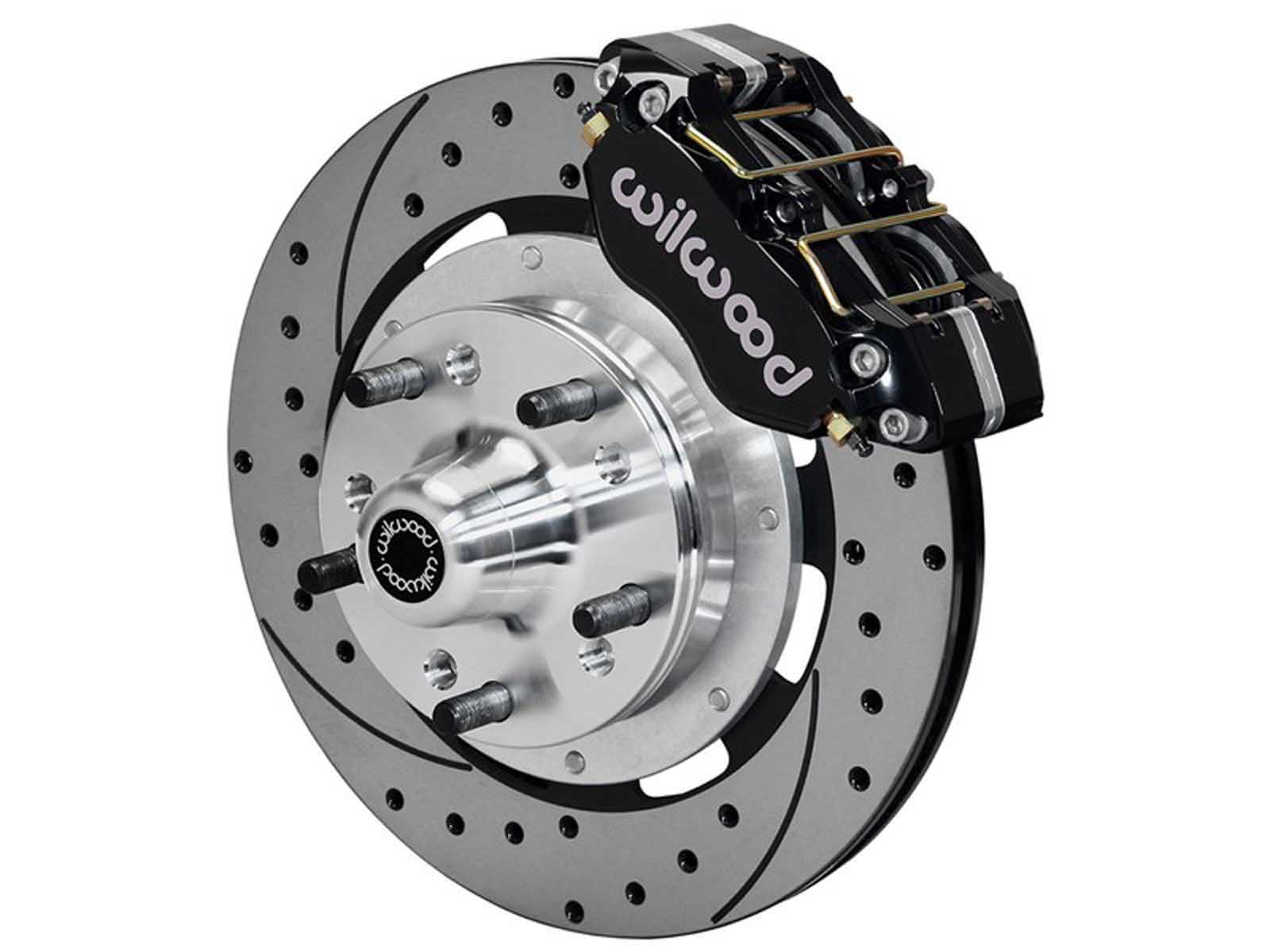

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood Flexline Brake Line Kit # WIL-220-7056.

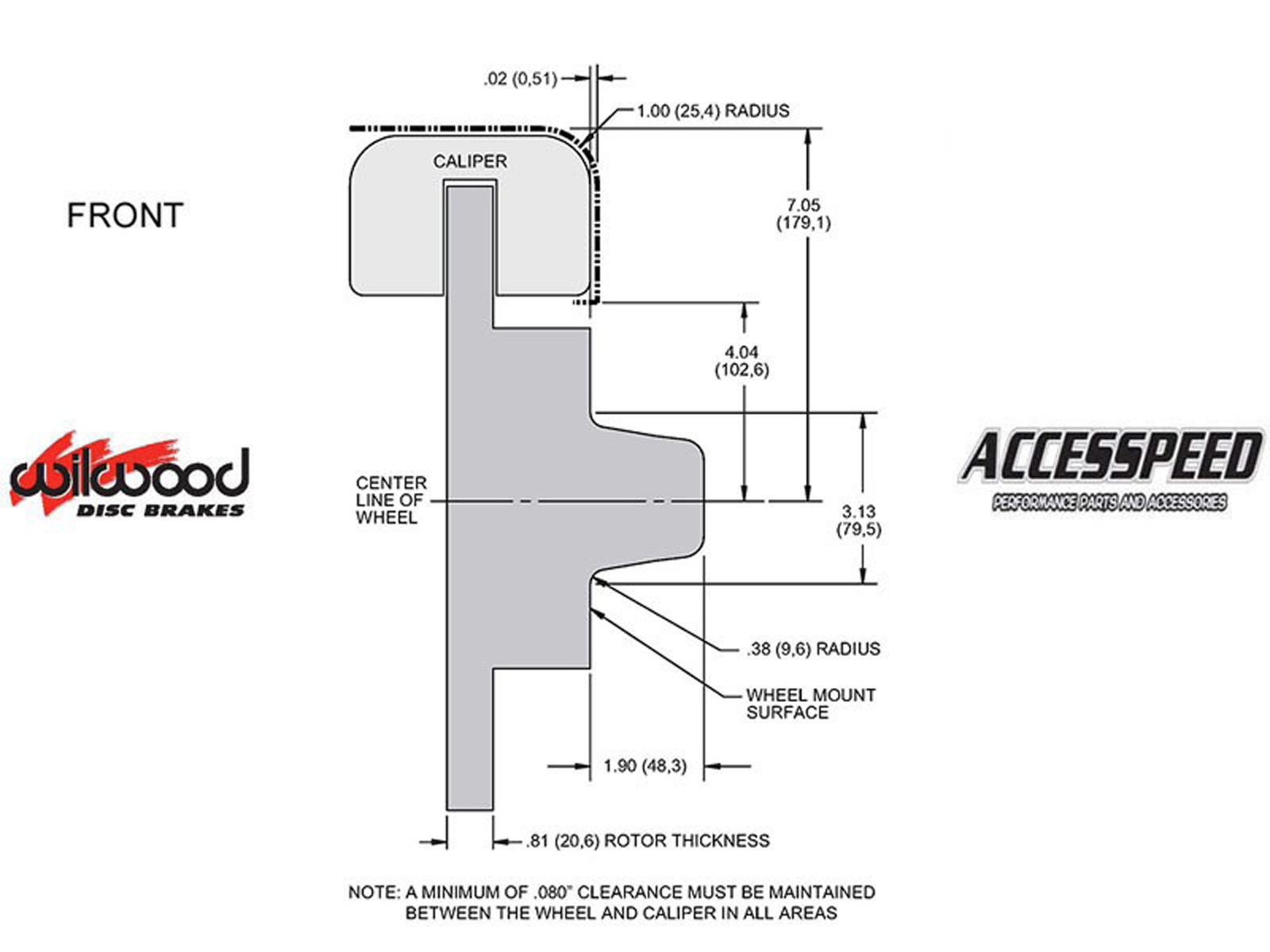

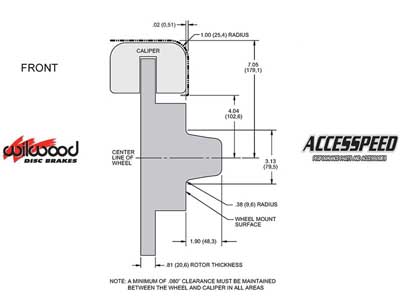

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

THIS BRAKE KIT HAS A HUB OFFSET OF: +.19  This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

This kit fits the following vehicles:

Buick Apollo 1973-1974 Buick Gran Sport 1965-1967 Buick GS 1970-1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1970-1972 Buick Skylark 1964-1966 Buick Skylark 1967-1970 Buick Skylark 1967-1972 Buick Special 1964-1966 Buick Special 1967-1969 Buick Sportwagon 1964-1966 Buick Sportwagon 1967-1970 Buick Sportwagon 1967-1972 Chevrolet Camaro 1967-1969 Chevrolet Camaro 1968-1969 Chevrolet Chevelle 1964-1966 Chevrolet Chevelle 1967-1972 Chevrolet Chevy II 1964-1966 Chevrolet Chevy II 1967-1968 Chevrolet El Camino 1964-1966 Chevrolet El Camino 1967-1972 Chevrolet Monte Carlo 1970-1972 Chevrolet Nova 1967-1974 GMC Sprint 1971-1972 Heidts Pro-G Oldsmobile 442 1964-1966 Oldsmobile 442 1967-1972 Oldsmobile 442 1970-1972 Oldsmobile Cutlass 1964-1966 Oldsmobile Cutlass 1967-1972 Oldsmobile Cutlass 1970-1972 Oldsmobile Cutlass Supreme 1967-1972 Oldsmobile Cutlass Supreme 1970-1972 Oldsmobile F85 1964-1966 Oldsmobile F85 1967-1969 Oldsmobile F85 1967-1972 Oldsmobile F85 1970-1972 Oldsmobile Omega 1973-1974 Oldsmobile Vista Cruiser 1964-1966 Oldsmobile Vista Cruiser 1967-1972 Pontiac Acadian 1964-1966 Pontiac Acadian 1967-1971 Pontiac Beaumont 1964-1966 Pontiac Beaumont 1967-1969 Pontiac Firebird 1967-1969 Pontiac Grand Prix 1969 Pontiac Grand Prix 1969-1972 Pontiac GTO 1964-1966 Pontiac GTO 1967-1971 Pontiac GTO 1967-1972 Pontiac LeMans 1964-1966 Pontiac LeMans 1967-1972 Pontiac Tempest 1964-1966 Pontiac Tempest 1967-1972 Pontiac Ventura II 1971-1974 Ridetech 1963-1979 C2/C3 Corvette Ridetech 1964-1966 Mustang Ridetech 1964-1972 GM A Body Ridetech 1967-1981 GM F Body Ridetech 1968-1974 GM X Body

Notes

This system includes Black Calipers. Please see additional listings for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
