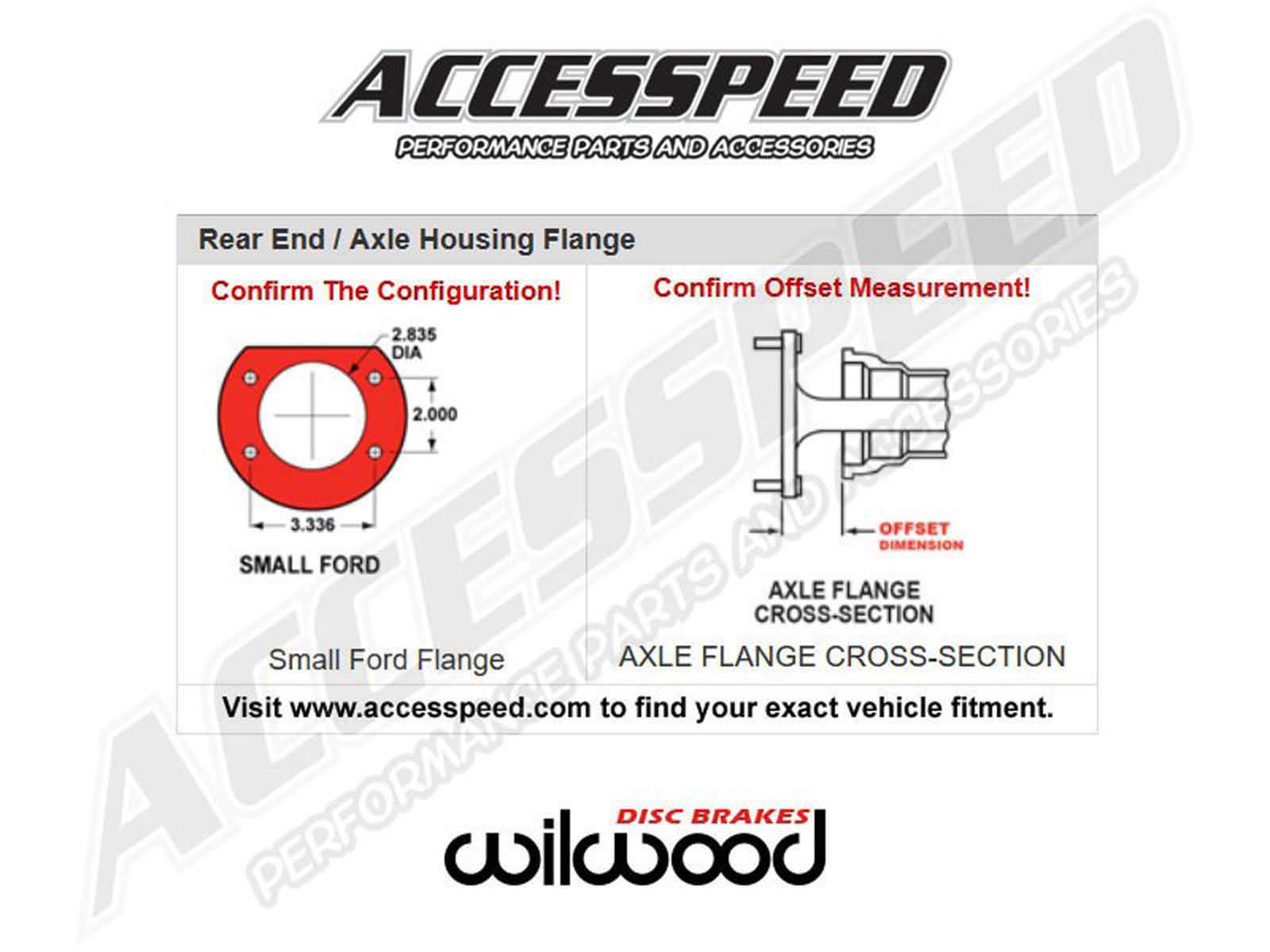

Wilwood 140-13206-DR Dynapro Rear 12" Big Brake Kit Red Drilled 2.50 Offset, Ford Small Axle Flange

Wilwood 140-13206-DR Dynapro Rear 12.19" Big Brake Kit With Red Calipers Drilled Rotors & 2.50" Offset for Ford and Mercury With Ford Small Axle Flange

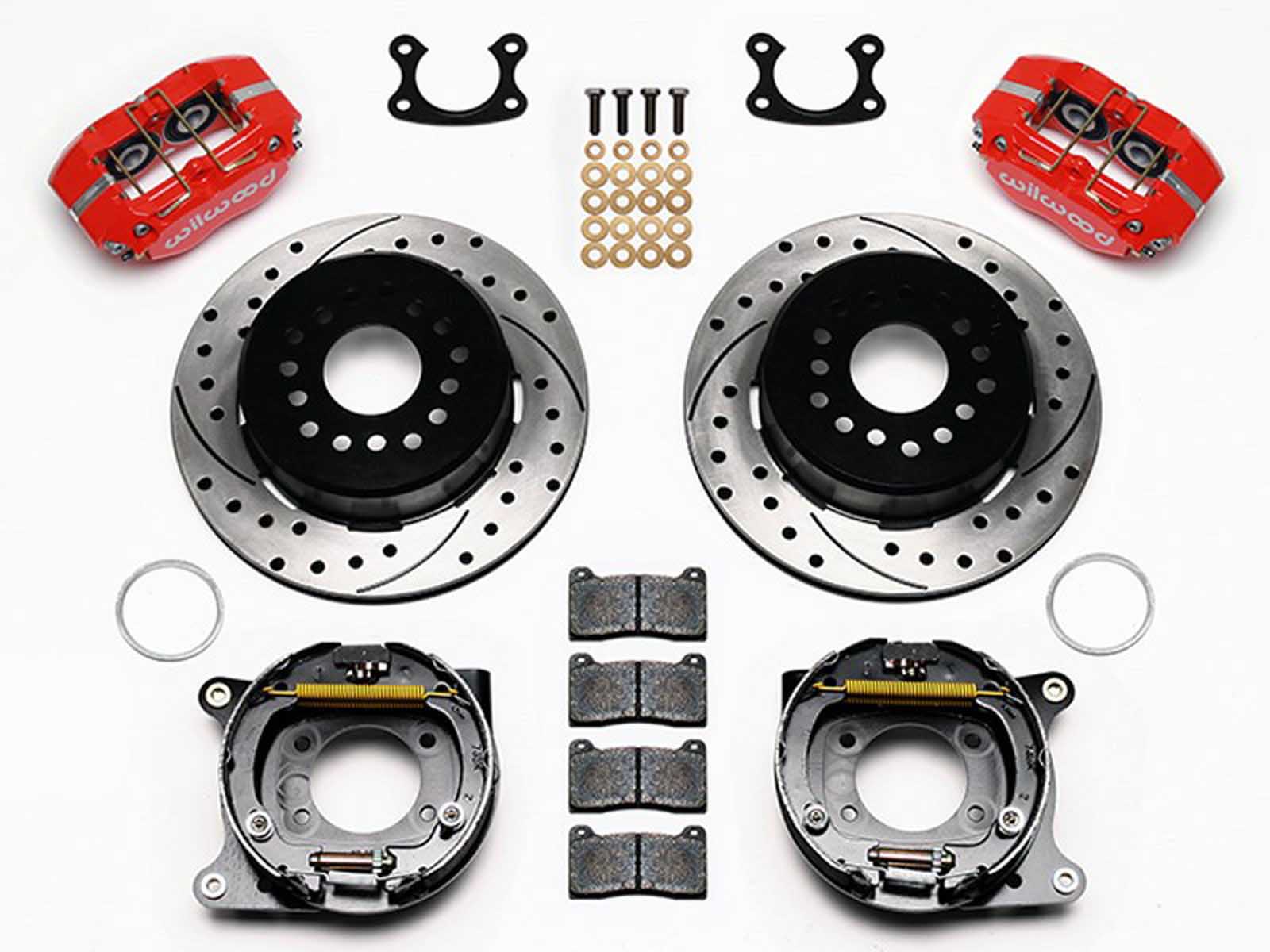

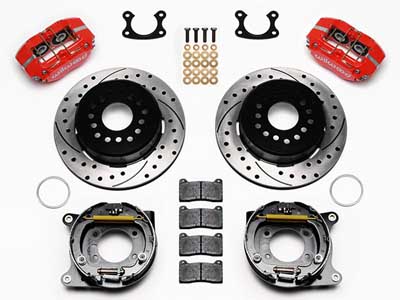

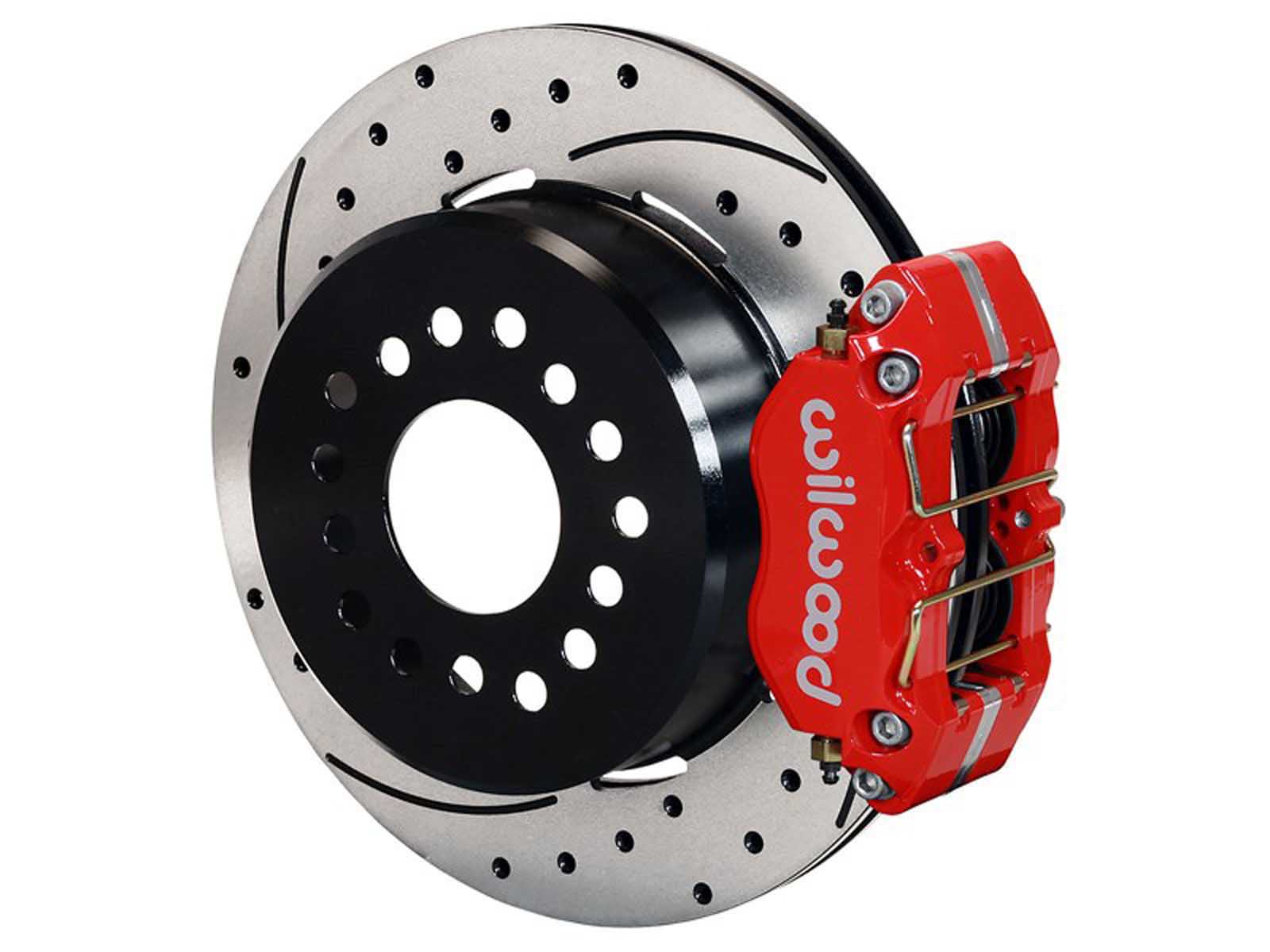

DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Dynapro Dustboot calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

Brake Kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood 14" Flexline Brake Line Kit #WIL-220-7056. (Recommended for most applications.)

Wilwood 12" Flexline Brake Line Kit #WIL-220-9886.

Wilwood 10" Flexline Brake Line Kit #WIL-220-8999.

This kit also requires an extended rear parking brake cable for proper function. Use Kit # WIL-330-9371

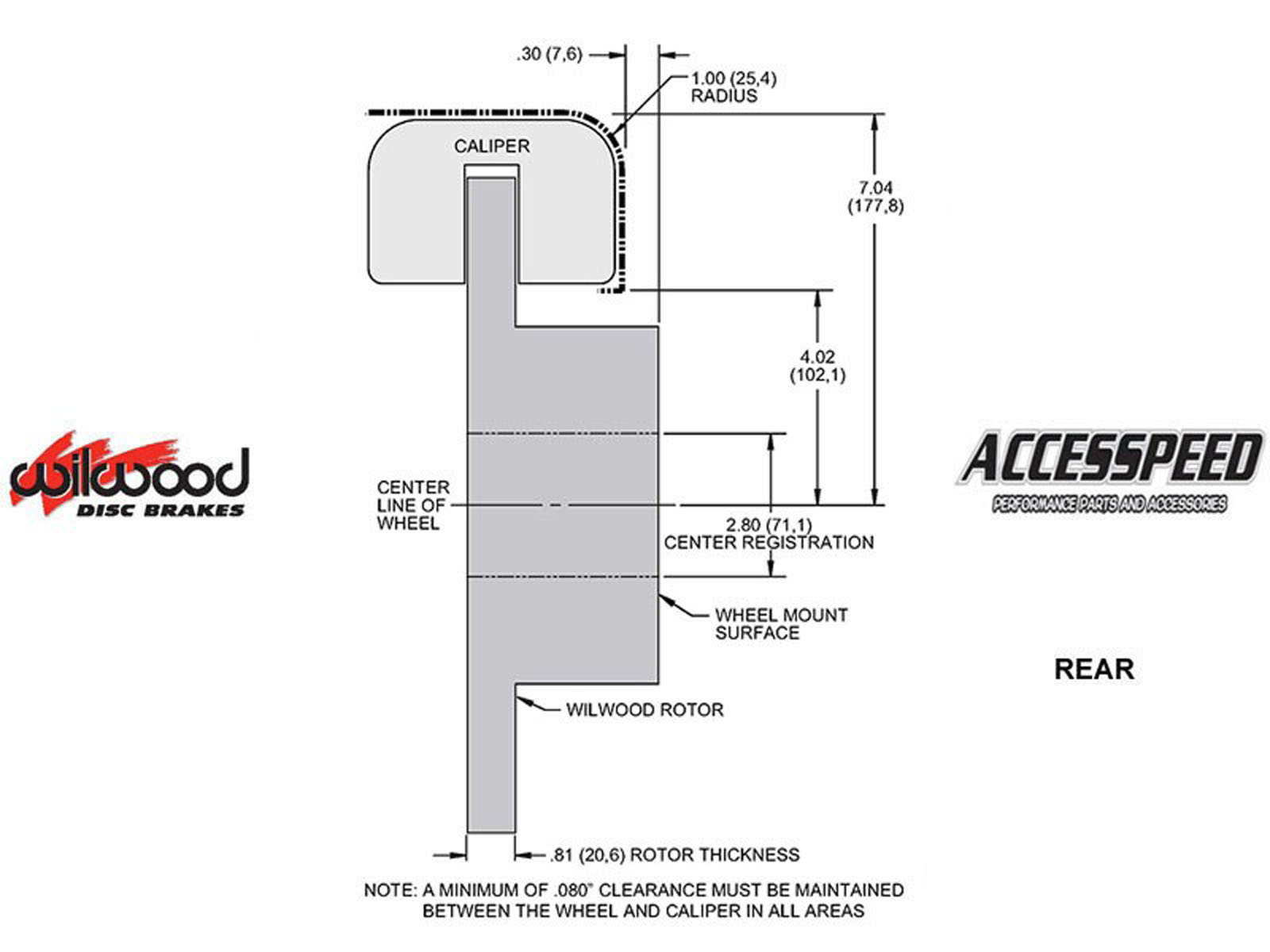

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
