Wilwood 140-13511-R Dynalite 12" Rear Big Brake Kit, Red, 1964-1970 Buick Olds Pontiac 2.75 Offset

Wilwood 140-13511-R Forged Dynalite Pro Rear 12.19" Big Brake Kit With Red Calipers, Fits 1964-1970 Buick Oldsmobile Pontiac With 2.75 Offset

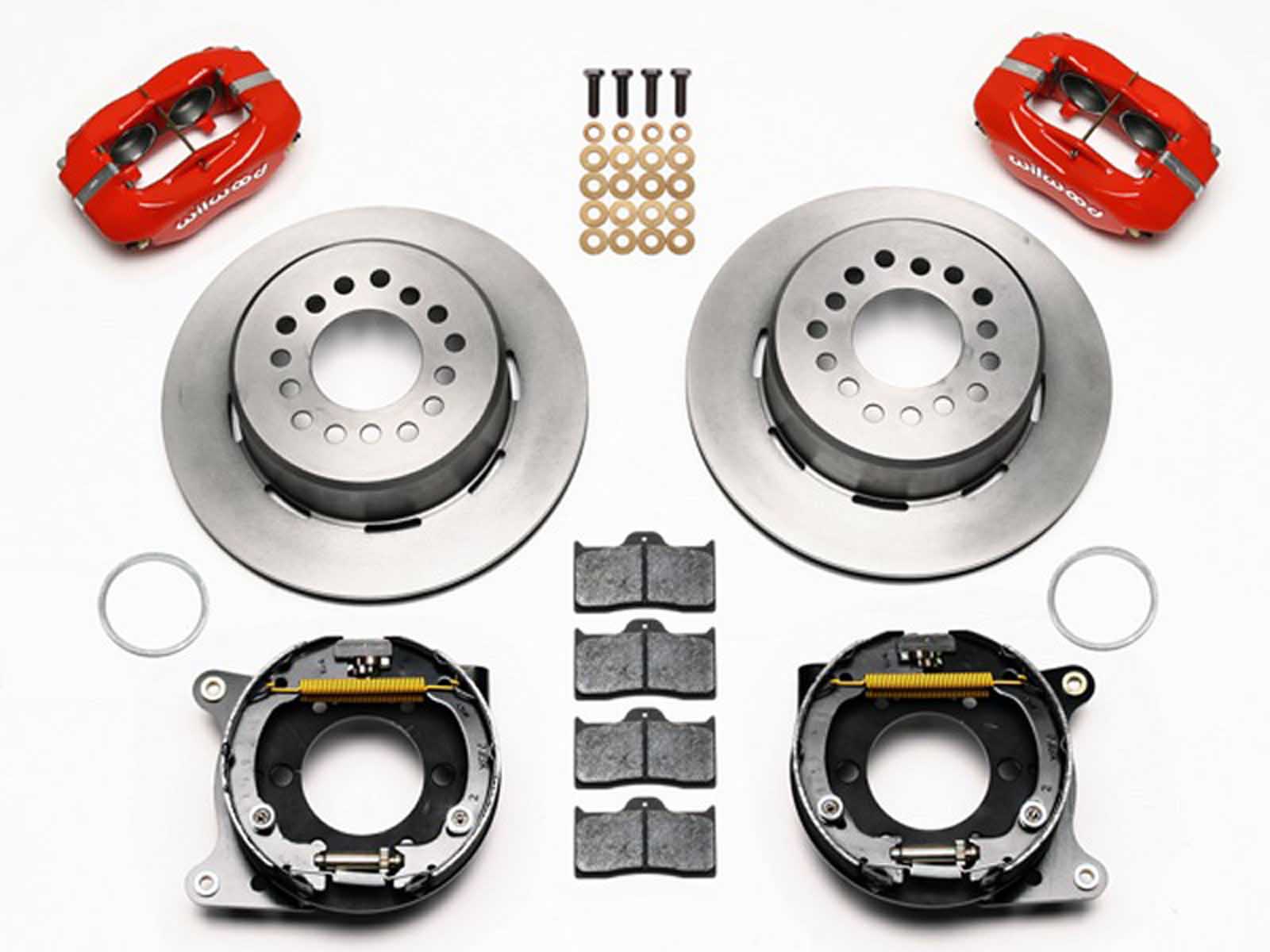

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. Please select your year, make and model to see the correct brake lines for your vehicle.

Fits BOP type axles using 2.75" diameter retained bearing, will not fit C-clip retained axles.

Brake Kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood 14" Flexline Brake Line Kit #WIL-220-7056. (Recommended for most applications.)

Wilwood 16" Flexline Brake Line Kit #WIL-220-7699.

Wilwood 18" Flexline Brake Line Kit #WIL-220-8307.

This kit also requires an extended rear parking brake cable for proper function. Use Kit # WIL-330-9371

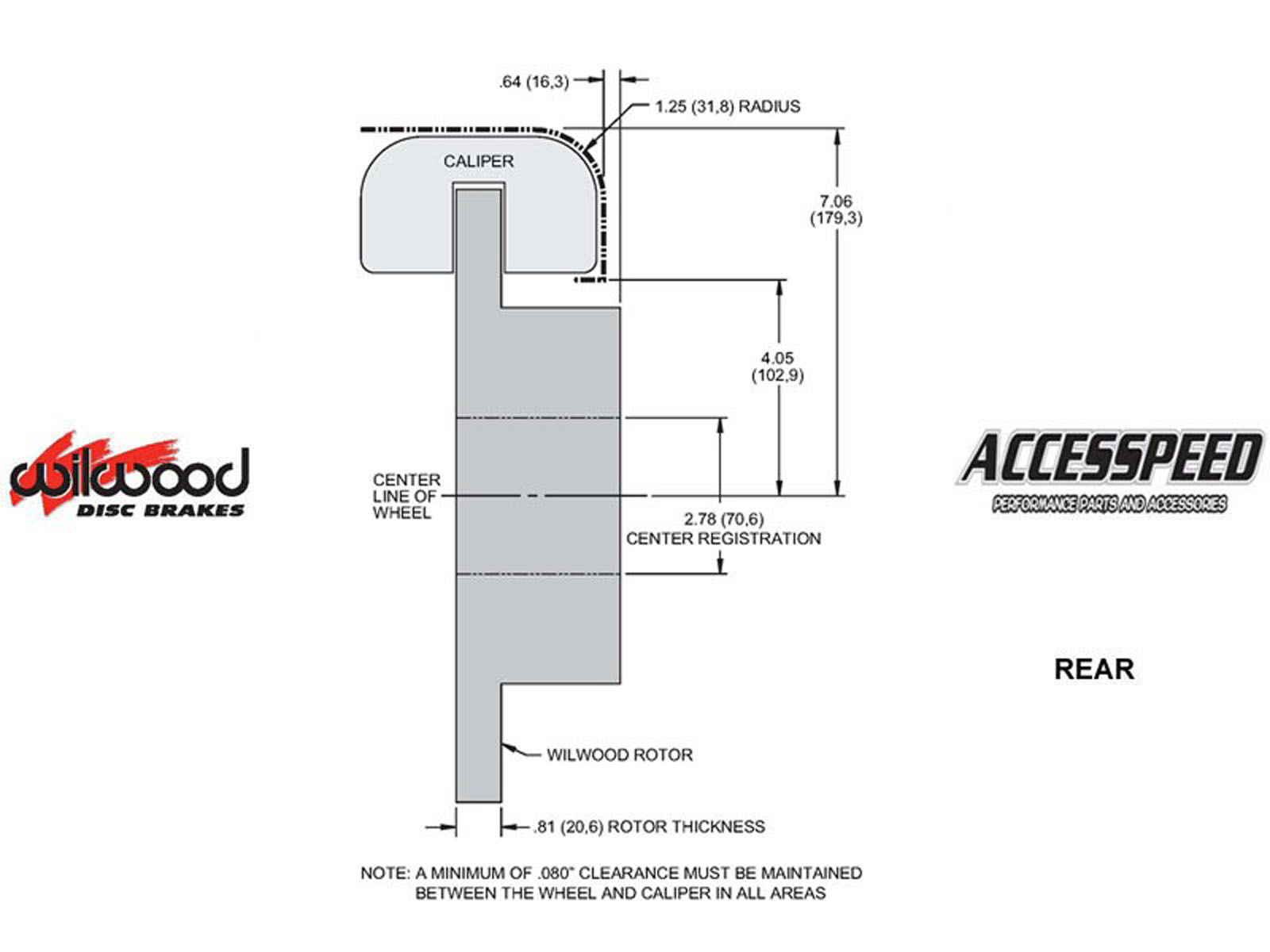

*This Brake Kit may require 14-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
