Wilwood 140-13654-DR Superlite 6R Front 13" Big Brake Kit, Drilled, Red, 1957-1968 Ford Cars

Wilwood 140-13654-DR Superlite 6R Front 12.88" Big Brake Kit With Hubs Red Calipers & Drilled Rotors, Fits 1957-1968 Ford/Mercury/Edsel Full-Size Cars

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered 1960 to 1968 Ford & Mercury full size vehicles. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. Brake Kit does not include flex lines. Flex lines are necessary to complete the installation of the kit and must be ordered separately.

Most 1957-1966 models require Wilwood Flexline Brake Line Kit #WIL-220-8307

Most 1967-1968 models require Wilwood Flexline Brake Line Kit #WIL-220-7699

Most            1957-1966 models require Wilwood Flexline Brake Line Kit #WIL-220-12168

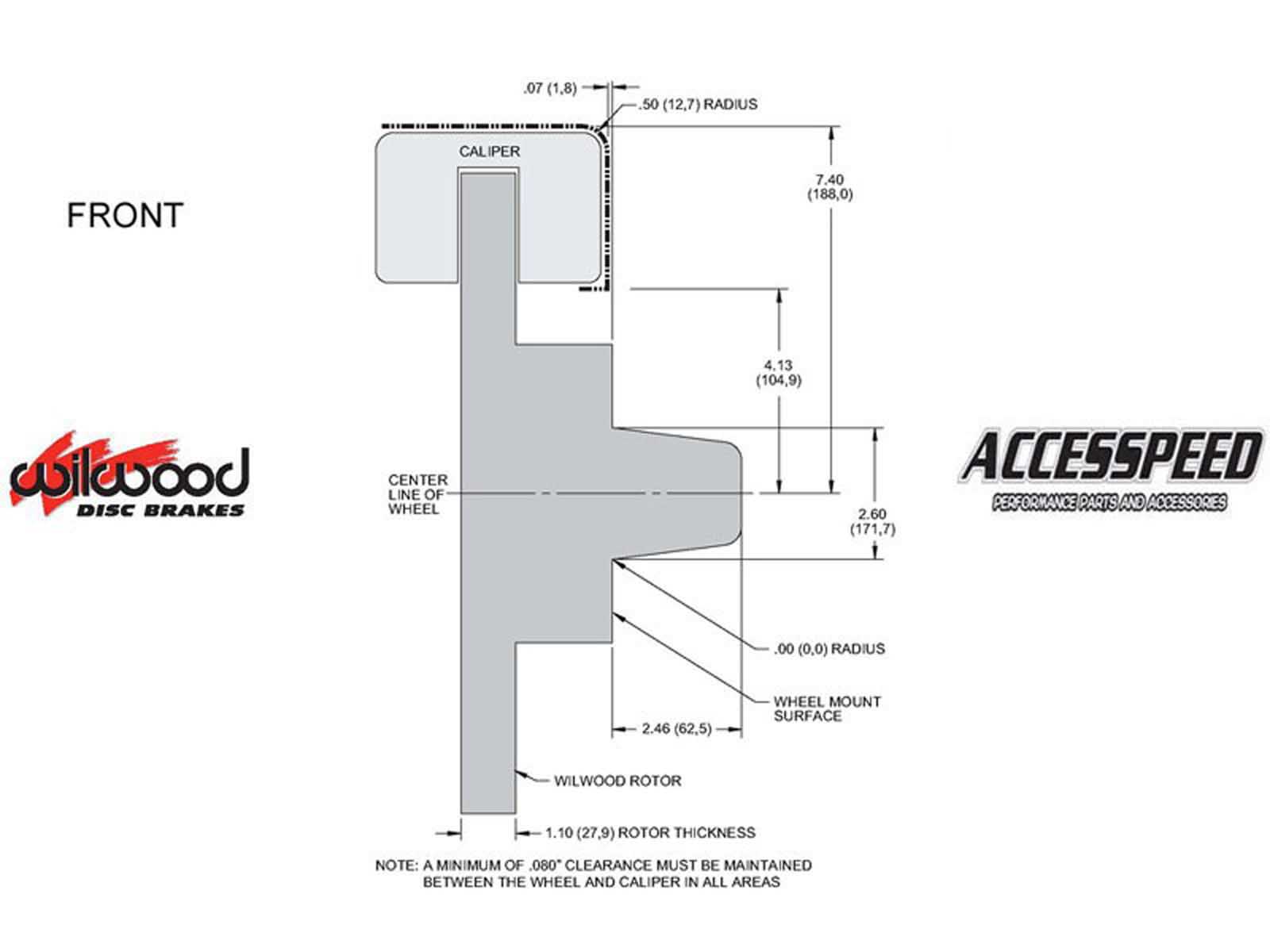

*This Brake Kit may require 17-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

THIS BRAKE KIT HAS A HUB OFFSET OF: +0.03    This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

This kit fits the following vehicles:

Notes

This system includes Red Calipers. See separate listing for the black caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
