Wilwood 140-14526 Superlite 6R Front 12" Big Brake Kit, Black, 1960-1963 Chevrolet & GM Truck

Wilwood 140-14526 Forged Narrow Superlite 6R Front 11.86" Big Brake Kit With Black Calipers, 1960-1963 Chevrolet & GMC 2WD C10 C15 Trucks

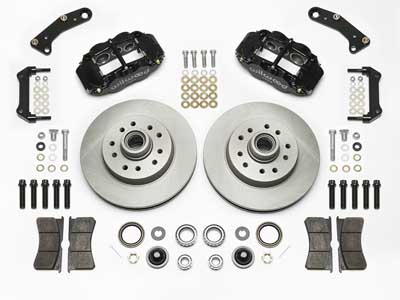

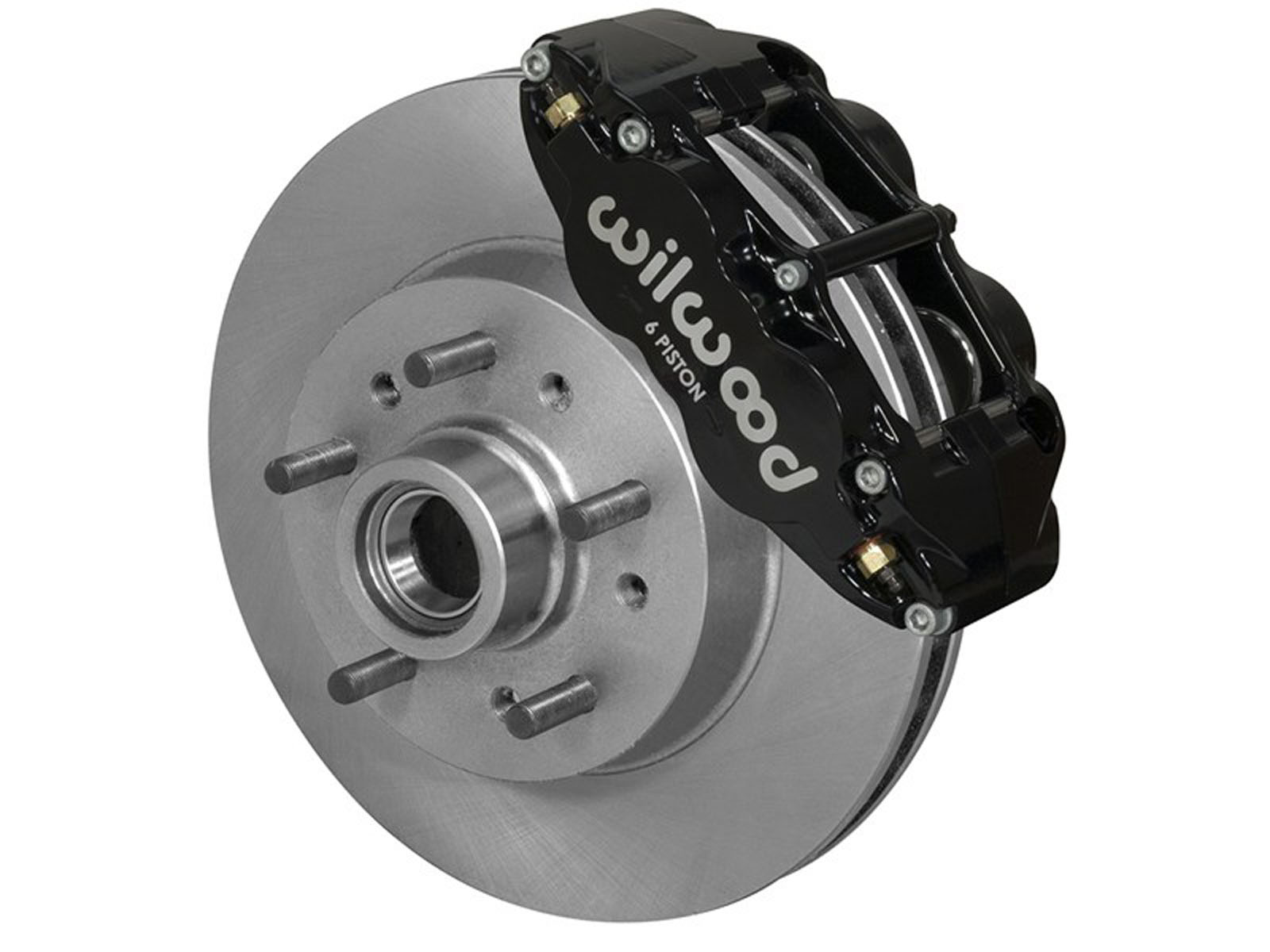

Wilwood's Classic Series front disc brake kits for Chevrolet and GMC C10 / C15 ½ Ton Trucks from 1960 to 1963, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.86" x 1.25” rotor and hub assembly. Based on the venerable Forged Billet Narrow Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FNSL6R 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets and hardware. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood Flexline Kit # WIL-220-12168

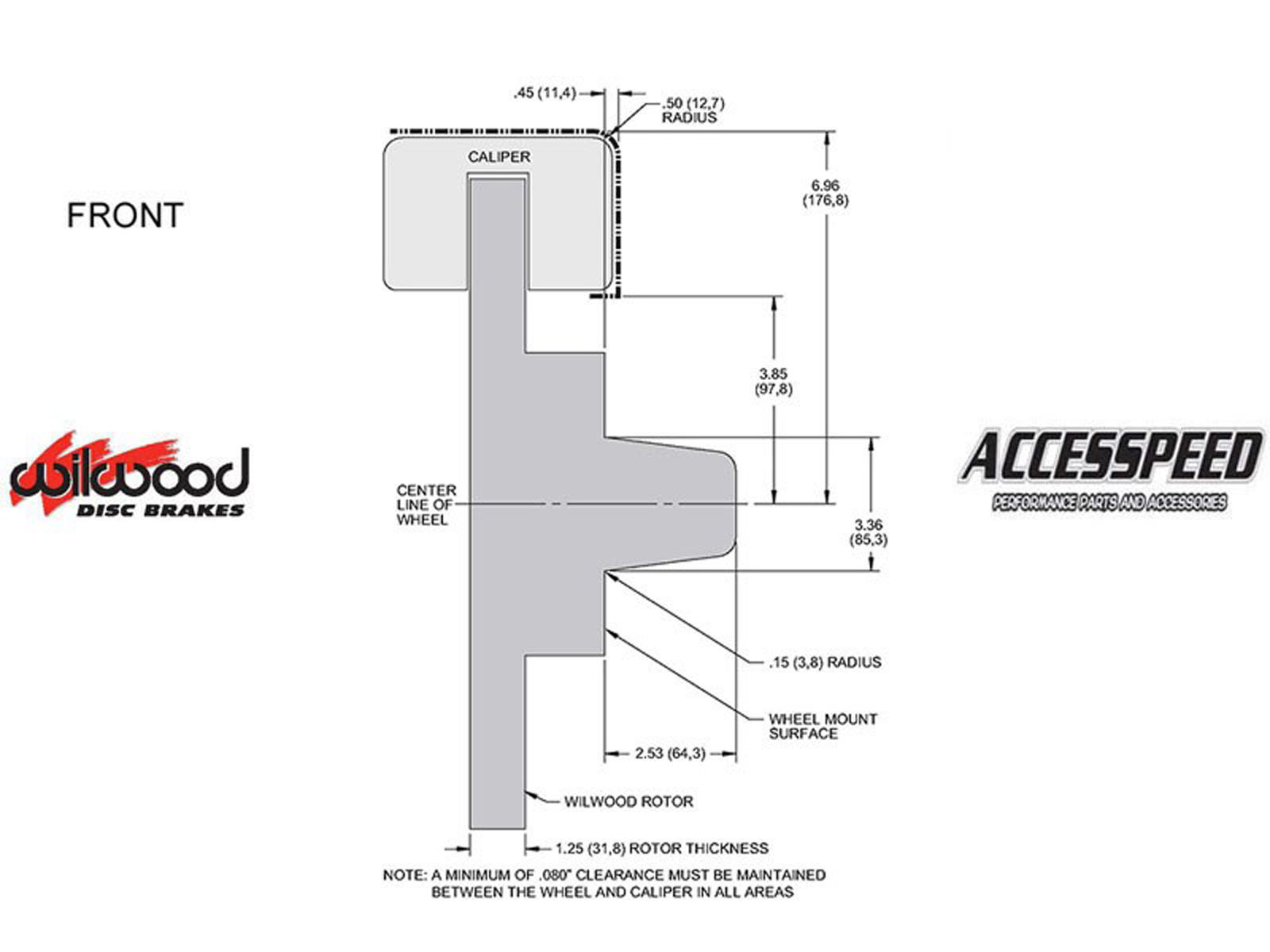

*This Brake Kit may require 15-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

THIS BRAKE KIT HAS A HUB OFFSET OF: +.41    This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.

This kit fits the following 4x2 vehicles:

Chevrolet C10 Panel 1960-1963 Chevrolet C10 Pickup 1960-1963 Chevrolet Suburban 1960-1963 GMC 1000 Series 1960-1963 GMC Suburban 1960-1963

Notes

This system includes Black Calipers. Please see additional listings for Red Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
