Wilwood 140-14965 Superlite 6 RACE Front Big Brake Kit Anodized Slotted 2000-2009 Honda S2000

Wilwood 140-14965 Forged Superlite 6R RACE Front Big Brake Kit With Anodized Calipers and Slotted Rotors 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 Honda S2000

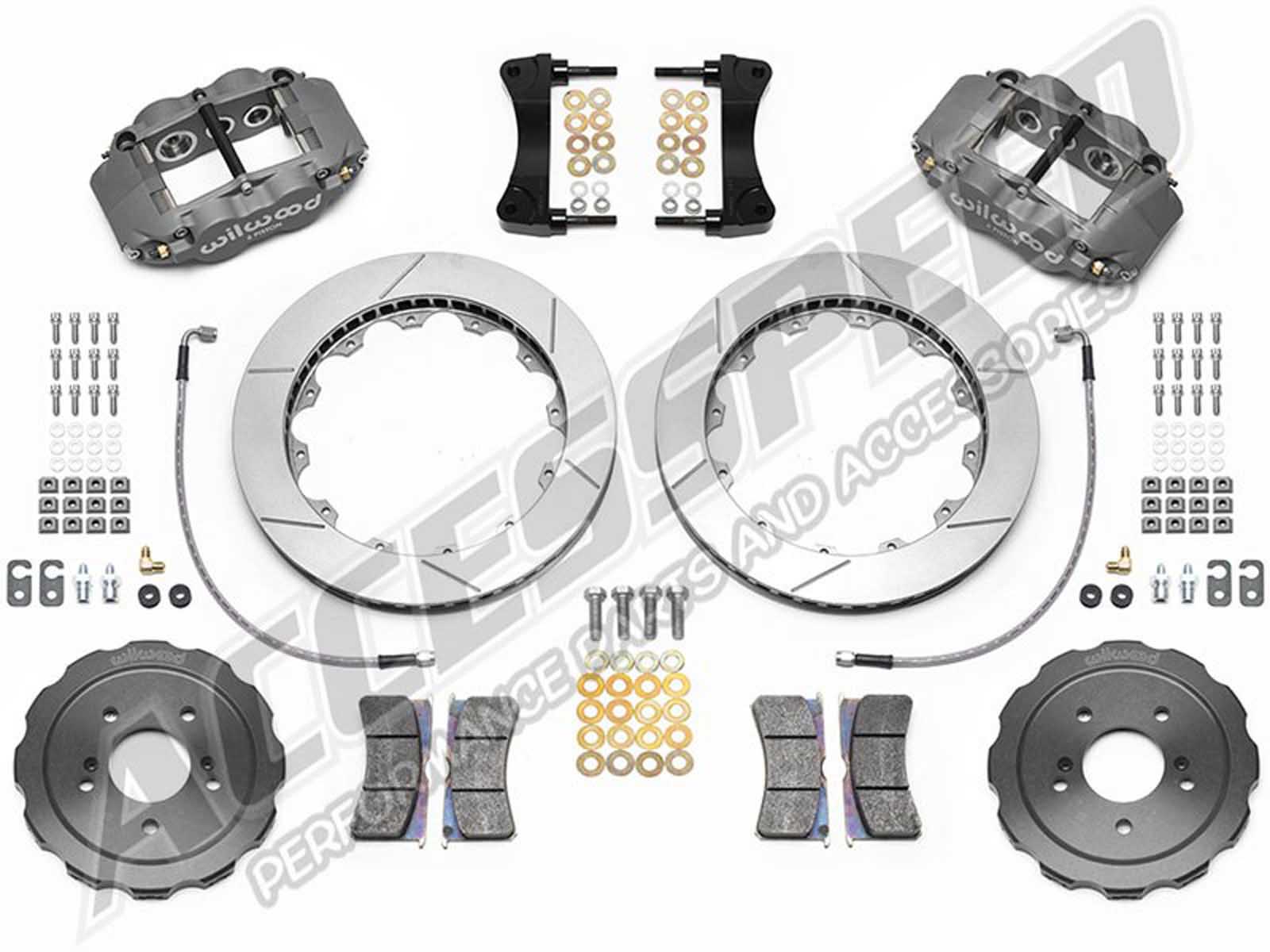

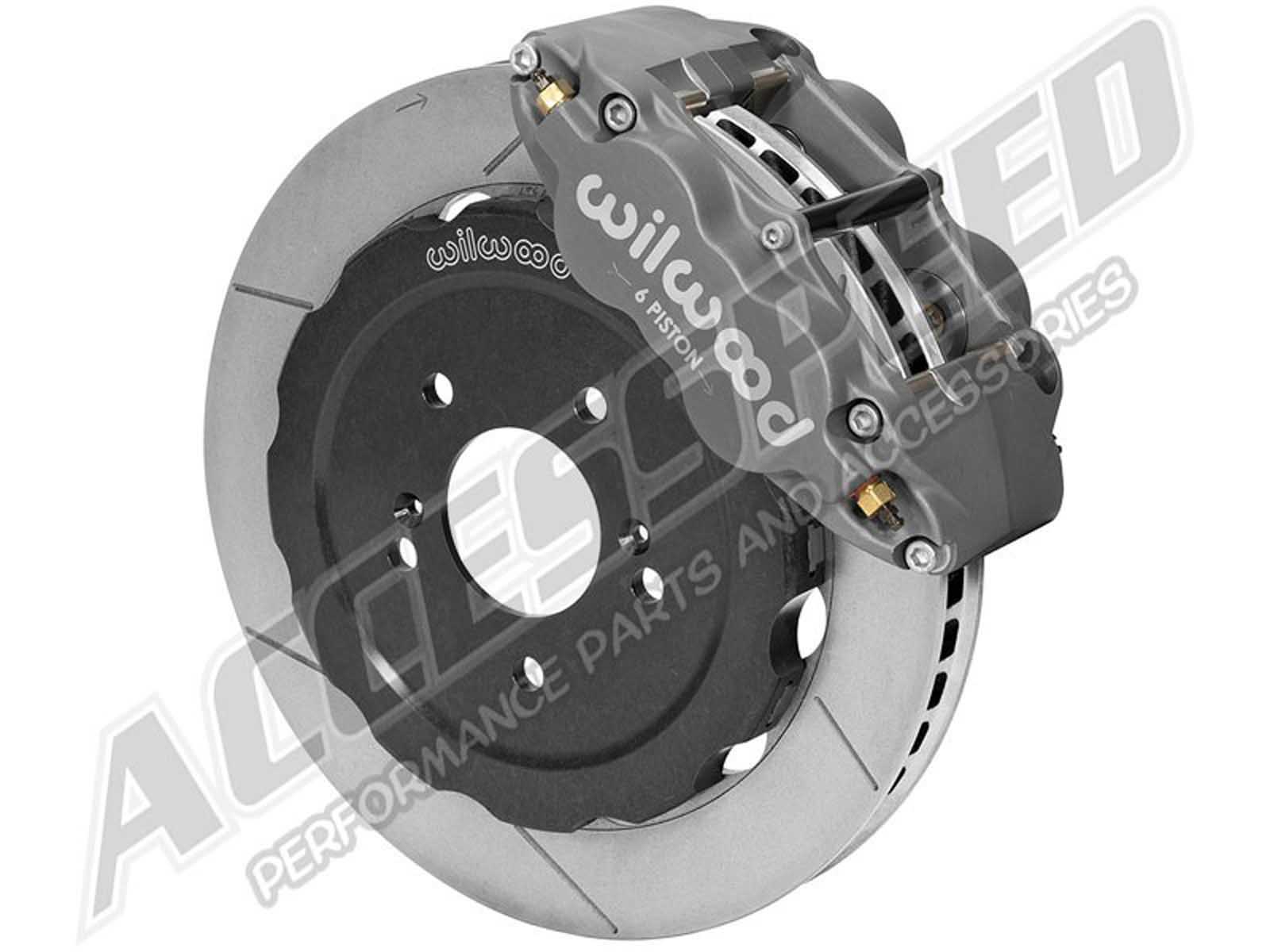

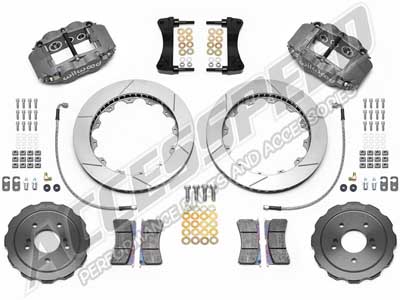

This Wilwood Big Brake Kit from Accesspeed is configured for use in unrestricted class road racing with 17” or larger wheels. FSL6R/ST six-piston calipers with Thermlock pistons are matched with 12.88” directional vane GT competition rotors. These proven winners have delivered championship performance in road racings’ most grueling production car categories. Dynamicaly mounted rotors to forged aluminum hats, with radial mount brackets secure the calipers to the OE location without modification. Kits also include BP-30 high friction race compound pads, premium grade hardware, and stainless steel braided flexlines.

FSL6R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock pistons in ST caliper models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring either a Quick-Silver Nickel finish or Type III hard anodize, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

The FSL6R has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required. The most noteworthy feature of all the FSL6R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL6R body is stress-flow forged from a premium grade aluminum alloy billet.

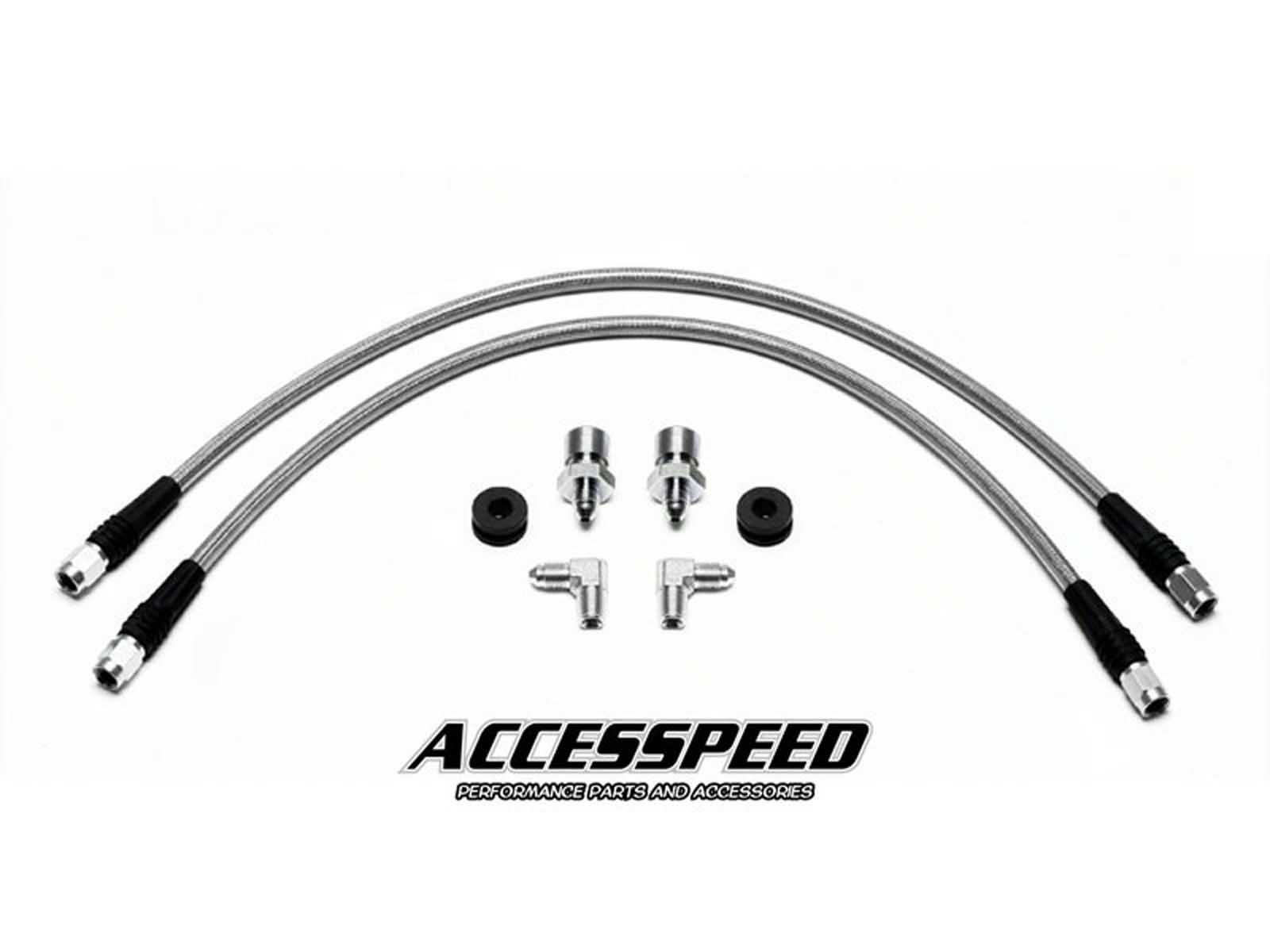

Brake Line Kit #WIL-220-10841 is included in this Brake Kit.

Notes

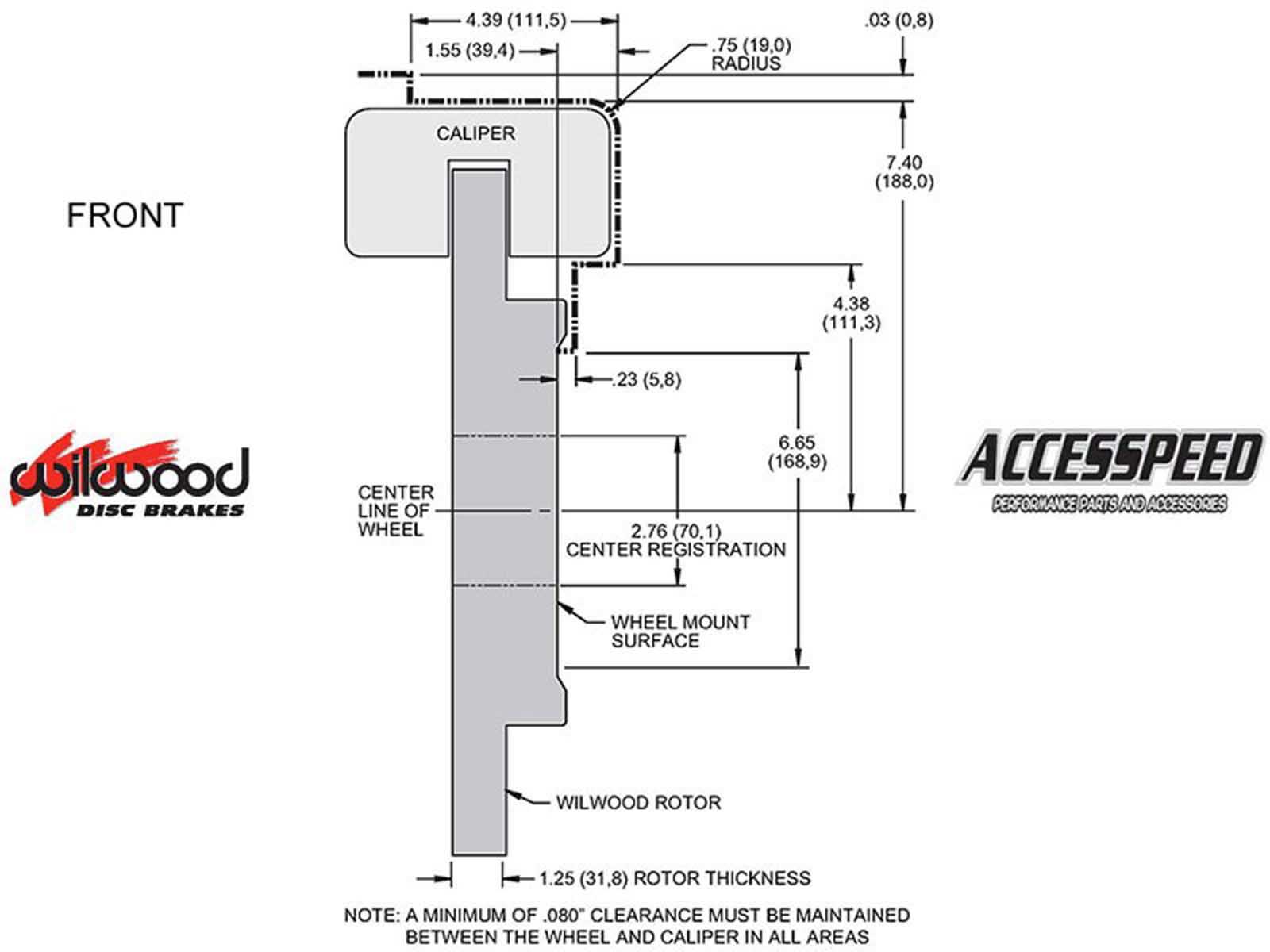

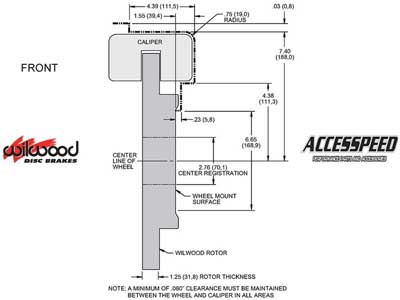

1. This Brake Kit may require 17-inch or larger wheels for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

2. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
