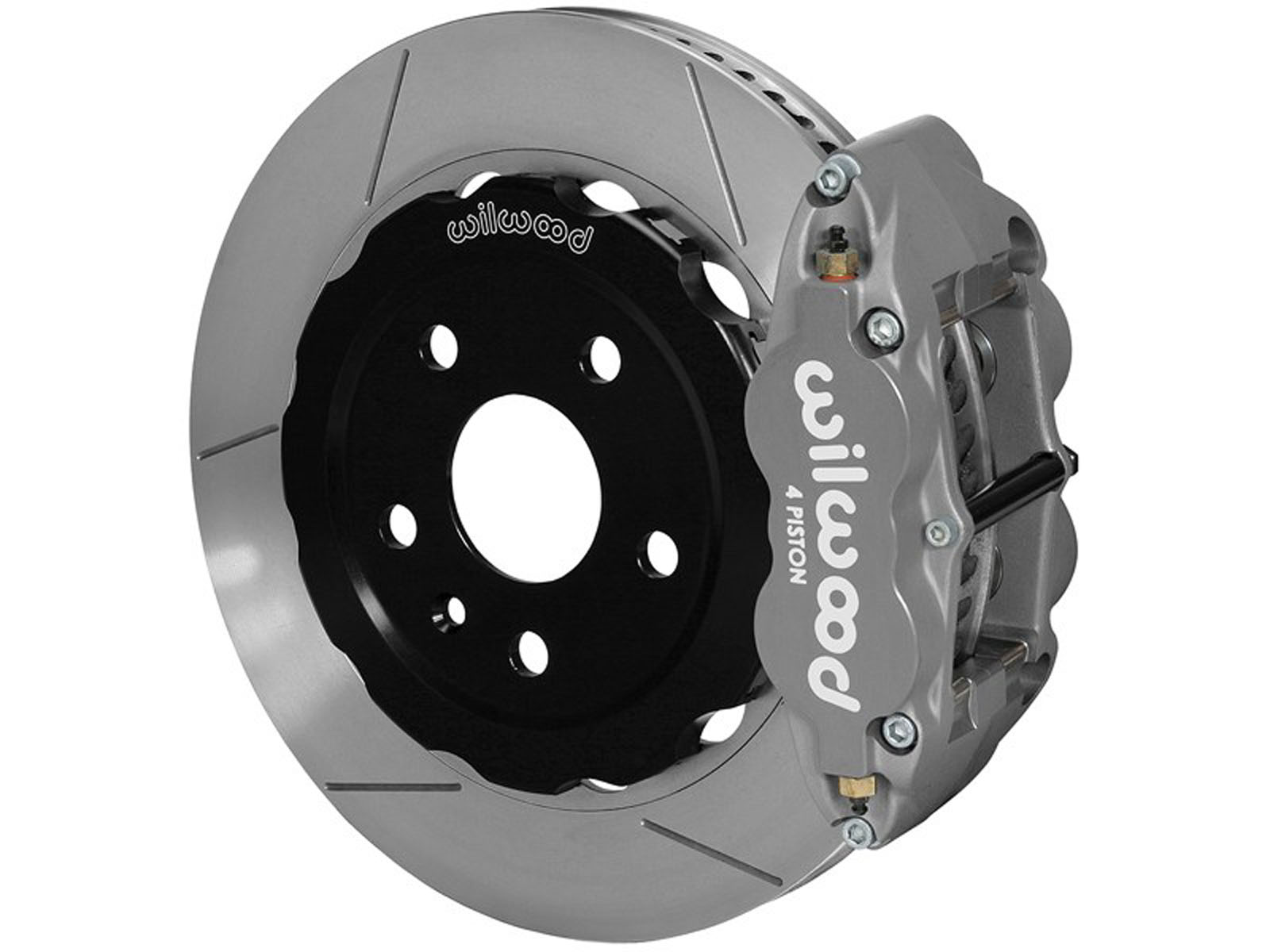

Wilwood 140-14980 Superlite 4R Rear 13" Race Brake Kit, Slotted, Gray Anodized, 2001-2006 BMW M3

Wilwood 140-14980 Forged Narrow Superlite 4R Rear 12.88" Race Big Brake Kit With Slotted Rotors and Gray Anodized Calipers, Fits 2001-2006 BMW M3

This Wilwood Big Brake Kit from Accesspeed is configured for dedicated road racing on all 2001-2006 BMW E46 M3 models. It is the engineered match for the AERO6R/ST front race kits.

(CLICK HERE FOR THE FRONT KIT)

All emphasis is on improved front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. The FNSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec, medium gray color, hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.88” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Further weight reduction is achieved by accommodating the elimination of the parking brake hardware. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with minor modifications to the dust shield as illustrated in the photos on page 4 of the assembly instructions. This championship proven system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included in the kit to complete the installation.

*Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

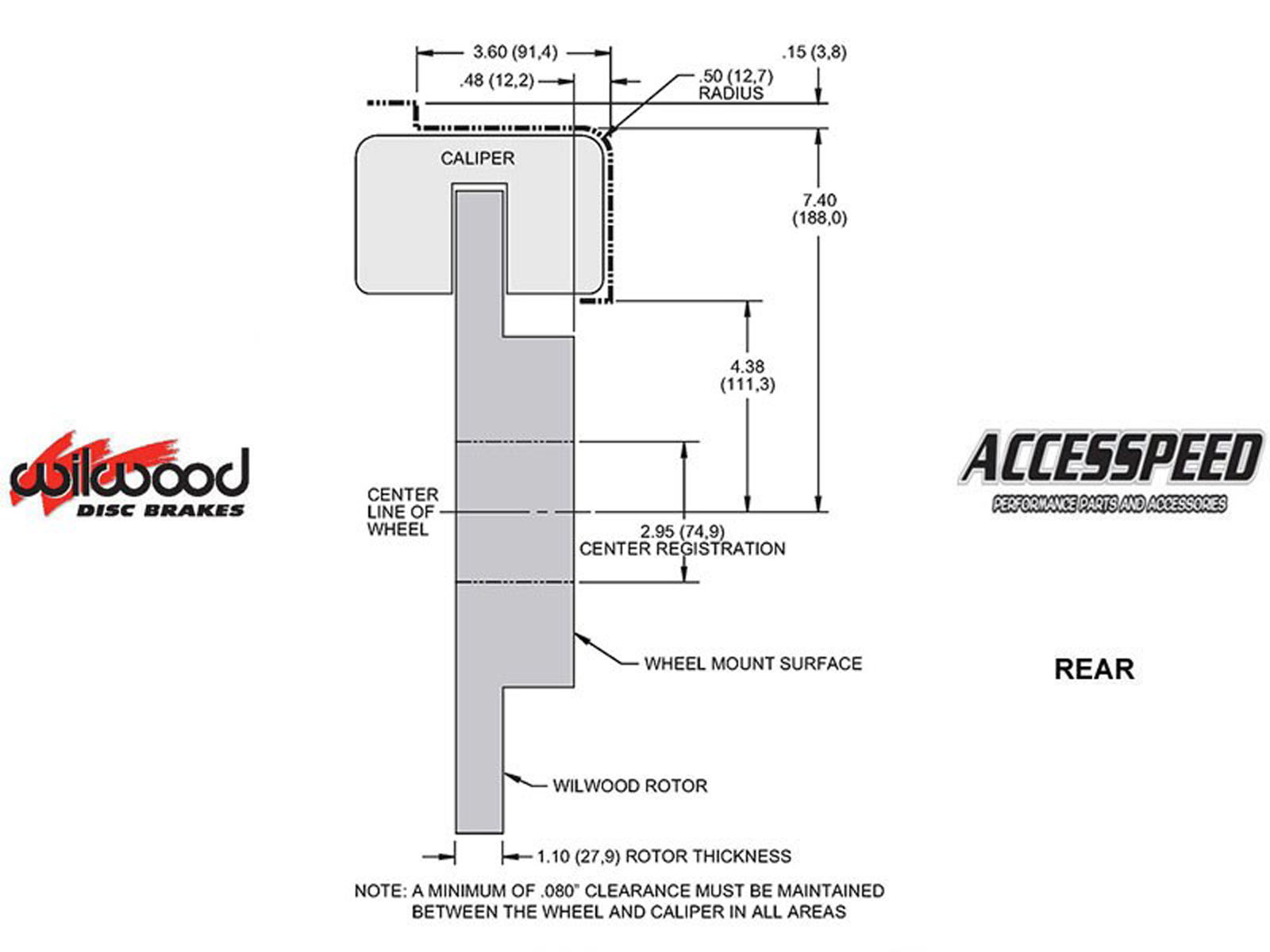

**May require 17-inch or larger wheels for proper fit. Please see the fitment diagram image below for details.

Notes

This system includes Gray Anodized Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.

WARNING: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov

Scroll to view product options.

Scroll to view product options.

Fits These Applications:
