Wilwood 140-15406-R Dynapro DB 12.19" Front Hub Brake Kit, Red, 1970-1973 Ford Cars

Wilwood 140-15406-R Dynapro Dust-Boot 12.19" Front Hub Big Brake Kit With Red Calipers, Fits 1970-1974 Ford and Mercury Cars

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood Flexline Kit # WIL-220-9195

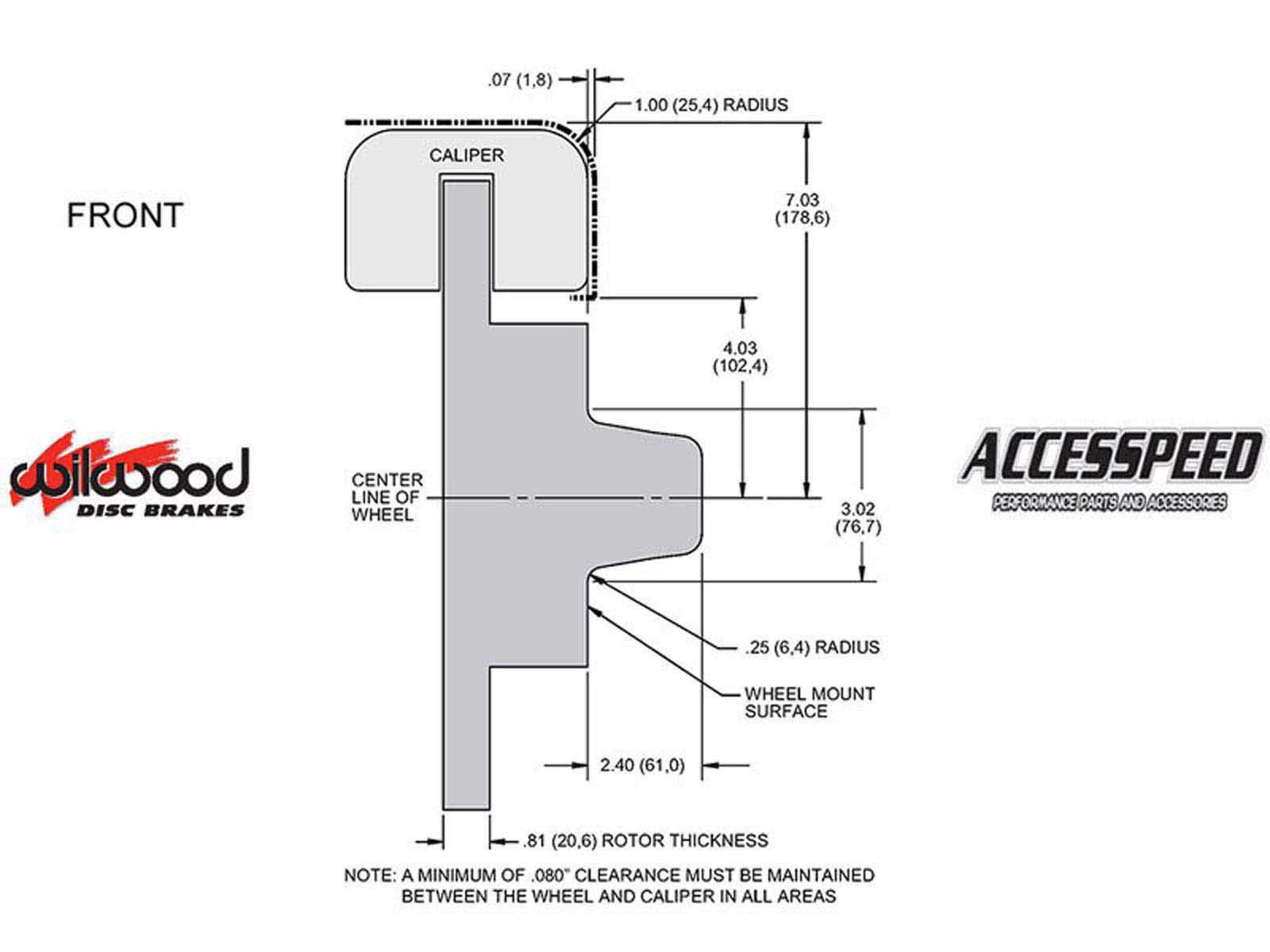

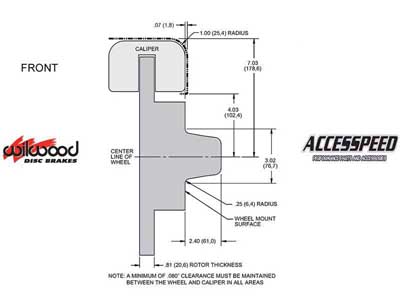

*This Brake Kit may require 15-inch or larger wheels and/or wheel spacers. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

**THIS BRAKE KIT HAS A HUB OFFSET OF: +.09

This kit fits the following vehicles:

Ford Fairlane 1970 Ford Falcon 1970 Ford Maverick 1970 Ford Maverick 1971-1974 Ford Mustang 1970 Ford Mustang 1970-1973 Ford Mustang 1971-1972 Ford Mustang 1973 Ford Ranchero 1970 Ford Ranchero 1970-1971 Ford Torino 1970-1971 Mercury Comet 1970-1971 Mercury Comet 1970-1973 Mercury Cougar 1970-1972 Mercury Cougar 1973 Mercury Cyclone 1970-1971 Mercury Montego 1970-1971

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
