Wilwood 140-15409 SL6R-DS Front 14" Brake Hub Kit Black Slotted 1967-69 Camaro 1964-72 Chevelle Nov

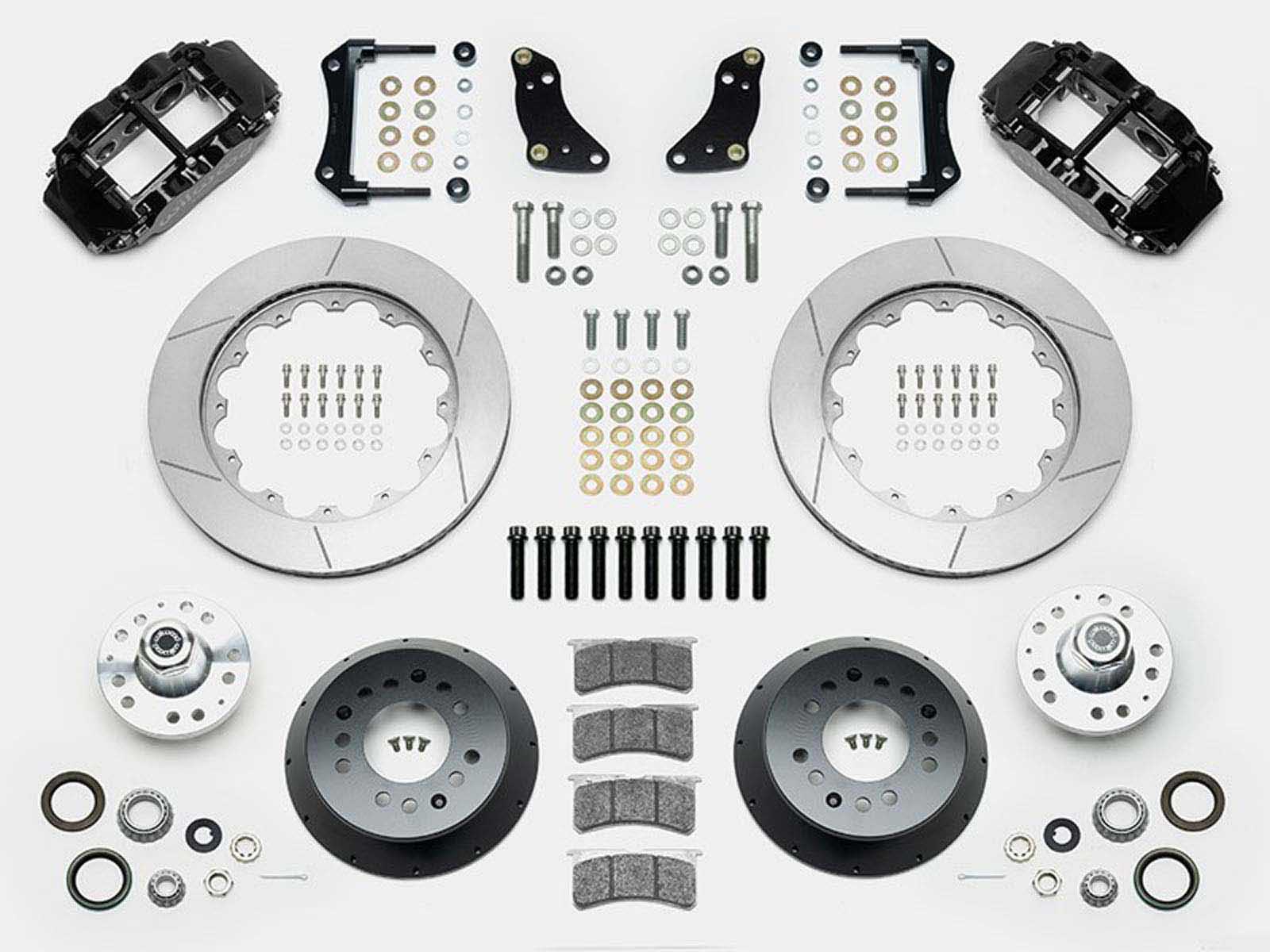

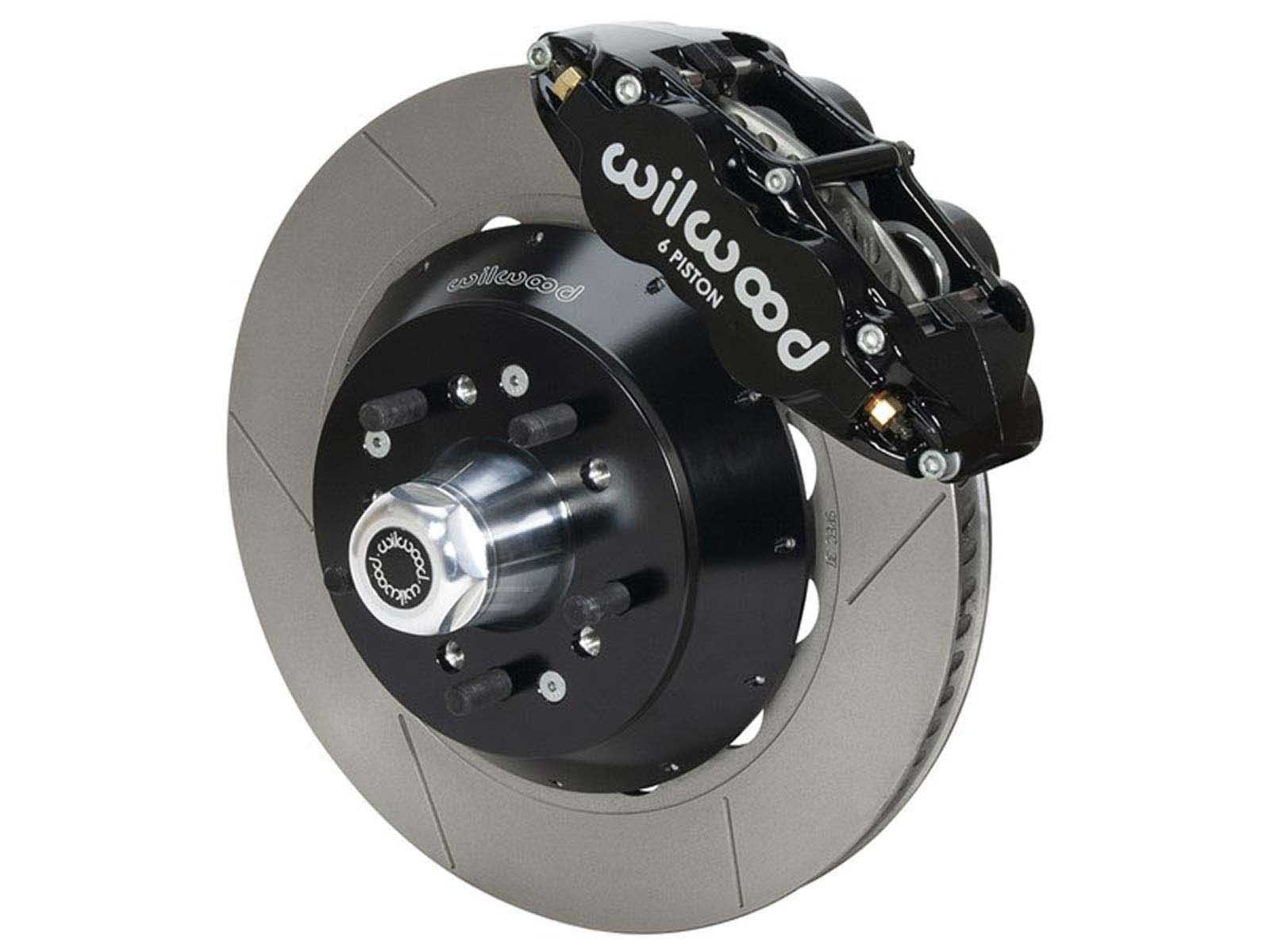

Wilwood 140-15409 Front 14" Forged Narrow Superlite 6R Dust-Seal Big Brake Kit With Hubs Black Calipers and Slotted Rotors Fits 1967-1969 Camaro 1967-1969 Firebird, 1964-1972 Chevelle, 1964-1972 El Camino, 1964-1972 Nova/Chevy II, 1964-1972 Olds 442/Cutlass, 1964-1974 Buick Skylark, 1964-1972 GTO/Le Mans/Tempest, 1969-1972 Grand Prix

FNSL6R-DS Billet Forged six-piston calipers with 14” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 18” and larger wheels, FNSL6R-DS kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. The Forged Narrow Superlite 6R Dust Seal (FNSL6R-DS) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. The addition of Wilwood’s exclusive wiper dust seal allows these calipers to be used in areas that may mandate environmental sealing. This brake kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. Use kit # WIL-220-7056

THIS BRAKE KIT HAS A HUB OFFSET OF: +.38  (This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.)

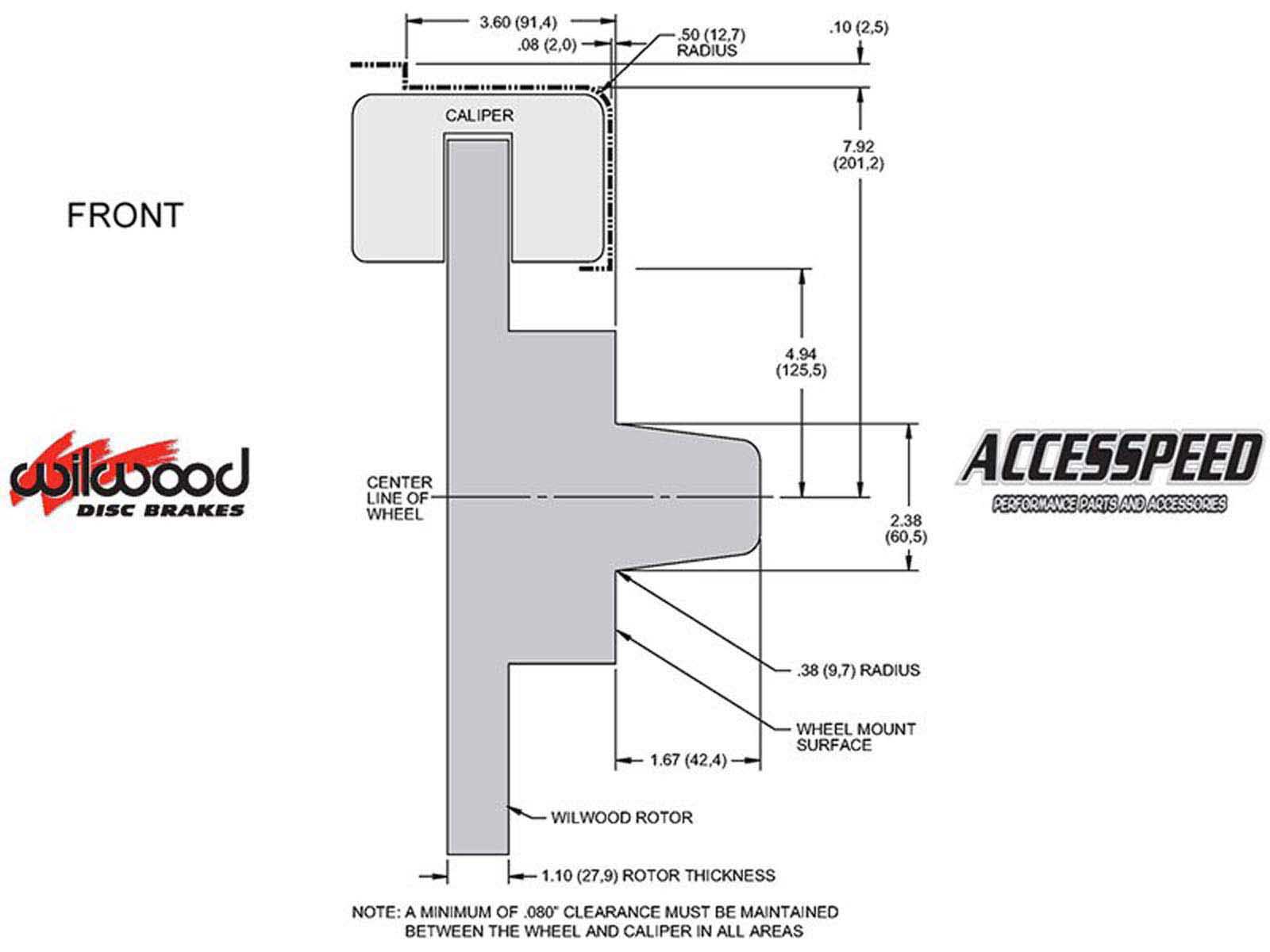

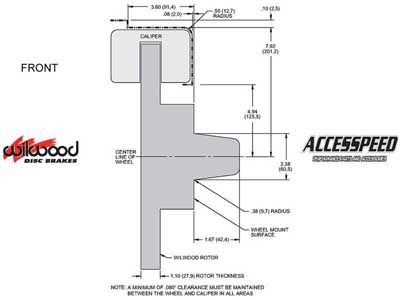

*This Brake Kit may require 19-inch or larger wheels or wheels spacers for proper fit. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

This kit fits the following vehicles:

Buick Apollo 1973-1974 Buick Gran Sport 1965-1967 Buick GS 1970-1972 Buick GS 350 1968 Buick GS 350 1969 Buick GS 400 1968 Buick GS 400 1969 Buick GS 455 1970 Buick GS 455 1970-1972 Buick Skylark 1964-1966 Buick Skylark 1967-1970 Buick Skylark 1967-1972 Buick Special 1964-1966 Buick Special 1967-1969 Buick Sportwagon 1964-1966 Buick Sportwagon 1967-1970 Buick Sportwagon 1967-1972 Chevrolet Camaro 1967-1969 Chevrolet Camaro 1968-1969 Chevrolet Chevelle 1964-1966 Chevrolet Chevelle 1967-1972 Chevrolet Chevy II 1964-1966 Chevrolet Chevy II 1967-1968 Chevrolet El Camino 1964-1966 Chevrolet El Camino 1967-1972 Chevrolet Monte Carlo 1970-1972 Chevrolet Nova 1967-1974 GMC Sprint 1971-1972 Heidts Pro-G Oldsmobile 442 1964-1966 Oldsmobile 442 1967-1972 Oldsmobile 442 1970-1972 Oldsmobile Cutlass 1964-1966 Oldsmobile Cutlass 1967-1972 Oldsmobile Cutlass 1970-1972 Oldsmobile Cutlass Supreme 1967-1972 Oldsmobile Cutlass Supreme 1970-1972 Oldsmobile F85 1964-1966 Oldsmobile F85 1967-1969 Oldsmobile F85 1967-1972 Oldsmobile F85 1970-1972 Oldsmobile Omega 1973-1974 Oldsmobile Vista Cruiser 1964-1966 Oldsmobile Vista Cruiser 1967-1972 Pontiac Acadian 1964-1966 Pontiac Acadian 1967-1971 Pontiac Beaumont 1964-1966 Pontiac Beaumont 1967-1969 Pontiac Firebird 1967-1969 Pontiac Grand Prix 1969 Pontiac Grand Prix 1969-1972 Pontiac GTO 1964-1966 Pontiac GTO 1967-1971 Pontiac GTO 1967-1972 Pontiac LeMans 1964-1966 Pontiac LeMans 1967-1972 Pontiac Tempest 1964-1966 Pontiac Tempest 1967-1972 Pontiac Ventura II 1971-1974 Ridetech 1963-1979 C2/C3 Corvette Ridetech 1964-1966 Mustang Ridetech 1964-1972 GM A Body Ridetech 1967-1981 GM F Body Ridetech 1968-1974 GM X Body

Notes

This system includes Black Calipers. See separate listing for the red caliper system. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering. Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
