Wilwood 140-15843-R Dynalite EPB 12" Rear Big Brake Kit, Red, Ford Big New Flange Axle 2.50" Offset

Wilwood 140-15843-R Forged Dynalite Pro 12.19" Electronic Parking Brake Rear Big Brake Kit, Red Calipers, Fits Ford & Mercury Vehicles With Ford Big New Style Flange Axle & 2.50 Offset

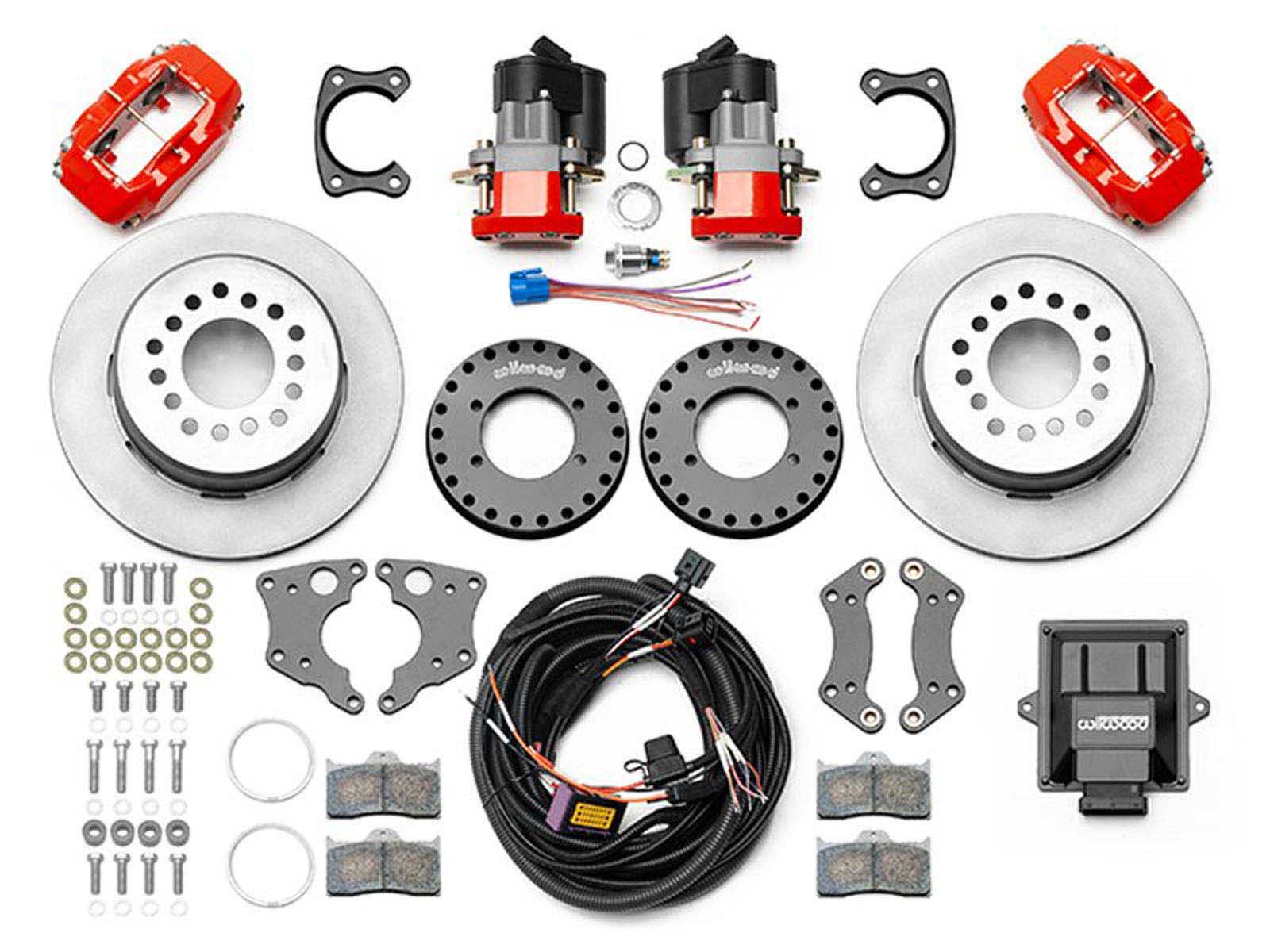

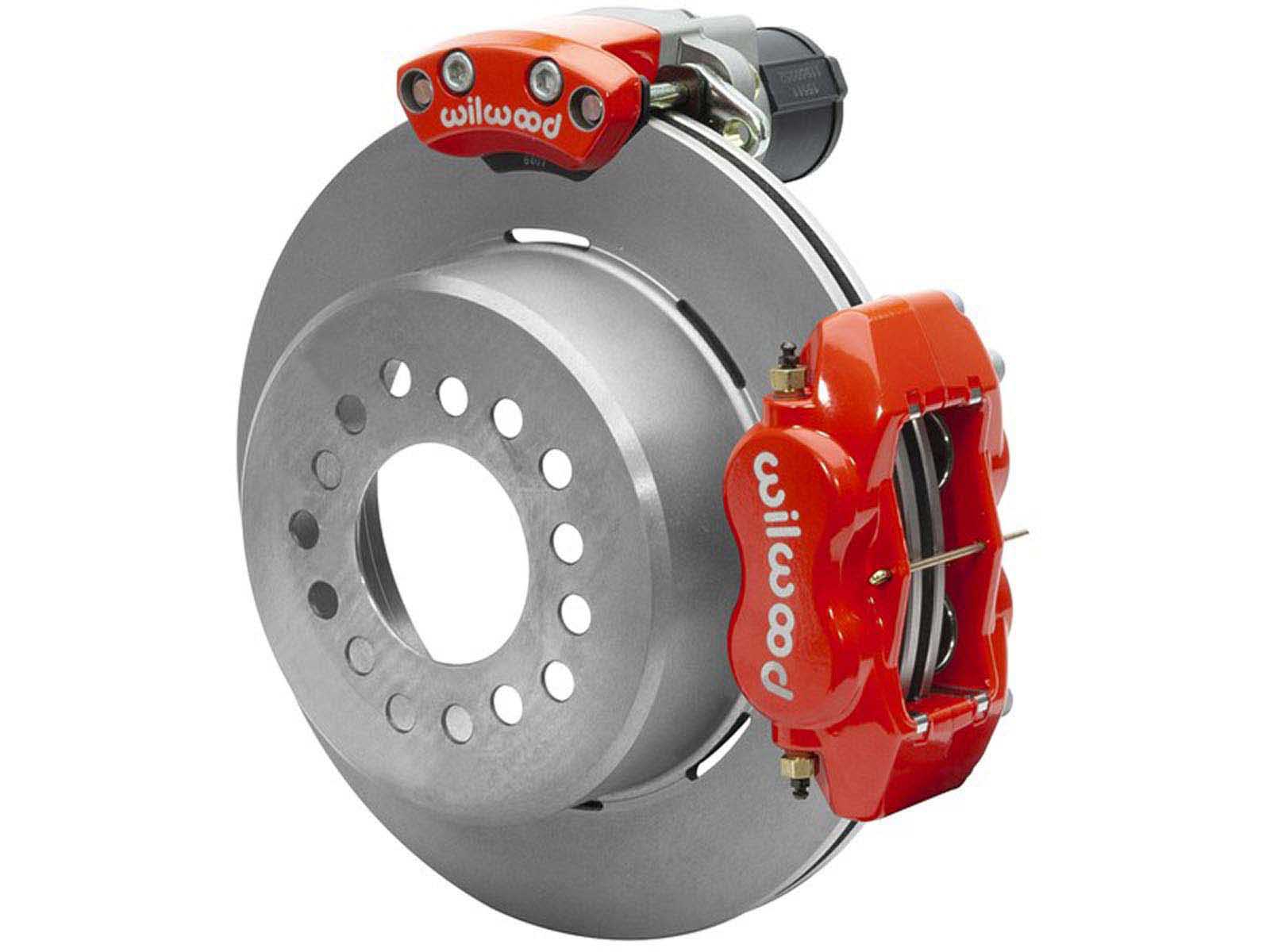

This group of FDL Pro-Series Rear Electronic Parking Brake Kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite four piston calipers, 12.19” one-piece rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Brake Kit does not include brake lines. Wilwood Flexline brake lines are necessary to complete the installation of the kit and must be ordered separately. See below for brake line kit options:

Wilwood 14" Flexline Brake Line Kit #WIL-220-7056. (Recommended for most applications.)

Wilwood 12" Flexline Brake Line Kit #WIL-220-9886.

Wilwood 10" Flexline Brake Line Kit #WIL-220-8999.

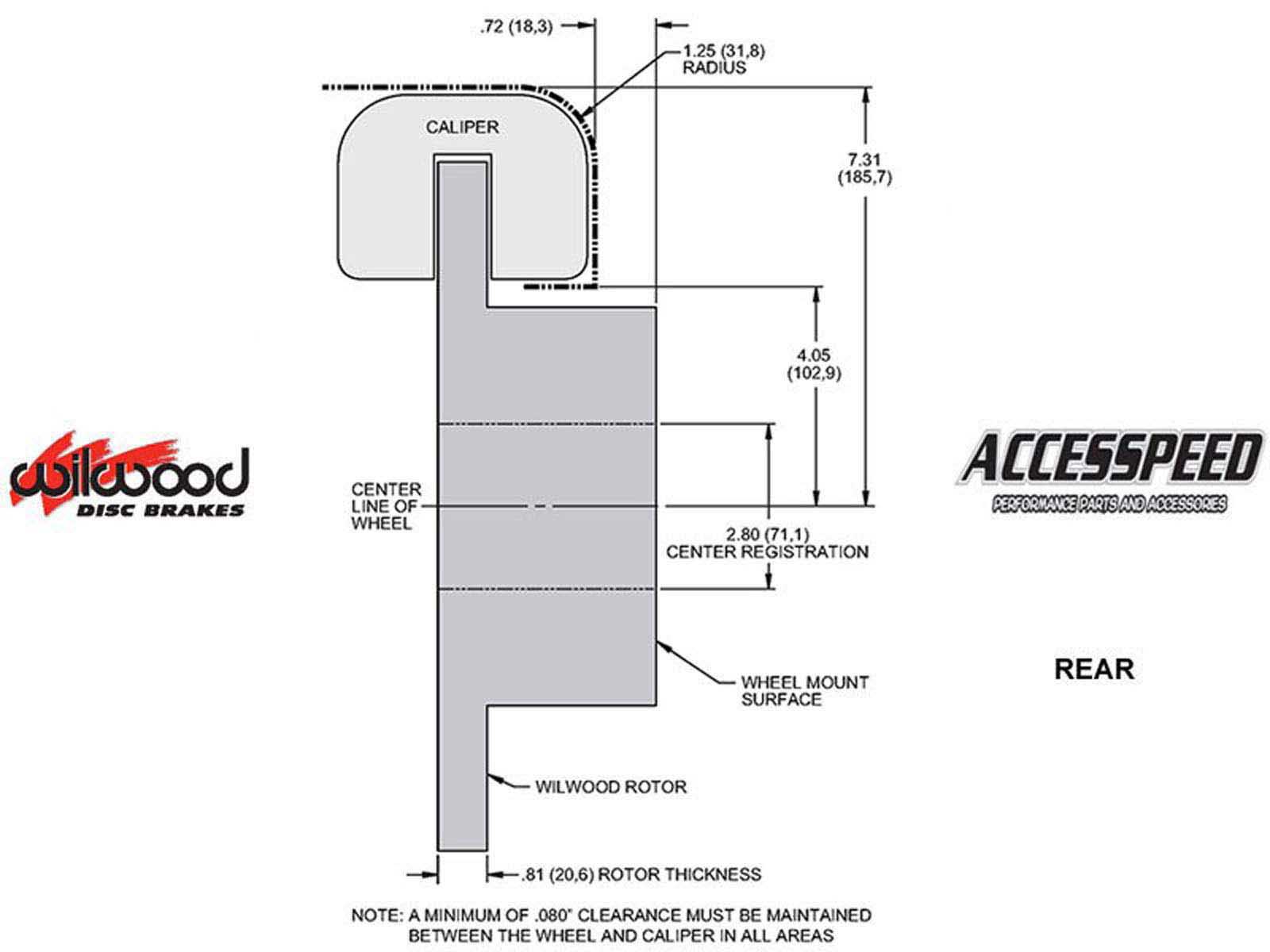

*This Brake Kit may require 15-inch or larger wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.

Fits the following vehicles:

• 1939-1948 Deluxe
• 1939-1940 Standard
• 1941-1948 Super Deluxe
• 1957-1964 Victoria
• 1957-1968 Country Sedan
• 1957-1968 Country Squire
• 1957-1968 Custom
• 1957-1970 Fairlane
• 1957-1971 Ranchero
• 1958-1960 Thunderbird
• 1959-1968 Galaxie
• 1963-1970 Falcon
• 1964-1993 Mustang
• 1968-1971 Torino
• 1970 Maverick

Notes

This system includes Red Calipers. Please see additional listings for Black Calipers. Installation of Wilwood Disc Brake Kits may affect the wheel offset and will require a larger diameter wheel for caliper clearance. All returned orders are subject to a re-stocking fee, so please make sure your wheels will work before ordering! Shipping Promotions are valid in the Lower 48 States only.  For all other areas, please contact us for a discounted rate quote.
